## Unable to display plots...

Maple

Hellow,

I am unable to combine the graphs. I have a plot structure as

P1:=plots[odeplot](dsol, [x, F(x)], 0 .. 5, color = red);

P2:=plot(eval(F(x), p = 1), x = 0 .. 5, color = blue);

I want to combine two structure and display in same plot

display (P1,P2);

## How to plot real part only in multiple p...

Maple

Help required to plot the real part only in  multiple plots. i have written some codes  please help me to rectify the errors.Thanks in advance

restart:
with(plots):
n:=0.75:Eh:=100:mn:=1:t0:=0.2:
a1:=(mn/t0)^((n-1)/(n))*(tb)^(1/n):a3:=Eh/tb:a4:=(Eh)^2:
U1:=(a1/Eh)*(-1+(a3*r/Eh))^(1/n)*(n*a4/(1+n))*(1/a3-(r/Eh))-a1*(-1+(1/tb))^(1/n)*(n/(n+1)*(tb-1)):
plot([Re(seq(eval(U1,tb=j),j in[0.8,0.9,1.0]))],r=0..1,legend = [tb =0.8, tb=0.9,tb =1.0],  labels = ["z ", "U"], labeldirections = ["horizontal", "vertical"],  linestyle = [solid,dash,dot],color = [black, red,green]);

## Area outside cardiode and inside circ...

Maple

Dear maple user ,

I want to draw the area outside r=2+2*cos(theta) and inside r=3 ,where theta=0..2*pi.

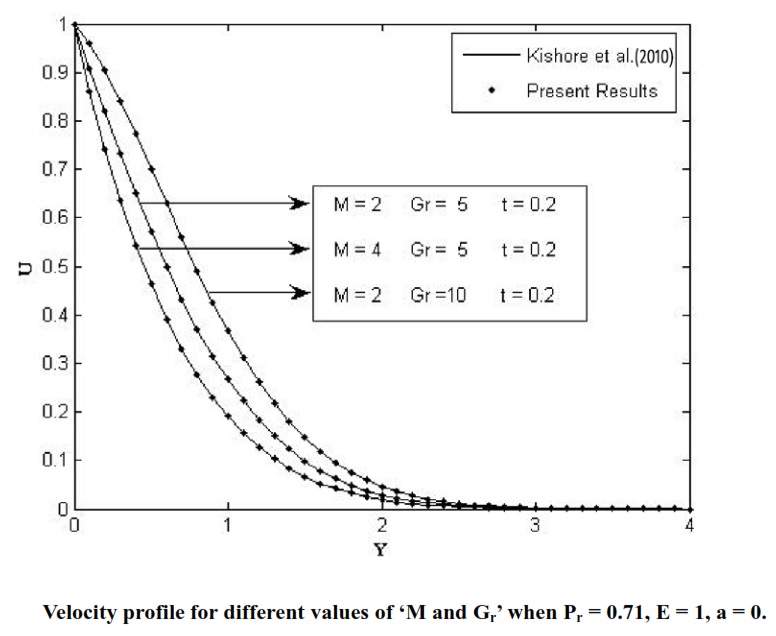

I am attacing the sample figure.

## How to display matrix plot in rows...

Maple

How to display  3 figures (matrixplot(A),matrixplot(B),matrixplot(C)) in a row

plots:-matrixplot(A):

plots:-matrixplot(B):

plots:-matrixplot(C):

## System of pdes unable to get the soluti...

Maple

Dear maple user ,while solving the system of pdes i am getting the errors and unable to plot the curves. please help me to  rectify the errors and  plot the curves.

restart;
with(PDETools):
G:=1300:beta:=0.0075:epsilon:=4.9*(10)^(-6):Pa:=100:alpha:=24:Pv:=97:
sys1:= {G*(beta^2*u(r,z)*diff(u(r,z),z)+v(r,z)*diff(u(r,z),r)) = -diff(p(r,z),z) +beta^2*diff(u(r,z), z\$2)+diff(u(r,z),r\$2)+(1/r)*diff(u(r,z),r),G*(beta^2*u(r,z)*diff(v(r,z),z)+v(r,z)*diff(v(r,z),r)) = -diff(p(r,z),r) +beta^2*diff(v(r,z), z\$2)+diff(v(r,z),r\$2)+(1/r)*diff(v(r,z),r)-(v(r,z)/r^2),beta^2*diff(u(r,z),z)+diff(v(r,z),r)+(v(r,z)/r)=0  }:

IBC:=(D[1](u))(0, z) = 0,v(0,z)=0,phi*(D[1](u))(1, z)+u(1,z) = 0,v(1,z)=epsilon*(p(1,z)+(Pa/alpha)-1),p(r,-1)=0,p(1,z)=(Pv-Pa)/alpha:
sol := pdsolve(sys1, IBC, numeric):
r:=0:

p1 := sol:-plot(u(r, z), phi = 0, numpoints = 100, z = -1 .. 1, color = ["Blue"], legend = ["u(r,z)"]):

p2 := sol:-plot(u(r, z), phi = 0.15, numpoints = 100, z = -1. 1, color = ["red"], legend = ["u(r,z)"]):

p3 := sol:-plot(u(r, z), phi = 0.4, numpoints = 100, z = -1 .. 1, color = ["green"], legend = ["u(r,z)"]):

plots:-display({p1, p2,p3});
