@acer

That is very instructive. I used complexplot3d for convenience but the plot3d with re and im is easier to understand and even shorter.

This link is unfortuneately not working Download plot3d_cplx.m

Thank you!

@Carl Love

Some thoughts:

A simple flag could be implementend for each Maple input line this way: If Maple_input_has_changed AND Input_not_send_to_Maple_server then set flag=true.

(and: If_output_received then set flag=false)

This would be an improvement but will fail in the following screnario:

A user opens a document and changes one input line at the end of the document, because the input refers to equation numbers and no entiere execution of the document is required to generate "correct". The user oversees that also names are used in the input that have been assigned to a value. After exceution of the input line the new output will show the name but not its value.Then the user saves the document with "wrong" output.

To adress this, Maple's GUI must somehow be capable to analyse the input for situations where execution of a single line will potentially give an output that is different from the execution of the whole document and at least inform the user. I am not sure if this is easily possible.

In any case, the benefit of whatever implementation must be weighed against the effort and that is a product management decision rather than a developers choice.

@Carl Love

I compared to subs but forgot the eval...

eval(subs(int = 1, expr))

All clear now.

Thanks

@Carl Love

Does the help page of eval describes this special syntax?

@dharr

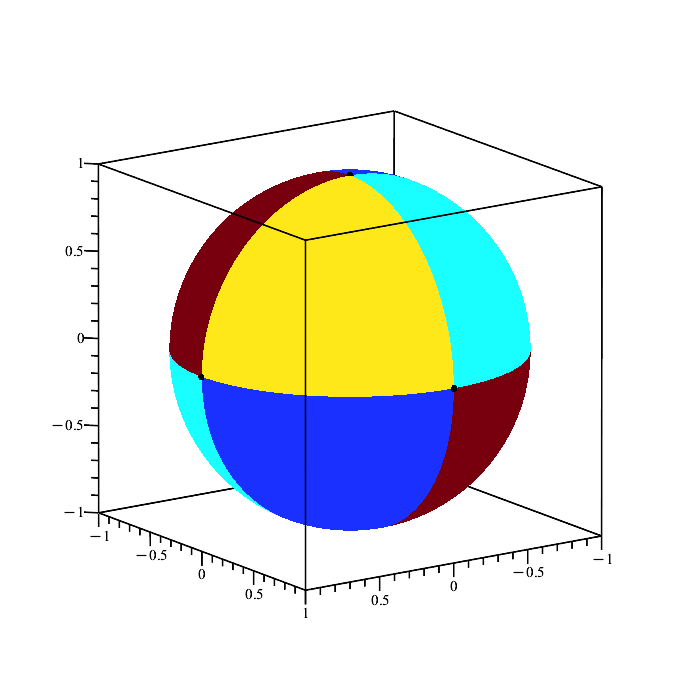

With plottools/rotate also equatorial poles should be possible. Below is an assembled sphere with plots/display animated with plots/display. I can test a few things with it.

Thank you

@dharr

With your code at hand I could have provided a good example what I want to visualize

restart;
ball:=plot3d(1, 0..2*Pi, 0..Pi,coords=spherical,style=surface,axes=none,
 color=proc(theta,phi) if phi>Pi/8 then
                    if theta>Pi then 0.15 else 0.5 end if
                  else
                    if theta>Pi then 0.75 else 1 end if
                 end if
       end proc):
plots:-display(seq(plottools:-rotate(ball,angle/3,angle/2,angle),angle=0..12.*Pi,Pi/10.),insequence);

Coloring north (and south?) poIe revals already details of a tumbeling motion. Adding equatorial poles is not that obvious in spherical coordinates.

I have to study color functions.

Thanks

@Rouben Rostamian

Yes, if the facettes could be colored individually, I would in a frist attempt color facettes on three orthogonal axes with a distinguishable color set and pin it to a rotating body that changes the axis of rotation to see if this can be recognized.

Is that (coloring of facettes) possible?

Update: I have not found an easy way to create multi-colored objects. The geom3 package is vast. Maybe it is easier to define some facettes as stickers and pin them to a body (e.g. a semi-transparent sphere). I will do some experiments and see how easy that is.

The animation you send already reaveals some weaknesses of my initial ideas. Very helpfull.

Thank you

@acer

Yes I missunderstood you. Probably because the readers of your original post immediately jumped on rendering planets.

If I would understand the mapping process from images to spheres better I could preselect images or draw them myself (like drawing on a stero net for stereographic projection).

I had a few attempts with the image option but got the artefact other readers were reporting (only a part is mapped correctly). Your code with the image option seem to work better.

plot3d(1, x=0..2*Pi, y=-Pi..Pi, coords=spherical, style=surface,
       image="http://www.vendian.org/mncharity/dir3/planet_globes/TemporaryURL/mars0_src_smaller.jpg", scaling=constrained, orientation=[-70,-40,180]);

And one time I got the earth mapped mirrored.

restart:
with(ImageTools):
im:=Read(cat(kernelopts(mapledir),"/data/PathFindermap.jpg")):
im:=Scale(im,1):
plot3d(1, x=0..2*Pi, y=0..Pi, coords=spherical, style=surface,
       image=im, orientation=[-100,-70,170]);

I still hope that I do not have to develop patterns myself.

@Carl Love

Corrected. Thanks

@acer

That is an interesting option.

For a regular pattern (e.g. a football, truncated icosahedron) it would require to generate corresponding images by an appropriate projection (seems to require some low level coding in Maple).

In any case it would require ways to describe spherical patterns in the first place.

Performance wise, images with a higher resolution already slow down rendering. For animation purposes where the observer is more interested in studying the dynamics of rotation (e.g. the bouncing ball with frictional contact), simple patterns should be sufficient. This is my primary interest. Maybe assembling a sphere from graphic primitives (coloured polyhedrons or spherical segments) is the better way for such applications.

I am still looking for suitable patterns and/or simple ways to generate and test them (before animating a bouncing earth with the image option ;-)).

Thanks

@acer

To make it work in newer versions of Maple (I tried 2023)

"/data/tree.jpg"

has to be changed to

"/data/images/tree.jpg"

The original post is great!

@nm

It did not. Thanks anyway. (The filter site: will be helpfull for other searches in the future)

@epostma

I see the complication but as you might have guessed I was more interested in options to do the opposite of simplify (i.e. expansion of compound units).

Thank you for the clarification and also for the module expand_units().

I fully agree.

I struggle with advanced search and with narrowing searches (e.g. combining users and keywords).

I also miss an ordering option for searches (most recent at the top for example).

Linking to other resources is a good idea too.

(I have changed this into a post if you do not mind. Thumbs seem not to be transfered. I hope this doesn't downplay the importance of your post)

I assume that your obersation was made on the same computer in 2D Math and that this computer did not undergo any major changes (OS upgrade, graphic card changes, ...).

Some questions:

Do see the character change in Maple input and output?

Do you use default font settings?

What operating system do you run?

Did the computer run for a longer period of time without restart?

What happens to the changed characters if your save the worksheet and reopen the saved document? Same question with the condition that all Mapel instances have been closed (i.e. exit Maple)?

Do you have screenshots?
