This looks like a heat/diffusion equation problem.

May I ask where Q comes from ?

Have you looked at the behaviour of Q for certain fixed x or t ? For example, setting x=2*Pi, and plotting the evolution over various time periods > 0 indicates quite odd behaviour. Do you think it is correct, physically ? For example, see the plots on the attached sheet.


(1)





PDE :







(2)

(3)

PP:=eval(P,x=2*Pi):

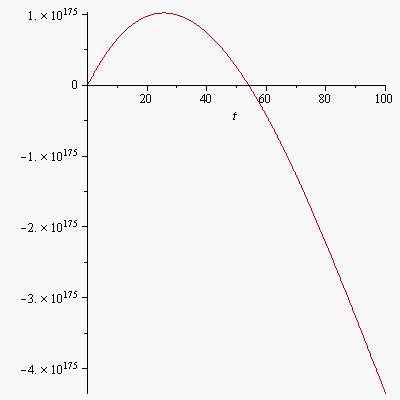

plot(PP,t=0..100);

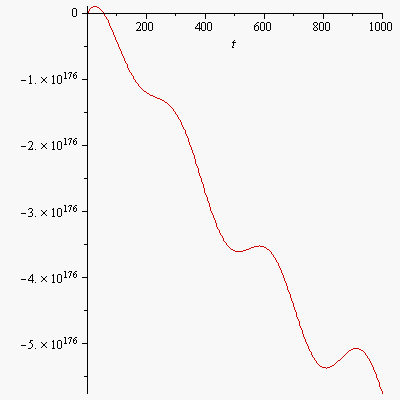

plot(PP,t=0..1000);

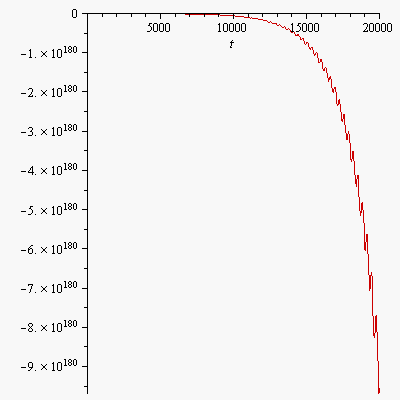

plot(PP,t=0..20000);

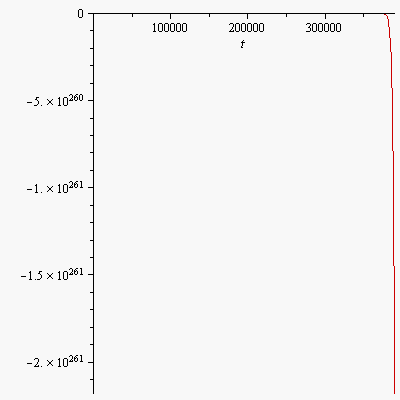

plot(PP,t=0..390000);

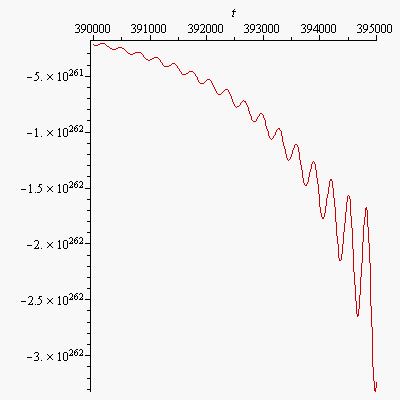

plot(PP,t=390000..395000);

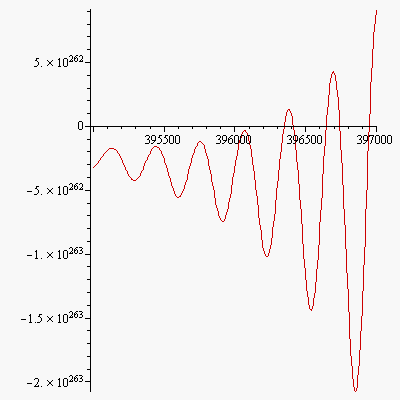

plot(PP,t=395000..397000);

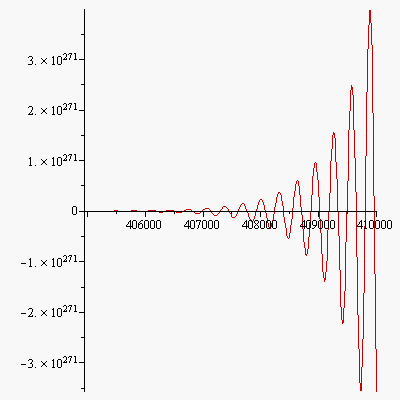

plot(PP,t=405000..410000);





Download EhsanKayo_01.mw

@Christopher2222 I may be missing something, but looking at those 2 plots, why is Mathematica's much better than Maple's ? Edit: I'm talking about the Zeta() plots.

FYI I've produced the plot in Maple 15 with grid = [1500, 1500] and that looks nice to me, though I don't have mathematica to compare it to..... I can post a screenshot, or try to export it and upload it, if you like ? Edit: I'm talking about the exp(1/z) plot but I could also do the zeta() plot....

Another way might be with using frontend() though I wasn't able to get it to work. Perhaps Joe Riel or another esteemed expert on frontend() could weigh in on this ?



Here's my solution using unassign:

restart:
eq1:=a + b*x + c*x^alpha = 0;
alpha
a + b x + c x = 0
a:=alpha^2:
eq1;
2 alpha
alpha + b x + c x = 0
eq2:=subs(alpha=sqrt(5),eq1);
/ (1/2)\
\5 /
5 + b x + c x = 0
# which (if I understood correctly) is not what the OP wants
# Instead
a:='a':
eq2:=subs(alpha=sqrt(5),eq1):
a:=alpha^2:
eq2;
/ (1/2)\
2 \5 /
alpha + b x + c x = 0
# as (I think) required.
# But I thought there might be a way using frontend() to apply subs to eq1 so
that the substitution is made only where alpha occurs in a power of x, something like
eq2:=frontend(subs,[alpha=sqrt(5),eq1],[{},{x^alpha}]);
which doesn't work.....


Can't you just unassign a,b,c,,d,..., prior to using subs to substitute for alpha, and then re-assign them afterwards ?

I was able to solve it directly as below. I don't know why you received [] as output. Often maple returns empty output when it finds no solution. As for recursive assignment error, this would happen if you tried to assign the values of  B[n1],B[n2],A[n1] or A[n2] rather than defiining equations (ie if you replaced the "=" with ":=" in your code above). Here's my code. I hope it helps:

eq1:= B[n1] = -A[n1]*R[s]^np/R[s]^(-np):
eq2:= B[n2] = -(-mu[r]*A[n2]*R[r]^np+mu[r]*A[n2]*R[r]^np*np^2-M[n]*R[r])/(mu[r]*R[r]^(-np)*(-1+np^2)):

eq3:= A[n2] = (-np*mu[R[m]]*A[n1]*R[m]^np+np^3*mu[R[m]]*A[n1]*R[m]^np+np*mu[R[m]]*B[n1]*R[m]^(-np)-np^3*mu[R[m]]*B[n1]*R[m]^(-np)-np*mu[R[m]]*B[n2]*R[m]^(-np)+np^3*mu[R[m]]*B[n2]*R[m]^(-np)+M[n]*R[m])/(np*mu[R[m]]*R[m]^np*(-1+np^2)):

eq4:= A[n1] = (mu[R[m]]*B[n1]*R[m]^(-np)-mu[R[m]]*B[n1]*R[m]^(-np)*np^2-mu[R[m]]*A[n2]*R[m]^np+mu[R[m]]*A[n2]*R[m]^np*np^2-mu[R[m]]*B[n2]*R[m]^(-np)+mu[R[m]]*B[n2]*R[m]^(-np)*np^2-M[n]*R[m])/(mu[R[m]]*R[m]^np*(-1+np^2)):

solve({eq1,eq2,eq3,eq4},[B[n1],B[n2],A[n1],A[n2]]);



[[ / np / (-np) np
[[B[n1] = - \R[s] \np R[m] R[r] R[m] mu[r]

(-np) np
- 2 np R[m] R[r] mu[R[m]] R[m]

(-np) np (-np) np
+ np R[r] R[m] R[m] mu[r] + R[m] R[r] R[m] mu[r]

(-np) np \ \// (-np)
- R[r] R[m] R[m] mu[r]/ M[n]/ \2 np mu[R[m]] R[m]

np / 2 np (-np) (-np) np
R[m] \-np R[r] R[s] - R[r] R[s]

np (-np) (-np) 2 np\ \ /
+ R[r] R[s] + R[r] np R[s] / mu[r]/, B[n2] = - \

/ np (-np) np
\R[r] R[m] R[s] np R[m] mu[r]

np (-np) np
+ R[r] R[m] R[s] R[m] mu[r]

np np (-np)
- R[r] R[m] R[s] R[m] mu[r]

np np (-np)
+ R[r] R[m] R[s] np R[m] mu[r]

np np (-np)\ \// /
- 2 R[r] np mu[R[m]] R[m] R[s] R[m] / M[n]/ \2 \-1

2\ / np (-np) (-np) np\ np
+ np / mu[r] \-R[r] R[s] + R[r] R[s] / R[m] np

(-np)\ // (-np) np
mu[R[m]] R[m] /, A[n1] = \\np R[m] R[r] R[m] mu[r]

(-np) np
- 2 np R[m] R[r] mu[R[m]] R[m]

(-np) np (-np) np
+ np R[r] R[m] R[m] mu[r] + R[m] R[r] R[m] mu[r]

(-np) np \ (-np)\//
- R[r] R[m] R[m] mu[r]/ M[n] R[s] / \2 np mu[R[m]]

(-np) np / 2 np (-np) (-np) np
R[m] R[m] \-np R[r] R[s] - R[r] R[s]

np (-np) (-np) 2 np\ \ /
+ R[r] R[s] + R[r] np R[s] / mu[r]/, A[n2] = \M[

/ (-np) (-np) np
n] \R[r] R[m] R[s] np R[m] mu[r]

(-np) (-np) np
+ R[r] R[m] R[s] R[m] mu[r]

(-np) np (-np)
- R[r] R[m] R[s] R[m] mu[r]

(-np) np (-np)
+ R[r] R[m] R[s] np R[m] mu[r]

(-np) np (-np)\\// / 2
- 2 np R[m] R[r] mu[R[m]] R[m] R[s] // \2 \-1 + np

\ / np (-np) (-np) np\ np
/ mu[r] \-R[r] R[s] + R[r] R[s] / R[m] np mu[R[m]

(-np)\]]
] R[m] /]]

If it's just happening with one worksheet, then just remove all the output from it, then paste the code to a new worksheet, and let us know if the problem persists - if it does, then could you post part of the code so we can try to reproduce it ?

I had this problem a while ago before I got a new laptop. it turns out to be a problem with the graphics card driver. I installed the latest driver and the problem was solved. I don't know what caused it, but I think it was just after a update/patch.

Have you tried opening the worksheet in question on a different machine ?

I'm not sure what you mean by "within a certain percentage". A percentage of what ? Leaving that aside, would something like this achieve what you want ?

f:=x^2:g:=x:

iq:=abs(f-g)<1:

solve(iq,x):

convert(%,list);

     [Open(1/2-(1/2)*sqrt(5)), Open((1/2)*sqrt(5)+1/2)]

Does this work as you intend ?

testerror := proc(b)
local bb:
print (b):
if b > 3 then
return;
end if;
bb:=b;
bb := bb+1;
testerror(bb);
return;
end proc:

?

This has the same problems as you last question

1. You are using = instead of :=

2. You are assigning a value to a parameter.



The problem occurs because you assign a value to terminal_counter which is one of the parameters of the procedure.

To avoid this, either use a new local parameter and assign the value of terminal_counter to it and use it in place of terminal_counter in your code; or change the name of terminal_counter in the parameter list to a new name and assign it's value to terminal_counter.

For example (using the 2nd suggestion)

evolf := proc(z, f, tc)  #<- terminal_counter changed to tc
local h1,h2,h3,h4,h5,h6,h7,N,test,fitness,total_fitness,i,j,temp1,temp2,terminal_counter;
h1 := z + f;
h2 := z - f;
h3 := z*f;
h4 := z+diff(f,x);
h5 := z-diff(f,x);
h6 := z*diff(f,x);
h7 := subs(x=z, f);
terminal_counter:=tc; # <-----terminal_counter is assigned the value of the parameter tc
N := 7;
test := [h1, h2, h3, h4, h5, h6, h7];
print(test);
fitness := [0, 0, 0, 0, 0, 0, 0];

if terminal_counter > 5 then
return fitness;
end if;

total_fitness := 0;
for i from 1 to N do
temp1 := 0;
temp2 := 0;
for j from 0 by 0.1 to 1 do
temp1 := eval(subs(x=j,test[i])^2);
temp2 := eval(subs(x=j,f)^2);
od;
fitness[i] := 1/(1+temp1+temp2);
total_fitness := total_fitness + 1/(1+temp1+temp2);
od;
for i from 1 to N do
fitness[i] := fitness[i]/evalf(total_fitness);
od;
print(select(t->type(fitness[op(t)], max(fitness)), [$1..nops(fitness)])[1]);
print(test[select(t->type(fitness[op(t)], max(fitness)), [$1..nops(fitness)])[1]]);

terminal_counter := terminal_counter + 1;
if max(fitness) = min(fitness) then
return fitness;
end if;
fitness := evolf(test[select(t->type(fitness[op(t)], max(fitness)), [$1..nops(fitness)])[1]], f, terminal_counter);
return fitness;
end proc:
fitness := evolf(x^2, x+1, 1);

The best I can do is

expand(t);
n
2
--
n
5
You can use the DeleteRow command in the LinearAlgebra package
http://www.maplesoft.com/support/help/Maple/view.aspx?path=LinearAlgebra/DeleteRow

You need to close the for loop with an "end do" before closing the procedure.

There are some other issues in your code, such as
using = instead of :=
not declaring variables as local
It may also be an idea to declare the type of parameter that is being passed in to the procedure (seems like it's a function so you can use f::mathfunc)

So,

evolf := proc(f::mathfunc)
local h1,h2,h3,h4,h5,h6,h7,h8,h9,test,F,i;
h1 := z + f(x);
h2 := z - f(x);
h3 := z*f(x);
h4 := f(x)/z;
h5 := z+diff(f(x),x);
h6 := z-diff(f(x),x);
h7 := z*diff(f(x),x);
h8 := diff(f(x),x)/z;
h9 := subs(x=z, f(x));
test := [h1, h2, h3, h4, h5, h6, h7, h8, h9];
F := 0;
for i from 1 to 9 do
F := F + 1/(1+exp(subs(x=0,test[i])-subs(x=0,f(x))));
end do;
end proc:

evolf(sin);
1/(1+exp(z))+1/(1+exp(z-2*sin(0)))+1/(1+exp(z*sin(0)-sin(0)))+1/(1+exp(sin(0)/z-sin(0)))+1/(1+exp(z+cos(0)-sin(0)))+1/(1+exp(z-cos(0)-sin(0)))+1/(1+exp(z*cos(0)-sin(0)))+1/(1+exp(cos(0)/z-sin(0)))+1/(1+exp(sin(z)-sin(0)))





Did you try using fieldplot ?

I tried to enter your equations into maple, but couldn't succeed.  It would be a bit easier (for me, at least) to help if you write your post with maple code instead.
