@DJJerome1976

Maple is weak in this area.

It does not even have a function that returns the real domain of a function, similar to Mathematica's  https://reference.wolfram.com/language/ref/FunctionDomain.html

Maple can give one a list of singularties, sure, and using icont() or using discont() on the real line. But this is only half the story.

Maple needs the equivlant of Mathematic'a FunctionDomain, which was introduced almost 6 years ago by now.

May be Maple in the next version will have something like this. This must be hard to implement, else Maplesoft would have such a function by now I would think.

@ecterrab

"Anyway, for the example you indcate, in my opinion the degree is 1, not 2, since it is linear in the highest derivative"

I think the degree is 2 and not 1, since the powers have to be integers on all derivative first before deciding:

This is how I learned it at school. Any way, thanks again for the link and the help.

@ecterrab

Thanks. But I can't figure how to use it to tell me for example that  (1+diff(y(x),x)^2)^(3/2) = diff(y(x),x$2) has degee 2. I do not understand what a differential polynomial or a differential ideal or a differential polynomial ring is or how to make them from the ODE.These are a little advanced topics for me, I have not studied these yet.





@Rouben Rostamian

I am sorry, I do not understand why you said that the degree is not defined for the first example you show.

The first one has degree one, since the power on the highest derivative is one. Using Carl's code given in answer below confirms:

ode:= diff(x(t),t$2)+sin(x(t))=0;
ODEdegree(ode);

           1

The degree becomes 2 in this case

ode:= diff(x(t),t$2)^2+sin(x(t))=0;
ODEdegree(ode);

    2

@Rouben Rostamian



https://en.wikipedia.org/wiki/Degree_of_a_differential_equation

"In mathematics, the degree of a differential equation is the power of its highest derivative, after the equation has been made rational and integral in all of its derivatives"

I need to find this during parsing of ODE to help me decide if I can solve it or not.

@Thomas Richard

thanks. But it is strange, that Maple, being the best CAS in ODE's does not have a buildin function to find the degree of an ODE in addition to the order.

May be this is something Maplesoft could add for the next release.

First, you do not need to write “c://Users//hello//Documents//h.m”. it is either “c:/Users/hello/Documents/h.m” or  “c:\\Users\\hello\\Documents\\h.m”

But have you tried to open h.m  yourself from outside Maple? does it work? And have you tried to check what security there are on the folder itself?

@Carl Love

There is still a case which is given a problem. This is what Maple returns solutions as sequence of lists. Here is example




restart;

depvars:= (pde::{algebraic, `=`(algebraic), {set,list}(algebraic, `=`(algebraic))})->
   indets(
      indets(convert(pde, diff), specfunc(diff)),
      And(typefunc(name, name), Not(typefunc({mathfunc, identical(diff)})))
   ):

is_solution_trivial:= (pde, sol::{`=`, set(`=`),`function`})->
   evalb(eval(`if`(sol::set, sol, {sol}), depvars(pde)=~ 0) = {0=0}):


pde:= diff(u(x,t),t)= u(x,t)*(1-u(x,t))+ diff(u(x,t),x$2):
sol:={PDEtools:-TWSolutions(pde,u(x,t))};
is_solution_trivial(pde,sol)

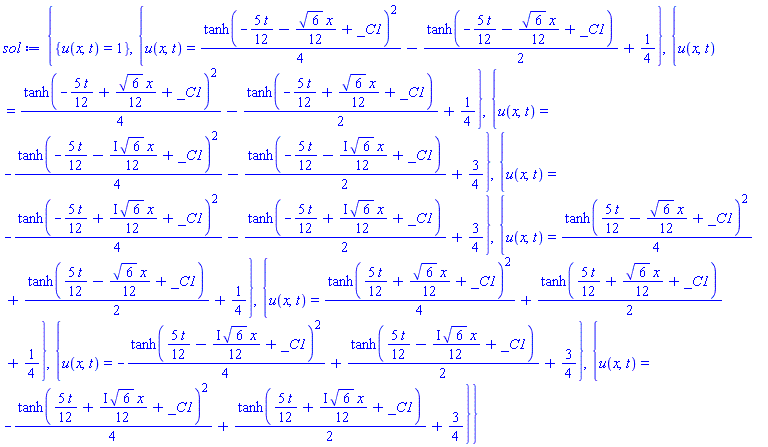

{{u(x, t) = 1}, {u(x, t) = (1/4)*tanh(-(5/12)*t-(1/12)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t-(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = (1/4)*tanh(-(5/12)*t+(1/12)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t+(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = -(1/4)*tanh(-(5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)+3/4}, {u(x, t) = -(1/4)*tanh(-(5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)+3/4}, {u(x, t) = (1/4)*tanh((5/12)*t-(1/12)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t-(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = (1/4)*tanh((5/12)*t+(1/12)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t+(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = -(1/4)*tanh((5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)+3/4}, {u(x, t) = -(1/4)*tanh((5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)+3/4}}

Error, invalid input: is_solution_trivial expects its 2nd argument, sol, to be of type {`=`, function, set(`=`)}, but received {{u(x, t) = 1}, {u(x, t) = (1/4)*tanh(-(5/12)*t-(1/12)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t-(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = (1/4)*tanh(-(5/12)*t+(1/12)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t+(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = -(1/4)*tanh(-(5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)+3/4}, {u(x, t) = -(1/4)*tanh(-(5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)+3/4}, {u(x, t) = (1/4)*tanh((5/12)*t-(1/12)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t-(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = (1/4)*t ... )*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)+3/4}}

sol

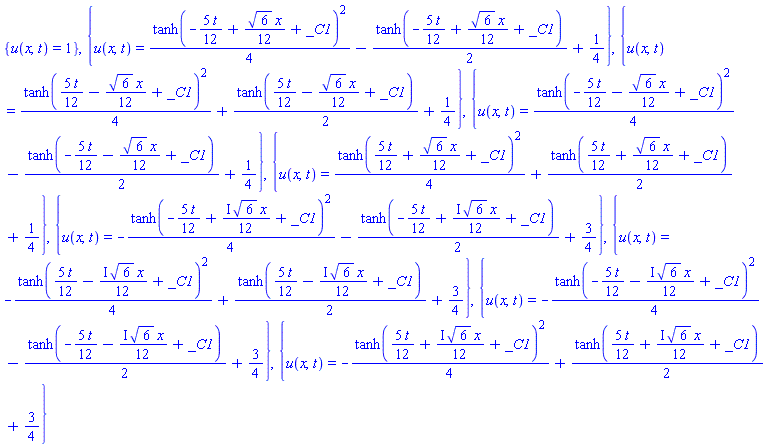

{u(x, t) = 1}, {u(x, t) = (1/4)*tanh(-(5/12)*t+(1/12)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t+(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = (1/4)*tanh((5/12)*t-(1/12)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t-(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = (1/4)*tanh(-(5/12)*t-(1/12)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t-(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = (1/4)*tanh((5/12)*t+(1/12)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t+(1/12)*6^(1/2)*x+_C1)+1/4}, {u(x, t) = -(1/4)*tanh(-(5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)+3/4}, {u(x, t) = -(1/4)*tanh((5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)+3/4}, {u(x, t) = -(1/4)*tanh(-(5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)^2-(1/2)*tanh(-(5/12)*t-((1/12)*I)*6^(1/2)*x+_C1)+3/4}, {u(x, t) = -(1/4)*tanh((5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)^2+(1/2)*tanh((5/12)*t+((1/12)*I)*6^(1/2)*x+_C1)+3/4}

convert([sol],`sequence`)

Error, unrecognized conversion: sequence






Download bug_june_25_2019_2.mw

I had to put {} around the result, since it is sequence, in order to make it a list.  But now it becomes a list of lists, and this is why it gives an error. I'll see if I can find a work around for this case.





@Carl Love

Hello; I found a small bug. Sometimes pdsolve returns a solution which of type 'function', and hence your is_solution_trivial function now fails on it. Here is an example




restart;

unassign('u,x,t');
depvars:= (pde::{algebraic, `=`(algebraic), {set,list}(algebraic, `=`(algebraic))})->
   indets(
      indets(convert(pde, diff), specfunc(diff)),
      And(typefunc(name, name), Not(typefunc({mathfunc, identical(diff)})))
   );

is_solution_trivial:= (pde, sol::{`=`, set(`=`)})->
   evalb(eval(`if`(sol::set, sol, {sol}), depvars(pde)=~ 0) = {0=0});

pde:= diff(u(x,t),t)-diff(u(x,t),x,x,t)+4*u(x,t)*diff(u(x,t),x)=3*diff(u(x,t),x)*diff(u(x,t),x$2)+u(x,t)*diff(u(x,t),x$3);
sol:=pdsolve(pde,u(x,t));

is_solution_trivial(pde,sol)

proc (pde::{algebraic, `=`(algebraic), ({list, set})(algebraic, `=`(algebraic))}) options operator, arrow; indets(indets(convert(pde, diff), specfunc(diff)), And(typefunc(name, name), Not(typefunc({mathfunc, identical(diff)})))) end proc

proc (pde, sol::{`=`, set(`=`)}) options operator, arrow; evalb(eval(`if`(sol::set, sol, {sol}), `~`[:-`=`](depvars(pde), ` $`, 0)) = {0 = 0}) end proc

diff(u(x, t), t)-(diff(diff(diff(u(x, t), t), x), x))+4*u(x, t)*(diff(u(x, t), x)) = 3*(diff(u(x, t), x))*(diff(diff(u(x, t), x), x))+u(x, t)*(diff(diff(diff(u(x, t), x), x), x))

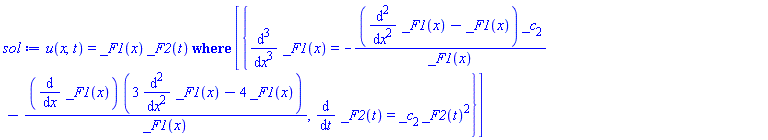

PDESolStruc(u(x, t) = _F1(x)*_F2(t), [{diff(_F2(t), t) = _c[2]*_F2(t)^2, diff(diff(diff(_F1(x), x), x), x) = -(diff(diff(_F1(x), x), x)-_F1(x))*_c[2]/_F1(x)-(diff(_F1(x), x))*(3*(diff(diff(_F1(x), x), x))-4*_F1(x))/_F1(x)}])

Error, invalid input: is_solution_trivial expects its 2nd argument, sol, to be of type {`=`, set(`=`)}, but received PDESolStruc(u(x, t) = _F1(x)*_F2(t), [{diff(_F2(t), t) = _c[2]*_F2(t)^2, diff(diff(diff(_F1(x), x), x), x) = -(diff(diff(_F1(x), x), x)-_F1(x))*_c[2]/_F1(x)-(diff(_F1(x), x))*(3*(diff(diff(_F1(x), x), x))-4*_F1(x))/_F1(x)}])

whattype(sol)

function






Download bug_june_25_2019.mw

I add `function` as one of allowed types to accept, and now it seems to work OK. I hope this was the correct way to fix this.






restart;

depvars:= (pde::{algebraic, `=`(algebraic), {set,list}(algebraic, `=`(algebraic))})->
   indets(
      indets(convert(pde, diff), specfunc(diff)),
      And(typefunc(name, name), Not(typefunc({mathfunc, identical(diff)})))
   ):

is_solution_trivial:= (pde, sol::{`=`, set(`=`),`function`})->
   evalb(eval(`if`(sol::set, sol, {sol}), depvars(pde)=~ 0) = {0=0}):

pde:= diff(u(x,t),t)-diff(u(x,t),x,x,t)+4*u(x,t)*diff(u(x,t),x)=3*diff(u(x,t),x)*diff(u(x,t),x$2)+u(x,t)*diff(u(x,t),x$3):
sol:=pdsolve(pde,u(x,t));

is_solution_trivial(pde,sol)

PDESolStruc(u(x, t) = _F1(x)*_F2(t), [{diff(_F2(t), t) = _c[2]*_F2(t)^2, diff(diff(diff(_F1(x), x), x), x) = -(diff(diff(_F1(x), x), x)-_F1(x))*_c[2]/_F1(x)-(diff(_F1(x), x))*(3*(diff(diff(_F1(x), x), x))-4*_F1(x))/_F1(x)}])

false






Download bug_june_25_2019_fixed.mw



Maple 2019.1



@Carl Love

Thanks. Your functions worked very well. Verified on Maple 2019.1

@tomleslie

Nice. But I do not think you need max there.

I rewrote your function a little to make it easier for me to understand (I do not like the style of using () over many lines, I find it hard for me to read, I've also seen others use the style you are using here).  (ps. I understand code style is a personal thing. All what I am saying is that I find this harder for me to read, that is all).

DETools:-difforder worked without using max in the following

restart;
get_order:=proc(expr,fun,var)
  local the_list,i;
  the_list := convert( indets(expr, function),list);
  PDETools:-difforder(select( i-> has(i, diff(fun,var)),the_list))
end proc:

Now

f:= 2*y*(diff(x(t), t))^2+3*(diff(x(t), t$3))-3*x*(diff(y(t), t));
get_order(f, y(t),t);
get_order(f, x(t),t);

Returned 1 and 3 also.



@Carl Love

Thanks. I verified your solution also works very well on Maple 2019.1

@acer

Thanks. I verified your code works with no problem on 2019.1

@Joe Riel

Thanks, but it did not work on the following example:




restart;

`latex/int` := FromInert(subsindets(ToInert(eval(`latex/int`)), 'specfunc(_Inert_STATSEQ)', f -> op(0,f)(op(2..,f)))):

lap:=diff(u(r,z,t),r$2)+ 1/r*diff(u(r,z,t),r)+diff(u(r,z,t),z$2);
bc:=u(r,0,t)=0,u(r,1,t)=0, u(1,z,t)=0;
ic:=u(r,z,0) = f(r,z);
sol:=pdsolve([diff(u(r,z,t),t) = lap,bc,ic],u(r,z,t)) assuming t>0

diff(diff(u(r, z, t), r), r)+(diff(u(r, z, t), r))/r+diff(diff(u(r, z, t), z), z)

u(r, 0, t) = 0, u(r, 1, t) = 0, u(1, z, t) = 0

u(r, z, 0) = f(r, z)

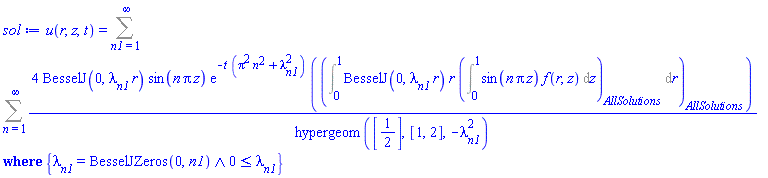

u(r, z, t) = `casesplit/ans`(Sum(Sum(4*BesselJ(0, lambda[n1]*r)*sin(n*Pi*z)*exp(-t*(Pi^2*n^2+lambda[n1]^2))*(Int(BesselJ(0, lambda[n1]*r)*r*(Int(sin(n*Pi*z)*f(r, z), z = 0 .. 1, AllSolutions)), r = 0 .. 1, AllSolutions))/hypergeom([1/2], [1, 2], -lambda[n1]^2), n = 1 .. infinity), n1 = 1 .. infinity), {And(lambda[n1] = BesselJZeros(0, n1), 0 <= lambda[n1])})

latex(sol)

Error, (in latex/int) invalid input: lhs received bnds, which is not valid for its 1st argument, expr




Do I need something else other than type the command you showed? Using Maple 2019.1 on windows.



Download bug_june_6_2019_3_45_pm.mw

@Carl Love

Thanks for the reply. But the latex command should internally handle these issues.

What if you have 10,000 equations to process? Is a user supposed to check each time for something and make a workaround to make latex work?

Latex can simply use \text{All Solutions} or anything else it needs to make the latex conversion work.

Sorry, I do not understand your objection about me using "internal" error. I used this to mean the error is coming from internal to Maple. What difference does it make if it comes from int() or Int() or any other function? These all are just internal functions for a user.
