tomleslie

Your supplied worksheet...

Answered: tomleslie 13876

January 19 2019

0 1

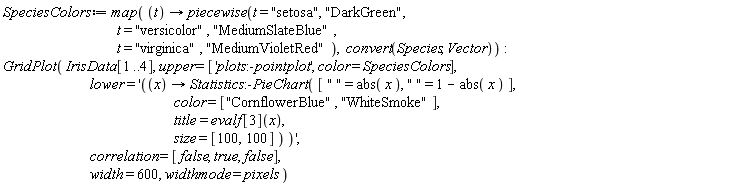

contains no GridPlot() command - expecting someone here to retype it for you is not a good idea

The attached fixes all the errors in your original workheet (and includes the required GridPlot() command )

It is generally a bad idea to create/load a DataFrame, then

access Dataseries within the DataFrame using DataFrame['DataSeries'] then
halfway through the worksheet use with(DataFrame), so that one can now access DataSeries within the frame using only the series name. Having two different ways to access the same information in a single worksheet is just confusing

Note: the output of the GridPlot() command does not appear in the worksheet embedded here - not sure why. except that every time an array of plots is involved, this site seems to have a problem. The relevant plot does however appear iin the worksheet - so just download the latter and check

>

Les Iris de Fisher

Les données utilisées ici sont célèbres. Elles ont été collectées par Edgar Anderson . Ce sont les mesures en centimètres des variables suivantes :

1.	longueur du sépale (Sepal.Length),

2.	largeur du sépale (Sepal.Width),

3.	longueur du pétale (Petal.Length)

4.	largeur du pétale (Petal.Width)

pour trois espèces d’iris :

1-Iris setosa,

2-Iris versicolor

3-Iris.virginica.
Sir R.A. Fisher a utilisé ces données pour construire des combinaisons linéaires des variables permettant de séparer au mieux les trois espèces d’iris

Accès aux données internes

Pour connaître les données de la distribution de base :

>

$"C:\Program Files\Maple 2018\data"$

(2.1)

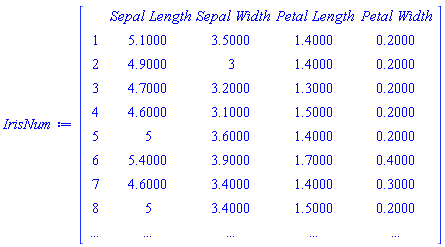

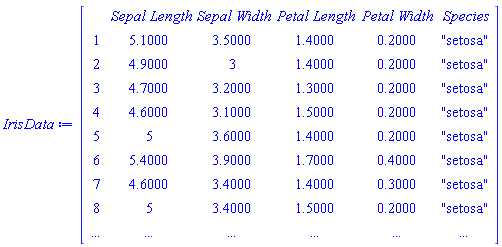

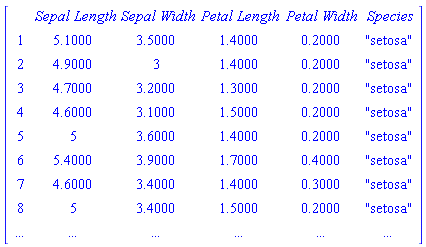

Afficher les données

>

_m583337856

(3.1)

>

IrisData :: DataFrame: 150 observations for 5 variables

Sepal Length: Type: anything Min: 4.30 Max: 7.90
Sepal Width:   Type: anything Min: 2.00 Max: 4.40
Petal Length: Type: anything Min: 1.00 Max: 6.90
Petal Width:   Type: anything Min: 0.10 Max: 2.50
Species:       Type: anything Tally: ["virginica" = 50, "versicolor" = 50, "setosa" = 50]

>

(3.2)

>

SunSpotsData :: DataFrame: 314 observations for 2 variables

Date(Date:-year,Date:-month,Date:-day,Date:-hour,Date:-minute,Date:-second,timezone = Date:-timezone,coefficient = Date:-coeff): Type: anything Min: 1700.00 Max: 2013.00
Mean Sunspot Number: Type: anything Min: 0.00 Max: 190.20

>

FertilityData :: DataFrame: 36 observations for 1 variables

Fertility Rate - 2015: Type: anything Min: 1.31 Max: 1.96

>

PassengersData :: DataFrame: 144 observations for 1 variables

Monthly Passengers: Type: anything Min: 104.00 Max: 622.00

>

CrimeData :: DataFrame: 13 observations for 5 variables

Violent Crime:          Type: anything Min: 786.62 Max: 7934.95
Property Crime:         Type: anything Min: 2100.84 Max: 23171.26
Other Criminal Code:    Type: anything Min: 450.29 Max: 13834.45
Criminal Code Traffic: Type: anything Min: 211.57 Max: 1689.95
Federal Statute:        Type: anything Min: 215.34 Max: 1331.87

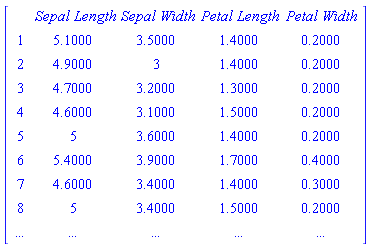

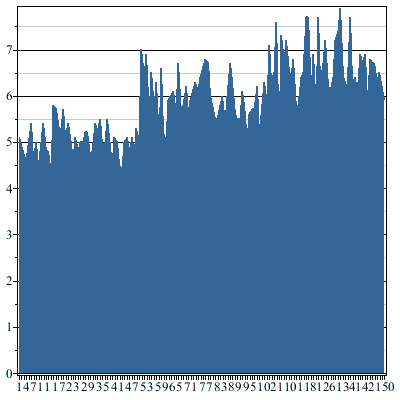

Manipulation de IrisData

>

_m583337856

(4.1)

>

_m575883456

(4.2)

>

(4.3)

>

_m575889024

(4.4)

>

_m575882016

(4.5)

>

_m600907616

(4.6)

>

_m595974240

(4.7)

>

_m582933984

(4.8)

Sommaire statistique

>

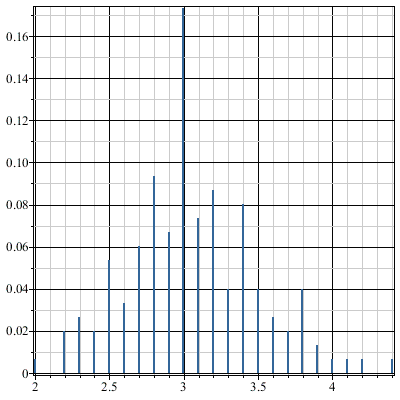

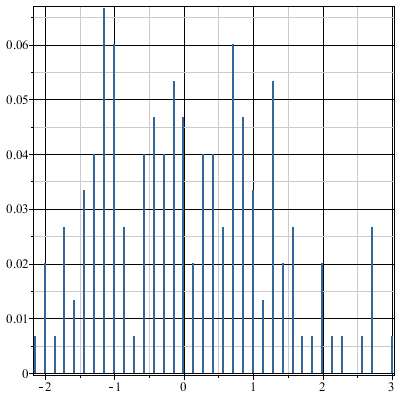

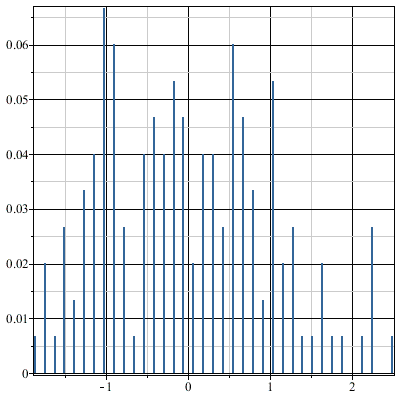

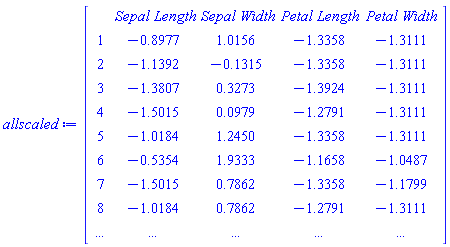

Normaliser les données et Histogrammes

>

_m562409472

(6.1)

>

_m586565792

(6.2)

>

(6.3)

>

_m581417120

(6.4)

>

(6.5)

>

_m600898208

(6.6)

>

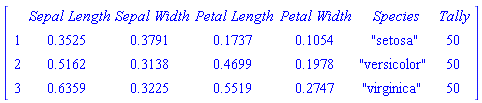

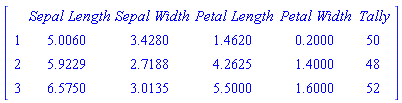

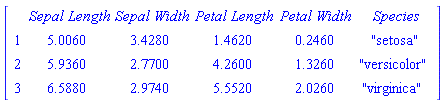

Aggregate

>

_m469051392

(7.1)

>

_m585862528

(7.2)

>

_m600049664

(7.3)

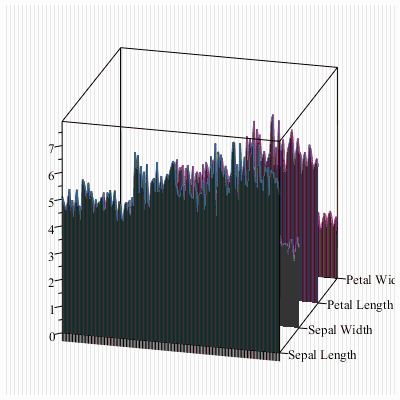

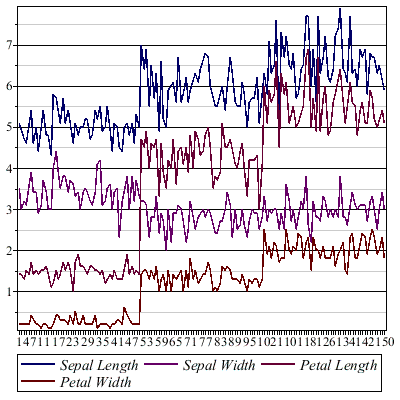

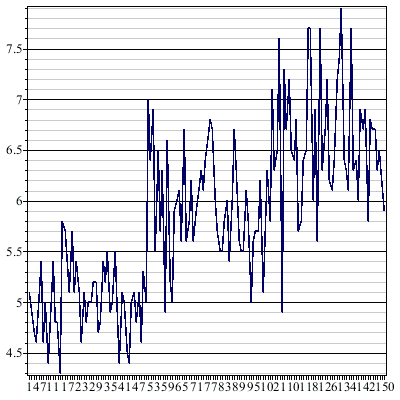

Visualisation

>

(8.1)

>

(8.2)

Download doData.mw

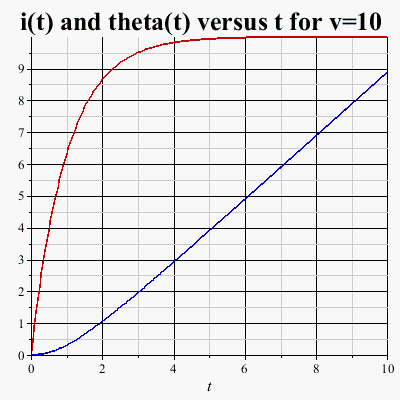

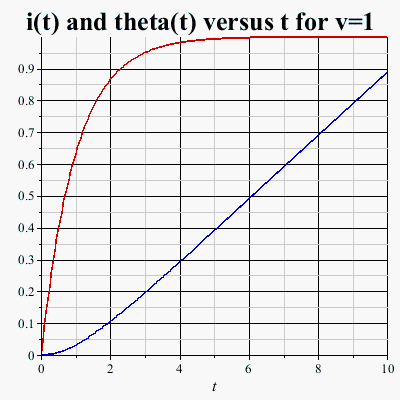

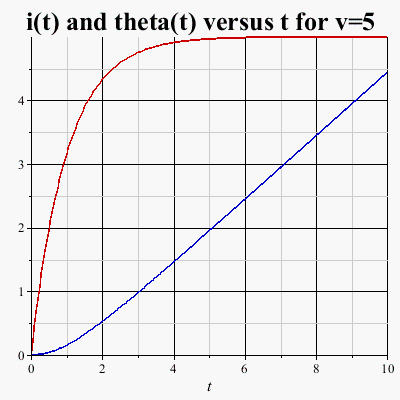

Possibly something like...

Answered: tomleslie 13876

January 17 2019

1 1

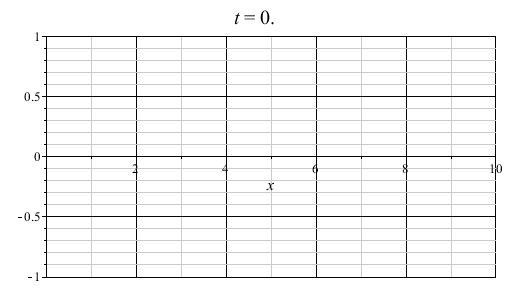

that shown in the attached??

Download animPlot.mw

See...

Answered: tomleslie 13876

January 16 2019

1 0

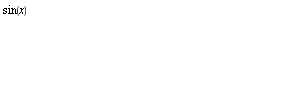

the help at ?Typesetting:-Suppress

You seem to be more interested...

Answered: tomleslie 13876

January 16 2019

0 0

in the "displayed" output, rather than the values which have actually been "computed"

The attached plays a few tricks with the Maple ouput display, without affecting actual computed values.

You should probably also be aware that Maple's finance package (see help at ?Finance) has mnay in-built functions for pricing options

>

restart:

>

#
# Following two commands are just for convenience
# of "displaying" output
#
  interface(rtablesize=20):
  interface(displayprecision=3):
  r := 0.23e-1: T := 90*(1/365): q := 0: K := 55: X := 148:
  M := 10: N := 10: Deltat := T/N: DeltaX := X/M: sigma := .2:
  f := Array(0..N, 0..M):
  for j from 0 to M do
      f[N, j] := max(DeltaX*j-K, 0)
  end do:
  for j from 0 to M do
      a[j] := -(1/2*(r-q))*j*Deltat+(1/2)*sigma^2*j^2*Deltat+r*Deltat:
      b[j] := -Deltat*j^2*sigma^2+Deltat*r+1:
      c[j] := (1/2*(r-q))*j*Deltat+(1/2)*sigma^2*j^2*Deltat+r*Deltat
  end do:
  for i from N-1 by -1 to 0 do
      for j to M-1 do
          f[i, j] := a[j]*f[i+1, j-1]+b[j]*f[i+1, j]+c[j]*f[i+1, j+1]
      end do:
      f[i, 0] := b[0]*f[i+1, 0]+c[0]*f[i+1, 1]:
      f[i, M] := a[M]*f[i+1, M-1]+b[M]*f[i+1, M]
  end do:
#

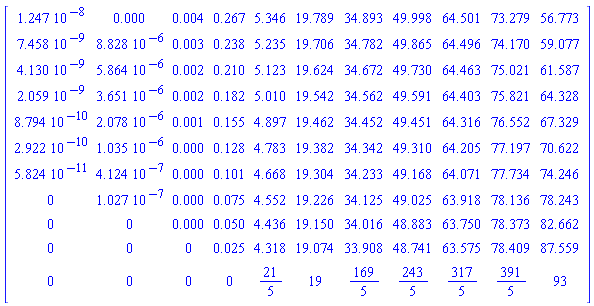

# Display the Array 'f' as a matrix, just because it
# *looks* prettier that way
#
  convert(f, Matrix);
#
# reset the output display to default and check a few
# values in the array 'f'
#
  interface(displayprecision=-1):
  f[0,0],f[2,3], f[2,4], f[2,5];

(1)

>

Download callOpt.mw

The attached...

Answered: tomleslie 13876

January 16 2019

0 0

works for me

Download doubleInt.mw

Need way more terms in the summation...

Answered: tomleslie 13876

January 15 2019

1 1

In the pdf you supplied, the number of terms in the Bernstein summation was 10. To get a *really* good fit, the number of terms should be much higher (ideally "infinite").

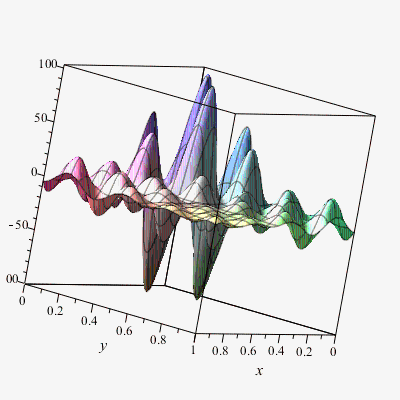

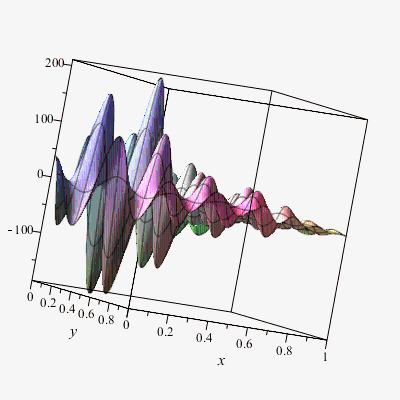

The attached shows the Schubert function, and its approximation using Bernstein polynomials with 100 terms in the summation. Overall the fit is much better, although the vertical scale is still a bit "off".

This took about as long (~2 minutes) as I was prepared to wait

>

#
# Define/plot the Shubert function
#
  f:=x-> add
         ( i*cos((i+1)*(-2+4*x[1])+i),
           i=1..5
         )
         *
         add
         ( i*cos((i+1)*(-2+4*x[2])+i),
           i=1..5
         );
  plot3d( f([x,y]),
          x=0..1,
          y=0..1,
          numpoints=10000
        );

>

#
# Define/plot the approximation of the Shubert function
# using Bernstein polynomials. To get a really good fit
# number of terms in the summation should be infinite:
# OP used 10 which gave a poor fit; with 100 terms in
# the summations, the fit isn't *too* bad and took about
# as long as I was prepared to wait!
#
  N:=100:
  M:=100:
  p:= (j,s,z)-> binomial(s,j)*z^j*(1-z)^(s-j);
  B:= x-> add
          ( add
            ( f([i/N, k/M])*p(i,N,x[1])*p(k,M,x[2]),
              i=0..N
            ),
            k=0..M
          );
  plot3d( B([x,y]),
          x=0..1,
          y=0..1,
          numpoints=10000
        );

>

Download bernstein.mw

Something like...

Answered: tomleslie 13876

January 14 2019

1 1

the attached

>

  restart;
  getSign:= proc(x::Vector)
                 if   {entries(x, nolist)}={-1}
                 then return "maximum"
                 elif {entries(x, 'nolist')}={1}
                 then return "minimum"
                 elif {entries(x, 'nolist')}={-1, 1}
                 then return "saddle"
                 else return "inconclusive"
                 end
           end proc:
  EigenValues:= [ [-.381966011250105+0.*I, -2.61803398874989+0.*I],
                  [.414213562373095+0.*I, -2.41421356237309+0.*I],
                  [0, 2]
                ];
  ans:=signum~(simplify~(convert(EigenValues, Matrix), zero));
  getSign~( [LinearAlgebra:-Row(ans,1..-1)])

Matrix(%id = 18446744074218228182)

(1)

>

Download doSigns.mw

Sometimes...

Answered: tomleslie 13876

January 12 2019

0 2

I can work out what the OP's intention is, from the supplied code - but in this case I can't. I strongly recommend that the OP upload a complete worksheet, using the big green up-arrow (rather than using any kind of cut+paste).

So I'm just going to make a few observations about "likely problems"

Use of the range operator `..` Maple will interpret two or more successive '.' characters as a range operator. However `.. .` ie three `.` characters will not be interpreted as a range operator (at least not in the way expected!). OP uses three dots (with an intervening space) almost everywhere a range operator is required - eg Array() specification, add() specication and seq() specification. None of these are going to do what OP expects.
Difference between names, functons and indexed variables. OP has multiple assignments like

s1(x):=exp(-(x/(m1))^((m1/(sigma1))));
s1(x+1):=exp(-((x+1)/(m1))^((m1/(sigma1))));
s2(x):=1-exp(-(x/(m2))^((-m2/(sigma2))));
s2(x+1):=1-exp(-((x+1)/(m2))^((-m2/(sigma2))));
s3(x):=exp(exp(-m3/(sigma3))-exp((x-m3)/(sigma3)));
s3(x+1):=exp(exp(-m3/(sigma3))-exp((x+1-m3)/(sigma3)));
s(x):=(psi1*s1(x)+psi2*s2(x)+psi3*s3(x));
s(x+1):=(psi1*s1(x+1)+psi2*s2(x+1)+psi3*s3(x+1));
qtopi(x):=1-((s(x+1))/(s(x)));

To the 'uninitiated', these may 'look' like a function definitions - but they are not! In each case the left-hand-side of the assignment is interpreted as a simple, literal 'name'. None of these are function definitions accepting a value for the argument 'x' (or 'x+1'), and returning an 'appropriate value' from the rhs of the assignment.

This problem is exacerbated when the OP uses some/all of these definitions in 'indexed' expressions such as

fungsikerugian := add((1-qtopi(x)/q[x])^2, x = 0 .. 110);

In this last expression, qtopi(x), is interpreted as the function qtopi(), evaluated at the 'index' values. However the function qtopi() does not exist, it has not been defined anywhere, although the name qtopi(x) does exist. The name qtopi(x) and the function qtopi(), evaluated at the index variable 'x', are two completely different things

The confusion between names, functions and indexed variables makes it very difficult to work out the OP's intent

Anova2m...

Answered: tomleslie 13876

January 09 2019

0 1

The previous code I posted was for the routine "Anova2s" in the pdf which you referenced.

The attached contains the code for the routine "Anova2m" in the same reference.

Both of these routines exactly reproduce the results shown in the reference

>

restart;

>

  Anova2m:= proc( D::listlist )
                  uses Statistics:
                  local a:= nops(D),
                        b:= nops(D[1]),
                        c:=nops(D[1][1]),
                        SSTO:= 0,
                        SSA:= 0,
                        SSB:= 0,
                        SSAB:=0,
                        SSE:= 0,
                        FCDF:= (x, y, z)-> CumulativeDistributionFunction( FRatio(x,y), z),
                        RowMean:= Array(1..a),
                        ColMean:= Array(1..b),
                        CellMean:= Array(1 .. a, 1 .. b),
                        GrandMean:=0,
                        i, j, k ,MSA, MSB, MSAB, MSE, PVR, PVC,PVInt ;
                  description "Two factor ANOVA (multiple obs. per cell)";
                  for i to a do
                      RowMean[i] := 0:
                      for j to b do
                          for k to c do
                              RowMean[i] := RowMean[i]+D[i][j][k]
                          end do:
                      end do;
                      RowMean[i] := RowMean[i]/b/c
                  end do;
                  for j to b do
                      ColMean[j] := 0;
                      for i to a do
                          for k to c do
                              ColMean[j] := ColMean[j]+D[i][j][k]
                          end do
                      end do;
                      ColMean[j] := ColMean[j]/a/c
                  end do;
                  for i to a do
                      for j to b do
                          CellMean[i,j] := 0;
                          for k to c do
                              CellMean[i,j] := CellMean[i,j]+D[i][j][k]
                          end do;
                          CellMean[i,j] := CellMean[i,j]/c
                      end do
                  end do;
                  for i to a do
                      for j to b do
                          for k to c do
                              GrandMean := GrandMean+D[i][j][k]
                          end do
                      end do
                  end do;
                  GrandMean := GrandMean/a/b/c;
                  for i to a do
                      for j to b do
                          for k to c do
                              SSTO := SSTO+(D[i][j][k]-GrandMean)^2;
                              SSE := SSE+(D[i][j][k]-CellMean[i,j])^2;
                          end do:
                      end do:
                  end do;
                  for i to a do
                      SSA := SSA+(RowMean[i]-GrandMean)^2:
                  end do;
                  for j to b do
                      SSB := SSB+(ColMean[j]-GrandMean)^2:
                  end do;
                  SSA := b*c*SSA;
                  SSB := a*c*SSB;
                  SSAB := SSTO-SSA-SSB-SSE;
                  MSA := SSA/(a-1);
                  MSB := SSB/(b-1);
                  MSAB := SSAB/(a-1)/(b-1);
                  MSE := SSE/a/b/(c-1);
                  PVR := 1-FCDF(a-1,a*b*(c-1),MSA/MSE);
                  PVC := 1-FCDF(b-1,a*b*(c-1),MSB/MSE);
                  PVInt := 1-FCDF((a-1)*(b-1),a*b*(c-1),MSAB/MSE);
                  printf(" ------------------------------------------------------------------\n");
                  printf("             Sum of\n ");
                  printf("            Squares    Degrees of     Mean Sq\n");
                  printf(" Source     (SS)        Freedom        (MS)      F-Ratio    p-value\n");
                  printf(" ------------------------------------------------------------------\n");
                  printf(" Row(A) %10.4f    %5d      %10.4f   %8.4f   %8.4f\n",
                          SSA, a-1, MSA, MSA/MSE, PVR);
                  printf(" Col(B) %10.4f    %5d      %10.4f   %8.4f   %8.4f\n",
                          SSB, b-1, MSB, MSB/MSE,PVC);
                  printf(" Int(AB) %10.4f    %5d      %10.4f   %8.4f   %8.4f\n",
                          SSAB, (a-1)*(b-1), MSAB, MSAB/MSE, PVInt
                        );
                  printf(" Error   %10.4f    %5d      %10.4f\n",
                          SSE, a*b*(c-1), MSE
                        );
                  printf(" Total   %10.4f    %5d\n",
                         SSTO, a*b*c-1);
                  printf(" ------------------------------------------------------------------\n");
             end proc:

>

  N11 := [21, 14, 16, 18]:
  N12 := [16, 20, 15, 21]:
  N13 := [15, 19, 14, 14]:
  N14 := [17, 17, 18, 20]:
  N21 := [20, 19, 20, 18]:
  N22 := [15, 16, 17, 19]:
  N23 := [16, 13, 18, 16]:
  N24 := [18, 17, 21, 19]:
  N31 := [14, 13, 16, 17]:
  N32 := [17, 18, 16, 16]:
  N33 := [15, 16, 17, 18]:
  N34 := [16, 16, 17, 18]:
  N := [ [ N11, N12, N13, N14 ],
         [ N21, N22, N23, N24 ],
         [ N31, N32, N33, N34 ]
       ]:

>	Anova2m(N);

------------------------------------------------------------------
Sum of

             Squares    Degrees of     Mean Sq
  Source     (SS)        Freedom        (MS)      F-Ratio    p-value
  ------------------------------------------------------------------
  Row(A)     15.7917        2          7.8958     2.1992     0.1256
  Col(B)     23.0625        3          7.6875     2.1412     0.1121
  Int(AB)    34.8750        6          5.8125     1.6190     0.1703
  Error     129.2500       36          3.5903
  Total     202.9792       47
  ------------------------------------------------------------------

Download Anova2m.mw

Something like...

Answered: tomleslie 13876

January 09 2019

4 1

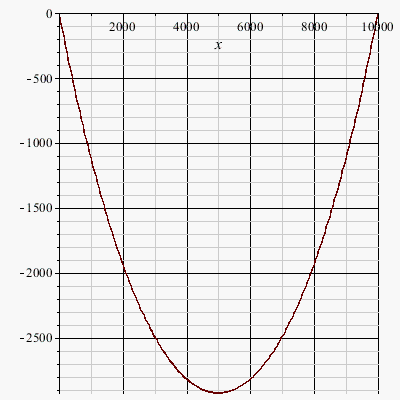

the attached?

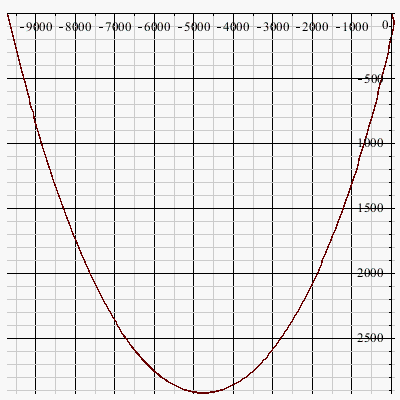

>	restart; mg:=78.547.851e-910009.81;l:=10000;l0:=12000;h:=0;H := 28.399; eta:=mgl/(2H); zeta:=arcsinh(mgh/(2Hsinh(eta)))-eta; z:=H/mg(cosh(mg/Hx+zeta)-cosh(zeta)); p:=plot(z,x=0..l); f:=plottools:-transform((x, y)->[Harcsinh(x)-x, y]): plots:-display( f(p) );

>

Download plottrans.mw

It depends...

Answered: tomleslie 13876

January 08 2019

0 1

on whether you just wish Maple to "display" the function with a restricted number of digits, in which case setting

interface(displayprecision=4);

ought to help. This has no impact on calculations, just controls the number of digits displayed in any calculation results

If your problem is actually with "print" statements, then all you have to do is use the appropriate format code. For example check the difference between

printf( "%10.8f", Pi);
printf( "%10.4f", Pi);

Or (just for fun!)...

Answered: tomleslie 13876

January 08 2019

2 0

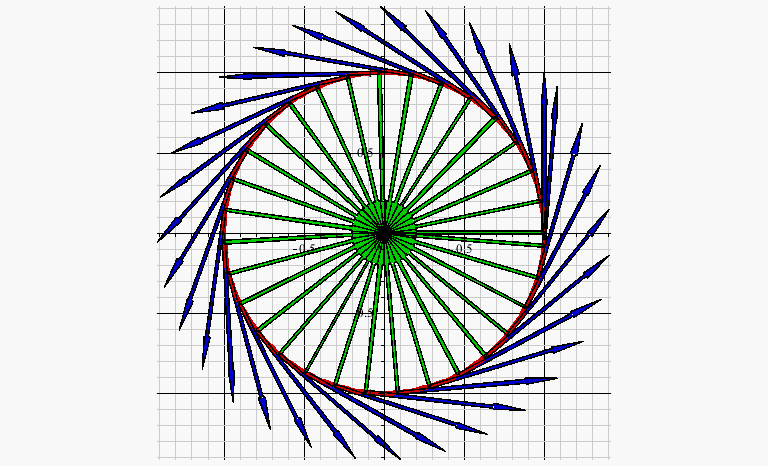

doing it with vectors,

Download vecPlot.mw

From the pdf whihc you referenced...

Answered: tomleslie 13876

January 07 2019

4 3

ie

http://www.math.hope.edu/tanis/MapleManual.pdf

then I was able to reproduce the code on pp247-248, and generate the results table shown on p248.

Note that in order to do this, I had to make an "educated guess" about the definition of the function FCDF(), which I have taken to be the CDF of the Fisher F-distribution. This identification is suggested in the referenced pdf, but is nowhere (that I can find!) stated explicitly.

Use the attached with care

>

#
# Initialise and define the procedure Anova2(s)
#
  restart;
  Anova2s:= proc( D::listlist )
                  uses Statistics:
                  local a:= nops(D),
                        b:= nops(D[1]),
                        tot:= 0,
                        SSTO:= 0,
                        SSA:= 0,
                        SSB:= 0,
                        SSE:= 0,
                        FCDF:= (x, y, z)-> CumulativeDistributionFunction( FRatio(x,y), z),
                        RowMean:= Array(1..a),
                        ColMean:= Array(1..b),
                        i,     j, GrandMean, MSA, MSB,
                        MSE, PVR, PVC;
                   description "Two factor ANOVA*(one obs. per cell)";
                   for j to b do
                       ColMean[j]:= 0
                   end do;
                   for i to a do
                       for j to b do
                           tot:= tot+D[i][j]
                       end do
                   end do;
                   GrandMean:= tot/a/b;
                   for i to a do
                       RowMean[i]:= Mean(D[i])
                   end do;
                   for j to b do
                       for i to a do
                           ColMean[j]:= ColMean[j]+D[i][j]
                       end do;
                       ColMean[j]:= ColMean[j]/a
                   end do;
                   for i to a do
                       for j to b do
                           SSTO:= SSTO+(D[i][j]-GrandMean)^2
                       end do
                   end do;
                   for i to a do
                       SSA:= SSA+(RowMean[i]-GrandMean)^2
                   end do;
                   for j to b do
                       SSB:= SSB+(ColMean[j]-GrandMean)^2
                   end do;
                   SSA:= b*SSA;
                   SSB:= a*SSB;
                   SSE:= SSTO-SSA-SSB;
                   MSA:= SSA/(a-1);
                   MSB:= SSB/(b-1);
                   MSE:= SSE/(a-1)/(b-1);
                   PVR:= 1-FCDF(a-1,(a-1)*(b-1),MSA/MSE);
                   PVC:= 1-FCDF(b-1,(a-1)*(b-1),MSB/MSE);
                   printf( "             Sum of\n"):
                   printf( "             Squares   Degrees of   Mean Sq\n"):
                   printf( " Source      (SS)      Freedom      (MS)      F-Ratio     p-value\n");
                   printf( " --------------------------------------------------------------\n");
                   printf( " Row(A) %10.4f   %5d     %10.4f   %8.4f   %8.4f\n",
                           SSA, a-1, MSA, MSA/MSE, PVR);
                   printf( " Col(B) %10.4f   %5d     %10.4f   %8.4f   %8.4f\n",
                              SSB, b-1, MSB, MSB/MSE, PVC
                         );
                   printf( " Error   %10.4f   %5d     %10.4f\n",
                              SSE, (a-1)*(b-1), MSE
                         );
                   printf( " Total   %10.4f   %5d\n",
                           SSTO, a*b-1
                         );
                   printf( " --------------------------------------------------------------\n");
              end proc:

>	# # Supply data and run the procedure # M:= [[16, 18, 21, 21], [14, 15, 18, 17], [15, 15, 18, 16]]; Anova2s(M)

             Sum of
             Squares   Degrees of   Mean Sq
  Source      (SS)      Freedom      (MS)      F-Ratio     p-value
  --------------------------------------------------------------
  Row(A)     24.0000       2        12.0000    18.0000     0.0029
  Col(B)     30.0000       3        10.0000    15.0000     0.0034
  Error       4.0000       6         0.6667
  Total      58.0000      11
  --------------------------------------------------------------

>

Download ANOVA2.mw

Just to confirm...

Answered: tomleslie 13876

January 06 2019

1 1

what vv has said,

The attached shows your code with the two 'relevant' lines converted to 1-D input. The difference is really obvious.

Now exactly why do you choose to use 2-D math input ?

Download anothr2DIssue.mw

Answer to your original question...

Answered: tomleslie 13876

January 03 2019

0 1

is trivial. See the attached

>

#
# Initialize
#
  restart;
#
# Set parameters
#
  J:= 0.01: b:=0.1: K:= 0.01: R:=1: L:=1:
#
# Define ODEs
#
  eq1:=J*diff(theta(t),t,t)+b*diff(theta(t),t)=K*i(t):
  eq2:=L*diff(i(t),t)+R*i(t)=V-K*diff(theta(t),t):
#
# Define ICs
#
  ICs:= theta(0)=0, D(theta)(0) = 0, D(theta)(0) = 0, i(0) = 0:
#
# Obtain *exact* solution
#
  sol:=dsolve({eq1,eq2,ICs}):
#
# Evaluate exact solution for a few particular
# values of the parameter V
#
  vVals:=[1, 2, 5, 10]:
  for v in vVals do
      ans:=eval~(sol, V=v):
    #

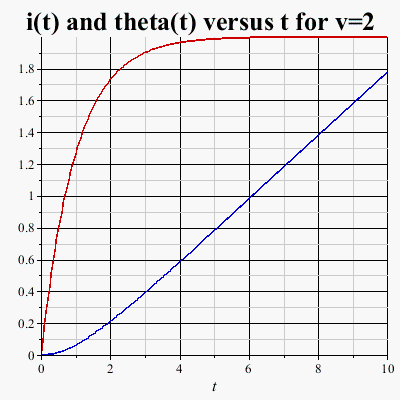

    # plot i(t) versus t and theta(t) versus t
    #
      plot( [ rhs(ans[1]), rhs(ans[2])],
            t=0..10,
            color=[red,blue],
            title=typeset( "i(t) and theta(t) versus t for V=", v),
            titlefont=[time, bold, 20]
          );
    #

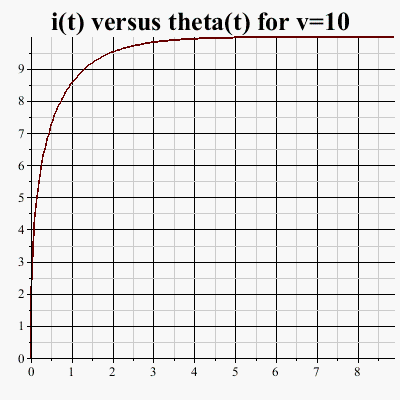

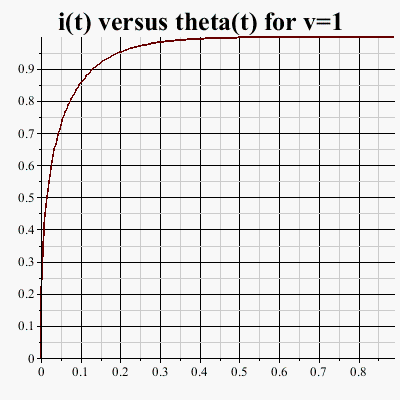

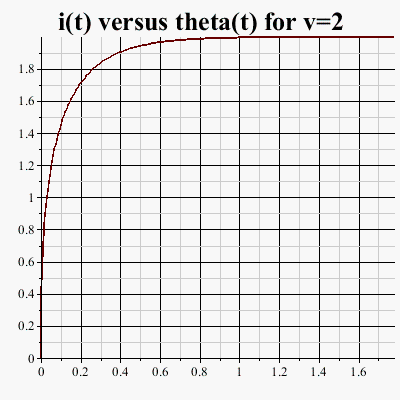

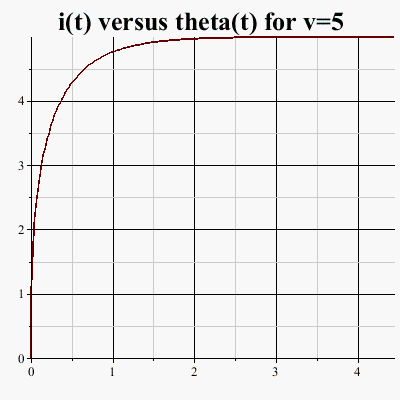

    # plot i(t) versus theta(t) over the same range
    #
      plot( [ rhs(ans[2]), rhs(ans[1]),
            t=0..10 ],
            title=typeset( "i(t) versus theta(t) for V=", v),
            titlefont=[time, bold, 20]
          );
  od;

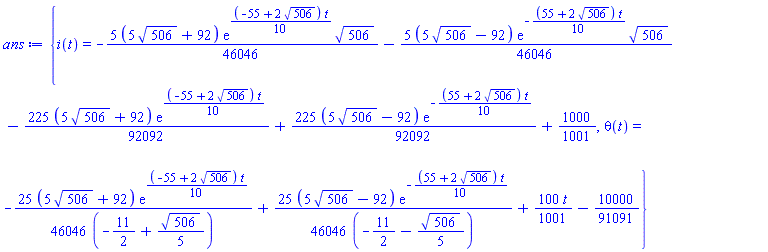

${i(t) = -(5/46046)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)*506^(1/2)-(5/46046)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)*506^(1/2)-(225/92092)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)+(225/92092)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)+1000/1001, theta(t) = -(25/46046)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)/(-11/2+(1/5)*506^(1/2))+(25/46046)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)/(-11/2-(1/5)*506^(1/2))+(100/1001)*t-10000/91091}$

${i(t) = -(5/23023)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)*506^(1/2)-(5/23023)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)*506^(1/2)-(225/46046)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)+(225/46046)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)+2000/1001, theta(t) = -(25/23023)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)/(-11/2+(1/5)*506^(1/2))+(25/23023)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)/(-11/2-(1/5)*506^(1/2))+(200/1001)*t-20000/91091}$

${i(t) = -(25/46046)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)*506^(1/2)-(25/46046)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)*506^(1/2)-(1125/92092)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)+(1125/92092)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)+5000/1001, theta(t) = -(125/46046)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)/(-11/2+(1/5)*506^(1/2))+(125/46046)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)/(-11/2-(1/5)*506^(1/2))+(500/1001)*t-50000/91091}$

${i(t) = -(25/23023)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)*506^(1/2)-(25/23023)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)*506^(1/2)-(1125/46046)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)+(1125/46046)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)+10000/1001, theta(t) = -(125/23023)*(5*506^(1/2)+92)*exp((1/10)*(-55+2*506^(1/2))*t)/(-11/2+(1/5)*506^(1/2))+(125/23023)*(5*506^(1/2)-92)*exp(-(1/10)*(55+2*506^(1/2))*t)/(-11/2-(1/5)*506^(1/2))+(1000/1001)*t-100000/91091}$

>

Download odeSol.mw

Now you *seem* to be suggesting that 'V' is not a parameter, but a function dependent on 't' - and somewhere you have a file which defines values of 'V' at particular values of 't'. If this is the case then the best(?) solution method would probably be to curveFit the data of V versus t, producing a piecewise function, and then solve the ODE system for the resultant fitted function. Since you do not supply this fitting data (assuming that it actually is fitting data), then there is little anyone here can do to help

E-Mail Address:
Password:
Remember Me:	Automatically sign in on future visits

E-Mail Address:
Password:
Remember Me:	Automatically sign in on future visits

Ask a Question

Create a Post

13876 Reputation

20 Badges

MaplePrimes Activity

These are answers submitted by tomleslie

Your supplied worksheet...

Possibly something like...

See...

You seem to be more interested...

The attached...

Need way more terms in the summation...

Something like...

Sometimes...

Anova2m...

Something like...

It depends...

Or (just for fun!)...

From the pdf whihc you referenced...

Just to confirm...

Answer to your original question...

Save this setting as your default sorting preference?

Ask a Question

Create a Post

Generating PDF…

Save this setting as your default sorting preference?
Note: You can change your preference any time in your account settings
Don't show this again
