Use  Physics  package for this:

restart;
with(Physics):
Setup(noncommutativeprefix={A,B});
expand((A+B)^3);



It is not at all necessary to remember the Maple commands for calculating the norm and calling the corresponding packages. The main thing is to know how to introduce a vector and know the formula for the norm:

restart;
A:=<4, 7>;
# The shortest way to specify a column 2D-vector
sqrt(A[1]^2+A[2]^2);  # The calculation of the Euclidean norm symbolically
evalf(%);  # The same but numerically

If to solve as proposed in another answer, then we unjustifiably narrow the domain of the expression  A . In fact,  the identity  A = -b/a  is true for any real numbers (of course  a<>0). To work with a real  x  in the real domain, it's better to write surd(x, 3)  instead of  x^(1/3) . See the examples:
(-8)^(1/3);
simplify((-8)^(1/3));
surd(-8, 3);


Using  surd  command, the initial expression  A  can be simplified in 2 steps:

restart;
A := surd(a^6,3)*surd(-b^3,3)/a^3;
simplify(A) assuming real, a>0;
simplify(A) assuming real, a<0;



See help on  surd  command for details.



restart;
eqq:= k[t]*(`&ell;`^2)*(diff(q[3](tau), tau, tau)+(5*alpha-sigma+2*theta+1)*q[3](tau)+(-4*alpha+sigma-theta)*q[2](tau)+q[1](tau)*alpha) = -(sqrt(m*(1/k[t]))*`&ell;`*k[t]*`&Delta;&theta;`*(q[3](tau)-q[2](tau))*sin(sqrt(Lambda*k[t]*(1/m))*sqrt(m*(1/k[t]))*tau)+2*xi*sqrt(lambda*k[t]*m)*(diff(q[3](tau), tau)))*`&ell;`*(1/sqrt(m*(1/k[t]))):

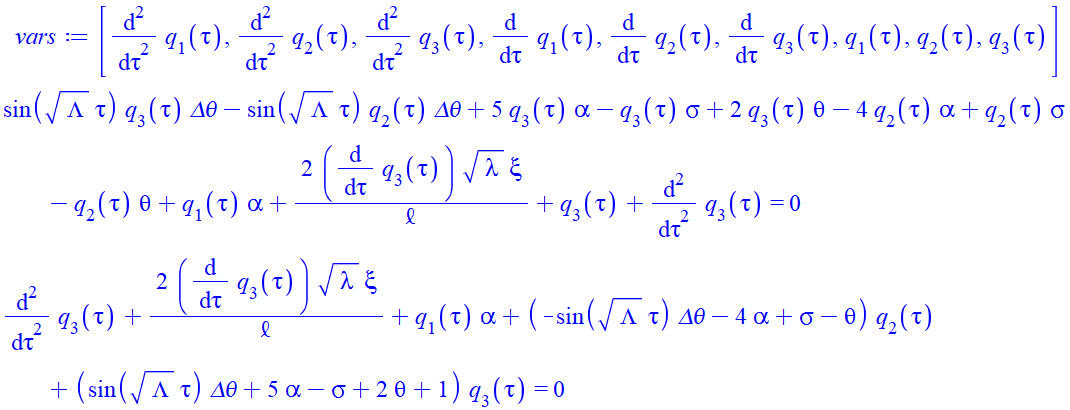

vars:= [diff(q[1](tau),tau$2),diff(q[2](tau),tau$2),diff(q[3](tau),tau$2),diff(q[1](tau),tau),diff(q[2](tau),tau),diff(q[3](tau),tau),q[1](tau),q[2](tau),q[3](tau)];
expand(simplify((eqq-rhs(eqq))/(k[t]*`&ell;`^2))) assuming positive;
collect(%, vars);





Edit.

In Maple 2018 use empty symbol  ``  for this. In this case, Maple regards  ``(1+A*cos(psi))
as a single expression:

restart;
signum(``(1+A*cos(psi))-sqrt(1+sin(psi))) assuming ``(1+A*cos(psi))<sqrt(1+sin(psi));

-1




Replace  the line

pp1:=display([pu1,pu2,pu3,pu4]);

with

pp1:=plots:-display([pu1,pu2,pu3,pu4]);

It is shorter and faster to use  plot  command for this (without calling  plots  package):

L1:=[seq(j, j=1..10)];
L2:=[seq(j^2, j=1..10)];
plot(L1, L2, style=point, symbol=solidcircle, symbolsize=20);

# Or
plot(L2, L1, style=point, symbol=solidcircle, symbolsize=20);


 #  If you omit  style=point  option, then (by default) Maple draws a polyline that connects these points:

plot(L1, L2);


Your system has no solutions, since we have

dsolve({diff(x(t), t) = y(t), diff(y(t), t) = -x(t), x(0) = 0, y(0) = 1});
evalf([(D(sin))(8), (D(-cos))(8)]);

 {x(t) = sin(t), y(t) = cos(t)}
                          [-0.1455000338, -0.9893582466]


You must impose the condition of touching the circles  C4  and  C2 : the distance between the centers is equal to the sum of the radii. Here is the solution:

restart; with(geometry):

x0 := (3+1/2)/2;
x1 := x0; y1 := x0 + (1+1/4);
point(P1, x1, y1); ## center of the circle
circle(C2, [P1, x0]);

x3 := (3+1/2)/2-(3/4+20/1000)/2-1/2; y3 := 1+1/4; evalf([x3, y3]);

point(P2, x3, 0); point(P3, x3, y3);
line(L1, [P2, P3]);
intersection(I1, L1, C2);
for s in I1 do print(evalf(coordinates(s))) end do;
tr := 1/8;  ## tool radius, radius of C4

x4 := x3 - tr;

point(P4, x4, y4);
circle(C4, [P4, tr]);
Equation(C4,[x,y]);
distance(P4,P1);
solve({%=tr+x1,y4<y1});
point(P4,x4,eval(y4,%));
circle(C4, [P4, tr]);
intersection(I2, C2, C4);  # The point of touching the circles  C4  and  C2
detail(I2);
draw([L1,C2,C4], view=[0..4,0..5], axes=normal);



I usually prefer to use lists or vectors; over them it is more convenient to make various arithmetic manipulations:

N:=10:
Y := [seq(i^2, i=1 .. N)];
 # This is the list
DY := Y[3 .. N] - Y[1 .. N-2];  # This list also



# or the same, but slightly longer:

DY := [seq(Y[n+1]-Y[n-1], n=2..N-1)];

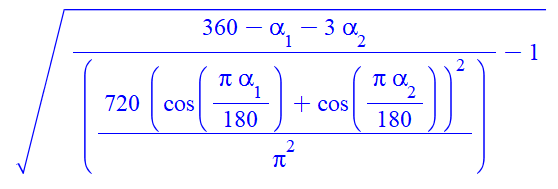

sqrt((360-alpha[1]-3*alpha[2])/``(720/Pi^2*(cos(Pi*alpha[1]/180)+cos(Pi*alpha[2]/180))^2)-1);



#  or

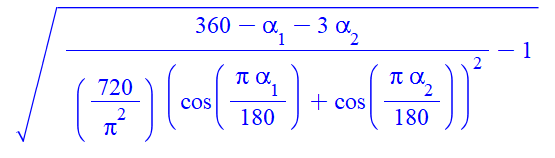

sqrt((360-alpha[1]-3*alpha[2])/(``(720/Pi^2)*(cos(Pi*alpha[1]/180)+cos(Pi*alpha[2]/180))^2)-1);





Maple can not solve your equation  deq=3  for  , since the explicit dependence of  y(x)  is unknown. Here is a workaround:

restart:
eq:=4*x^2+2*y(x)^2=32.5625:
deq:=solve(  diff(eq,x), diff(y(x),x) );
deq=3;
y(x)=solve(deq=3, y(x));
x=solve(subs(y(x)=y, deq=3), x);


RootOf(2*_Z+3*y(_Z))  is a formal representation of the root of the equation  2*_Z+3*y(_Z)=0  with respect to  _Z

I corrected all the syntax errors. We see that the integrand is actually a scalar function.  But Maple does not cope with this integral even for finite intervals. I think that the reason is in a large number of parameters (8 parameters).




restart

with(Physics[Vectors]); Setup(mathematicalnotation = true)

p_ := _i*px+_j*py+_k*pz

_i*px+_j*py+_k*pz

(1)

``

q_ := _i*qx+_j*qy+_k*qz

_i*qx+_j*qy+_k*qz

(2)

``

w_ := _i*wx+_j*wy+_k*wz

_i*wx+_j*wy+_k*wz

(3)

``

K := (`#mover(mi("p"),mo("&rarr;"))`.`#mover(mi("p"),mo("&rarr;"))`)/((`#mover(mi("p"),mo("&rarr;"))`.`#mover(mi("p"),mo("&rarr;"))`+a^2)^2*((`#mover(mi("p"),mo("&rarr;"))`-`#mover(mi("q"),mo("&rarr;"))`+`#mover(mi("w"),mo("&rarr;"))`).(`#mover(mi("p"),mo("&rarr;"))`-`#mover(mi("q"),mo("&rarr;"))`+`#mover(mi("w"),mo("&rarr;"))`))+b1^2)

(px^2+py^2+pz^2)/((a^2+px^2+py^2+pz^2)^2*((px-qx+wx)^2+(py-qy+wy)^2+(pz-qz+wz)^2)+b1^2)

(4)

``

8*(int(K, [px = 0 .. 1, py = 0 .. 1, pz = 0 .. 1]))

Warning,  computation interrupted



``

`minus`(indets(K), {px, py, pz})

{a, b1, qx, qy, qz, wx, wy, wz}

(5)

``


You can try to calculate your integral by specifying the values of these parameters.

Edit.

Download Integration-Vec-Example_new.mw

restart;
with(Physics):
Setup(mathematicalnotation = true);
Setup(signature = `-+++`);
Coordinates(M = [t, rho, z, phi]);
ds2 := -exp(2*psi(rho, z))*dt^2+exp(2*gamma(rho, z)-2*psi(rho, z))*(drho^2+dz^2)+exp(-2*psi(rho, z))*(rho^2)*(dphi^2);
Setup(metric = ds2);






restart;
F := [q2, q2^2/q1+(gamma-1)*(q3-q2^2/(2*q1)), q3*q2/q1+(gamma-1)*(q3-q2^2/(2*q1))*q2/q1];
Q := [q1, q2, q3];

with(VectorCalculus):

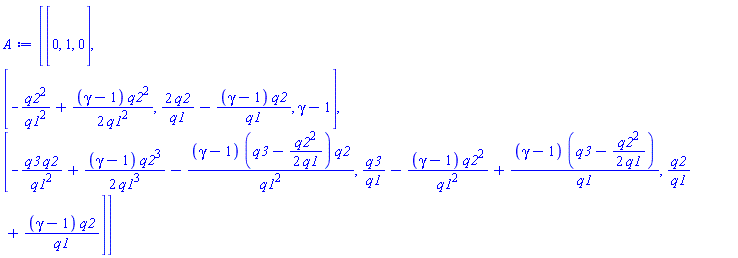

A := Jacobian(F, Q);

A := subs(q1 = rho, q2 = rho*u, q3 = rho*e, A);

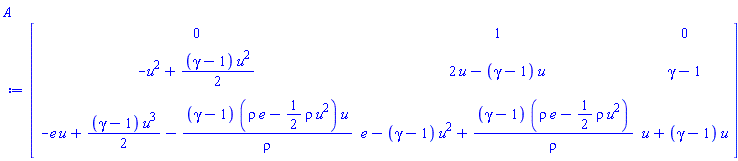

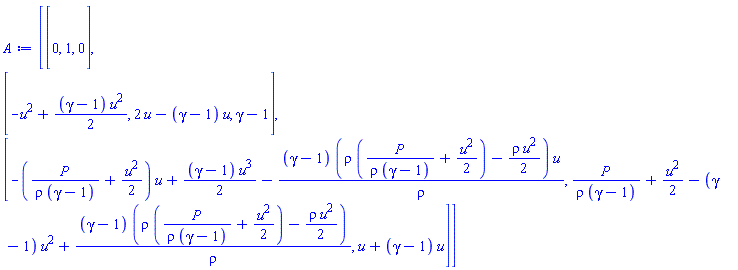

A := subs(e = P/(rho*(gamma-1))+(1/2)*u^2, A);

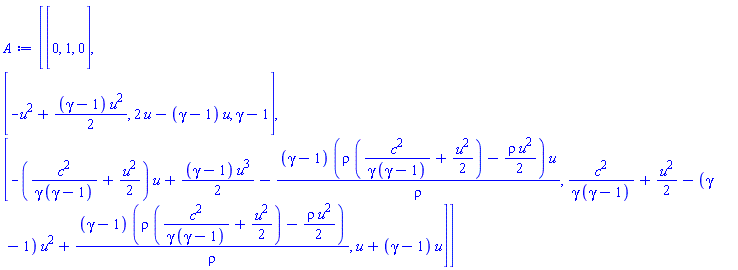

A := subs(P = rho*c^2/gamma, A);

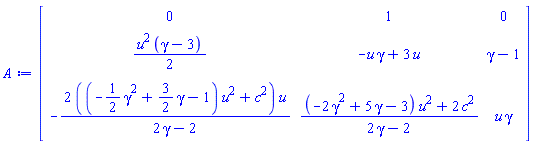

A := simplify(A);
with(LinearAlgebra):
evalsA := simplify(Eigenvalues(A));

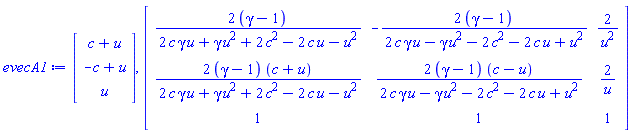

evecA1 := Eigenvectors(A);
B:=solve(rho*c^2/(gamma-1)*(1/rho)+(1/2)*u^2 = H, c^2);

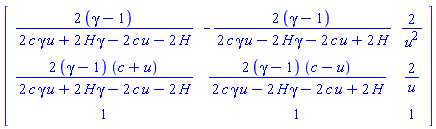

subs~(c^2=B, evecA1[2]);
simplify(%);

F := [q2, q2^2/q1+(gamma-1)*(q3-q2^2/(2*q1)), q3*q2/q1+(gamma-1)*(q3-q2^2/(2*q1))*q2/q1]



Q := [q1, q2, q3]



Matrix(3, 3, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (2, 1) = -q2^2/q1^2+(1/2)*(gamma-1)*q2^2/q1^2, (2, 2) = 2*q2/q1-(gamma-1)*q2/q1, (2, 3) = gamma-1, (3, 1) = -q3*q2/q1^2+(1/2)*(gamma-1)*q2^3/q1^3-(gamma-1)*(q3-(1/2)*q2^2/q1)*q2/q1^2, (3, 2) = q3/q1-(gamma-1)*q2^2/q1^2+(gamma-1)*(q3-(1/2)*q2^2/q1)/q1, (3, 3) = q2/q1+(gamma-1)*q2/q1})



Matrix(3, 3, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (2, 1) = -u^2+((1/2)*gamma-1/2)*u^2, (2, 2) = 2*u-(gamma-1)*u, (2, 3) = gamma-1, (3, 1) = -e*u+((1/2)*gamma-1/2)*u^3-(gamma-1)*(rho*e-(1/2)*rho*u^2)*u/rho, (3, 2) = e-(gamma-1)*u^2+(gamma-1)*(rho*e-(1/2)*rho*u^2)/rho, (3, 3) = u+(gamma-1)*u})



Matrix(3, 3, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (2, 1) = -u^2+((1/2)*gamma-1/2)*u^2, (2, 2) = 2*u-(gamma-1)*u, (2, 3) = gamma-1, (3, 1) = -(P/(rho*(gamma-1))+(1/2)*u^2)*u+((1/2)*gamma-1/2)*u^3-(gamma-1)*(rho*(P/(rho*(gamma-1))+(1/2)*u^2)-(1/2)*rho*u^2)*u/rho, (3, 2) = P/(rho*(gamma-1))+(1/2)*u^2-(gamma-1)*u^2+(gamma-1)*(rho*(P/(rho*(gamma-1))+(1/2)*u^2)-(1/2)*rho*u^2)/rho, (3, 3) = u+(gamma-1)*u})



Matrix(3, 3, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (2, 1) = -u^2+((1/2)*gamma-1/2)*u^2, (2, 2) = 2*u-(gamma-1)*u, (2, 3) = gamma-1, (3, 1) = -(c^2/(gamma*(gamma-1))+(1/2)*u^2)*u+((1/2)*gamma-1/2)*u^3-(gamma-1)*(rho*(c^2/(gamma*(gamma-1))+(1/2)*u^2)-(1/2)*rho*u^2)*u/rho, (3, 2) = c^2/(gamma*(gamma-1))+(1/2)*u^2-(gamma-1)*u^2+(gamma-1)*(rho*(c^2/(gamma*(gamma-1))+(1/2)*u^2)-(1/2)*rho*u^2)/rho, (3, 3) = u+(gamma-1)*u})



Matrix(3, 3, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 0, (2, 1) = (1/2)*u^2*(gamma-3), (2, 2) = -gamma*u+3*u, (2, 3) = gamma-1, (3, 1) = -(2*(-(1/2)*gamma^2+(3/2)*gamma-1)*u^2+2*c^2)*u/(2*gamma-2), (3, 2) = ((-2*gamma^2+5*gamma-3)*u^2+2*c^2)/(2*gamma-2), (3, 3) = gamma*u})



Vector(3, {(1) = u, (2) = -c+u, (3) = c+u})



evecA1 := Vector(3, {(1) = c+u, (2) = -c+u, (3) = u}), Matrix(3, 3, {(1, 1) = (2*gamma-2)/(2*c*gamma*u+gamma*u^2+2*c^2-2*c*u-u^2), (1, 2) = -(2*gamma-2)/(2*c*gamma*u-gamma*u^2-2*c^2-2*c*u+u^2), (1, 3) = 2/u^2, (2, 1) = (2*gamma-2)*(c+u)/(2*c*gamma*u+gamma*u^2+2*c^2-2*c*u-u^2), (2, 2) = (2*gamma-2)*(c-u)/(2*c*gamma*u-gamma*u^2-2*c^2-2*c*u+u^2), (2, 3) = 2/u, (3, 1) = 1, (3, 2) = 1, (3, 3) = 1})



Warning, solving for expressions other than names or functions is not recommended.



B := -(1/2)*gamma*u^2+H*gamma+(1/2)*u^2-H



Matrix(3, 3, {(1, 1) = (2*gamma-2)/(2*c*gamma*u+2*H*gamma-2*c*u-2*H), (1, 2) = -(2*gamma-2)/(2*c*gamma*u-2*H*gamma-2*c*u+2*H), (1, 3) = 2/u^2, (2, 1) = (2*gamma-2)*(c+u)/(2*c*gamma*u+2*H*gamma-2*c*u-2*H), (2, 2) = (2*gamma-2)*(c-u)/(2*c*gamma*u-2*H*gamma-2*c*u+2*H), (2, 3) = 2/u, (3, 1) = 1, (3, 2) = 1, (3, 3) = 1})



Matrix(%id = 18446746571555804334)

(1)






Download subs.mw
