This can be done in a mass of ways. If you want the cone to have the specified proportions, you first need to do some calculations to find out the necessary parameters (vertex coordinates, base radius and height).

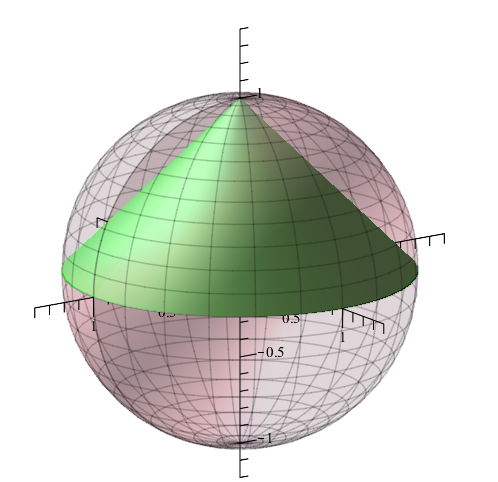

The first (easy) way:

A:=plottools:-cone([0,0,-1], 1, 1, style=surface, color="Green"):
B:=plottools:-sphere(color=pink, transparency=0.5):
C:=plottools:-reflect(A, [[0,0,0],[1,0,0],[0,1,0]]):
plots:-display(C, B, axes=normal, view=[-1.4..1.4,-1.4..1.4, -1.2..1.4], scaling=constrained);







Addition. The second way.

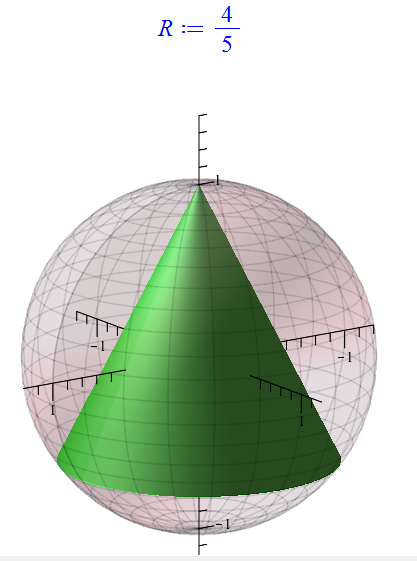

 Let us  inscribe a cone , whose height is twice the radius of the base, in the unit sphere. First we need to find the radius of the base of this cone:

R:=solve(2*x=sqrt(1-x^2)+1);  # Radius of the base of the cone
A:=plot3d([r*cos(t), r*sin(t), -sqrt(1-R^2)], r=0..R, t=0..2*Pi, style=surface, color="Green"):  # The base of the cone
B:=plot3d([r*cos(t), r*sin(t), -2*r+1], r=0..R, t=0..2*Pi, style=surface, color="Green"): # Lateral surface of the cone
C:=plottools:-sphere(color=pink, transparency=0.7):
plots:-display(A, B, C, axes=normal, view=[-1.2..1.2,-1.2..1.2, -1.2..1.4], scaling=constrained);



Here the cone surfaces are given in terms of their parametric equations.

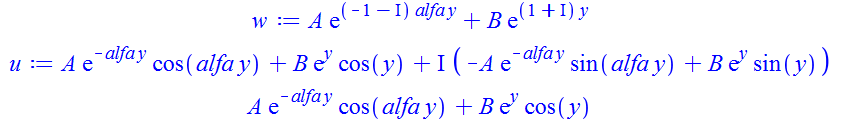

I supposed that  A, B, alpha, y  are reals,  i=I  is imaginary unit.

restart;
w := A*exp(-alfa*(1+I)*y)+B*exp((1+I)*y);
u := evalc(w);
subs(I=0, u);

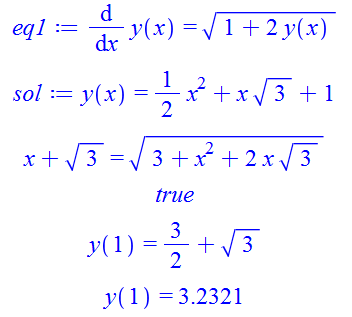

eq:=diff(y(x),x)=sqrt(1+a*x+2*y(x)):
eq1:=eval(eq, a=0);
# Substitution a=0 into the equation eq
sol:=dsolve({eq1, y(0)=1}, y(x));
# Solution of the equation eq1
eval(eq1, sol);  # Substitution of the solution into the equation eq1
is(%) assuming x>0;  # Check of the solution
eval(sol, x=1);  # Exact value y(1)
evalf[5](%);  # Approximate value y(1)

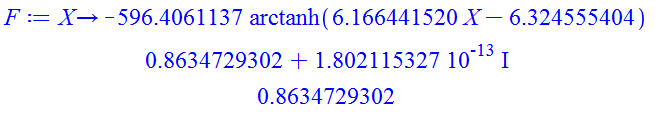

F:=unapply(int(1/(0.1060444429e-1-0.2120888857e-1*X+0.1033933318e-1*X^2), X), X);
fsolve(F(x)-F(0)=5000, x);
simplify(fnormal(%), zero);



See  LinearAlgebra:-GenerateMatrix  command in Help.

Expr:=-(1/4)*G*r^2/eta-(1/4)*G*(ri^2-ro^2)*ln(r)/(eta*(ln(ri)-ln(ro)))-(1/4)*G*(ln(ri)*ro^2-ri^2*ln(ro))/(eta*(ln(ri)-ln(ro))):
Fact:=-(1/4)*G/eta:
``(Fact)*map(t->t/Fact, Expr);







Addition.  This method does not work if the initial expression has members that do not contain the common factor to be taken out (below I have marked these members through C). Here's a way of solving the problem:

restart;
Expr:=-(1/4)*G*r^2/eta-(1/4)*G*(ri^2-ro^2)*ln(r)/(eta*(ln(ri)-ln(ro)))-(1/4)*G*(ln(ri)*ro^2-ri^2*ln(ro))/(eta*(ln(ri)-ln(ro)))+C:
Fact:=-(1/4)*G/eta:
solve(t=Fact, G):
subs(t=``(Fact), collect(subs(G=%, Expr), t));








as an example:

restart;
sol := dsolve({diff(i(t),t)+i(t)=0, i(0)=2}, i(t));
assign(sol);
i:=unapply(i(t), t);
plot(i(t), t = -1 .. 4, view = -1 .. 3, gridlines);
i(1);



Edit.

A := day(hello(a, b), c):
op(0, A);
op([1, 0], A);

                                                                day
                                                               hello



Addition. If you want to extract the names of all functions simultaneously, you can use the following procedure:

restart;
P:=proc(Expr)
if op(Expr)=Expr then return NULL else
op(0,Expr), map(t->P(t), [op(1..-1, Expr)])[ ] fi;
end proc:



Example of use:

A := day(hello(a, morning(b)), night(c)):
P(A);

                                           day, hello, morning, night




Edit.

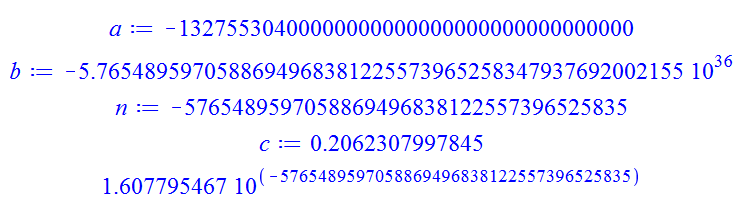

restart;
a:=convert(-1.327553040*10^37, fraction);

# Obviously the given number is 10^b where
b:=evalf[50](a/ln(10));
n:=floor(b);
c:=evalf[50](b-n);
10^c*10^``(n);
# The answer in scientific notation with standard 10 digits accuracy

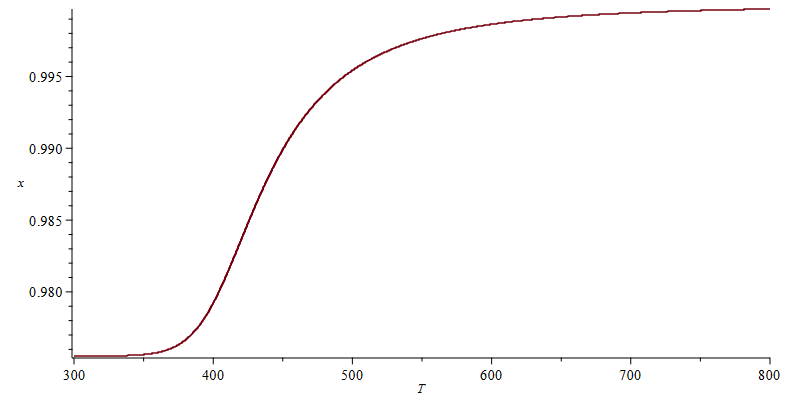

First, you can solve the equation for each value  T  in the range  300..800  with step 1, and then plot a graph using the data obtained (you will get a nice plot of even better quality than lower):

restart;
Data:=[seq([t,fsolve(eval(x*(3-2*x)^2/4/(1-x)^3=18325.73901+exp(36.58420421-10902.09286/T), T=t))], t=300..800)];
plot(Data);



Before the plotting both parts of the equation are multiplied by (1-x)^3 :

restart;
plots:-implicitplot(x*(3-2*x)^2/4=18325.73901*(1-x)^3+exp(36.58420421-10902.09286/T)*(1-x)^3, T=300..800, x=0..1, gridrefine=5);

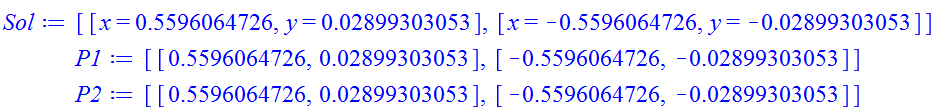

In fact, this line intersects the circle at two points. Here are 2 ways to isolate the coordinates of these points (the second way is similar tomleslie's one only for two solutions):

eq1:= x^2+y^2=0.314:
eq2:= y=0.05180967688*x:
Sol:=solve({eq1,eq2}, [x,y]);
P1:=[seq(eval([x,y], s), s=Sol)];
# The first way
P2:=map(rhs~, Sol);   # The second way

In Help see  DocumentTools:-Tabulate  command.

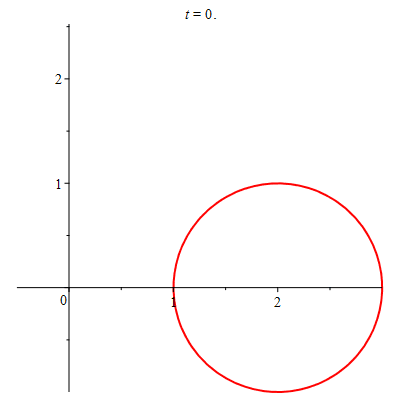

The most general way to specify a transformation in  R^2  or  R^3  is  plottools:-transform  command. In the following example, the unit circle is rotating by 90 degrees and simultaneously is reducing by 2 times:

restart;
f:=t->plottools:-transform((x,y)->convert(<cos(t),-sin(t); sin(t),cos(t)>.(<2,0>+(1-t/Pi)*(<x,y>-<2,0>)), list)):
A:=plots:-implicitplot((x-2)^2+y^2-1, x=-1..3, y=-1..3, color=red, thickness=2):
plots:-animate(plots:-display, ['f(t)'(A)], t=0..Pi/2, frames=100, scaling=constrained);





Edit.



cycfunc:=proc(Expr, vars)
local n, P;
n:=nops(vars);
P:=[seq([seq(vars[j], j=i..n), seq(vars[j], j=1..i-1)], i=1..n)];
if `and`(seq(Expr=subs(`=`~(vars, p), Expr), p=P)) then return true else false fi;
end proc:



Example of use:

cycfunc(a^2*b + b^2*c + c^2*a, [a,b,c]);

                                                                          true
