These are answers submitted by Kitonum

Matrix([["A", "B"], ["C", "D"]]);
# Or
<"A","B"; "C","D">;



If you want some graph to remain unchanged, then simply give the new graph a new name using the  inplace=false  option:

with(GraphTheory):
H := CompleteGraph(4);
G:=DeleteEdge(H, {1, 2},inplace=false);
DrawGraph(H);
DrawGraph(G);



restart

with(student)

with(PDEtools)

inf := 10^(-2)

mu := exp(-lambda*theta(y, t))

``

equ1 := R*(diff(w(y, t), t)) = mu*(diff(w(y, t), `$`(y, 2)))+(diff(mu, y))*(diff(w(y, t), y))-M*w(y, t)+L+Gr*theta(y, t)

R*(diff(w(y, t), t)) = exp(-lambda*theta(y, t))*(diff(diff(w(y, t), y), y))-lambda*(diff(theta(y, t), y))*exp(-lambda*theta(y, t))*(diff(w(y, t), y))-M*w(y, t)+L+Gr*theta(y, t)

(1)

equ2 := R*Pr*(diff(theta(y, t), t)) = diff(theta(y, t), `$`(y, 2))+Br*mu*(diff(w(y, t), y))^2+Ra*((theta(y, t)+1)^4-1)

R*Pr*(diff(theta(y, t), t)) = diff(diff(theta(y, t), y), y)+Br*exp(-lambda*theta(y, t))*(diff(w(y, t), y))^2+Ra*((theta(y, t)+1)^4-1)

(2)

parameters := [Gr = 1, Pr = 7.1, R = .5, lambda = .5, Bi = 1, M = .5, Ra = .1, L = 1, Br = .1]

IBC := [w(y, 0) = 0, theta(y, 0) = 0, (D[1](w))(0, t) = 0, (D[1](theta))(0, t) = 0, w(inf, t) = 0, (D[1](theta))(inf, t)+Bi*theta(inf, t) = 0]

[w(y, 0) = 0, theta(y, 0) = 0, (D[1](w))(0, t) = 0, (D[1](theta))(0, t) = 0, w(1/100, t) = 0, (D[1](theta))(1/100, t)+Bi*theta(1/100, t) = 0]

(3)

pds := pdsolve({subs(parameters, equ1), subs(parameters, equ2)}, {subs(parameters, IBC)[]}, numeric, time = t, range = 0 .. 10^(-2))

_m1761663908192

(4)



Download PDE_solution_new.mw

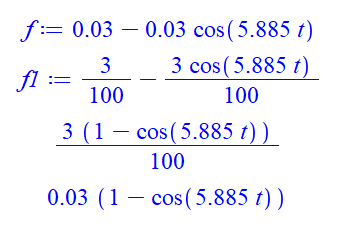

This is not so easy to do due to the way Maple works with numbers in the  float  format. First we convert  0.03  to an exact fraction, put it out of brackets, and at the end we do the reverse conversion:

restart;
f:=0.03-0.03*cos(5.885*t);
f1:=applyop(convert, {1,[2,1]}, f, fraction);
3/100*``(f1/(3/100));
subs(3/100=0.03,%);  # The desired result





Probably this problem is related to your version of Maple. Everything works as expected in Maple 2018:




restart

with(plots)










f := proc (x) options operator, arrow; sin(100/(x+13)) end proc

proc (x) options operator, arrow; sin(100/(x+13)) end proc

(2.1.1)

g := proc (x) options operator, arrow; 10/(10*x+3) end proc

proc (x) options operator, arrow; 10/(10*x+3) end proc

(2.1.2)

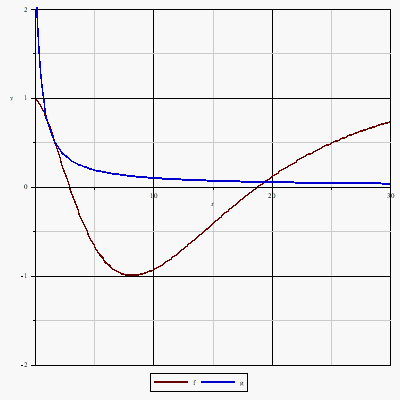

gr_f := plot(f(x), x = 0 .. 30, y = -2 .. 2, legend = "f", font = [times, normal, 6], legendstyle = [font = [times, normal, 6]], labelfont = [times, normal, 6])

gr_g := plot(g(x), x = 0 .. 30, y = -2 .. 2, legend = "g", color = blue, font = [times, normal, 6], legendstyle = [font = [times, normal, 6]], labelfont = [times, normal, 6])

display(gr_f, gr_g)







A := fsolve(f(x) = g(x), x = 1.1)

1.049742001

(2.2.1)

B := fsolve(f(x) = g(x), x = 1.7)

1.676209051

(2.2.2)

C := fsolve(f(x) = g(x), x = 20)

19.35519742

(2.2.3)





assume(E > C)

solve(int(f(x)-g(x), x = C .. E) = 3, E, UseAssumptions)

28.05987548

(2.3.1)

fsolve(int(f(x)-g(x), x = C .. E) = 3, E)

12.00027508

(2.3.2)

fsolve(int(f(x)-g(x), x = C .. E) = 3, E = 30)

28.05987548

(2.3.3)



La valeur de E cherchée est donc d'environ 28,06 unités.




Download Problem_of_integral_new.mw

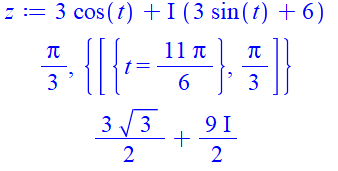

Obviously, if  |z - 6*I| = 3  then  all such points  z  lie on the circle with center at the point  [0, 6]  and radius :

restart;
z:=3*cos(t)+(3*sin(t)+6)*I;
minimize(argument(evalc(z)), t=0..2*Pi, location);
eval(z, %[2,1,1][]);  # The answer



restart;
n:=4:
combinat:-permute([1$n,-1$n],n);

     [[1, 1, 1, 1], [1, 1, 1, -1], [1, 1, -1, 1], [1, 1, -1, -1], [1, -1, 1, 1], [1, -1, 1, -1], [1, -1, -1, 1], [1, -1, -1, -1], [-1, 1, 1, 1], [-1, 1, 1, -1], [-1, 1, -1, 1], [-1, 1, -1, -1], [-1, -1, 1, 1], [-1, -1, 1, -1], [-1, -1, -1, 1], [-1, -1, -1, -1]]

Try the following simple code:

restart;
a:=a+1;


You will probably get the same error. So deal with your last assignments.

Try the following simple code:

restart;
a:=a+1;


You will probably get the same error. So deal with your last assignments.

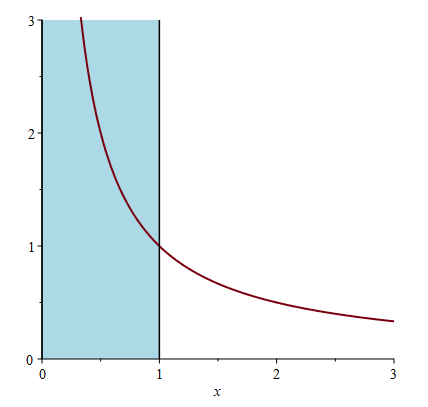

It's easier to do this using the  plots:-inequal  command:

restart;
A:=plot(1/x, x=0..3, 0..3, thickness=2):
B:=plots:-inequal({x>=0,x<=1}, x=0..3,y=0..3, optionsfeasible = [color = "LightBlue"]):
plots:-display(A,B);





`%+`(seq((-1)^(n + 1)/(2*n - 1), n = 1 .. 4));





Here is the fragment from the help  ?plot,structure :

"GRID(a..b, c..d, A)
The GRID structure represents surfaces in 3-D space defined by a uniform sampling over a rectangular (aligned) region of the plane.  The GRID structure takes the form GRID(a..b, c..d, A) where a..b is the x-range, c..d is the y-range, and A is a two-dimensional Array.  If you have an m-by-n grid, then element A[i, j] is the function value at grid point (i, j), for i in 1..m and j in 1..n.  The Array A may be replaced by a list of the form [[z11,...z1n], [z21,...z2n],...[zm1...zmn]] where zij is the function value at grid point (i, j)."

(i, j) are not values of x and y, but indexes for function z values. In your example i=1..4, j=1..3

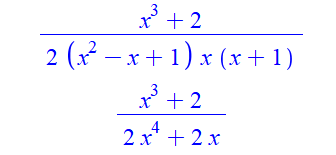

Here are two simple steps to get the desired simplification. We take the second step only if we are not satisfied with the first one:

simplify(evalc(w)); # The first step
numer(%)/expand(denom(%)); # The second step




You've spent a lot of time looking for a one-line code. You could use it to do more useful things.

The standard way is to use the  piecewise command:

restart;
f:=piecewise(x<0,1/x, x>=0,sqrt(x));
plot(f, x=-4..4, -4..2, scaling=constrained, discont);

If you don't like the notation Maple uses, you can enter the notation you want. For example, you could write e^x instead of exp(x) (but first you must to assign  e:=exp(1) ). Some conversions are also useful,  for example  convert(..., elementary)  or   convert(..., factorial)  or   convert(..., ln)  ans so on.
