You have not specified the version of your Maple. Perhaps in the latest versions everything works as you would like. In my Maple 2018, everything is the same as yours.
I don't see any other way how to code the desired legend using the  plot, plots:-textplot, plottools:-rectangle  commands. Of course, this is quite troublesome.
Look at an example below:

restart;
interface(version);
``;
p1:=plot(x^2,x=-2..2,color=red, style=pointline,symbol=asterisk,symbolsize=14,adaptive=false,numpoints=20):
p2:=plot([[1,-0.9],[1.4,-0.9]],color=red):
p3:=plots:-textplot([1.6,-0.8,x^2],font=[times,16]):
p4:=plot([[1.2,-0.9]],style=point,color=red,symbol=asterisk, symbolsize=14):
p5:=plottools:-rectangle([0.9,-0.6],[1.7,-1.1], style=line):
plots:-display(p1,p2,p3,p4,p5, size=[500,500]);

restart;
R:=Uo/sqrt(Go*Ho)=Fr;
subs(Uo=solve(R,Uo), Go*Ho/Uo^2);

The equality  Uo=solve(R,Uo)  is equivalent to the equality  R .

Here is a more direct and shorter solution. I used multiple assignment for all constants, removed indices  m  and  n  that were not used in any way, specified the matrix  S  and vector  V  of the system in a shorter way, and used the  LinearAlgebra:-LinearSolve  command. The result is returned as a vector  Sol , the entries of which we can give any names, for example  A  and  B :

restart;
h, C, rho, omega := 0.03, 1, 7800, 222:
S := <rho*h*omega^2+100,200; 280,rho*h*omega^2+444>;
V := -C*<555, 6665>;
Sol := LinearAlgebra:-LinearSolve(S, V);
A, B := seq(Sol);

restart;
L:=proc(P,v)
if P=x then  x*y elif
P=y then  1 elif
P=z then  z^2 elif
nops(P)=1 and not (P in v) then  0 elif
type(P,`+`) then  map(L,P,v) elif
type(P,`*`) or type(P,`^`) then if type(P,`^`) then  op(2,P)*op(1,P)^(op(2,P)-1)*L(op(1,P),v)  else  `+`(seq(`*`(({op(P)} minus {p})[])*`if`(p::numeric,0,`if`(p in v,L(p,v),op(2,p)*op(1,p)^(op(2,p)-1)*L(op(1,p),v))),p={op(P)})) fi; fi;
end proc:

# Examples
L(x*y + y*z,[x,y,z]);
L(x*y*z,[x,y,z]);
L(1/2*x*y^2+3*y^3*z, [x,y,z]);

More complex examples can be easily generated using the  randpoly  command, for example:

P:=randpoly([x,y,z], dense, degree=3);
L(P,[x,y,z]);

Edit.

See Help on  inttrans:-laplace  command and  dsolve,inttrans  help page.

Your function should be defined as  piecewise  function:

f:=t->piecewise(t>=0 and t<5,exp(-2*t),t>=5,-t);
inttrans:-laplace(f(t), t, s);

restart;
# Define i1(t) and i2(t) as symbolic variable

# Given differential equation
ode1 := diff(i1(t),t) = 0.5*i1(t)-3*i2(t)+5*exp(-2*t);
ode2 := diff(i2(t),t) = 2*i1(t) - 6*i2(t);
odes := {ode1, ode2};

# Define initial conditions
cond1 := i1(0) = 1;
cond2 := i2(0) = -1;
conds := {cond1, cond2};

# Solution of system of differential equations
Sol := dsolve(odes union conds);

plot(eval([i1(t), i2(t)], Sol), t=0..5, color=[red,blue], legend=["i1(t)","i2(t)"]);

To plot one or more points, the simplest way will be to use the syntax  plot([A, B, ...], style=point) , where A, B, ...  are points given by lists of their coordinates. To specify the color, size and shape of symbols representing points, use the options  color =... ,  size = ...  and  symbol = ...  . To label points we use  plots:-textplot  command. Note that the function  y=x^2  is defined as a procedure  f:=x->x^2 . This is convenient when calculating the values of both the function itself and its derivative at specific points.

Below, as an example, we solve the problem:

Given the curve  y=x^2  and 2 points  A(-1,1) ,  B(2,4)  .
1. Check that these points lie on this curve.
2. Find the point on the curve  y=x^2 and the equation of the tangent line to this curve (at this point)  such that the tangent is parallel to the chord  AB .
3. Draw all the objects in one plot.

Solution:

restart;
f:=x->x^2:  A:=[-1,1]:  B:=[2,4]:

# Calculations
#
x1, x2, y1, y2 := A[1], B[1], A[2], B[2];
is(f(x1)=y1), is(f(x2)=y2); # Checking that points A and B lie on the curve y=x^2
Eq := D(f)(x0)=(f(x2)-f(x1))/(x2-x1);  # Mean value theorem
x0:=solve(Eq, x0);
y0:=f(x0);
k:=D(f)(x0); # The slope of the tangent
Tangent:=y=y0+k*(x-x0); # The equation of the tangent
C:=[x0,y0];  # The point of tangency

# Plotting
#
Lines:=plot([f(x), [A,B], rhs(Tangent)], x=x1-1..x2+0.5, color=[blue,green,red]): # The plot of all the lines
Points:=plot([A,B,C], style=point, color=blue, symbol=solidcircle, symbolsize=12): # The plot of all the points
Labels:=plots:-textplot([[A[],"A"],[B[],"B"],[C[],"C"],[-1,3.5,y=f(x)],[-1,-1.5,Tangent]], font=[times,16], align={left,above}): # All the labels
plots:-display(Lines,Points,Labels, scaling=constrained, view=[x1-1..x2+0.5,-2..5], size=[500,500]);

When you apply thу  simplify  command to some equality, it is separately applied to the left and right sides, i.e.  simplify(A=B)  is equivalent to  simplify(A)=simplify(B)  (that's the design).
To check some equality (an identity) use the  is  command instead of simplify:

restart;
simplify((a^2-b^2)/(a-b)=a+b);
is((a^2-b^2)/(a-b)=a+b);

If you really want to simplify your expression  f  to the expression  g , there is a workaround. We make simple substitutions, after which the numerator and denominator will be polynomials, then simplify. I wonder if the Mathematica can directly simplify  f  to  g  without such tricks.

restart;
f:=(9*(x^(-2/3*a))^2*exp(6/a*(x^(-2/3*a))^(1/2))^2*_C0^2-6*(x^(-2/3*a))^(3/2)*exp(
6/a*(x^(-2/3*a))^(1/2))^2*_C0^2*a+x^(-2/3*a)*exp(6/a*(x^(-2/3*a))^(1/2))^2*_C0^
2*a^2+18*(x^(-2/3*a))^2*exp(6/a*(x^(-2/3*a))^(1/2))*_C0-2*x^(-2/3*a)*exp(6/a*(x
^(-2/3*a))^(1/2))*_C0*a^2+6*(x^(-2/3*a))^(3/2)*a+x^(-2/3*a)*a^2+9*(x^(-2/3*a))^
2)/(3*_C0*exp(6/a*(x^(-2/3*a))^(1/2))*(x^(-2/3*a))^(1/2)-exp(6/a*(x^(-2/3*a))^(
1/2))*_C0*a+3*(x^(-2/3*a))^(1/2)+a)^2:
g:=x^(-2/3*a):
Subs:=[x^(-2*a*(1/3))=A^2,exp(6*sqrt(x^(-2*a*(1/3)))/a)=B];
f1:=subs(Subs, f);
f2:=simplify(f1) assuming A>0;
subs(A=sqrt(x^(-2*a*(1/3))), f2);
is(%=g);

restart;
A:=Matrix(3, [$1..9]);
L:=[indices(A, pairs)];
L1:=(rhs=lhs)~(L);
T:=table(L1);
T[7];

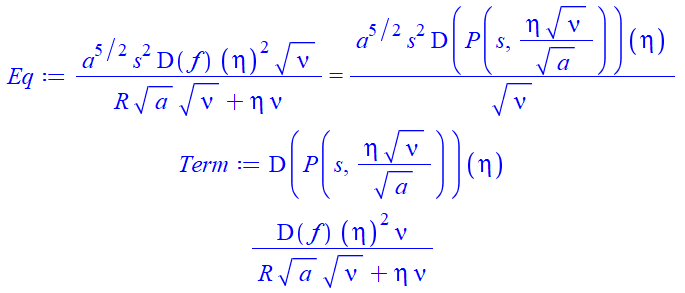

Eq:=a^(5/2)*s^2*(D(f))(eta)^2*sqrt(nu)/(R*sqrt(a)*sqrt(nu)+eta*nu) = a^(5/2)*s^2*(D(P(s, eta*sqrt(nu)/sqrt(a))))(eta)/sqrt(nu);
Term:=select(has,rhs(Eq),P);
solve(Eq, Term);

It's better to implement  this as a procedure so that  Digits  is set automatically:

restart;
Evalf:=proc(x::realcons,n::posint)
local m;
m:=ilog10(evalf(x));
Digits:=m+n+3;
printf(cat("%.",n,f),x);
end proc:

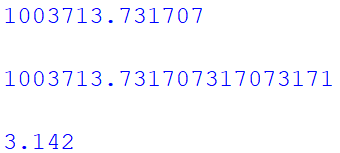

Examples of use:

Evalf(123456789/123,6);
``;
Evalf(123456789/123,15);
``;
Evalf(Pi,3);

If I understood everything correctly, then your surfaces can be plotted according to the following scheme:
1. We define the parametric equations of the curve:  x = R*cos(phi),  y = a - R*(1 - sin(phi)) (phi is the parameter) in the plane  xOy , setting the corresponding constants  a  and  R .
2. Both surfaces are obtained by rotating these curves around the axis  Ox .

In the picture in 3D below, the orientation of the axes  x, y, z  roughly matches your original drawing ( x  is down, y  is back, z  is right):

restart;
a:=3: R:=8:  # For the curve A
a1:=2: R1:=-8:  # For the curve B
x:=R*cos(phi); y:=a-R*(1-sin(phi)); x1:=R1*cos(phi); y1:=a1-R1*(1-sin(phi));

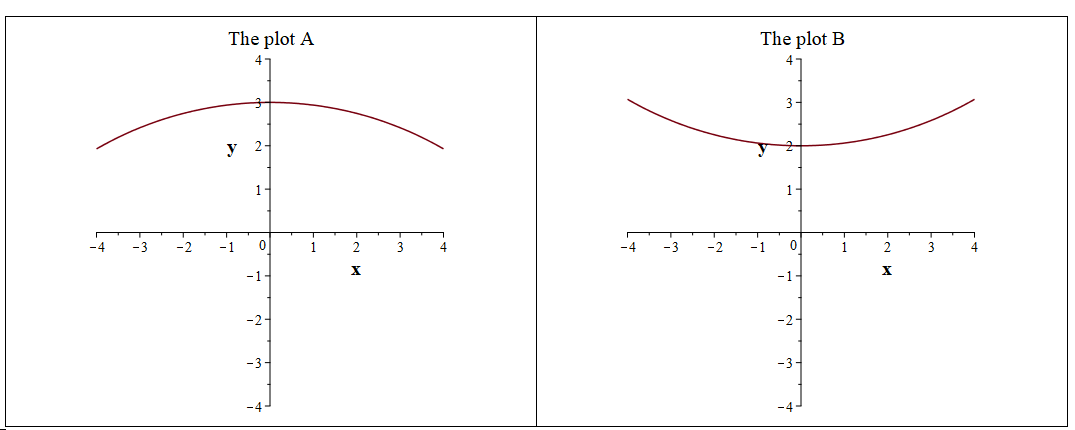

A:=plot([x, y, phi=Pi/3..2*Pi/3], title="The plot A"):
B:=plot([x1, y1, phi=Pi/3..2*Pi/3], title="The plot B"):
plots:-display(< A | B >, scaling=constrained, view=[-4..4,-4..4], labels=["x","y"], labelfont=[times,bold,16], titlefont=[times,16]);

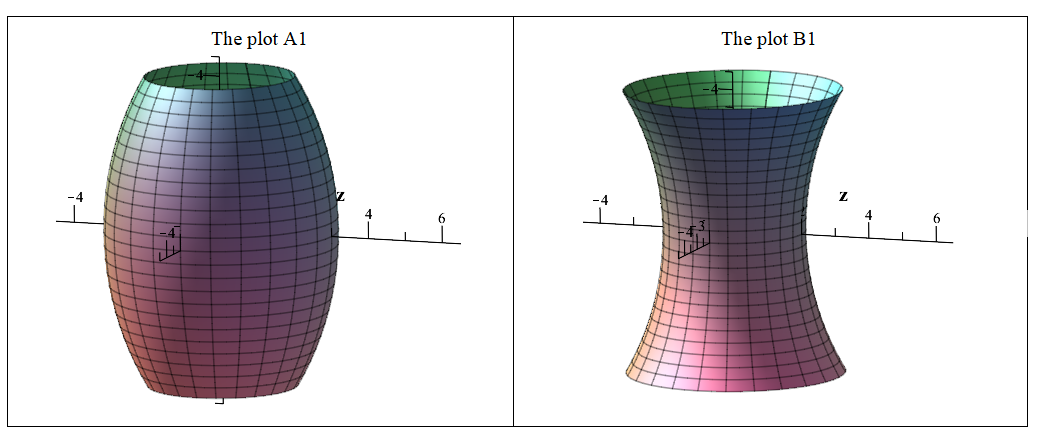

A1:=plot3d([x,y*cos(alpha),y*sin(alpha)], phi=Pi/3..2*Pi/3, alpha=0..2*Pi, axes=normal, title="The plot A1"):
B1:=plot3d([x1,y1*cos(alpha),y1*sin(alpha)], phi=Pi/3..2*Pi/3, alpha=0..2*Pi, axes=normal, title="The plot B1"):
plots:-display(< A1 | B1 >, scaling=constrained, view=[-4.5..4.5,-4.5..4.5,-4.5..6.5], labels=["x","y","z"], labelfont=[times,bold,16], titlefont=[times,16],  orientation=[-10,-3,70]);

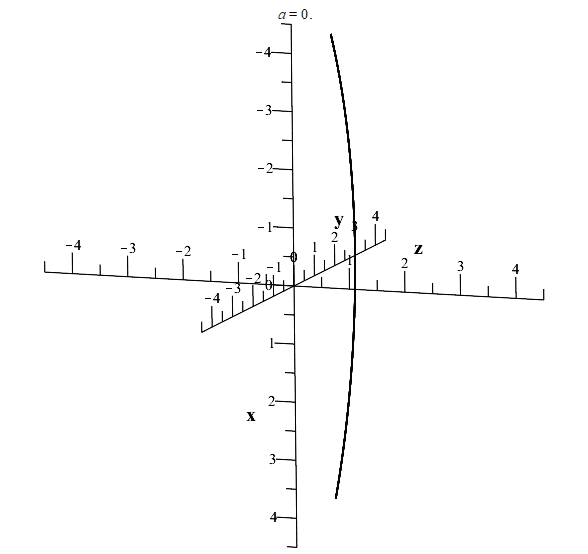

As an addition - animation of  A1 :

plots:-animate(plot3d,[[x,y*cos(alpha),y*sin(alpha)], phi=Pi/3..2*Pi/3, alpha=0..'a', axes=normal], 'a'=0..-2*Pi, frames=90, scaling=constrained, view=[-4.5..4.5,-4.5..4.5,-4.5..4.5], labels=["x","y","z"], labelfont=[times,bold,16], orientation=[-10,-3,70]);

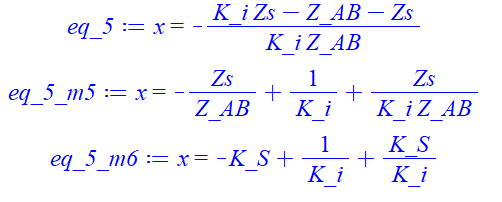

You can use the  subs  command if you notice that  Zs / Z_AB = K_S  is equivalent to  Zs=Z_AB*K_S :

restart;
eq_5 := x = -(K_i*Zs - Z_AB - Zs)/(K_i*Z_AB);
eq_5_m5 := x = expand(rhs(eq_5));
eq_5_m6 := x = subs(Zs=Z_AB*K_S, rhs(eq_5_m5 ));

I usually use the following way:

restart;
u:=<-2+m,3+m>;

u:=eval(u, m=5);
# or
u1:=eval(u, m=5);

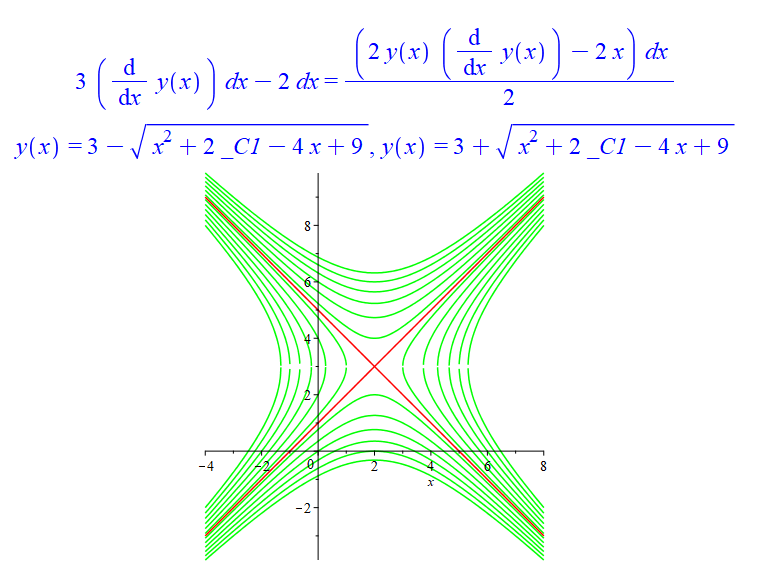

Such equations are easily reducible to ordinary differential equations with derivatives. In the example below, we solve the equation  p*dx-q*dy=1/2*d(y^2-x^2)  by taking  p=3, q=2  and plotting several integral curves and 2 asymptotes:

restart;
d:=z->diff(z,x)*dx:
p:=3: q:=2:
p*d(y(x))-q*dx=1/2*d(y(x)^2-x^2);
dsolve(%);
plot([seq(eval(y(x),%[1]),_C1=-8..3),seq(eval(y(x),%[2]),_C1=-8..3),-(x-2)+3,x-2+3], x=-4..8, color=[green$24,red$2], scaling=constrained);
