These are answers submitted by Kitonum

In fact, if  sin(t)=a  and  cos(t)=b, then from this does not follow that  t=arctan(a/b)  (only tan(t)=a/b). The correct equality will be  t=arctan(a,b) (of course up to a summand a multiple of 2 * Pi). See help on two-argument arctan  ?arctan
For proof, it is sufficient to use the command  expand  and no assumptions are required:




restart;

subexpx := Ls*cos(omega*t + phi__l + theta)*omega + sin(omega*t + phi__l + theta)*Rs;

Ls*cos(omega*t+phi__l+theta)*omega+sin(omega*t+phi__l+theta)*Rs

(1)

subexpx2 := sqrt((omega*Ls)^2+Rs^2)*sin(omega*t + phi__l + theta + arctan(omega*Ls,Rs));

(Ls^2*omega^2+Rs^2)^(1/2)*sin(omega*t+phi__l+theta+arctan(omega*Ls, Rs))

(2)

is(expand(subexpx - subexpx2 = 0));

true

(3)






Download Q20201108_new.mw






restart;
V1:=LinearAlgebra[RandomVector](6,generator=10..20):
V2:=LinearAlgebra[RandomVector](6,generator=50..100):
<V1 | V2>;

Matrix(6, 2, {(1, 1) = 15, (1, 2) = 83, (2, 1) = 14, (2, 2) = 66, (3, 1) = 17, (3, 2) = 51, (4, 1) = 18, (4, 2) = 60, (5, 1) = 13, (5, 2) = 94, (6, 1) = 14, (6, 2) = 65})

(1)





Edit: another way:

Matrix(6,2, (i,j)->`if`(j=1,rand(10..20)(),rand(50..100)()));


Download RM.mw

You can use  the empty symbol  ``  for this  (to prevent parentheses from expanding):

restart;
eq:=a*``(2*A + 2*B) + b*C = c*``(2*A + B) + d*``(B*2) + e*``(C + 4*B);
subs({a = 6, b = 1, c = 6, d = 1, e = 1}, eq);



Your system has an infinite number of solutions depending on one parameter  C2 :




restart;
wres := sqrt(C1+C2)/sqrt(C1*C2*L1);
vores := -C1/C2*vin;
z3 := (C1^2 *R1- j*sqrt(C1*C2*L1*(C1+C2)))/C2^2;
sys :={wres=13.56e6*2*Pi, C1=C2, z3=40,abs(vores/vin)>=1};
solve(sys, {C1, C2, L1, R1});

(C1+C2)^(1/2)/(C1*C2*L1)^(1/2)



-C1*vin/C2



(C1^2*R1-j*(C1*C2*L1*(C1+C2))^(1/2))/C2^2



{C1 = C2, (C1+C2)^(1/2)/(C1*C2*L1)^(1/2) = 85199992.78, (C1^2*R1-j*(C1*C2*L1*(C1+C2))^(1/2))/C2^2 = 40, 1 <= abs(C1/C2)}



{C1 = C2, C2 = C2, L1 = 0.2755185726e-15/C2, R1 = 0.4694836079e-8*(8519999278.*C2^2+5.*(C2^2)^(1/2)*j)/C2^2}

(1)






Download sys_1.mw

The procedure  PS  finds the first  m  members of this sequence.

PS:=proc(m)
local L, S, k, n, a, b;
L:=[];
for k from 1 to m do
for n from 1 do
a:=ithprime(n); b:=cat(op(L),a);
if not (a in L) and isprime(parse(b)) then
L:=[op(L),a];  break fi;
od; od;
op(L);
end proc:

Example of use:
PS(100);
2, 3, 11, 7, 41, 31, 17, 163, 23, 79, 197, 241, 29, 37, 59, 193, 227, 229, 239, 439, 929, 337, 257, 1447, 509, 19, 293, 1723, 1619, 937, 179, 367, 251, 1063, 4241, 1291, 521, 1951, 443, 139, 191, 1753, 1217, 673, 53, 883, 809, 109, 5381, 3733, 311, 967, 449, 2683, 9239, 577, 971, 1453, 101, 1051, 107, 3301, 233, 1627, 2729, 2689, 5669, 1597, 2153, 1117, 5099, 10429, 5303, 6991, 4253, 1777, 281, 349, 5273, 1543, 1997, 1867, 1109, 769, 167, 4261, 3821, 14923, 173, 1531, 71, 13267, 14699, 3877, 137, 2389, 3803, 2671, 5879, 1039


Edit.


restart;

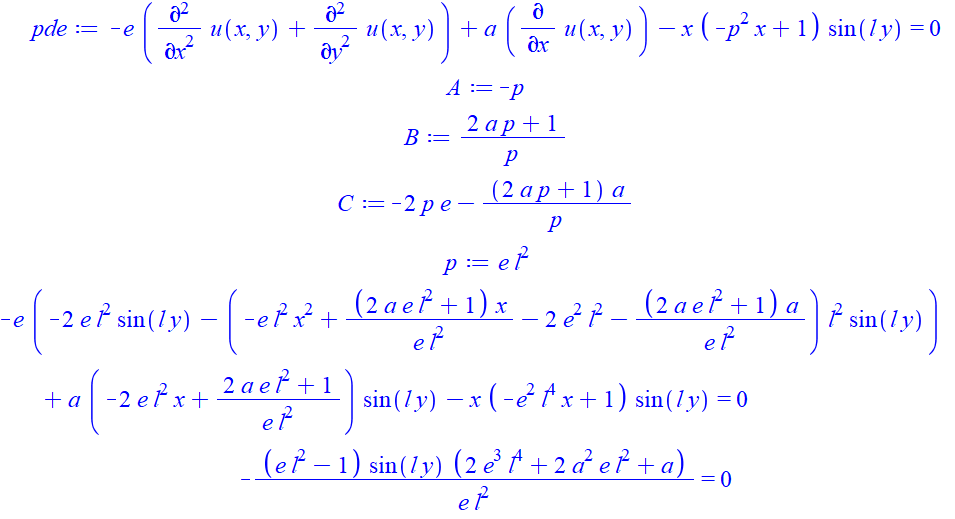

pde := -e*(diff(u(x, y), x, x) + diff(u(x, y), y, y) )+ a*diff(u(x, y), x) - x*(-p^2*x + 1)*sin(l*y) = 0;
A := -p; B := (1-2*a*A)/p; C := (2*e*A - a*B); p := e*l^2;
eval(pde, u(x,y) = (A*x^2 + B*x +C)*sin(l*y));
simplify(%);



Download check.mw





In addition to the numerical optimization commands  Optimization:-Maximize  and  Optimization:-Minimize, Maple has symbolic optimization commands  maximize  and  minimize , but none of these commands work with functions containing parameters. The simple examples below illustrate this. Optimization:-Maximize  and  Optimization:-Minimize commands does not work with piecewise-functions, even if they do not contain parameters.




restart;

f:=piecewise(x<=0,0,x<=2,x*(2-x),x<=3,2*(x-2),x<=5,-2*(x-4),-2);

f := piecewise(x <= 0, 0, x <= 2, x*(2-x), x <= 3, 2*x-4, x <= 5, -2*x+8, -2)

(1)

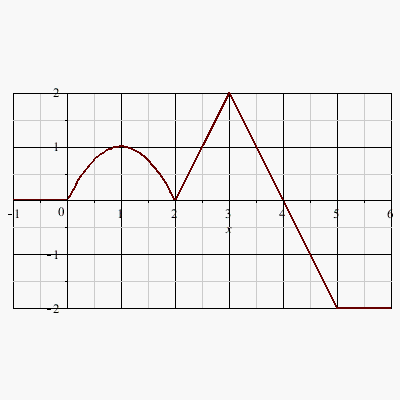

plot(f, x=-1..6, thickness=2, scaling=constrained);



Optimization:-Minimize(f, x=0..6); # a bug
minimize(f, x=0..6); # OK
maximize(f, x=0..6); # OK

[HFloat(1.754980553175305e-8), [x = HFloat(1.9999999912250972)]]



-2



2

(2)

minimize(x^2+a*x+1, x=-infinity..infinity); # no answer
minimize(x^2+a*x+1, x=-1..1); # no answer
minimize(eval(x^2+a*x+1,a=1), x=-1..1); # OK for a specific parameter

minimize(a*x+x^2+1, x = -infinity .. infinity)



minimize(a*x+x^2+1, x = -1 .. 1)



3/4

(3)






Download optimization_examples.mw

Check if maximize  and  minimize commands will work with your function for specific parameter values. If so, you can write a procedure to calculate these, the parameters of this procedure will be the parameters of your function. This procedure will allow you to solve a variety of problems, for example, to plot graphs the dependence of the maximum and minimum on parameters.



Let  a  and  b  be the major and minor semiaxes of the ellipse, c - focal distance. From the condition  b=с  and the equality  a^2=b^2+c^2 , we easily get that  a=c*sqrt(2)  and the eccentricity  e=1/sqrt(2) .  By the condition b = c  the ellipse is determined up to similarity, the alpha angle does not change, therefore, in the calculations, we can assume that  c=1 .
Below  r1  and  r2  are the distances from a point  M(x,y)  on the ellipse to the ellipse foci.




restart;
a:=c*sqrt(2):
e:=c/a:
r1:=a+e*x: r2:=a-e*x: c:=1:
Eq:=(2*c)^2=r1^2+r2^2-2*r1*r2*cos(alpha); # The cosine rule

4 = ((1/2)*2^(1/2)*x+2^(1/2))^2+(-(1/2)*2^(1/2)*x+2^(1/2))^2-2*((1/2)*2^(1/2)*x+2^(1/2))*(-(1/2)*2^(1/2)*x+2^(1/2))*cos(alpha)

(1)

solve(Eq, alpha);

Pi-arccos(x^2/(x^2-4))

(2)

maximize(%, x=0..a, location);

(1/2)*Pi, {[{x = 0}, (1/2)*Pi]}

(3)






Download max_angle.mw

Use  op(eqs)  or  eqs[ ]  for this.

restart;
S:={a*x,b*x, c*(x+y)};
S1:=op~(S);
S1 minus {a,b,c};



restart;
eq:=sqrt(y)=tanh(x);
eq^2;








restart;

PMSM_v_eq := V__alphabeta(t) = R__s * i__alphabeta(t) + L__s*diff(i__alphabeta(t), t) + diff(lambda__alphabeta(t), t);

V__alphabeta(t) = R__s*i__alphabeta(t)+L__s*(diff(i__alphabeta(t), t))+diff(lambda__alphabeta(t), t)

(1)

PMSM_flux_eq := diff(lambda__alphabeta(t),t)=solve(PMSM_v_eq, diff(lambda__alphabeta(t),t));

map(int,PMSM_flux_eq,t);
IntegrationTools:-Expand(%);
applyop(IntegrationTools:-Combine,2,%);

diff(lambda__alphabeta(t), t) = -L__s*(diff(i__alphabeta(t), t))-R__s*i__alphabeta(t)+V__alphabeta(t)



lambda__alphabeta(t) = int(-L__s*(diff(i__alphabeta(t), t))-R__s*i__alphabeta(t)+V__alphabeta(t), t)



lambda__alphabeta(t) = -L__s*i__alphabeta(t)-R__s*(int(i__alphabeta(t), t))+int(V__alphabeta(t), t)



lambda__alphabeta(t) = int(-R__s*i__alphabeta(t)+V__alphabeta(t), t)-L__s*i__alphabeta(t)

(2)




Edit.

Download PMSM_eq_new1.mw



In each specific example, the shortest way is probably to use the  subsop  command:

restart;
sol:={v[1]=t,v[2]=3/2*t,v[3]=v[3]}:
subsop(3=(),sol);



R:=1.33*10^(-9)*C/m^2;
evalf[3](op(1,R)*``(`*`(op(2..3,R))));





restart;
expr:=exp(x)^3*sin(x)+3/(exp(x)^n):
A:=exp(t::anything)^n::anything=exp(t*n):
applyrule([1/A,A], expr);



Edit.
