Or use the  map  command, which causes Maple to sequentially calculate the integral of each summand:

map(int, g, theta = 0 .. Pi)  assuming r>0;




Axel's approach does not work in Maple 2018.

Edit. Of course, as acer showed in his comment, the  IntegrationTools:-Expand  command solves the problem.

I think this task is not too simple for a beginner, since there are many different objects in it. Here is a solution using  eval  and  diff  commands (the differentiation operator  D  does not seem to work for vector functions for Maple <=2018). A detailed commentary is provided for each line of code so that the beginner understands what it is doing. I gave different names for the parameters of the original curve  and the tangent line  s  (they are often confused but they are not related to each other). Ranges  t=0..1.4  and  s=-0.3..0.4  are chosen so that everything looks beautiful and informative.

restart;
f:=[t,t^2,t^3]; # The parametric equations of the original curve
t0:=1; # The value of the parameter at the tangency point
P:=eval(f,t=t0); # The coordinates of the tangency point
df:=eval(diff(f,t), t=t0); # The coordinates of the tangent vector at t=t0
with(plots):
A:=spacecurve(f, t=0..1.4, color=red, thickness=2,labels=[x,y,z]): # The plot of the original curve
T:=map(p->s*p,df)+P; # The parametric equations of the tangent line
B:=spacecurve(T, s=-0.3..0.4, color=blue, thickness=3): # The plot of the tangent line
C:=pointplot3d(P,color=red,symbol=solidsphere,symbolsize=10): # The plot of the tangency point
display(A,B,C, axes=normal, orientation=[-35,75], scaling=constrained); # All at once







Download ABC.mw

I significantly reduced the  stepsize  option, slightly increased  the ranges for  x  and  y , and removed unused lines of code.


with(DEtools)

with(plots)

with(LinearAlgebra)

p1 := phaseportrait([diff(x(t), t) = x(t)*(1-x(t)^2-y(t)^2)+y(t)*(y(t)^2+(x(t)^2-1)^2), diff(y(t), t) = y(t)*(1-x(t)^2-y(t)^2)-x(t)*(y(t)^2+(x(t)^2-1)^2)], [x(t), y(t)], t = 0 .. 50, [[x(0) = -3, y(0) = .5], [x(0) = 4, y(0) = 2]], x = -5 .. 5, y = -5 .. 5, dirgrid = [13, 13], stepsize = 0.1e-2, axes = BOXED); p1



p2 := pointplot([[1, 0], [-1, 0], [0, 0]], symbolsize = 20, symbol = solidcircle, color = black)





display(p1, p2, size = [500, 500])



solve({x*(-x^2-y^2+1)+y*(y^2+(x^2-1)^2), y*(-x^2-y^2+1)-x*(y^2+(x^2-1)^2)}, {x, y})

{x = 0, y = 0}, {x = RootOf(_Z^8-6*_Z^6+11*_Z^4-6*_Z^2+2), y = RootOf(_Z^8-6*_Z^6+11*_Z^4-6*_Z^2+2)^5-3*RootOf(_Z^8-6*_Z^6+11*_Z^4-6*_Z^2+2)^3+RootOf(_Z^8-6*_Z^6+11*_Z^4-6*_Z^2+2)}, {x = 1, y = 0}, {x = -1, y = 0}, {x = RootOf(_Z^2-2), y = RootOf(_Z^2+1)}

(1)

subs({x = .5, y = -.5}, x*(-x^2-y^2+1)+y*(y^2+(x^2-1)^2))

-.15625

(2)

sys := [x*(-x^2-y^2+1)+y*(y^2+(x^2-1)^2), y*(-x^2-y^2+1)-x*(y^2+(x^2-1)^2)]

[x*(-x^2-y^2+1)+y*(y^2+(x^2-1)^2), y*(-x^2-y^2+1)-x*(y^2+(x^2-1)^2)]

(3)

A := Jacobian(sys, [x, y])

Matrix(%id = 18446746360039790702)

(4)

latex(Matrix(2, 2, {(1, 1) = -2, (1, 2) = 0, (2, 1) = 0, (2, 2) = 0}))

 \left[ \begin {array}{cc} -2&0\\ \noalign{\medskip}0&0\end {array}
 \right]



A1 := subs([x = 1, y = 0], A)

Matrix(%id = 18446746360040191630)

(5)

A2 := subs([x = -1, y = 0], A)

Matrix(%id = 18446746360040194406)

(6)

A3 := subs([x = 0, y = 0], A)

Matrix(%id = 18446746360040197166)

(7)

r1, e1 := Eigenvectors(A1)

Vector[column](%id = 18446746360083677662), Matrix(%id = 18446746360083677782)

(8)

r2, e2 := Eigenvectors(A3)

Vector[column](%id = 18446746359967554606), Matrix(%id = 18446746359967554726)

(9)

NULL




Download as22a_new.mw

Here is the procedure that inserts a rational number with the lowest denominator (vv's assumption) between any 2 list items. If there are several such numbers, then the smallest number is inserted.

FindSamples:=proc(sourcesamples)
local N, P;
N:=nops(sourcesamples);
P:=proc(a,b)
local a1, b1, m1, n, m;
if a=b then error "Should be a<>b" fi;
a1,b1:=op(convert(sort([a,b],(x,y)->evalf(x)<evalf(y)),rational));
for n from 1 do
m1:=a1*n;
m:=`if`(type(m1,integer),m1+1,ceil(m1));
if is(m/n>a1) and is(m/n<b1) then return m/n fi;
od;
end proc:
[ceil(sourcesamples[1])-1, seq(op([sourcesamples[i],P(sourcesamples[i],sourcesamples[i+1])]), i=1..N-1),sourcesamples[N],floor(sourcesamples[N])+1];
end proc:

The usage for your example:
sourcesamples :=[evalf(-1-sqrt(7)), -2, 1, evalf(-1 + sqrt(7)), 2];
FindSamples(sourcesamples);


The main role in this procedure is played by the subprocedure  P , which returns a rational number between   and   with the lowest denominator. Here is a specific example of the application of this procedure: Take 2 numbers 3.14 and 3.15 (these are approximations of the number  Pi  with 3 digits with a deficiency and an excess) and find the intermediate number with the lowest denominator:

P:=proc(a,b)
local a1, b1, m1, n, m;
if a=b then error "Should be a<>b" fi;
a1,b1:=op(convert(sort([a,b],(x,y)->evalf(x)<evalf(y)),rational));
for n from 1 do
m1:=a1*n;
m:=`if`(type(m1,integer),m1+1,ceil(m1));
if is(m/n>a1) and is(m/n<b1) then return m/n fi;
od;
end proc:
P(3.14, 3.15);



Edit. The procedure  P  has been improved. Now it works much faster.

First, we complete the squares to estimate the ranges for the loop variables.
There are 2 integer solutions:

restart;
Eq:=7*(x^2+y^2+z^2)+2*x+4*y-8*z-8;
Student:-Precalculus:-CompleteSquare(Eq, [x,y,z]);
Eq1:=%/7; k:=0: T:=table():
for x from -2 to 2 do
for y from -2 to 2 do
for z from -2 to 2 do
if Eq=0 then k:=k+1; T[k]:=[x,y,z] fi;
od: od: od:
T:=convert(T,list);





Two syntax errors:
1. N/2  should be a positive integer.
2. Should be  add  instead of  sum.

Your example:

N:=10:
A:=Array(1..N/2);
add(A);



Here is your example automatically. It works for an arbitrary list:

restart;
L:= [-1+sqrt(7), -1 - sqrt(7)]:

L1:=sort(L,(x,y)->evalf(x)<=evalf(y));
m:=floor(L1[1]);  M:=ceil(L1[-1]);
[$ m..M, op(L)];
samples:=sort(%, (x,y)->evalf(x)<=evalf(y));
evalf(samples);



Edit. If you need to insert something between the list items, you can do so:

[seq(op([A,s]), s=samples), A];





solve(a*x^2 + b*x + c=0, x, parametric=true, real);





Here is a simple procedure that allows you to beautifully plot graphs in 3D. Required parameters: Names - the list of  vertex names, Coords - the list of vertex coordinates, Edges - the set of edges. Opt  is an optional parameter that determines the graphic properties of objects (the color of the vertices, the size of the vertices (as a fraction of the average distance between the vertices), the color of the edges, the thickness of the edges).



restart;
DrawGraph3D:=proc(Names::list,Coords::list, Edges::set(set), Opt::list:=[gold,0.05,brown,3])
local n, Dist, f, h, V, L, T;
uses plottools, plots, ListTools;
n:=nops(Edges);
Dist:=(A,B)->sqrt((A[1]-B[1])^2+(A[2]-B[2])^2+(A[3]-B[3])^2);
f:=x->Coords[Search(x,Names)];
h:=add(map(x->Dist(f(x[1]),f(x[2])), convert(Edges,list)))/n;
V:=seq(sphere(c,Opt[2]*h,style=surface,color=Opt[1]), c=Coords);
L:=seq(line(f(c[1]),f(c[2]),color=Opt[3],thickness=Opt[4]), c=Edges);
T:=textplot3d([seq([f(c)[1],f(c)[2],f(c)[3]+0.05*h,c], c=Names)], font=[times,16],align={left,above});
display(V, L, T, scaling=constrained, axes=none);
end proc:


Examples of use

DrawGraph3D([a,b,c,d],[seq([cos(2*Pi*k/3),sin(2*Pi*k/3),0],k=0..2),[0,0,1]],{{a,b},{b,c},{c,a},{d,a},{d,b},{d,c}},[red,0.06,blue,2]);

DrawGraph3D([$ 1..7],[seq([cos(2*Pi*k/5),sin(2*Pi*k/5),0],k=0..4),[0,0,1],[0,0,-1]],{seq({i,i+1},i=1..4),{5,1},seq({6,i},i=1..5),seq({7,i},i=1..5)}); # Graphic options by default








Download DrawGraph3D_2.mw

Animation of this picture:

plots:-animate(plots:-display,[plottools:-rotate(%,phi,[[0,0,0],[0,0,1]])], phi=0..2*Pi, frames=60);







Edit.

Use the  dimension=3  option.

Example:

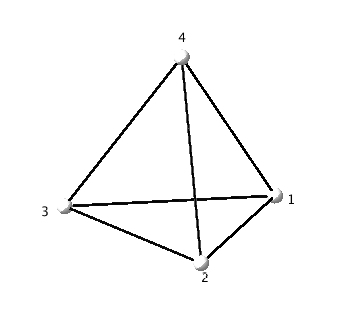

with(GraphTheory):
H := CompleteGraph(4);
DrawGraph(H, style = spring, dimension = 3);

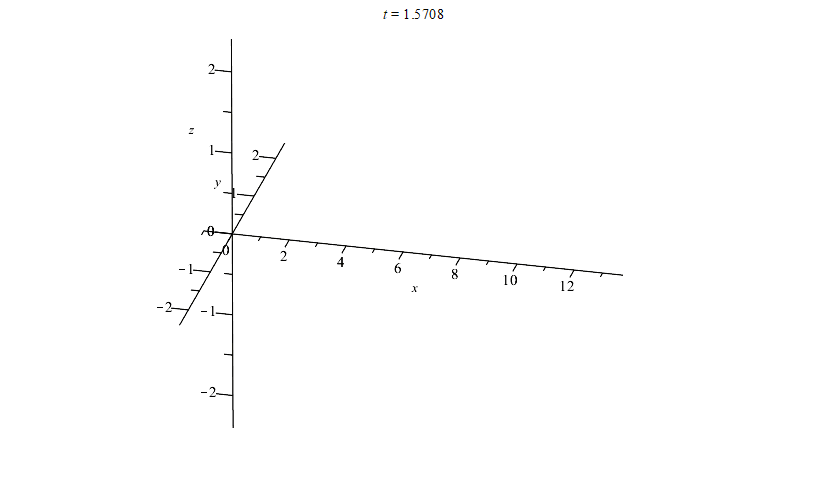

plots:-animate(plot3d, [[x, (cos(x)+1)*cos(phi), (cos(x)+1)*sin(phi)], x = 0 .. 4*Pi, phi = (1/2)*Pi .. t, style = surface, color = khaki, labels = [x, y, z], lightmodel = light1], t = (1/2)*Pi .. (-3*Pi)*(1/2), frames = 60, axes = normal, view = [-1 .. 13.7, -2.4 .. 2.4, -2.4 .. 2.4])

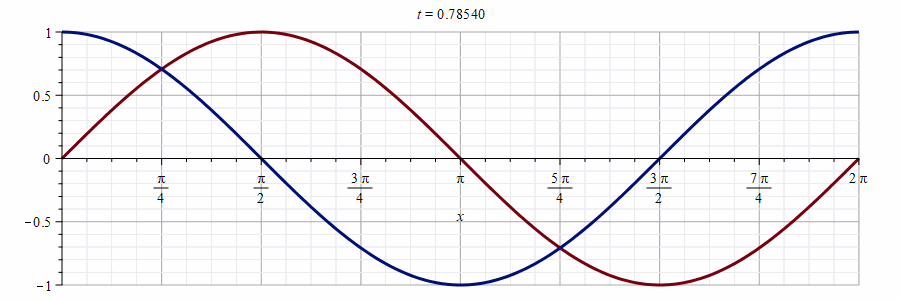

I guess that OP only meant to animate the process of painting one area (the curves themselves should not move):

restart;
with(plots):
animate(shadebetween, [sin(x), cos(x), x = (1/4)*Pi .. t, positiveonly],
t = (1/4)*Pi .. 5*Pi*(1/4),background = plot([sin(x), cos(x)], x = 0 .. 2*Pi,
gridlines = true, thickness = 3, labels = ["", ""]), scaling = constrained, size = [900, 300])



The answer is obvious - the function  2*sqrt(xyz)  does not depend on  . xyz is just a symbol unrelated to x .
In Maple, this can be tested using the  depends  function:

depends(x^2,x);
depends(xyz,x);

                                     true
                                    false

In the usual sense, it is impossible to plot a function of three variables, since it requires 3 dimensions for the arguments and one dimension for the values of the function, that is, we need 4-dimensional space. I propose the following way to solve problem: we fix 1 variable, for example , and then plot the function of two variables  x  and  y . Using  Explore command we can trace how this plot changes as  z  changes.




restart;

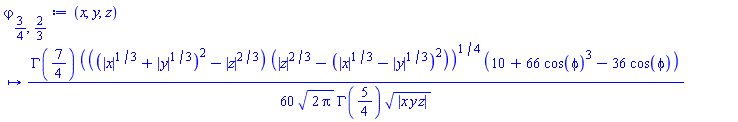

varphi[3/4,2/3]:=(x,y,z)->1/60*GAMMA(7/4)/(sqrt(2*Pi)*GAMMA(5/4))*(((abs(x)^(1/3)+abs(y)^(1/3))^2-abs(z)^(2/3))*(abs(z)^(2/3)-(abs(x)^(1/3)-abs(y)^(1/3))^2))^(1/4)/abs(x*y*z)^(1/2)*(10+66*cos(phi)^3-36*cos(phi));

proc (x, y, z) options operator, arrow; (1/60)*GAMMA(7/4)*(((abs(x)^(1/3)+abs(y)^(1/3))^2-abs(z)^(2/3))*(abs(z)^(2/3)-(abs(x)^(1/3)-abs(y)^(1/3))^2))^(1/4)*(10+66*cos(phi)^3-36*cos(phi))/(sqrt(2*Pi)*GAMMA(5/4)*abs(x*y*z)^(1/2)) end proc

(1)

A:=eval(varphi[3/4,2/3](x,y,z),phi=Pi);

-(1/2)*GAMMA(3/4)^2*(((abs(x)^(1/3)+abs(y)^(1/3))^2-abs(z)^(2/3))*(abs(z)^(2/3)-(abs(x)^(1/3)-abs(y)^(1/3))^2))^(1/4)/(Pi^(3/2)*abs(x*y*z)^(1/2))

(2)

Explore(plot3d(A, x=0.01..5, y=0.01..5, grid=[100,100], axes=normal, view=-0.5..0.1), z=0.01..10.);

eval(A,[x=1,y=3,z=0.05]);

-.2318459778*GAMMA(3/4)^2*(((1+3^(1/3))^2-.1357208808)*(.1357208808-(1-3^(1/3))^2))^(1/4)

(3)

evalf(%);

-.1892078612-.1892078612*I

(4)




The last 2 lines of code show that for some values of arguments your function takes imaginary values. For such values, the plot is not built.

Download Explore_plot3d.mw

To solve your problem, I used the simplest formulas for numerical differentiation. Your expression  diff(u(y, t), y)+diff(diff(u(y, t), y), t)  is calculated for the 4 indicated values  b   by replacing the derivatives at the point  (y,t) = (0,1)  with the corresponding difference ratios with the step  h=0.001



restart;
a := 0.7: L := 8: HAA := [0, 2, 5, 10]: h:=0.001:

PDE1 := diff(u(y, t), t) = diff(u(y, t), y, y)+diff(diff(u(y, t), y, y), t)-b*u(y, t)+T(y, t):
PDE2 := diff(T(y, t), t) = (1+(1+(a-1)*T(y, t))^3)*(diff(T(y, t), y, y))+(a-1)*(1+(a-1)*T(y, t))^2*(diff(T(y, t), y))^2+T(y, t)*(diff(T(y, t), y, y))+(diff(T(y, t), y))^2:

ICandBC := {T(L, t) = 0, T(y, 0) = 0, u(0, t) = t, u(L, t) = 0, u(y, 0) = 0, (D[1](T))(0, t) = -1}:

for i from 1 to nops(HAA) do
b := HAA[i];

pds[i] := pdsolve({PDE1,PDE2}, ICandBC, numeric);

f:=(y0,t0)->rhs((pds[i]:-value(u(y,t),t=t0)(y0))[3]);

A[i]:=(f(h,1)-f(0,1))/h+(f(h,1+h)-f(0,1+h)-f(h,1)+f(0,1))/h^2;

end do:

seq(A[i], i=1..4);

HFloat(-0.363959490085608), HFloat(-1.4987065854407122), HFloat(-2.6087957499710823), HFloat(-3.79562660597188)

(1)






Download ND.mw
