I think the following calculation explains this difference:

restart;
ode1:=diff(y(x),x) = exp(x)*sin(x)+y(x)*cot(x);
my_sol:=[sin(x)*(exp(x)+_C1)];
eval(ode1,y(x)=my_sol);

ode2:=diff(y(x),x) = y(x);
my_sol:=[_C1*exp(x)];
eval( ode2,y(x)=my_sol);

That is if  a<>0  then  [a+b] <> a+[b]

Example:

restart;
X:=LinearAlgebra:-RandomMatrix(50,10, generator=-10..10):
Y:=LinearAlgebra:-RandomMatrix(50,10, generator=-10..10):
B1 := plots:-animate(plots:-pointplot, ['X'[round(kk)], 'Y'[round(kk)], symbolsize = 25, symbol = solidcircle, colorscheme = ["valuesplit"]], kk = 1 .. 50, frames=60);

Just apply the  round  command to all the elements of the matrix.

Example:

A:=<1.1,2.5; -3.53,5.7>;
round~(A);

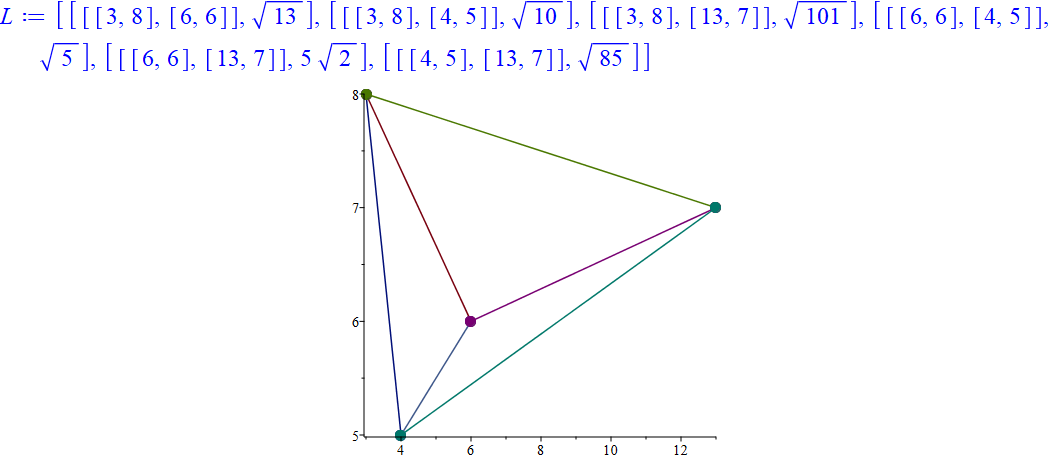

In my opinion, a conceptually simpler code (especially for a beginner) will just go through a double loop on these lists  X  and  Y :

restart;
X := [3, 6, 4, 13]:   Y := [8, 6, 5, 7]:  n:=nops(X):  k:=0:
for i from 1 to n-1 do
for j from i+1 to n do
k:=k+1;  L[k]:=[[[X[i],Y[i]],[X[j],Y[j]]],sqrt((X[i]-X[j])^2+(Y[i]-Y[j])^2)];
od: od:
L:=convert(L, list);
plot(op~(1,L), style= pointline, symbolsize= 20, symbol= solidcircle);

Addition. The code will be 2 times shorter if we use a nested  seq  instead of loops:

restart;
X := [3, 6, 4, 13]:   Y := [8, 6, 5, 7]:  n:=nops(X):
L:=[seq(seq([[[X[i],Y[i]],[X[j],Y[j]]],sqrt((X[i]-X[j])^2+(Y[i]-Y[j])^2)], j=i+1..n), i=1..n-1)];
plot(op~(1,L), style= pointline, symbolsize= 20, symbol= solidcircle);

Edit.

Try

if  `and`(seq(a[i] <= b[i] , i=1..min(nops(a),nops(b)) ))  then ...  fi;

# Example:
a:=[1,2,3]:
b:=[1,2,4,5]:
if  `and`(seq(a[i] <= b[i] , i=1..min(nops(a),nops(b)) ))  then true else false  fi;

Try  axis = [tickmarks = [7, subticks = 4], thickness = 2]

Edit. At first I did not notice your second plot.  See a workaround below in a corrected file:

Curves_(1)_new.mw

Example:

Download ellipse.mw

The example:

f := exp(2*gamma(t, r)-2*alpha(t, r)-2*beta(t, r));

`*`(exp~([(op@@2)(f)])[]);

This can be applied to any expression  exp(Expr)  if the type of Expr is  `+` .

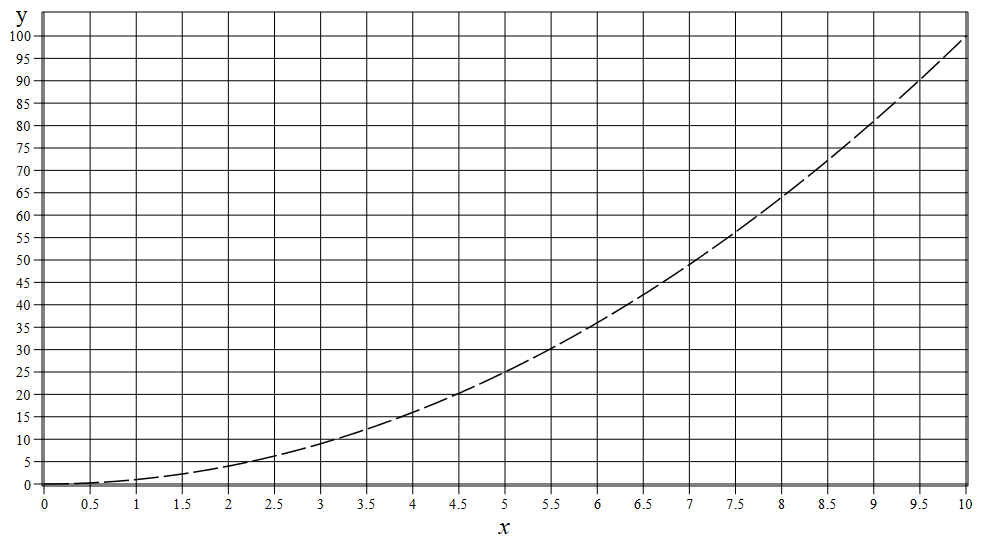

You an do this using the  plots:-textplot  command:


restart;
ff:=x->x^2:
A:=plot(ff(x), x = 0 .. 10, color = black, labelfont = [TIMES, 19], thickness = 1, size = [1200, 600], axes = boxed, linestyle = 5, labels = ['x', ``], axis = [gridlines = [20, color = black]]):
B:=plots:-textplot([0,104.9,"y  "], align=left, font=[times,19]):
plots:-display(A,B);

Output:

It is advisable to solve your new example using the  geometry  package:

restart;
with(geometry):
point(C,0,0):
point(B,7,0):
solve({x^2+y^2=25,(7-x)^2+y^2=9,y>0}, explicit);
point(A,eval([x,y],%)):
triangle(T,[A,B,C]);
incircle(inc,T);
v:=coordinates(center(inc));
r:=radius(inc);
map(coordinates, [A,B,C]);
map(t->t-v, %);
plots:-display(plot([%[],%[1]], scaling=constrained), plot([r*cos(t),r*sin(t),t=0..2*Pi]));

This example is easily solved by direct calculation (without any equations), if we use the Heron formula and the formula for the radius of the circumcircle (I chose the same position of the triangle as Carl did). For the second example 3-4-5, everything is the same:

restart;
a,b,c:=3,5,7: p:=(a+b+c)/2:
S:=sqrt(p*(p-a)*(p-b)*(p-c)); R:=a*b*c/4/S;
cosA:=b/2/R;  cosB:=c/2/R;
# So we have the final answer
A:=[b*cosA-R,b*sqrt(1-cosA^2)];
B:=[c*cosB-R,c*sqrt(1-cosB^2)];
C:=[-R,0];

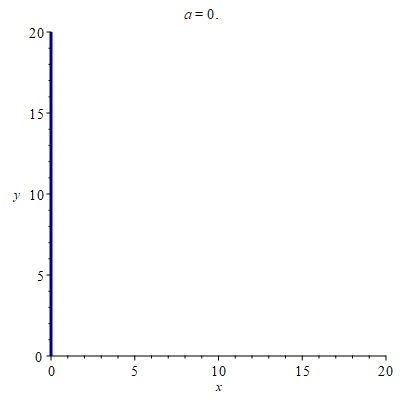

Any for loop is not needed here. As an animation parameter, I took the distance from the origin to the lower end of the ladder:

restart;
with(plottools):
with(plots):
co := blue:
animate(display,[line([0,sqrt(400-a^2)],[a,0], color = co, thickness = 3)], a=0..20, frames=60);

Addition - the usage of the  trace  option:

restart;
with(plottools):
with(plots):
co := blue:
animate(display,[line([0,sqrt(400-a^2)],[a,0], color = co, thickness = 3)], a=0..20, frames=60, trace=[10,20,30,40,50,57]);

The method below is slightly longer, but I think it will be clearer for OP:

a:=1/(i*sqrt(i+1)+(i+1)*sqrt(i));
b:=expand(rationalize(a));
c:=normal(`+`(op(1..2,b)))+op(3,b);
limit(sum(c, i = 1 .. n), n = infinity);

restart;
randomize():
A:=[1,1.732,1.23,4.42,9,6.45,3.45,8.428,9.1,12];
r:=rand(1..nops(A)):
seq(A[r()], i=1..3);

Since each time a number is chosen randomly from the entire list (a sample with a return), it can happen that the same number will be selected during the re-selection. It is also not difficult to implement a non-refund sample.

restart;
test := -2+exp(theta)+exp(-theta);
subs(exp(theta)=1/exp(-theta), test);
factor(%);

The final result:       (exp(-theta)-1)^2/exp(-theta)

Edit.
