So I have the energy of an ion at a several points in space, where the x and z coordinates have been varied from 0-1, keeping y constant. The data is in the following file:

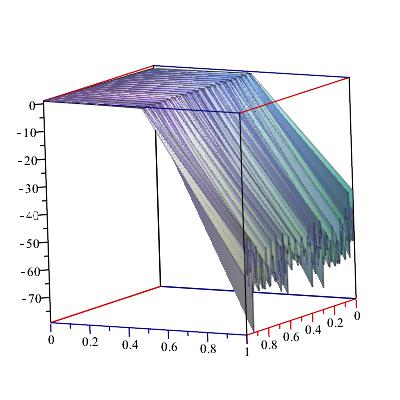

When I come to produce a 3D surface plot (grid) of this file using the plots option in the context menu (on right clicking), the following is produced: the x-axis is in red and the y-axis (z-coordinate) is in blue.

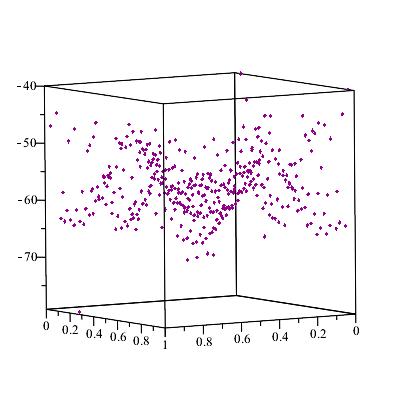

Yet if I use the interactive plot builder, to plot the same data, the only option available to me is a 3D point plot, which produces the following:
[If I try to plot a 3D surface plot (points) using the context menu, I get stuck at a evaluating stage...]
as, ideally, I want a surface plot, why, in the surface plot (grid) is MAPLE not recognising the data that corresponds to the higher z-coordinate values and how I can produce a full surface plot...
