Question: Need to Obtain Bifurcation Points and Bifurcation Diagram

Question:Need to Obtain Bifurcation Points and Bifurcation Diagram

Tamour_Mahwish 0 Maple 2019
ode differential-equations bifurcation
April 16 2024
0

Hello Everyone;

I need to find the bifurcation point and further bifarcation diagram for the given model. But facing error. Can anybody help to do this? Can you refer some library for bifurcation analysis of ODE's? Code is attched. Thanks in Advance.

123.mw









>

restart

>

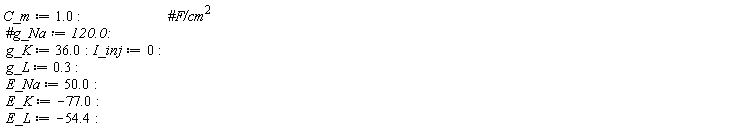

C_m := 1.0; g_K := 36.0; I_inj := 0; g_L := .3; E_Na := 50.0; E_K := -77.0; E_L := -54.4
>

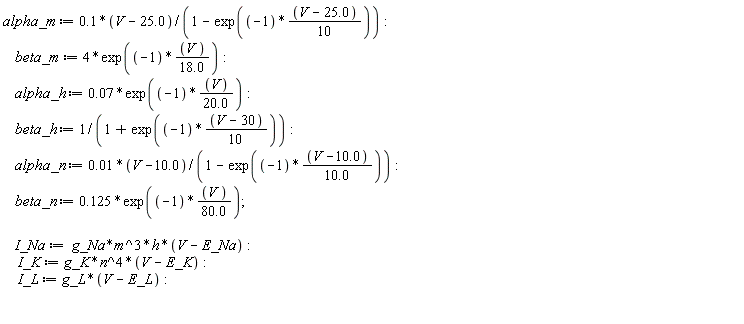

alpha_m := (.1*(V-25.0))/(1-exp(-(V-25.0)*(1/10))); beta_m := 4*exp(-V/(18.0)); alpha_h := 0.7e-1*exp(-V/(20.0)); beta_h := 1/(1+exp(-(V-30)*(1/10))); alpha_n := (0.1e-1*(V-10.0))/(1-exp(-(V-10.0)/(10.0))); beta_n := .125*exp(-V/(80.0)); I_Na := g_Na*m^3*h*(V-E_Na); I_K := g_K*n^4*(V-E_K); I_L := g_L*(V-E_L)

.125*exp(-0.1250000000e-1*V)

(1.1)
>

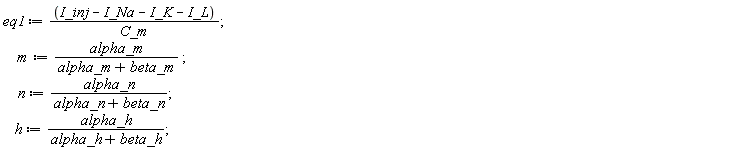

eq1 := (I_inj-I_Na-I_K-I_L)/C_m; m := alpha_m/(alpha_m+beta_m); n := alpha_n/(alpha_n+beta_n); h := alpha_h/(alpha_h+beta_h)

-16.32000000-1.000000000*g_Na*m^3*h*(V-50.0)-36.00000000*n^4*(V+77.0)-.3000000000*V



.1*(V-25.0)/((1-exp(-(1/10)*V+2.500000000))*(.1*(V-25.0)/(1-exp(-(1/10)*V+2.500000000))+4*exp(-0.5555555556e-1*V)))



0.1e-1*(V-10.0)/((1-exp(-.1000000000*V+1.000000000))*(0.1e-1*(V-10.0)/(1-exp(-.1000000000*V+1.000000000))+.125*exp(-0.1250000000e-1*V)))



0.7e-1*exp(-0.5000000000e-1*V)/(0.7e-1*exp(-0.5000000000e-1*V)+1/(1+exp(-(1/10)*V+3)))

(1.2)
>

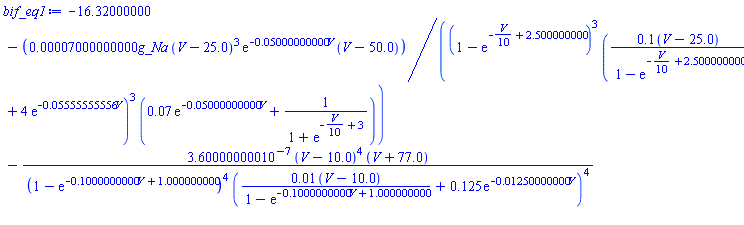

bif_eq1 := eq1 = 0;

-16.32000000-0.7000000000e-4*g_Na*(V-25.0)^3*exp(-0.5000000000e-1*V)*(V-50.0)/((1-exp(-(1/10)*V+2.500000000))^3*(.1*(V-25.0)/(1-exp(-(1/10)*V+2.500000000))+4*exp(-0.5555555556e-1*V))^3*(0.7e-1*exp(-0.5000000000e-1*V)+1/(1+exp(-(1/10)*V+3))))-0.3600000000e-6*(V-10.0)^4*(V+77.0)/((1-exp(-.1000000000*V+1.000000000))^4*(0.1e-1*(V-10.0)/(1-exp(-.1000000000*V+1.000000000))+.125*exp(-0.1250000000e-1*V))^4)-.3000000000*V = 0

>

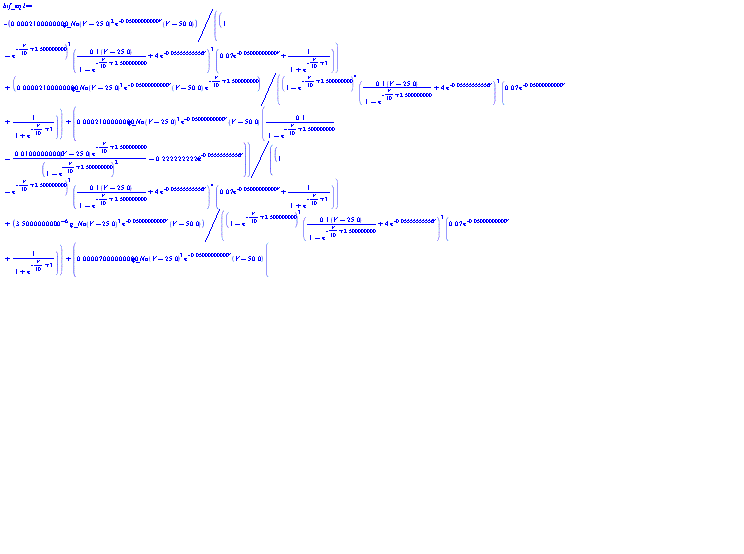

bif_eq2 := diff( eq1, V) = 0;

-0.2100000000e-3*g_Na*(V-25.0)^2*exp(-0.5000000000e-1*V)*(V-50.0)/((1-exp(-(1/10)*V+2.500000000))^3*(.1*(V-25.0)/(1-exp(-(1/10)*V+2.500000000))+4*exp(-0.5555555556e-1*V))^3*(0.7e-1*exp(-0.5000000000e-1*V)+1/(1+exp(-(1/10)*V+3))))+0.2100000000e-4*g_Na*(V-25.0)^3*exp(-0.5000000000e-1*V)*(V-50.0)*exp(-(1/10)*V+2.500000000)/((1-exp(-(1/10)*V+2.500000000))^4*(.1*(V-25.0)/(1-exp(-(1/10)*V+2.500000000))+4*exp(-0.5555555556e-1*V))^3*(0.7e-1*exp(-0.5000000000e-1*V)+1/(1+exp(-(1/10)*V+3))))+0.2100000000e-3*g_Na*(V-25.0)^3*exp(-0.5000000000e-1*V)*(V-50.0)*(.1/(1-exp(-(1/10)*V+2.500000000))-0.1000000000e-1*(V-25.0)*exp(-(1/10)*V+2.500000000)/(1-exp(-(1/10)*V+2.500000000))^2-.2222222222*exp(-0.5555555556e-1*V))/((1-exp(-(1/10)*V+2.500000000))^3*(.1*(V-25.0)/(1-exp(-(1/10)*V+2.500000000))+4*exp(-0.5555555556e-1*V))^4*(0.7e-1*exp(-0.5000000000e-1*V)+1/(1+exp(-(1/10)*V+3))))+0.3500000000e-5*g_Na*(V-25.0)^3*exp(-0.5000000000e-1*V)*(V-50.0)/((1-exp(-(1/10)*V+2.500000000))^3*(.1*(V-25.0)/(1-exp(-(1/10)*V+2.500000000))+4*exp(-0.5555555556e-1*V))^3*(0.7e-1*exp(-0.5000000000e-1*V)+1/(1+exp(-(1/10)*V+3))))+0.7000000000e-4*g_Na*(V-25.0)^3*exp(-0.5000000000e-1*V)*(V-50.0)*(-0.3500000000e-2*exp(-0.5000000000e-1*V)+(1/10)*exp(-(1/10)*V+3)/(1+exp(-(1/10)*V+3))^2)/((1-exp(-(1/10)*V+2.500000000))^3*(.1*(V-25.0)/(1-exp(-(1/10)*V+2.500000000))+4*exp(-0.5555555556e-1*V))^3*(0.7e-1*exp(-0.5000000000e-1*V)+1/(1+exp(-(1/10)*V+3)))^2)-0.7000000000e-4*g_Na*(V-25.0)^3*exp(-0.5000000000e-1*V)/((1-exp(-(1/10)*V+2.500000000))^3*(.1*(V-25.0)/(1-exp(-(1/10)*V+2.500000000))+4*exp(-0.5555555556e-1*V))^3*(0.7e-1*exp(-0.5000000000e-1*V)+1/(1+exp(-(1/10)*V+3))))-0.1440000000e-5*(V-10.0)^3*(V+77.0)/((1-exp(-.1000000000*V+1.000000000))^4*(0.1e-1*(V-10.0)/(1-exp(-.1000000000*V+1.000000000))+.125*exp(-0.1250000000e-1*V))^4)+0.1440000000e-6*(V-10.0)^4*(V+77.0)*exp(-.1000000000*V+1.000000000)/((1-exp(-.1000000000*V+1.000000000))^5*(0.1e-1*(V-10.0)/(1-exp(-.1000000000*V+1.000000000))+.125*exp(-0.1250000000e-1*V))^4)+0.1440000000e-5*(V-10.0)^4*(V+77.0)*(0.1e-1/(1-exp(-.1000000000*V+1.000000000))-0.1000000000e-2*(V-10.0)*exp(-.1000000000*V+1.000000000)/(1-exp(-.1000000000*V+1.000000000))^2-0.1562500000e-2*exp(-0.1250000000e-1*V))/((1-exp(-.1000000000*V+1.000000000))^4*(0.1e-1*(V-10.0)/(1-exp(-.1000000000*V+1.000000000))+.125*exp(-0.1250000000e-1*V))^5)-0.3600000000e-6*(V-10.0)^4/((1-exp(-.1000000000*V+1.000000000))^4*(0.1e-1*(V-10.0)/(1-exp(-.1000000000*V+1.000000000))+.125*exp(-0.1250000000e-1*V))^4)-.3000000000 = 0






>

bif_sol := solve({ bif_eq1,bif_eq2}, {V, g_Na});

Warning, solutions may have been lost





as the solutions, which are then expressed as the points mu, y via
