Question:A plotting oddity

Posted: Rouben Rostamian 8611 Product: Maple 2024

1 hour ago

Here is a minor nit regarding combining plots in Maple.

restart;

>	kernelopts(version);

(1)

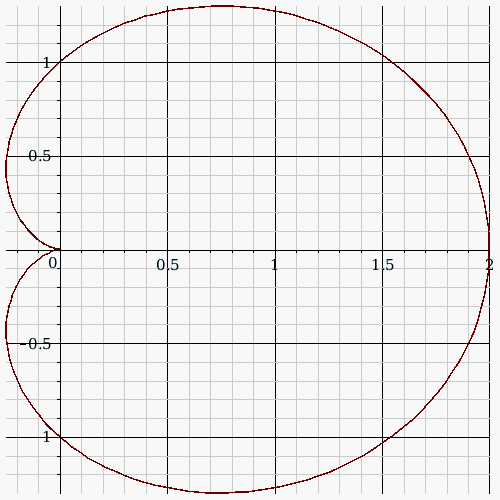

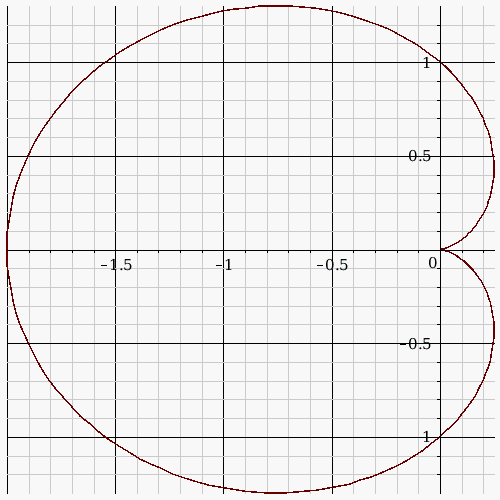

Plot the cardioids in polar coordinates:

>	pic1 := plot(1-cos(t), t=0..2Pi, coords=polar); pic2 := plot(1+cos(t), t=0..2Pi, coords=polar);

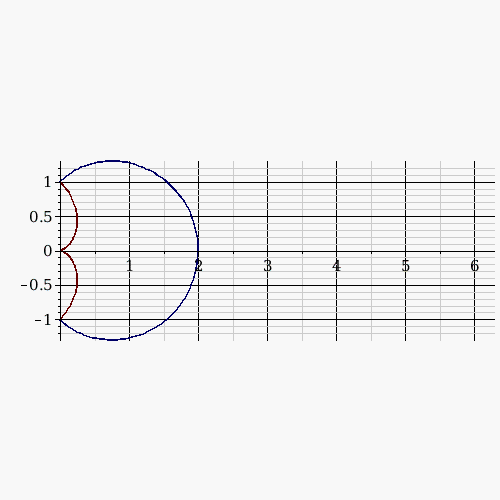

When combining the plots, display() inherits the plotting range from the previous

plots, incorrecting taking it to be

>	plots:-display(pic1, pic2, scaling=constrained);

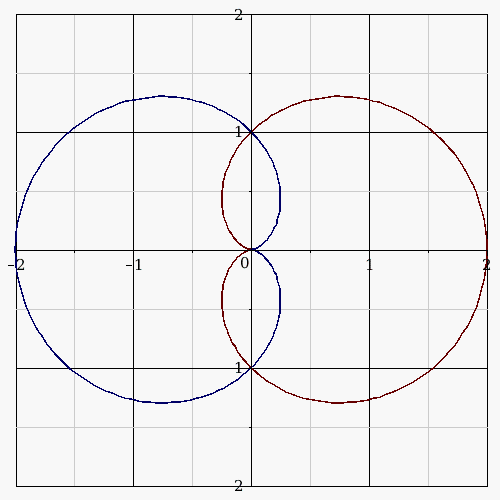

To get the correct plot, we need to override the range determined by display():

>	plots:-display(pics, scaling=constrained, view=[-2..2,-2..2]);
