Loop construction...

Rouben Rostamian 8606
August 18 2019
0 0

Probably this is what you want:

for n in (10*2^i $i=0..4) do
    print(n);  # or whatever
end do;

or equivalently

for i from 0 to 4 do
    n := 10*2^i;
    print(n); # or whatever
end do;

or

n := 10;
while n <= 160 do
    print(n); # or whatever
    n := 2*n;
end do;

Pick whichever you like.



Answer...

Rouben Rostamian 8606
August 16 2019
2 3



Here is a possible way.



Example 1


>

restart;
ode:=3*diff(y(x),x)^2+diff(y(x),x)^3+sin(x)+y(x)=x*y(x)+x*diff(y(x),x);

3*(diff(y(x), x))^2+(diff(y(x), x))^3+sin(x)+y(x) = x*y(x)+x*(diff(y(x), x))

>

indets['flat'](ode,{`^`('identical'(diff(y(x),x)),'algebraic'),'identical'(diff(y(x),x))})

{(diff(y(x), x))^2, (diff(y(x), x))^3, diff(y(x), x)}

>

ode_wanted:= 3*diff(y(x),x)^2+diff(y(x),x)^3-x*diff(y(x),x)=-sin(x)-y(x)+x*y(x)

3*(diff(y(x), x))^2+(diff(y(x), x))^3-x*(diff(y(x), x)) = -sin(x)-y(x)+x*y(x)

>

selectremove(has, (lhs-rhs)~(ode), diff(y(x),x));
ode_new := %[1] = - %[2];
ode_new - ode_wanted;

3*(diff(y(x), x))^2+(diff(y(x), x))^3-x*(diff(y(x), x)), sin(x)+y(x)-x*y(x)

3*(diff(y(x), x))^2+(diff(y(x), x))^3-x*(diff(y(x), x)) = -sin(x)-y(x)+x*y(x)

0 = 0

>



>



Example 2


>

restart;
ode:=3*diff(y(x),x)^2+diff(y(x),x)=x*diff(y(x),x)+5;

3*(diff(y(x), x))^2+diff(y(x), x) = x*(diff(y(x), x))+5

>

indets['flat'](ode,{`^`('identical'(diff(y(x),x)),'algebraic'),'identical'(diff(y(x),x))})

{(diff(y(x), x))^2, diff(y(x), x)}

>

ode_wanted:= 3*diff(y(x),x)^2+diff(y(x),x)-x*diff(y(x),x)=5

3*(diff(y(x), x))^2+diff(y(x), x)-x*(diff(y(x), x)) = 5

>

selectremove(has, (lhs-rhs)~(ode), diff(y(x),x));
ode_new := %[1] = - %[2];
ode_new - ode_wanted;

3*(diff(y(x), x))^2+diff(y(x), x)-x*(diff(y(x), x)), -5

3*(diff(y(x), x))^2+diff(y(x), x)-x*(diff(y(x), x)) = 5

0 = 0

>






Download lhs_rhs-new.mw



Solution...

Rouben Rostamian 8606
August 14 2019
3 2

I have made several changes to your worksheet and I hope that I have not introduced any errors.  Check to be sure.

The optimal diffusion coefficient turns out to be d = 0.14 (approximately).

>

restart;
>

t_number:=<0, 10, 20, 30, 40>:
m_number:=<11.50000000, 4.641182547, 1.273311993, 0.361845238, 0.288711649>:
>



>

Q:=proc(d)
    local pds, i, S, PDE, IBC,
          L := 2, Mx0 := 0.05, cx0 := Mx0/(1-Mx0),
          Mdb_i := m_number[1], ct0 := Mdb_i;

    if not type(d, numeric) then return 'procname(_passed)' end if;

    PDE := diff(C(x,t),t)=d*diff(C(x,t),x,x);
    IBC := {C(x,0)=ct0, C(0,t)=cx0, D[1](C)(L,t)=0};

    pds := pdsolve(PDE,IBC,numeric);
    S := 0;
    for i from 1 to 5 do
        # solution at the desired time
        pds:-value(t=t_number[i], output=listprocedure);
        eval(C(x,t), %);              # extract the C(x,t) at that time
        int(%, 0..2, numeric) / L;    # compute the average of C(x,t) at that time
        S += (% - m_number[i])^2;     # accumulate the residuals
     end do;
     return sqrt(S);
end proc:
>

# Try out the proc
>

Q(0.1), Q(0.2), Q(0.5), Q(1.0);

HFloat(2.0125989798253805), HFloat(1.9268252656215228), HFloat(4.344399869795477), HFloat(4.74473396546933)

>

plot(Q(d), d=0.1 .. 0.3, numpoints=5, view=0..2);

>

# We conclude that the best choice of d is approximately 0.14
>






Download zz.mw



Answer...

Rouben Rostamian 8606
August 11 2019
1 1

To plot the derivatives, add the output=operator option to your dsolve(), as in
p := dsolve(%, vars, numeric, output = operator);

Do odeplot() as before to plot the solutions.  To plot the derivative of y(t) (also those of x[1](t) and x[2](t)) do
eval(diff(y(t), t), Sys);
eval(%, p);
plot(%, t = 0 .. 1500);

As to the higher order derivatives, y'', y''', etc., these are not quite well-defined because the right-hand sides of your differential equations contain discontinuities, which means that y' is discontinuous.  You don't want to differentiate a discontinuous function, do you?

You can actually see the discontinuity in y' by changing the plot(%, t = 0 .. 1500) in what I have shown to plot(%, t = 500 .. 1500).

As to the plotting of the bar graph, I don't think it's difficult but I don't have the time to go into it right now.  Perhaps someone else will.



Applying odetest...

Rouben Rostamian 8606
August 07 2019
1 0

Of the two solutions returned by dsolve() one corresponds to positive y and the other to negative y.

restart;
de := diff(y(x),x) = abs(y(x)) + 1;
                         d
                  de := --- y(x) = |y(x)| + 1
                         dx
dsol := dsolve(de);
                       exp(-x)
      dsol := y(x) = - ------- + 1, y(x) = exp(x) _C1 - 1
                         _C1
odetest(dsol[1], de) assuming y(x)<0;
                               0
odetest(dsol[2], de) assuming y(x)>0;
                               0

Solution...

Rouben Rostamian 8606
August 07 2019
5 5

Your differential equation has y(x) = 0 as a solution, and that's what
Maple returns by default.  However, for special choices of omega^2 there are
nonzero solutions.  Those special choices of omega^2 are called the problem's
eigenvalues, and their corresponding solutions are called the eigenfunctions.

Here is how we go about finding the eigenvalues and eigenfunctions.

We begin with a couple of self-evident observations.


1.

If a function y(x) is an eigenfunction, then for any nonzero constant c
the function c*y(x) is also an eigenfunction.
2.

The derivative "y '(0)" of an eigenfunction cannot be zero because the
conditions y(0) = 0 and "y '(0)=0" will imply that `&equiv;`(y(x), 0) which
is not possible since an eigenfunction is a nonzero function by definition.


Putting those two observations together, we may take "y '(0)=1" for
all eigenfunctions without a loss of generality.

This adds an extra boundary condition over and above what you
already have.  That gives us the flexibility of introducing a new
unknown in the system.  We take the new unknown to be the
constantomega and we solve the system for the unknowns {omega, y(x)}.

>

restart;

The differential equation

>

de := T*diff(y(x), x, x) + rho*omega^2*y(x) = 0;

T*(diff(diff(y(x), x), x))+rho*omega^2*y(x) = 0

The boundary conditions (note the extra third condition!)

>

bc := y(0) = 0, y(L) = 0, D(y)(0)=1;

y(0) = 0, y(L) = 0, (D(y))(0) = 1

>

dsol_tmp := dsolve({de,bc}, {y(x),omega});

{omega = Pi*(2*_Z1+_B1)*T^(1/2)/(rho^(1/2)*L), y(x) = L*sin(Pi*(2*_Z1+_B1)*x/L)/(Pi*(2*_Z1+_B1))}

Here omega and y(x) are expressed in terms of the arbitrary
constants _Z1 and _B1.  Let's see what they are:

>

about(_Z1);
about(_B1);

Originally _Z1, renamed _Z1~:

  is assumed to be: integer

Originally _B1, renamed _B1~:
  is assumed to be: OrProp(0,1)

OK then.  _Z1 is an integer and _B1 is either zero or one.  It follows
that the combination 2*_Z1+_B1 which enters the solution is an
arbitrary integer.  We call it n

>

dsol := eval(dsol_tmp, {2*_Z1+_B1=n});

{omega = Pi*n*T^(1/2)/(rho^(1/2)*L), y(x) = L*sin(Pi*n*x/L)/(Pi*n)}

Let's verify that this satisfies the differential equation

>

eval(de, dsol);

0 = 0




Download mw.mw

Solution...

Rouben Rostamian 8606
August 06 2019
1 4

I don't understand what you mean by "returns only one option".  Here is the full solution.

>

restart;
>

wW := unapply(piecewise(0 <= x and x < L/2, 0, L/2 <= x and x <= L, w[0]), x);

wW := proc (x) options operator, arrow; piecewise(0 <= x and x < (1/2)*L, 0, (1/2)*L <= x and x <= L, w[0]) end proc

>

eq := k*diff(y(x), x$4) = wW(x);

eq := k*(diff(y(x), x, x, x, x)) = piecewise(0 <= x and x < (1/2)*L, 0, (1/2)*L <= x and x <= L, w[0])

>

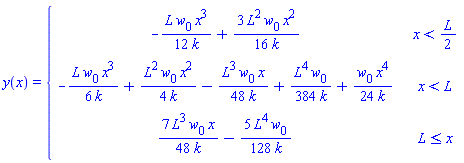

dsolve({eq, y(0) = 0, D(y)(0) = 0, (D@@2)(y)(L) = 0, (D@@3)(y)(L)=0}, y(x))
  assuming 0 < L;

y(x) = piecewise(x < (1/2)*L, -L*w[0]*x^3/(12*k)+3*L^2*w[0]*x^2/(16*k), x < L, -L*w[0]*x^3/(6*k)+L^2*w[0]*x^2/(4*k)-L^3*w[0]*x/(48*k)+L^4*w[0]/(384*k)+w[0]*x^4/(24*k), L <= x, 7*L^3*w[0]*x/(48*k)-5*L^4*w[0]/(128*k))




Download mw.mw

Need plain text...

Rouben Rostamian 8606
July 30 2019
1 2

In 2.mw we have
read "1.mw";
but Maple's read command is meant for reading plain text files, not Maple worksheets.

To fix, copy and paste the contents of 1.mw as a plain text into a file, let's say 1.maple.  Then change the read command to
read "1.maple";

Here is 1.maple for your convenience.



Solution with numbers...

Rouben Rostamian 8606
July 30 2019
1 0



Approximate solution



On dividing through by r, your differential equation changes to
d/(r*dr)*(r*d*H(r)/dr)+(k^2-b^2*r/R^2)*H(r) = 0.``
The first term is the second derivative of H(r) in polar coordinates.

With your numerical parameters, which are
R = 370, k = 100, b = 35,
the coefficient of the second term is 10000-(49/5476)*r, which varies
between 9996 and 10000 on the range of interest 1/R < r and r < R, and
therefore is essentially a constant. Consequently, for practical purposes
we may take b = 0 and reduce the differential equation to
d/(r*dr)*(r*d*H(r)/dr)+k^2*H(r) = 0,
We expect the solution to be something like cos(k*r), that is, cos(100*r),
and therefore highly oscillatory.  We conclude that searching for an
approximation in the form of power series is hopeless.

The good news is that Maple can obtain a symbolic solution for the
reduced differential equation.  Here it is.

>

restart;

>

de := 1/r*Diff(r*Diff(H(r),r),r) + k^2*H(r);

(Diff(r*(Diff(H(r), r)), r))/r+k^2*H(r)

>

bc := H(R)=0, D(H)(1/R)=R;

H(R) = 0, (D(H))(1/R) = R

>

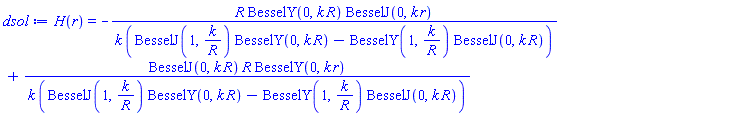

dsol := dsolve({de,bc}, H(r));

H(r) = -R*BesselY(0, k*R)*BesselJ(0, k*r)/(k*(BesselJ(1, k/R)*BesselY(0, k*R)-BesselY(1, k/R)*BesselJ(0, k*R)))+BesselJ(0, k*R)*R*BesselY(0, k*r)/(k*(BesselJ(1, k/R)*BesselY(0, k*R)-BesselY(1, k/R)*BesselJ(0, k*R)))

Apply the parameters and plot:

>

R := 370:  k := 100:

>

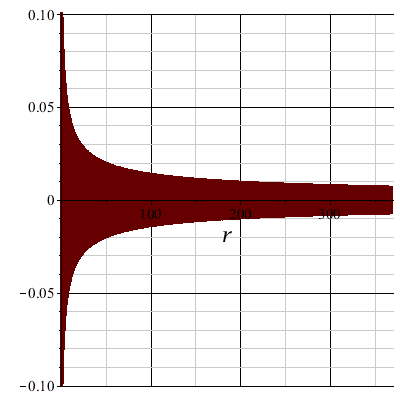

plot(rhs(dsol), r=1/R..R, view=-0.1 .. 0.1, numpoints=10000);

We cannot see the graph's details because it oscillates so much, but we do see
the details if we plot it on a narrow range:

>

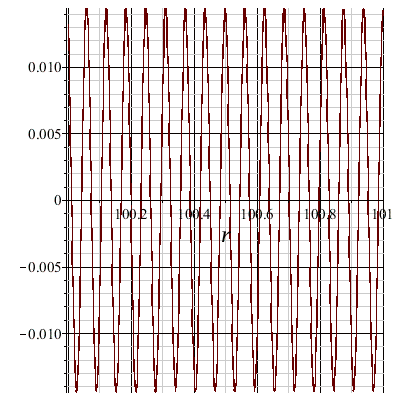

plot(rhs(dsol), r=100 .. 101);

which shows fast oscillations as expected.




Download de2.mw

Solution in sine series...

Rouben Rostamian 8606
July 29 2019
3 1
>

restart;
>

de_orig := r*diff(H(r),r,r) + diff(H(r),r) + (k^2*r - b^2/R^2*r^2)*H(r);

r*(diff(diff(H(r), r), r))+diff(H(r), r)+(k^2*r-b^2*r^2/R^2)*H(r)

>

bc := H(R)=0, H(1/R)=R;

H(R) = 0, H(1/R) = R

We change the independent variable from r to rho so that domain R, 1/R is mapped to "(0,Pi)."
Additionally, we change the dependent variable from H to G so that G(0) = G((π) = 0.

>

change_of_vars := { r = (R^2 - 1)*rho/(Pi*R) + 1/R,
                    H(r) = G(rho) + R/Pi*(Pi-rho) };

{r = (R^2-1)*rho/(Pi*R)+1/R, H(r) = G(rho)+R*(Pi-rho)/Pi}

>

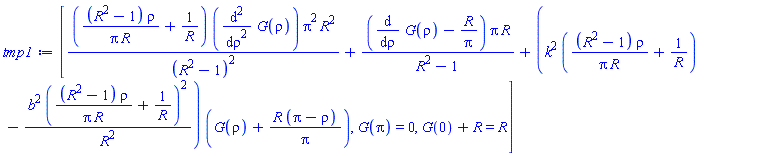

tmp1 := PDEtools:-dchange(change_of_vars, [de_orig,bc], [G(rho), rho]);

[((R^2-1)*rho/(Pi*R)+1/R)*(diff(diff(G(rho), rho), rho))*Pi^2*R^2/(R^2-1)^2+(diff(G(rho), rho)-R/Pi)*Pi*R/(R^2-1)+(k^2*((R^2-1)*rho/(Pi*R)+1/R)-b^2*((R^2-1)*rho/(Pi*R)+1/R)^2/R^2)*(G(rho)+R*(Pi-rho)/Pi), G(Pi) = 0, G(0)+R = R]

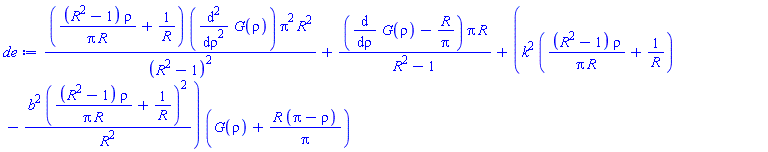

The new differential equation is:

>

de := tmp1[1];

((R^2-1)*rho/(Pi*R)+1/R)*(diff(diff(G(rho), rho), rho))*Pi^2*R^2/(R^2-1)^2+(diff(G(rho), rho)-R/Pi)*Pi*R/(R^2-1)+(k^2*((R^2-1)*rho/(Pi*R)+1/R)-b^2*((R^2-1)*rho/(Pi*R)+1/R)^2/R^2)*(G(rho)+R*(Pi-rho)/Pi)

Let's verify that the boundary conditions are G(0) = G(Pi) and G(Pi) = 0, as expected:

>

tmp1[2];

G(Pi) = 0

>

tmp1[3];

G(0)+R = R

Now that the domain is 0, Pi and the boundary conditions are zero, we may
express the solution in an infinite sine series:

>

S := sum(a[n]*sin(n*rho), n=1..infinity);

sum(a[n]*sin(n*rho), n = 1 .. infinity)

To determine the coefficients a__n, plug the series into the differential equation:

>

eval(de, G(rho)=S):

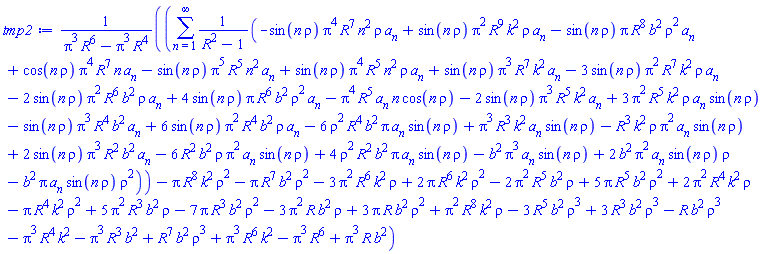

tmp2 := combine(%);

(sum((-sin(n*rho)*Pi^4*R^7*n^2*rho*a[n]+sin(n*rho)*Pi^2*R^9*k^2*rho*a[n]-sin(n*rho)*Pi*R^8*b^2*rho^2*a[n]+cos(n*rho)*Pi^4*R^7*n*a[n]-sin(n*rho)*Pi^5*R^5*n^2*a[n]+sin(n*rho)*Pi^4*R^5*n^2*rho*a[n]+sin(n*rho)*Pi^3*R^7*k^2*a[n]-3*sin(n*rho)*Pi^2*R^7*k^2*rho*a[n]-2*sin(n*rho)*Pi^2*R^6*b^2*rho*a[n]+4*sin(n*rho)*Pi*R^6*b^2*rho^2*a[n]-Pi^4*R^5*a[n]*n*cos(n*rho)-2*sin(n*rho)*Pi^3*R^5*k^2*a[n]+3*Pi^2*R^5*k^2*rho*a[n]*sin(n*rho)-sin(n*rho)*Pi^3*R^4*b^2*a[n]+6*sin(n*rho)*Pi^2*R^4*b^2*rho*a[n]-6*rho^2*R^4*b^2*Pi*a[n]*sin(n*rho)+Pi^3*R^3*k^2*a[n]*sin(n*rho)-R^3*k^2*rho*Pi^2*a[n]*sin(n*rho)+2*sin(n*rho)*Pi^3*R^2*b^2*a[n]-6*R^2*b^2*rho*Pi^2*a[n]*sin(n*rho)+4*rho^2*R^2*b^2*Pi*a[n]*sin(n*rho)-b^2*Pi^3*a[n]*sin(n*rho)+2*b^2*Pi^2*a[n]*sin(n*rho)*rho-b^2*Pi*a[n]*sin(n*rho)*rho^2)/(R^2-1), n = 1 .. infinity)-Pi*R^8*k^2*rho^2-Pi*R^7*b^2*rho^2-3*Pi^2*R^6*k^2*rho+2*Pi*R^6*k^2*rho^2-2*Pi^2*R^5*b^2*rho+5*Pi*R^5*b^2*rho^2+2*Pi^2*R^4*k^2*rho-Pi*R^4*k^2*rho^2+5*Pi^2*R^3*b^2*rho-7*Pi*R^3*b^2*rho^2-3*Pi^2*R*b^2*rho+3*Pi*R*b^2*rho^2+Pi^2*R^8*k^2*rho-3*R^5*b^2*rho^3+3*R^3*b^2*rho^3-R*b^2*rho^3-Pi^3*R^4*k^2-Pi^3*R^3*b^2+R^7*b^2*rho^3+Pi^3*R^6*k^2-Pi^3*R^6+Pi^3*R*b^2)/(Pi^3*R^6-Pi^3*R^4)

We want to determine the coefficients a__n so that tmp2 is identically zero on 0 < rho and rho < Pi.
For that purpose, we multiple tmp2 by sin(m*rho) and integrate the result from 0 to Pi.
That results in equations of the form
`&alpha;__m`+`&beta;__m`*a__m+sum(`&gamma;__m,n`*a__n, n = 1 .. infinity) = 0,    m = 1, 2, () .. ()
where the constants `&alpha;__m`, `&beta;__m`, `&gamma;__m,n` can be computed explicitly.  This is a coupled linear system
of infinitely many equations in the infinitely many unknowns a__m.  We cannot afford solving
that system but we can do the next best thing, which is to replace infinity with a finite number N
and solve the resulting linear system of N equations in N unknowns.  That way you may obtain
a solution to any desired degree of accuracy.

The calculation is not difficult but it is tedious, so I leave it to you to finish it.




Download de.mw

Solution through finite differences...

Rouben Rostamian 8606
July 28 2019
3 1

Maple 2019 does not have a numeric solver for elliptic PDEs.
That does not prevent us from writing our own finite-difference

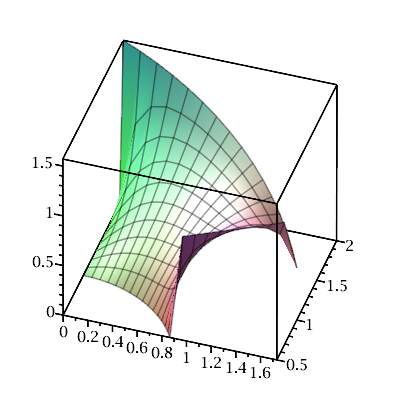

code.  Here is an illustration of solving Laplace's equation in
polar coordinates.

>

restart;
>

with(LinearAlgebra):
>

with(plots):

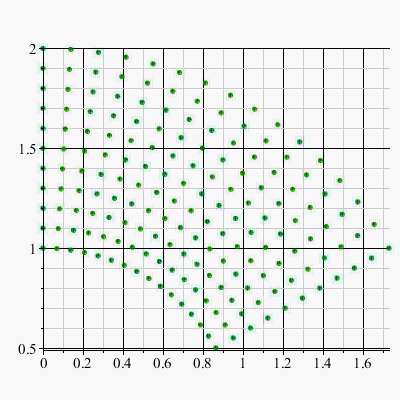

The domain is a < r and r < b, c < t and t < d in polar coordinates.
For illustration we take:

>

a := 1:  b :=2:
c := Pi/6:  d := Pi/2:

We subdivide the r interval into n__r subintervals of equal lengths.
We subdivide the tinterval into `n__t `subintervals of equal lengths.

>

n__r := 10;
n__t := 15;

10

15

Calculate the resulting mesh sizes in the r and t directions:

>

delta__r := (b-a)/n__r;
delta__t := (d-c)/n__t;

1/10

(1/45)*Pi

Here is what the mesh looks like:

>

seq(seq([(a+i*delta__r)*cos(c+j*delta__t), (a+i*delta__r)*sin(c+j*delta__t)],
    i=0..n__r), j=0..n__t):
pointplot([%], symbol=solidcircle, color="Green", scaling=constrained);

We wish to solve the PDE

>

pde := diff(u(r,t),r,r) + diff(u(r,t),r)/r + diff(u(r,t),t,t)/r^2 =  0;

diff(diff(u(r, t), r), r)+(diff(u(r, t), r))/r+(diff(diff(u(r, t), t), t))/r^2 = 0

on that domain, subject to the Dirichlet boundary conditions
"u(r,c)=`alpha__1`(r), u(r,d)=`alpha__2`(r), a<r<b,"
u(a, t) = `&alpha;__3`(t), u(b, t) = `&alpha;__4`(t), c < t and t < d.

We discretize the PDE in the interior points through central differencing.
Here U[i, j] represents the solution at the point of index i, j

>

discretized_pde :=
   (U[i-1,j] - 2*U[i,j] + U[i+1,j])/delta__r^2
 + 1/(a+i*delta__r)*(U[i+1,j] - U[i-1,j])/(2*delta__r)
 + 1/(a+i*delta__r)^2*(U[i,j-1] - 2*U[i,j] + U[i,j+1])/delta__t^2 = 0;

100*U[i-1, j]-200*U[i, j]+100*U[i+1, j]+5*(U[i+1, j]-U[i-1, j])/((1/10)*i+1)+2025*(U[i, j-1]-2*U[i, j]+U[i, j+1])/(((1/10)*i+1)^2*Pi^2) = 0

That discretization results in (n__r-1)*(n__t-1) equations in the unknowns U[i, j]:

>

eq_interior := seq(seq(discretized_pde, i=1..n__r-1), j=1..n__t-1):

Additionally, we have 2*n__t+2*n__r equations that assign boundary values to U[i, j]

>

eq_boundary :=
  seq(U[i,0]=1,                    i=1..n__r-1),        # u(r,c)=1
  seq(U[i,n__t]=0,                 i=1..n__r-1),        # u(r,d)=0
  seq(U[0,j]=0,                    j=0..n__t),          # u(a,t)=0
  seq(U[n__r,j]=c+j*delta__t,      j=0..n__t):          # u(b,t)=t

Altogether, these provide a system of (n__r+1)*(n__t+1)linear equations
in the (n__r+1)*(n__t+1) unknowns U[i, j]

>

sys := eq_interior, eq_boundary:
>

vars := seq(seq(U[i,j], j=0..n__t), i=0..n__r):
>

nops([sys]), nops([vars]);

176, 176

Extract the system's coefficient matrix:

>

LinSys := GenerateMatrix(evalf([sys]), [vars], augmented,
    datatype=float[8], storage=sparse):

Solve the system:

>

V := LinearSolve(LinSys):

The vector Vcalculated above is of length (n__r+1)*(n__t+1).  We reformat
its entries into an `&x`(n__r+1, n__t+1)table T:

>

Matrix(n__r+1, n__t+1, convert(V, list), datatype=float[8]):
T := rtable_redim(%, 0..n__r, 0..n__t):

Finally, we plot the solution:

>

dataplot(a..b, c..d, T, coords=cylindrical,
    scaling=constrained, orientation=[-72,50,0]);




Download finite-difference-elliptic-polar.mw

typesetprime...

Rouben Rostamian 8606
July 27 2019
4 0
>

restart;
>

kernelopts(version);

`Maple 2019.1, X86 64 LINUX, May 21 2019, Build ID 1399874`

>

Typesetting:-Settings(typesetprime=true):
>

diff(y(x),x);

diff(y(x), x)

>

diff(y(x),x,x);

diff(diff(y(x), x), x)



Perhaps this?...

Rouben Rostamian 8606
July 27 2019
1 1

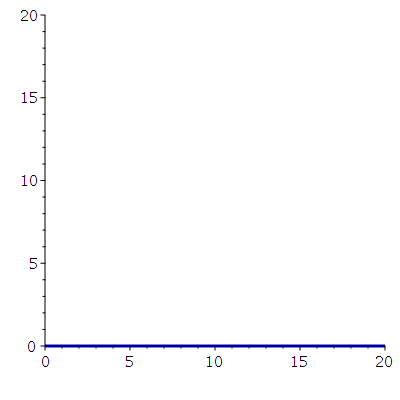

restart;
with(plots):
frame := proc(i)
    local t := 22 - i;
    plot(-i*x/t+i, x=0..20, y=0..20, color=blue, thickness=3);
end proc:
display(seq(display(seq(frame(j), j=0..i)), i=0..20), insequence);

Perhaps this will do...

Rouben Rostamian 8606
July 25 2019
1 0
A := 35.438*y1(x) - 34424*y2(x) + 2742.0234*z1(x) + 78.34;
remove(has, A, x);



Solution...

Rouben Rostamian 8606
July 17 2019
1 0

As Carl has pointed out, answers to your questions are available in the explicit solution which was given in your earlier question.  Nevertheless, here are the details.

Your statement about x__1 is correct, but the ratio of  the two x__2 solutions is not infinity.



Here is your system of differential equations:

>

restart;
>

[-p[1]*x[1]^2+x[2], -2*p[1]^2*x[1]^3+2*p[1]*x[1]*x[2]+x[1]+1]:
f := unapply(%, [x[1],x[2]]):
diff~([x[1](t), x[2](t)], t) =~ f(x[1](t), x[2](t)):
sys := %[];

diff(x[1](t), t) = -x[1](t)^2*p[1]+x[2](t), diff(x[2](t), t) = -2*x[1](t)^3*p[1]^2+2*x[1](t)*x[2](t)*p[1]+x[1](t)+1

and the initial conditions

>

ic := x[1](0) = p[2], x[2](0) = p[3];

x[1](0) = p[2], x[2](0) = p[3]

Solve the system:

>

dsolve({sys, ic}, {x[1](t), x[2](t)}):
dsol := convert(%, trigh);

{x[1](t) = (p[2]+1)*cosh(t)-1+(-p[1]*p[2]^2+p[3])*sinh(t), x[2](t) = (p[2]+1)^2*p[1]*cosh(t)^2+(-2*(p[1]*p[2]^2-p[3])*(p[2]+1)*p[1]*sinh(t)-p[2]^2*p[1]-2*p[1]*p[2]-2*p[1]+p[3])*cosh(t)+(p[1]*p[2]^2-p[3])^2*p[1]*sinh(t)^2+(2*p[1]^2*p[2]^2-2*p[1]*p[3]+p[2]+1)*sinh(t)+p[1]}

Extract the components x__1 and x__2:

>

x1_p := eval(x[1](t), dsol);
x2_p := eval(x[2](t), dsol);

(p[2]+1)*cosh(t)-1+(-p[1]*p[2]^2+p[3])*sinh(t)

(p[2]+1)^2*p[1]*cosh(t)^2+(-2*(p[1]*p[2]^2-p[3])*(p[2]+1)*p[1]*sinh(t)-p[2]^2*p[1]-2*p[1]*p[2]-2*p[1]+p[3])*cosh(t)+(p[1]*p[2]^2-p[3])^2*p[1]*sinh(t)^2+(2*p[1]^2*p[2]^2-2*p[1]*p[3]+p[2]+1)*sinh(t)+p[1]

If we solve the system with a different set of parameters, say[q__1, q__2, q__3], the solution will be

>

x1_q := eval(x1_p, p=q);
x2_q := eval(x2_p, p=q);

(q[2]+1)*cosh(t)-1+(-q[1]*q[2]^2+q[3])*sinh(t)

(q[2]+1)^2*q[1]*cosh(t)^2+(-2*(q[1]*q[2]^2-q[3])*(q[2]+1)*q[1]*sinh(t)-q[1]*q[2]^2-2*q[1]*q[2]-2*q[1]+q[3])*cosh(t)+(q[1]*q[2]^2-q[3])^2*q[1]*sinh(t)^2+(2*q[1]^2*q[2]^2-2*q[1]*q[3]+q[2]+1)*sinh(t)+q[1]

You want x1_p and x1_q to be the same, that is:

>

x1_p = x1_q;

(p[2]+1)*cosh(t)-1+(-p[1]*p[2]^2+p[3])*sinh(t) = (q[2]+1)*cosh(t)-1+(-q[1]*q[2]^2+q[3])*sinh(t)

So the coefficients of cosh(t) on the two sides should be the same.  Also those of sinh(t). That is:

>

tmp1 :=
p[2]+1 = q[2]+1,
-p[1]*p[2]^2+p[3] = -q[1]*q[2]^2+q[3];

p[2]+1 = q[2]+1, -p[1]*p[2]^2+p[3] = -q[1]*q[2]^2+q[3]

Solve for q__2 and q__3:

>

tmp2 := solve({tmp1}, {q[2], q[3]});

{q[2] = p[2], q[3] = -p[1]*p[2]^2+p[2]^2*q[1]+p[3]}

That agrees with what you have written.

We evaluate the solution x2_q with this choice of the parameters
and then look at the ratio x2_q / x2_p as t goes to infinity:

>

R := eval(x2_q, tmp2) / x2_p:
>

limit(R, t=infinity);

q[1]/p[1]

We see that the limit is finite.




Download mw.mw

First 26 27 28 29 30 31 32 Last Page 28 of 58
