@salim-barzani
I can try to translate this in Maple code, but  3.48 ?




restart;
with(inttrans):
with(PDEtools):
with(LinearAlgebra):
NULL;
with(SolveTools):
undeclare(prime):

# Declare u(x, t) as a function
declare(u(x, t));
declare(v(x, t));
declare(w(x, t));

# Define standard equations
eq1 := diff(u(x, y, t), t) - diff(v(x, y, t), x)*diff(w(x, y, t), x) = 1;
eq2 := diff(v(x, y, t), t) - diff(u(x, y, t), y)*diff(w(x, y, t), x) = 5;
eq3 := diff(w(x, y, t), t) - diff(u(x, y, t), x)*diff(v(x, y, t), y) = 5;

# Laplace transform of the equations
eq1s := laplace(eq1, t, s);
eq2s := laplace(eq2, t, s);
eq3s := laplace(eq3, t, s);

# Solve the transformed equations for the Laplace images of u, v, and w
solution := solve({eq1s, eq2s, eq3s}, {laplace(u(x, y, t), t, s), laplace(v(x, y, t), t, s), laplace(w(x, y, t), t, s)});

# Substitute initial conditions
init_conditions := subs({u(x, y, 0) = x + 2*y, v(x, y, 0) = x - 2*y, w(x, y, 0) = -x + 2*y}, solution);

# Inverse Laplace transform to return to the time domain solution

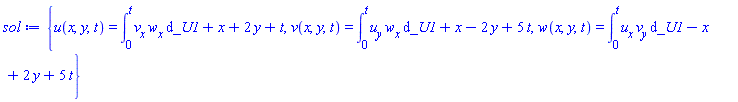

sol := invlaplace(init_conditions, s, t);

# Define Adomian polynomials manually by expanding terms explicitly
n := N;
k := K;
f := (v, w) -> diff(v, x)*diff(w, x);

# Define u[i](x) series terms for clarity
u10 := u[1, 0](x); u11 := u[1, 1](x); u12 := u[1, 2](x); u13 := u[1, 3](x);
u20 := u[2, 0](x); u21 := u[2, 1](x); u22 := u[2, 2](x); u23 := u[2, 3](x);

# Calculate each Adomian polynomial by expanding the non-linear term
A[0] := diff(u10, x)*diff(u20, x);
A[1] := diff(u11, x)*diff(u20, x) + diff(u10, x)*diff(u21, x);
A[2] := diff(u12, x)*diff(u20, x) + diff(u11, x)*diff(u21, x) + diff(u10, x)*diff(u22, x);
A[3] := diff(u13, x)*diff(u20, x) + diff(u12, x)*diff(u21, x) + diff(u11, x)*diff(u22, x) + diff(u10, x)*diff(u23, x);

# Output the Adomian polynomials for inspection
print("Adomian Polynomials A[j]:", [A[0], A[1], A[2], A[3]]);

# Verification of correctness by symbolic calculation (optional)
# Test evaluation with specific values for u[1,0], u[1,1], etc.
# Substitute example values to further check consistency
test_values := {u[1, 0](x) = x, u[1, 1](x) = x^2, u[1, 2](x) = x^3, u[1, 3](x) = x^4,
                u[2, 0](x) = x, u[2, 1](x) = x^2, u[2, 2](x) = x^3, u[2, 3](x) = x^4};
test_evaluation := [seq(simplify(subs(test_values, A[j])), j = 0 .. 3)];

# Output test evaluation results
print("Evaluation of A[j] with test values:", test_evaluation);

NULL;

"maple.ini in users"



`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`



u(x, t)*`will now be displayed as`*u



v(x, t)*`will now be displayed as`*v



w(x, t)*`will now be displayed as`*w



diff(u(x, y, t), t)-(diff(v(x, y, t), x))*(diff(w(x, y, t), x)) = 1



diff(v(x, y, t), t)-(diff(u(x, y, t), y))*(diff(w(x, y, t), x)) = 5



diff(w(x, y, t), t)-(diff(u(x, y, t), x))*(diff(v(x, y, t), y)) = 5



s*laplace(u(x, y, t), t, s)-u(x, y, 0)-laplace((diff(v(x, y, t), x))*(diff(w(x, y, t), x)), t, s) = 1/s



s*laplace(v(x, y, t), t, s)-v(x, y, 0)-laplace((diff(u(x, y, t), y))*(diff(w(x, y, t), x)), t, s) = 5/s



s*laplace(w(x, y, t), t, s)-w(x, y, 0)-laplace((diff(u(x, y, t), x))*(diff(v(x, y, t), y)), t, s) = 5/s



{laplace(u(x, y, t), t, s) = (u(x, y, 0)*s+laplace((diff(v(x, y, t), x))*(diff(w(x, y, t), x)), t, s)*s+1)/s^2, laplace(v(x, y, t), t, s) = (v(x, y, 0)*s+laplace((diff(u(x, y, t), y))*(diff(w(x, y, t), x)), t, s)*s+5)/s^2, laplace(w(x, y, t), t, s) = (laplace((diff(u(x, y, t), x))*(diff(v(x, y, t), y)), t, s)*s+w(x, y, 0)*s+5)/s^2}



{laplace(u(x, y, t), t, s) = ((x+2*y)*s+laplace((diff(v(x, y, t), x))*(diff(w(x, y, t), x)), t, s)*s+1)/s^2, laplace(v(x, y, t), t, s) = ((x-2*y)*s+laplace((diff(u(x, y, t), y))*(diff(w(x, y, t), x)), t, s)*s+5)/s^2, laplace(w(x, y, t), t, s) = (laplace((diff(u(x, y, t), x))*(diff(v(x, y, t), y)), t, s)*s+(-x+2*y)*s+5)/s^2}



{u(x, y, t) = int((diff(v(x, y, _U1), x))*(diff(w(x, y, _U1), x)), _U1 = 0 .. t)+x+2*y+t, v(x, y, t) = int((diff(u(x, y, _U1), y))*(diff(w(x, y, _U1), x)), _U1 = 0 .. t)+x-2*y+5*t, w(x, y, t) = int((diff(u(x, y, _U1), x))*(diff(v(x, y, _U1), y)), _U1 = 0 .. t)-x+2*y+5*t}



N



K



proc (v, w) options operator, arrow; (diff(v, x))*(diff(w, x)) end proc



u[1, 0](x)



u[1, 1](x)



u[1, 2](x)



u[1, 3](x)



u[2, 0](x)



u[2, 1](x)



u[2, 2](x)



u[2, 3](x)



(diff(u[1, 0](x), x))*(diff(u[2, 0](x), x))



(diff(u[1, 1](x), x))*(diff(u[2, 0](x), x))+(diff(u[1, 0](x), x))*(diff(u[2, 1](x), x))



(diff(u[1, 2](x), x))*(diff(u[2, 0](x), x))+(diff(u[1, 1](x), x))*(diff(u[2, 1](x), x))+(diff(u[1, 0](x), x))*(diff(u[2, 2](x), x))



(diff(u[1, 3](x), x))*(diff(u[2, 0](x), x))+(diff(u[1, 2](x), x))*(diff(u[2, 1](x), x))+(diff(u[1, 1](x), x))*(diff(u[2, 2](x), x))+(diff(u[1, 0](x), x))*(diff(u[2, 3](x), x))



"Adomian Polynomials A[j]:", [(diff(u[1, 0](x), x))*(diff(u[2, 0](x), x)), (diff(u[1, 1](x), x))*(diff(u[2, 0](x), x))+(diff(u[1, 0](x), x))*(diff(u[2, 1](x), x)), (diff(u[1, 2](x), x))*(diff(u[2, 0](x), x))+(diff(u[1, 1](x), x))*(diff(u[2, 1](x), x))+(diff(u[1, 0](x), x))*(diff(u[2, 2](x), x)), (diff(u[1, 3](x), x))*(diff(u[2, 0](x), x))+(diff(u[1, 2](x), x))*(diff(u[2, 1](x), x))+(diff(u[1, 1](x), x))*(diff(u[2, 2](x), x))+(diff(u[1, 0](x), x))*(diff(u[2, 3](x), x))]



{u[1, 0](x) = x, u[1, 1](x) = x^2, u[1, 2](x) = x^3, u[1, 3](x) = x^4, u[2, 0](x) = x, u[2, 1](x) = x^2, u[2, 2](x) = x^3, u[2, 3](x) = x^4}



[(diff(x, x))^2, 2*(diff(x^2, x))*(diff(x, x)), 2*(diff(x^3, x))*(diff(x, x))+(diff(x^2, x))^2, 2*(diff(x^4, x))*(diff(x, x))+2*(diff(x^3, x))*(diff(x^2, x))]



"Evaluation of A[j] with test values:", [1, 4*x, 10*x^2, 20*x^3]

(1)




Download adomian_proc_mprimes-salim-3-11-2024_variant6.mw

manual calculated ?


restart;
with(inttrans):
with(PDEtools):
with(LinearAlgebra):

undeclare(prime);

# Procedure to solve the ODE using the Adomian method with optimizations and direct zero-check
SolveODEWithAdomian := proc(ode, num_terms)
    local u0, A, B, adomian_sol, final_sol, f, g, j, verification, k;

    # Step 1: Define the initial condition and base solution
    u0 := (x, t) -> exp(x)*t;  # Base solution u0 from initial conditions
    final_sol := u0(x, t);      # Start with u0 as the initial solution

    # Arrays for Adomian polynomials
    A := Array(0..num_terms-1);
    B := Array(0..num_terms-1);
    adomian_sol := Array(0..num_terms-1);  # Array for solution terms u[1], u[2], ...

    # Nonlinear functions for the Adomian polynomials
    f := u -> u^2;
    g := u -> (diff(u, x))^2;

    # Initial print statements for the setup
    print("Initialization:");
    print("  Base solution u0(x, t) =", u0);
    print("  Starting solution, final_sol = u0(x, t):", final_sol);
    print("  Number of terms to compute:", num_terms);
    print("  Nonlinear functions f(u) = u^2 and g(u) = (diff(u, x))^2\n");

    # Calculate and add each term iteratively up to num_terms
    for j from 0 to num_terms-1 do
        print("\nCalculating term u[", j+1, "] (iteration", j, "):");

        if j = 0 then
            # Step 2: For j=0, calculate A[0] and B[0] based on u0
            print("  Calculating A[0] and B[0] based on u0(x, t)");
            A[j] := f(u0(x, t));  # A[0] = u0(x, t)^2
            B[j] := -f(u0(x, t)); # B[0] = -u0(x, t)^2 to ensure they cancel each other
            print("    Adomian Polynomial A[", j, "] =", A[j]);
            print("    Adomian Polynomial B[", j, "] =", B[j]);

            # Directly check if A[0] and B[0] cancel each other out
            if simplify(A[j] + B[j]) = 0 then
                adomian_sol[j] := 0;
                print("  Sum A[0] + B[0] is zero before Laplace, so u[1] = 0");

                # Since u[1] is zero, set all future u[j] terms to zero
                print("  Since u[1] = 0, all higher order terms will also be set to zero.");
                for k from j+1 to num_terms-1 do
                    adomian_sol[k] := 0;
                    print("    u[", k+1, "] is set to zero because u[1] = 0");
                end do;
                break;  # Exit the loop since all further terms are zero
            else
                # If A[0] + B[0] is not zero (unexpected in this setup), calculate u[1]
                print("  Sum A[0] + B[0] is not zero, calculating u[1] using inverse Laplace");
                adomian_sol[j] := invlaplace(-1/s^2 * (A[j] + B[j]), s, t);
                print("    Inverse Laplace of term u[1] =", adomian_sol[j]);
                final_sol := final_sol + adomian_sol[j];
                print("  Updated solution after adding u[1]:", final_sol);
            end if;

        else
            # Step 3: For j>=1, calculate A[j] and B[j] based on previous terms
            print("  Calculating A[", j, "] and B[", j, "] based on previous solution terms");
            A[j] := 2 * final_sol * adomian_sol[j-1];  # Based on u[j-1]
            B[j] := 2 * diff(final_sol, x) * diff(adomian_sol[j-1], x);
            print("    Adomian Polynomial A[", j, "] =", A[j]);
            print("    Adomian Polynomial B[", j, "] =", B[j]);

            # Check if A[j] + B[j] is zero
            if simplify(A[j] + B[j]) = 0 then
                adomian_sol[j] := 0;
                print("  Sum A[", j, "] + B[", j, "] is zero, so u[", j+1, "] = 0");

                # Since u[j+1] is zero, set all future u[k] terms to zero
                print("  Since u[", j+1, "] = 0, all higher order terms will also be set to zero.");
                for k from j+1 to num_terms-1 do
                    adomian_sol[k] := 0;
                    print("    u[", k+1, "] is set to zero because u[", j+1, "] = 0");
                end do;
                break;  # Exit the loop since all further terms are zero
            else
                # Calculate u[j+1] if A[j] + B[j] is not zero
                print("  Sum A[", j, "] + B[", j, "] is not zero, calculating u[", j+1, "] using inverse Laplace");
                adomian_sol[j] := invlaplace(-1/s^2 * (A[j] + B[j]), s, t);
                print("    Inverse Laplace of term u[", j+1, "] =", adomian_sol[j]);
                final_sol := final_sol + adomian_sol[j];
                print("  Updated solution after adding u[", j+1, "]:", final_sol);
            end if;
        end if;
    end do;

    # Verification of the solution by substitution into the original ODE
    print("\nVerification step:");
    verification := simplify(subs(u(x, t) = final_sol, ode));

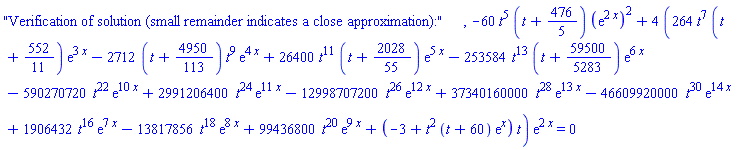

    print("Verification of solution (small remainder indicates a close approximation):", verification);

    # Return the final solution and verification result
    return simplify(final_sol), verification;
end proc:

# Define the ODE
ode := diff(u(x, t), t $ 2) + u(x, t)^2 - diff(u(x, t), x)^2 = 0;

# Call the procedure with the ODE and specify the number of terms for approximation

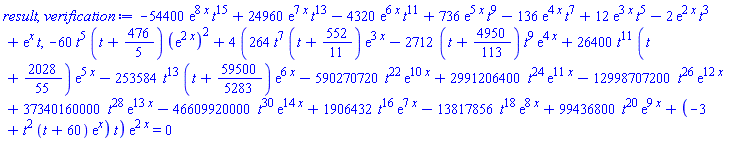

result, verification := SolveODEWithAdomian(ode, 3);

# Display the approximate solution and verification result

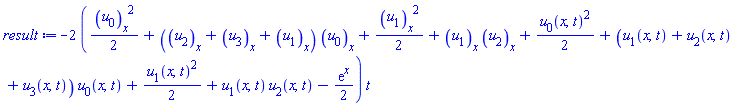

print("Final result after simplification:", simplify(result));

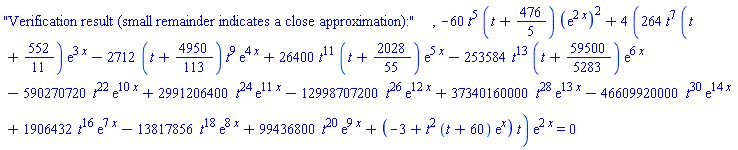

#print("Verification result (small remainder indicates a close approximation):", verification);

"maple.ini in users"



`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`



diff(diff(u(x, t), t), t)+u(x, t)^2-(diff(u(x, t), x))^2 = 0



"Initialization:"



"  Base solution u0(x, t) =", proc (x, t) options operator, arrow; exp(x)*t end proc



"  Starting solution, final_sol = u0(x, t):", exp(x)*t



"  Number of terms to compute:", 3



"  Nonlinear functions f(u) = u^2 and g(u) = (diff(u, x))^2
"



"
Calculating term u[", 1, "] (iteration", 0, "):"



"  Calculating A[0] and B[0] based on u0(x, t)"



"    Adomian Polynomial A[", 0, "] =", (exp(x))^2*t^2



"    Adomian Polynomial B[", 0, "] =", -(exp(x))^2*t^2



"  Sum A[0] + B[0] is zero before Laplace, so u[1] = 0"



"  Since u[1] = 0, all higher order terms will also be set to zero."



"    u[", 2, "] is set to zero because u[1] = 0"



"    u[", 3, "] is set to zero because u[1] = 0"



"
Verification step:"

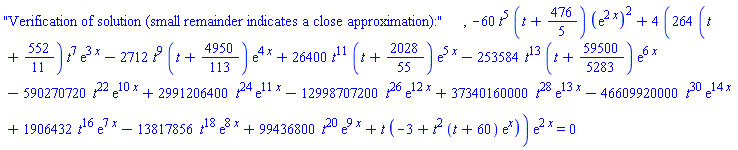

"Verification of solution (small remainder indicates a close approximation):", diff(diff(exp(x)*t, t), t)+exp(2*x)*t^2-(diff(exp(x)*t, x))^2 = 0



exp(x)*t, diff(diff(exp(x)*t, t), t)+exp(2*x)*t^2-(diff(exp(x)*t, x))^2 = 0



"Final result after simplification:", exp(x)*t

(1)






Download adomian_proc_mprimes-salim-3-11-2024_variant5.mw

@salim-barzani
Your comments have been incorporated into the proceedings
How exactly it works with the adomian polynomials, I would have to look into further, but it is an approximation to a general solution of an ode if I have seen it correctly.





restart;
with(inttrans):
with(PDEtools):
with(LinearAlgebra):

undeclare(prime);

# Procedure to solve the ODE using the Adomian method with detailed prints
SolveODEWithAdomian := proc(ode, num_terms)
    local u0, A, B, adomian_sol, final_sol, f, g, j, verification, k;

    # Step 1: Define the initial condition and base solution
    u0 := (x, t) -> exp(x)*t;  # Base solution u0 from initial conditions
    final_sol := u0(x, t);      # Start with u0 as the initial solution

    # Arrays for Adomian polynomials
    A := Array(0..num_terms-1);
    B := Array(0..num_terms-1);
    adomian_sol := Array(0..num_terms-1);  # Array for solution terms u[1], u[2], ...

    # Nonlinear functions for the Adomian polynomials
    f := u -> u^2;
    g := u -> (diff(u, x))^2;

    # Initial print statements for the setup
    print("Initialization:");
    print("  Base solution u0(x, t) =", u0);
    print("  Starting solution, final_sol = u0(x, t):", final_sol);
    print("  Number of terms to compute:", num_terms);
    print("  Nonlinear functions f(u) = u^2 and g(u) = (diff(u, x))^2\n");

    # Calculate and add each term iteratively up to num_terms
    for j from 0 to num_terms-1 do
        print("\nCalculating term u[", j+1, "] (iteration", j, "):");

        if j = 0 then
            # Step 2: For j=0, calculate A[0] and B[0] based on u0
            print("  Calculating A[0] and B[0] based on u0(x, t)");
            A[j] := f(u0(x, t));
            B[j] := g(u0(x, t));
            print("    Adomian Polynomial A[", j, "] =", A[j]);
            print("    Adomian Polynomial B[", j, "] =", B[j]);

            # Check if A[0] + B[0] is zero to determine u[1]
            if simplify(A[j] + B[j]) = 0 then
                adomian_sol[j] := 0;
                print("  Sum A[0] + B[0] is zero, so u[1] = 0");

                # Since u[1] is zero, set all future u[j] terms to zero
                print("  Since u[1] = 0, all higher order terms will also be set to zero.");
                for k from j+1 to num_terms-1 do
                    adomian_sol[k] := 0;
                    print("    u[", k+1, "] is set to zero because u[1] = 0");
                end do;
                break;  # Exit the loop since all further terms are zero
            else
                # Calculate u[1] if A[0] + B[0] is not zero
                print("  Sum A[0] + B[0] is not zero, calculating u[1] using inverse Laplace");
                adomian_sol[j] := invlaplace(-1/s^2 * (A[j] + B[j]), s, t);
                print("    Inverse Laplace of term u[1] =", adomian_sol[j]);
                final_sol := final_sol + adomian_sol[j];
                print("  Updated solution after adding u[1]:", final_sol);
            end if;

        else
            # Step 3: For j>=1, calculate A[j] and B[j] using previous terms
            print("  Calculating A[", j, "] and B[", j, "] based on previous solution terms");
            A[j] := 2 * final_sol * adomian_sol[j-1];  # Based on u[j-1]
            B[j] := 2 * diff(final_sol, x) * diff(adomian_sol[j-1], x);
            print("    Adomian Polynomial A[", j, "] =", A[j]);
            print("    Adomian Polynomial B[", j, "] =", B[j]);

            # Check if A[j] + B[j] is zero
            if simplify(A[j] + B[j]) = 0 then
                adomian_sol[j] := 0;
                print("  Sum A[", j, "] + B[", j, "] is zero, so u[", j+1, "] = 0");

                # Since u[j+1] is zero, set all future u[k] terms to zero
                print("  Since u[", j+1, "] = 0, all higher order terms will also be set to zero.");
                for k from j+1 to num_terms-1 do
                    adomian_sol[k] := 0;
                    print("    u[", k+1, "] is set to zero because u[", j+1, "] = 0");
                end do;
                break;  # Exit the loop since all further terms are zero
            else
                # Calculate u[j+1] if A[j] + B[j] is not zero
                print("  Sum A[", j, "] + B[", j, "] is not zero, calculating u[", j+1, "] using inverse Laplace");
                adomian_sol[j] := invlaplace(-1/s^2 * (A[j] + B[j]), s, t);
                print("    Inverse Laplace of term u[", j+1, "] =", adomian_sol[j]);
                final_sol := final_sol + adomian_sol[j];
                print("  Updated solution after adding u[", j+1, "]:", final_sol);
            end if;
        end if;
    end do;

    # Verification of the solution by substitution into the original ODE
    print("\nVerification step:");
    verification := simplify(subs(u(x, t) = final_sol, ode));
    print("Verification of solution (small remainder indicates a close approximation):", verification);

    # Return the final solution and verification result
    return simplify(final_sol), verification;
end proc:

# Define the ODE
ode := diff(u(x, t), t $ 2) + u(x, t)^2 - diff(u(x, t), x)^2 = 0;

# Call the procedure with the ODE and specify the number of terms for approximation
result, verification := SolveODEWithAdomian(ode, 3);

# Display the approximate solution and verification result
print("Final result after simplification:", simplify(result));
#print("Verification result (small remainder indicates a close approximation):", verification);

"maple.ini in users"



`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`



diff(diff(u(x, t), t), t)+u(x, t)^2-(diff(u(x, t), x))^2 = 0



"Initialization:"



"  Base solution u0(x, t) =", proc (x, t) options operator, arrow; exp(x)*t end proc



"  Starting solution, final_sol = u0(x, t):", exp(x)*t



"  Number of terms to compute:", 3



"  Nonlinear functions f(u) = u^2 and g(u) = (diff(u, x))^2
"



"
Calculating term u[", 1, "] (iteration", 0, "):"



"  Calculating A[0] and B[0] based on u0(x, t)"



"    Adomian Polynomial A[", 0, "] =", (exp(x))^2*t^2



"    Adomian Polynomial B[", 0, "] =", (exp(x))^2*t^2



"  Sum A[0] + B[0] is not zero, calculating u[1] using inverse Laplace"



"    Inverse Laplace of term u[1] =", -2*exp(2*x)*t^3



"  Updated solution after adding u[1]:", exp(x)*t-2*exp(2*x)*t^3



"
Calculating term u[", 2, "] (iteration", 1, "):"



"  Calculating A[", 1, "] and B[", 1, "] based on previous solution terms"



"    Adomian Polynomial A[", 1, "] =", -4*(exp(x)*t-2*exp(2*x)*t^3)*exp(2*x)*t^3



"    Adomian Polynomial B[", 1, "] =", -8*(exp(x)*t-4*exp(2*x)*t^3)*exp(2*x)*t^3



"  Sum A[", 1, "] + B[", 1, "] is not zero, calculating u[", 2, "] using inverse Laplace"



"    Inverse Laplace of term u[", 2, "] =", 4*t*(-10*exp(4*x)*t^6+3*t^4*exp(3*x))



"  Updated solution after adding u[", 2, "]:", exp(x)*t-2*exp(2*x)*t^3+4*t*(-10*exp(4*x)*t^6+3*t^4*exp(3*x))



"
Calculating term u[", 3, "] (iteration", 2, "):"



"  Calculating A[", 2, "] and B[", 2, "] based on previous solution terms"



"    Adomian Polynomial A[", 2, "] =", 8*(exp(x)*t-2*exp(2*x)*t^3+4*t*(-10*exp(4*x)*t^6+3*t^4*exp(3*x)))*t*(-10*exp(4*x)*t^6+3*t^4*exp(3*x))



"    Adomian Polynomial B[", 2, "] =", 8*(exp(x)*t-4*exp(2*x)*t^3+4*t*(-40*exp(4*x)*t^6+9*t^4*exp(3*x)))*t*(-40*exp(4*x)*t^6+9*t^4*exp(3*x))



"  Sum A[", 2, "] + B[", 2, "] is not zero, calculating u[", 3, "] using inverse Laplace"



"    Inverse Laplace of term u[", 3, "] =", 32*t*(-1700*exp(8*x)*t^14+780*t^12*exp(7*x)-135*t^10*exp(6*x)+23*t^8*exp(5*x)-3*exp(4*x)*t^6)



"  Updated solution after adding u[", 3, "]:", exp(x)*t-2*exp(2*x)*t^3+4*t*(-10*exp(4*x)*t^6+3*t^4*exp(3*x))+32*t*(-1700*exp(8*x)*t^14+780*t^12*exp(7*x)-135*t^10*exp(6*x)+23*t^8*exp(5*x)-3*exp(4*x)*t^6)



"
Verification step:"



"Verification of solution (small remainder indicates a close approximation):", -60*t^5*(t+476/5)*(exp(2*x))^2+4*(264*(t+552/11)*t^7*exp(3*x)-2712*t^9*(t+4950/113)*exp(4*x)+26400*t^11*(t+2028/55)*exp(5*x)-253584*t^13*(t+59500/5283)*exp(6*x)-590270720*t^22*exp(10*x)+2991206400*t^24*exp(11*x)-12998707200*t^26*exp(12*x)+37340160000*t^28*exp(13*x)-46609920000*t^30*exp(14*x)+1906432*t^16*exp(7*x)-13817856*t^18*exp(8*x)+99436800*t^20*exp(9*x)+t*(-3+t^2*(t+60)*exp(x)))*exp(2*x) = 0



-54400*exp(8*x)*t^15+24960*exp(7*x)*t^13-4320*exp(6*x)*t^11+736*exp(5*x)*t^9-136*exp(4*x)*t^7+12*exp(3*x)*t^5-2*exp(2*x)*t^3+exp(x)*t, -60*t^5*(t+476/5)*(exp(2*x))^2+4*(264*(t+552/11)*t^7*exp(3*x)-2712*t^9*(t+4950/113)*exp(4*x)+26400*t^11*(t+2028/55)*exp(5*x)-253584*t^13*(t+59500/5283)*exp(6*x)-590270720*t^22*exp(10*x)+2991206400*t^24*exp(11*x)-12998707200*t^26*exp(12*x)+37340160000*t^28*exp(13*x)-46609920000*t^30*exp(14*x)+1906432*t^16*exp(7*x)-13817856*t^18*exp(8*x)+99436800*t^20*exp(9*x)+t*(-3+t^2*(t+60)*exp(x)))*exp(2*x) = 0



"Final result after simplification:", -54400*exp(8*x)*t^15+24960*exp(7*x)*t^13-4320*exp(6*x)*t^11+736*exp(5*x)*t^9-136*exp(4*x)*t^7+12*exp(3*x)*t^5-2*exp(2*x)*t^3+exp(x)*t

(1)






Download adomian_proc_mprimes-salim-3-11-2024_variant4.mw




@salim-barzani




restart;
with(inttrans):
with(PDEtools):
with(LinearAlgebra):

undeclare(prime);

# Procedure to solve the ODE using the Adomian method in a compact iterative manner
SolveODEWithAdomian := proc(ode, num_terms)
    local u0, A, B, adomian_sol, final_sol, f, g, j, verification;

    # Step 1: Define the initial condition and base solution
    u0 := (x, t) -> exp(x)*t;  # Base solution u0 from initial conditions
    final_sol := u0(x, t);      # Start with u0 as the initial solution

    # Arrays for Adomian polynomials
    A := Array(0..num_terms-1);
    B := Array(0..num_terms-1);
    adomian_sol := Array(0..num_terms-1);  # Array for solution terms u[1], u[2], ...

    # Nonlinear functions for the Adomian polynomials
    f := u -> u^2;
    g := u -> (diff(u, x))^2;

    print("Step 1: Define initial conditions and basic functions:");
    print("u0 =", u0);

    # Calculate and add each term iteratively up to num_terms
    for j from 0 to num_terms-1 do
        if j = 0 then
            # Step 2: For j=0, calculate A[0] and B[0] based on u0
            A[j] := f(u0(x, t));
            B[j] := g(u0(x, t));
            print("Adomian Polynomial A[", j, "] =", A[j]);
            print("Adomian Polynomial B[", j, "] =", B[j]);
        else
            # Step 3: For j>=1, calculate A[j] and B[j] using the previous terms
            A[j] := 2 * final_sol * adomian_sol[j-1];  # Based on u[j-1]
            B[j] := 2 * diff(final_sol, x) * diff(adomian_sol[j-1], x);
            print("Adomian Polynomial A[", j, "] =", A[j]);
            print("Adomian Polynomial B[", j, "] =", B[j]);
        end if;

        # Step 4: Calculate the next term u[j+1] using inverse Laplace
        adomian_sol[j] := invlaplace(-1/s^2 * (A[j] + B[j]), s, t);
        print("Inverse Laplace of term u[", j+1, "] =", adomian_sol[j]);

        # Add the current term to the final solution
        final_sol := final_sol + adomian_sol[j];
        print("Intermediate solution after adding u[", j+1, "] =", final_sol);
    end do;

    # Verification of the solution by substitution into the original ODE
    verification := simplify(subs(u(x, t) = final_sol, ode));
    print("Verification of solution (small remainder indicates a close approximation):", verification);

    # Return the final solution and verification result
    return simplify(final_sol), verification;
end proc:

# Define the ODE
ode := diff(u(x, t), t $ 2) + u(x, t)^2 - diff(u(x, t), x)^2 = 0;

# Call the procedure with the ODE and specify the number of terms for approximation
result, verification := SolveODEWithAdomian(ode, 3);

# Display the approximate solution and verification result
print("Final result after simplification:", simplify(result));
print("Verification result (small remainder indicates a close approximation):", verification);

"maple.ini in users"



`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`



diff(diff(u(x, t), t), t)+u(x, t)^2-(diff(u(x, t), x))^2 = 0



"Step 1: Define initial conditions and basic functions:"



"u0 =", proc (x, t) options operator, arrow; exp(x)*t end proc



"Adomian Polynomial A[", 0, "] =", (exp(x))^2*t^2



"Adomian Polynomial B[", 0, "] =", (exp(x))^2*t^2



"Inverse Laplace of term u[", 1, "] =", -2*exp(2*x)*t^3



"Intermediate solution after adding u[", 1, "] =", exp(x)*t-2*exp(2*x)*t^3



"Adomian Polynomial A[", 1, "] =", -4*(exp(x)*t-2*exp(2*x)*t^3)*exp(2*x)*t^3



"Adomian Polynomial B[", 1, "] =", -8*(exp(x)*t-4*exp(2*x)*t^3)*exp(2*x)*t^3



"Inverse Laplace of term u[", 2, "] =", 4*t*(-10*t^6*exp(4*x)+3*exp(3*x)*t^4)



"Intermediate solution after adding u[", 2, "] =", exp(x)*t-2*exp(2*x)*t^3+4*t*(-10*t^6*exp(4*x)+3*exp(3*x)*t^4)



"Adomian Polynomial A[", 2, "] =", 8*(exp(x)*t-2*exp(2*x)*t^3+4*t*(-10*t^6*exp(4*x)+3*exp(3*x)*t^4))*t*(-10*t^6*exp(4*x)+3*exp(3*x)*t^4)



"Adomian Polynomial B[", 2, "] =", 8*(exp(x)*t-4*exp(2*x)*t^3+4*t*(-40*t^6*exp(4*x)+9*exp(3*x)*t^4))*t*(-40*t^6*exp(4*x)+9*exp(3*x)*t^4)



"Inverse Laplace of term u[", 3, "] =", 32*t*(-1700*exp(8*x)*t^14+780*t^12*exp(7*x)-135*exp(6*x)*t^10+23*t^8*exp(5*x)-3*t^6*exp(4*x))



"Intermediate solution after adding u[", 3, "] =", exp(x)*t-2*exp(2*x)*t^3+4*t*(-10*t^6*exp(4*x)+3*exp(3*x)*t^4)+32*t*(-1700*exp(8*x)*t^14+780*t^12*exp(7*x)-135*exp(6*x)*t^10+23*t^8*exp(5*x)-3*t^6*exp(4*x))



"Verification of solution (small remainder indicates a close approximation):", -60*t^5*(t+476/5)*(exp(2*x))^2+4*(264*t^7*(t+552/11)*exp(3*x)-2712*(t+4950/113)*t^9*exp(4*x)+26400*t^11*(t+2028/55)*exp(5*x)-253584*t^13*(t+59500/5283)*exp(6*x)-590270720*t^22*exp(10*x)+2991206400*t^24*exp(11*x)-12998707200*t^26*exp(12*x)+37340160000*t^28*exp(13*x)-46609920000*t^30*exp(14*x)+1906432*t^16*exp(7*x)-13817856*t^18*exp(8*x)+99436800*t^20*exp(9*x)+(-3+t^2*(t+60)*exp(x))*t)*exp(2*x) = 0



-54400*exp(8*x)*t^15+24960*exp(7*x)*t^13-4320*exp(6*x)*t^11+736*exp(5*x)*t^9-136*exp(4*x)*t^7+12*exp(3*x)*t^5-2*exp(2*x)*t^3+exp(x)*t, -60*t^5*(t+476/5)*(exp(2*x))^2+4*(264*t^7*(t+552/11)*exp(3*x)-2712*(t+4950/113)*t^9*exp(4*x)+26400*t^11*(t+2028/55)*exp(5*x)-253584*t^13*(t+59500/5283)*exp(6*x)-590270720*t^22*exp(10*x)+2991206400*t^24*exp(11*x)-12998707200*t^26*exp(12*x)+37340160000*t^28*exp(13*x)-46609920000*t^30*exp(14*x)+1906432*t^16*exp(7*x)-13817856*t^18*exp(8*x)+99436800*t^20*exp(9*x)+(-3+t^2*(t+60)*exp(x))*t)*exp(2*x) = 0



"Final result after simplification:", -54400*exp(8*x)*t^15+24960*exp(7*x)*t^13-4320*exp(6*x)*t^11+736*exp(5*x)*t^9-136*exp(4*x)*t^7+12*exp(3*x)*t^5-2*exp(2*x)*t^3+exp(x)*t



"Verification result (small remainder indicates a close approximation):", -60*t^5*(t+476/5)*(exp(2*x))^2+4*(264*t^7*(t+552/11)*exp(3*x)-2712*(t+4950/113)*t^9*exp(4*x)+26400*t^11*(t+2028/55)*exp(5*x)-253584*t^13*(t+59500/5283)*exp(6*x)-590270720*t^22*exp(10*x)+2991206400*t^24*exp(11*x)-12998707200*t^26*exp(12*x)+37340160000*t^28*exp(13*x)-46609920000*t^30*exp(14*x)+1906432*t^16*exp(7*x)-13817856*t^18*exp(8*x)+99436800*t^20*exp(9*x)+(-3+t^2*(t+60)*exp(x))*t)*exp(2*x) = 0

(1)






Download adomian_proc_mprimes-salim-3-11-2024_variant3.mw

Odetest is not going to give zero as the result , because it is an approximation the general solution of the ode ?



restart;
with(inttrans):
with(PDEtools):
with(LinearAlgebra):

undeclare(prime);

# Procedure to solve the ODE using the Adomian method
SolveODEWithAdomian := proc(ode)
    local eqs, u0, A, B, lap_sol, adomian_sol, final_sol, f, g, j, u1_approx, verification;

    # Step 1: Define initial conditions and basic functions
    u0 := (x, t) -> exp(x)*t;  # Base solution u0
    A := Array(0..3);  # Adomian polynomials A[j]
    B := Array(0..3);  # Adomian polynomials B[j]

    # Nonlinear terms
    f := u -> u^2;
    g := u -> (diff(u, x))^2;

    print("Step 1: Define initial conditions and basic functions:");
    print("u0 =", u0);
    print("A[j] =", A);
    print("B[j] =", B);
    print("Nonlinear functions f(u) =", f(u), "and g(u) =", g(u));

    # Step 2: Manual calculation of the first few Adomian polynomials
    # Explicitly compute the Adomian polynomials without generic summation or lambda indexing
    A[0] := f(u0(x, t));
    B[0] := g(u0(x, t));
    print("Adomian Polynomial A[0] =", A[0]);
    print("Adomian Polynomial B[0] =", B[0]);

    # For higher orders, we can derive the exact expressions if needed
    A[1] := 2 * u0(x, t) * u[1](x, t);
    B[1] := 2 * diff(u0(x, t), x) * diff(u[1](x, t), x);
    print("Adomian Polynomial A[1] =", A[1]);
    print("Adomian Polynomial B[1] =", B[1]);

    # Step 3: Laplace transform of the ODE
    eqs := laplace(ode, t, s);
    print("Step 3: Laplace transform of the ODE:", eqs);

    # Step 4: Solution in the Laplace domain
    lap_sol := solve({eqs}, {laplace(u(x, t), t, s)});

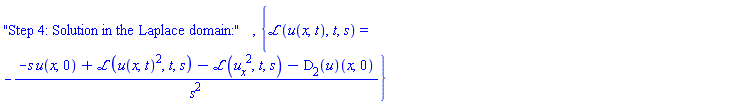

    print("Step 4: Solution in the Laplace domain:", lap_sol);

    # Step 5: Substitute initial conditions in the Laplace solution
    lap_sol := subs({u(x, 0) = 0, D[2](u)(x, 0) = exp(x)}, lap_sol);
    print("Step 5: Substitute initial conditions in the Laplace solution:", lap_sol);

    # Step 6: Transform back to the time domain with inverse Laplace
    adomian_sol := Array(0..1);  # Array for approximate terms
    for j from 0 to 1 do
        adomian_sol[j] := -invlaplace(1/(s^2) * (A[j] + B[j]), s, t);
        print("Inverse Laplace of term ", j, ":", adomian_sol[j]);
    end do;

    # Step 7: Sum all Adomian terms to obtain the final solution
    final_sol := u0(x, t) + add(adomian_sol[j], j=0..1);
    print("Step 7: Sum of all terms for the final solution:", final_sol);

    # Substitute u(x, t) with the obtained solution, replacing u[1](x, t) with an approximate expression
    u1_approx := (x, t) -> exp(x)*sin(t);  # Substitute u[1](x, t) with an approximate expression
    final_sol := subs(u[1](x, t) = u1_approx(x, t), final_sol);
    print("Substitute u[1](x, t) in the final solution:", final_sol);

    # Manually verify the solution by substituting final_sol into the original ODE
    verification := simplify(subs(u(x, t) = final_sol, ode));
    print("Verification of solution (should be zero if correct):", verification);

    # Return the simplified solution and verification result
    return simplify(final_sol), verification;
end proc:

# Define the ODE with a known solution
ode := diff(u(x, t), t $ 2) + u(x, t)^2 - diff(u(x, t), x)^2 = 0;

# Call the procedure with the ODE as input
result, verification := SolveODEWithAdomian(ode);

# Display the approximate solution and verification result
print("Final result after simplification:", simplify(result));
print("Verification result (should be zero if the solution is correct):", verification);

"maple.ini in users"



`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`



diff(diff(u(x, t), t), t)+u(x, t)^2-(diff(u(x, t), x))^2 = 0



"Step 1: Define initial conditions and basic functions:"



"u0 =", proc (x, t) options operator, arrow; exp(x)*t end proc



"A[j] =", Array(%id = 36893491234883259916)



"B[j] =", Array(%id = 36893491234883260036)



"Nonlinear functions f(u) =", u^2, "and g(u) =", 0



"Adomian Polynomial A[0] =", (exp(x))^2*t^2



"Adomian Polynomial B[0] =", (exp(x))^2*t^2



"Adomian Polynomial A[1] =", 2*exp(x)*t*u[1](x, t)



"Adomian Polynomial B[1] =", 2*exp(x)*t*(diff(u[1](x, t), x))



"Step 3: Laplace transform of the ODE:", s^2*laplace(u(x, t), t, s)-(D[2](u))(x, 0)-s*u(x, 0)+laplace(u(x, t)^2, t, s)-laplace((diff(u(x, t), x))^2, t, s) = 0



"Step 4: Solution in the Laplace domain:", {laplace(u(x, t), t, s) = (s*u(x, 0)+(D[2](u))(x, 0)-laplace(u(x, t)^2, t, s)+laplace((diff(u(x, t), x))^2, t, s))/s^2}



"Step 5: Substitute initial conditions in the Laplace solution:", {laplace(u(x, t), t, s) = (exp(x)-laplace(u(x, t)^2, t, s)+laplace((diff(u(x, t), x))^2, t, s))/s^2}



"Inverse Laplace of term ", 0, ":", -2*exp(2*x)*t^3



"Inverse Laplace of term ", 1, ":", -2*exp(x)*t^2*(u[1](x, t)+diff(u[1](x, t), x))



"Step 7: Sum of all terms for the final solution:", exp(x)*t-2*exp(2*x)*t^3-2*exp(x)*t^2*(u[1](x, t)+diff(u[1](x, t), x))



"Substitute u[1](x, t) in the final solution:", exp(x)*t-2*exp(2*x)*t^3-2*exp(x)*t^2*(exp(x)*sin(t)+diff(exp(x)*sin(t), x))



"Verification of solution (should be zero if correct):", 4*(t^2*sin(t)-4*cos(t)*t-3*t-2*sin(t))*exp(2*x)-12*(t*(t+2*sin(t))*exp(4*x)-(1/3)*exp(3*x))*(t+2*sin(t))*t^3 = 0



-2*exp(x)*t*(t*(diff(exp(x)*sin(t), x))-1/2+t*(t+sin(t))*exp(x)), 4*(t^2*sin(t)-4*cos(t)*t-3*t-2*sin(t))*exp(2*x)-12*(t*(t+2*sin(t))*exp(4*x)-(1/3)*exp(3*x))*(t+2*sin(t))*t^3 = 0



"Final result after simplification:", -2*(-1/2+t*(t+2*sin(t))*exp(x))*exp(x)*t



"Verification result (should be zero if the solution is correct):", 4*(t^2*sin(t)-4*cos(t)*t-3*t-2*sin(t))*exp(2*x)-12*(t*(t+2*sin(t))*exp(4*x)-(1/3)*exp(3*x))*(t+2*sin(t))*t^3 = 0

(1)








Download adomian_proc_mprimes-salim-3-11-2024_variant2.mw




restart;
with(inttrans):
with(PDEtools):
with(LinearAlgebra):

undeclare(prime);

# Procedure to solve the ODE using the Adomian method
SolveODEWithAdomian := proc(ode)
    local eqs, u0, A, B, lap_sol, adomian_sol, final_sol, f, g, j, u1_approx;

    # Step 1: Define initial conditions and basic functions
    u0 := (x, t) -> exp(x)*t;  # Base solution u0
    A := Array(0..3);  # Adomian polynomials A[j]
    B := Array(0..3);  # Adomian polynomials B[j]

    # Nonlinear terms
    f := u -> u^2;
    g := u -> (diff(u, x))^2;

    print("Step 1: Define initial conditions and basic functions:");
    print("u0 =", u0);
    print("A[j] =", A);
    print("B[j] =", B);
    print("Nonlinear functions f(u) =", f(u), "and g(u) =", g(u));

    # Step 2: Manual calculation of the first few Adomian polynomials
    # Explicitly compute the Adomian polynomials without generic summation or lambda indexing
    A[0] := f(u0(x, t));
    B[0] := g(u0(x, t));
    print("Adomian Polynomial A[0] =", A[0]);
    print("Adomian Polynomial B[0] =", B[0]);

    # For higher orders, we can derive the exact expressions if needed
    A[1] := 2 * u0(x, t) * u[1](x, t);
    B[1] := 2 * diff(u0(x, t), x) * diff(u[1](x, t), x);
    print("Adomian Polynomial A[1] =", A[1]);
    print("Adomian Polynomial B[1] =", B[1]);

    # Step 3: Laplace transform of the ODE
    eqs := laplace(ode, t, s);
    print("Step 3: Laplace transform of the ODE:", eqs);

    # Step 4: Solution in the Laplace domain
    lap_sol := solve({eqs}, {laplace(u(x, t), t, s)});
    print("Step 4: Solution in the Laplace domain:", lap_sol);

    # Step 5: Substitute initial conditions in the Laplace solution
    lap_sol := subs({u(x, 0) = 0, D[2](u)(x, 0) = exp(x)}, lap_sol);
    print("Step 5: Substitute initial conditions in the Laplace solution:", lap_sol);

    # Step 6: Transform back to the time domain with inverse Laplace
    adomian_sol := Array(0..1);  # Array for approximate terms
    for j from 0 to 1 do
        adomian_sol[j] := -invlaplace(1/(s^2) * (A[j] + B[j]), s, t);
        print("Inverse Laplace of term ", j, ":", adomian_sol[j]);
    end do;

    # Step 7: Sum all Adomian terms to obtain the final solution
    final_sol := u0(x, t) + add(adomian_sol[j], j=0..1);
    print("Step 7: Sum of all terms for the final solution:", final_sol);

    # Substitute u(x, t) with the obtained solution, replacing u[1](x, t) with a placeholder
    u1_approx := (x, t) -> exp(x)*sin(t);  # Substitute u[1](x, t) with an approximate expression
    final_sol := subs(u[1](x, t) = u1_approx(x, t), final_sol);
    print("Substitute u[1](x, t) in the final solution:", final_sol);

    # Return the simplified solution
    return simplify(final_sol);
end proc:

# Define the ODE with a known solution
ode := diff(u(x, t), t $ 2) + u(x, t)^2 - diff(u(x, t), x)^2 = 0;

# Call the procedure with the ODE as input
result := SolveODEWithAdomian(ode);

# Display the approximate solution
print("Final result after simplification:", simplify(result));

"maple.ini in users"



`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`



diff(diff(u(x, t), t), t)+u(x, t)^2-(diff(u(x, t), x))^2 = 0



"Step 1: Define initial conditions and basic functions:"



"u0 =", proc (x, t) options operator, arrow; exp(x)*t end proc



"A[j] =", Array(0..3, {(1) = (exp(x))^2*t^2, (2) = 2*exp(x)*t*u[1](x, t), (3) = 0})



"B[j] =", Array(0..3, {(1) = (exp(x))^2*t^2, (2) = 2*exp(x)*t*(diff(u[1](x, t), x)), (3) = 0})



"Nonlinear functions f(u) =", u^2, "and g(u) =", 0



"Adomian Polynomial A[0] =", (exp(x))^2*t^2



"Adomian Polynomial B[0] =", (exp(x))^2*t^2



"Adomian Polynomial A[1] =", 2*exp(x)*t*u[1](x, t)



"Adomian Polynomial B[1] =", 2*exp(x)*t*(diff(u[1](x, t), x))



"Step 3: Laplace transform of the ODE:", s^2*laplace(u(x, t), t, s)-(D[2](u))(x, 0)-s*u(x, 0)+laplace(u(x, t)^2, t, s)-laplace((diff(u(x, t), x))^2, t, s) = 0



"Step 4: Solution in the Laplace domain:", {laplace(u(x, t), t, s) = (s*u(x, 0)+(D[2](u))(x, 0)-laplace(u(x, t)^2, t, s)+laplace((diff(u(x, t), x))^2, t, s))/s^2}



"Step 5: Substitute initial conditions in the Laplace solution:", {laplace(u(x, t), t, s) = (exp(x)-laplace(u(x, t)^2, t, s)+laplace((diff(u(x, t), x))^2, t, s))/s^2}



"Inverse Laplace of term ", 0, ":", -2*exp(2*x)*t^3



"Inverse Laplace of term ", 1, ":", -2*exp(x)*t^2*(u[1](x, t)+diff(u[1](x, t), x))



"Step 7: Sum of all terms for the final solution:", exp(x)*t-2*exp(2*x)*t^3-2*exp(x)*t^2*(u[1](x, t)+diff(u[1](x, t), x))



"Substitute u[1](x, t) in the final solution:", exp(x)*t-2*exp(2*x)*t^3-2*exp(x)*t^2*(exp(x)*sin(t)+diff(exp(x)*sin(t), x))



-2*t*exp(x)*(t*(diff(exp(x)*sin(t), x))-1/2+t*(t+sin(t))*exp(x))



"Final result after simplification:", -2*t*exp(x)*(-1/2+t*(t+2*sin(t))*exp(x))

(1)








Download adomian_proc_mprimes-salim-3-11-2024_variant1.mw



@salim-barzani
i added prints to see the outcome of the procedure




restart;
with(inttrans):
with(PDEtools):
with(LinearAlgebra):

undeclare(prime);

with(PDEtools):
declare();

# Define a procedure that takes the ODE as input
SolveODEWithAdomian := proc(ode)
    local eq, eqs, u0, A, B, j, lap_sol, adomian_sol, final_sol, f, g, m;

    # Step 1: Initial conditions and function definitions
    u0 := (x, t) -> exp(x)*t;  # Define u0 as the base function
    A := Array(0..3);  # Array for Adomian polynomials A[j]
    B := Array(0..3);  # Array for Adomian polynomials B[j]

    # Functions representing the nonlinear terms
    f := u -> u^2;
    g := u -> diff(u, x)^2;

    print("Step 1: Initial conditions and function definitions");
    print("u0 =", u0);
    print("A =", A);
    print("B =", B);
    print("Nonlinear functions f(u) =", f(u), "and g(u) =", g(u));

    # Step 2: Calculate the Adomian polynomials A[j] and B[j]
    for j from 0 to 3 do
        A[j] := subs(lambda=0, diff(f(seq(sum(lambda^i * u[i](x, t), i=0..20), m=1..2)), [lambda$j]) / j!);
        B[j] := subs(lambda=0, diff(g(seq(sum(lambda^i * u[i](x, t), i=0..20), m=1..2)), [lambda$j]) / j!);
        print("Adomian Polynomial A[", j, "] =", A[j]);
        print("Adomian Polynomial B[", j, "] =", B[j]);
    end do;

    # Step 3: Perform the Laplace transform of the ODE
    eqs := laplace(ode, t, s);
    print("Step 3: Laplace transform of the ODE:", eqs);

    # Step 4: Solve in the Laplace domain
    lap_sol := solve({eqs}, {laplace(u(x, t), t, s)});
    print("Step 4: Solution in the Laplace domain:", lap_sol);

    # Step 5: Substitute initial conditions for the solution in the Laplace domain
    lap_sol := subs({u(x, 0) = 0, D[2](u)(x, 0) = exp(x)}, lap_sol);
    print("Step 5: Substitute initial conditions:", lap_sol);

    # Step 6: Transform back to the time domain with the inverse Laplace transform
    adomian_sol := Array(0..3);  # Array to store approximate terms
    for j from 0 to 3 do
        # Define each term of the Adomian solution with inverse Laplace of A[j] and B[j]
        adomian_sol[j] := -invlaplace(1/(s^2) * (A[j] + B[j]), s, t);
        print("Inverse Laplace of term ", j, ":", adomian_sol[j]);
    end do;

    # Step 7: Sum all terms of the Adomian solution to obtain the final solution
    final_sol := u0(x, t) + add(adomian_sol[j], j=0..3);
    print("Step 7: Final Adomian solution:", final_sol);

    # Return the result
    return simplify(final_sol);
end proc:

"maple.ini in users"



`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`



`Nothing declared`

(1)

# Define the ODE with the known solution
ode := diff(u(x, t), t $ 2) + u(x, t)^2 - diff(u(x, t), x)^2 = 0;

# Call the SolveODEWithAdomian procedure with the ODE as input
result := SolveODEWithAdomian(ode);

# Print the approximate solution
simplify(result);

diff(diff(u(x, t), t), t)+u(x, t)^2-(diff(u(x, t), x))^2 = 0



"Step 1: Initial conditions and function definitions"



"u0 =", proc (x, t) options operator, arrow; exp(x)*t end proc



"A =", Array(0..3, {(1) = u[0](x, t)^2, (2) = 2*u[0](x, t)*u[1](x, t), (3) = u[1](x, t)^2+2*u[0](x, t)*u[2](x, t)})



"B =", Array(0..3, {(1) = (diff(u[0](x, t), x))^2, (2) = 2*(diff(u[0](x, t), x))*(diff(u[1](x, t), x)), (3) = (diff(u[1](x, t), x))^2+2*(diff(u[0](x, t), x))*(diff(u[2](x, t), x))})



"Nonlinear functions f(u) =", u^2, "and g(u) =", 0



"Adomian Polynomial A[", 0, "] =", u[0](x, t)^2



"Adomian Polynomial B[", 0, "] =", (diff(u[0](x, t), x))^2



"Adomian Polynomial A[", 1, "] =", 2*u[0](x, t)*u[1](x, t)



"Adomian Polynomial B[", 1, "] =", 2*(diff(u[0](x, t), x))*(diff(u[1](x, t), x))



"Adomian Polynomial A[", 2, "] =", u[1](x, t)^2+2*u[0](x, t)*u[2](x, t)



"Adomian Polynomial B[", 2, "] =", (diff(u[1](x, t), x))^2+2*(diff(u[0](x, t), x))*(diff(u[2](x, t), x))



"Adomian Polynomial A[", 3, "] =", 2*u[1](x, t)*u[2](x, t)+2*u[0](x, t)*u[3](x, t)



"Adomian Polynomial B[", 3, "] =", 2*(diff(u[1](x, t), x))*(diff(u[2](x, t), x))+2*(diff(u[0](x, t), x))*(diff(u[3](x, t), x))



"Step 3: Laplace transform of the ODE:", s^2*laplace(u(x, t), t, s)-(D[2](u))(x, 0)-s*u(x, 0)+laplace(u(x, t)^2, t, s)-laplace((diff(u(x, t), x))^2, t, s) = 0



"Step 4: Solution in the Laplace domain:", {laplace(u(x, t), t, s) = -(-s*u(x, 0)+laplace(u(x, t)^2, t, s)-laplace((diff(u(x, t), x))^2, t, s)-(D[2](u))(x, 0))/s^2}



"Step 5: Substitute initial conditions:", {laplace(u(x, t), t, s) = -(laplace(u(x, t)^2, t, s)-laplace((diff(u(x, t), x))^2, t, s)-exp(x))/s^2}



"Inverse Laplace of term ", 0, ":", -(u[0](x, t)^2+(diff(u[0](x, t), x))^2)*t



"Inverse Laplace of term ", 1, ":", -2*(u[0](x, t)*u[1](x, t)+(diff(u[0](x, t), x))*(diff(u[1](x, t), x)))*t



"Inverse Laplace of term ", 2, ":", -(u[1](x, t)^2+2*u[0](x, t)*u[2](x, t)+(diff(u[1](x, t), x))^2+2*(diff(u[0](x, t), x))*(diff(u[2](x, t), x)))*t



"Inverse Laplace of term ", 3, ":", -2*(u[0](x, t)*u[3](x, t)+(diff(u[0](x, t), x))*(diff(u[3](x, t), x))+u[1](x, t)*u[2](x, t)+(diff(u[1](x, t), x))*(diff(u[2](x, t), x)))*t



"Step 7: Final Adomian solution:", exp(x)*t-(u[0](x, t)^2+(diff(u[0](x, t), x))^2)*t-2*(u[0](x, t)*u[1](x, t)+(diff(u[0](x, t), x))*(diff(u[1](x, t), x)))*t-(u[1](x, t)^2+2*u[0](x, t)*u[2](x, t)+(diff(u[1](x, t), x))^2+2*(diff(u[0](x, t), x))*(diff(u[2](x, t), x)))*t-2*(u[0](x, t)*u[3](x, t)+(diff(u[0](x, t), x))*(diff(u[3](x, t), x))+u[1](x, t)*u[2](x, t)+(diff(u[1](x, t), x))*(diff(u[2](x, t), x)))*t

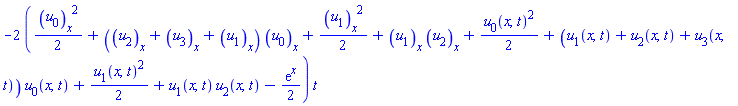

-2*((1/2)*(diff(u[0](x, t), x))^2+(diff(u[2](x, t), x)+diff(u[3](x, t), x)+diff(u[1](x, t), x))*(diff(u[0](x, t), x))+(1/2)*(diff(u[1](x, t), x))^2+(diff(u[1](x, t), x))*(diff(u[2](x, t), x))+(1/2)*u[0](x, t)^2+(u[1](x, t)+u[2](x, t)+u[3](x, t))*u[0](x, t)+(1/2)*u[1](x, t)^2+u[1](x, t)*u[2](x, t)-(1/2)*exp(x))*t



-2*((1/2)*(diff(u[0](x, t), x))^2+(diff(u[2](x, t), x)+diff(u[3](x, t), x)+diff(u[1](x, t), x))*(diff(u[0](x, t), x))+(1/2)*(diff(u[1](x, t), x))^2+(diff(u[1](x, t), x))*(diff(u[2](x, t), x))+(1/2)*u[0](x, t)^2+(u[1](x, t)+u[2](x, t)+u[3](x, t))*u[0](x, t)+(1/2)*u[1](x, t)^2+u[1](x, t)*u[2](x, t)-(1/2)*exp(x))*t

(2)






Download adomian_proc_mprimes-salim-3-11-2024.mw

Sometimes i deleted a answer, because thinking that it makes no sense
That's not wrong , or is it ?


Make this sense or not,  reasoned by ai ?

@Aixleft math
It is true that the ChatGPt standard is not compatible with Maple , but the paid version Maple coding expert is much better
Unfortunately Maple coding expert is no longer online?
So I don't know of a replacement for this yet ?
I do not use standard chatGPT for really good maple code

How do I use Maple and AI ? : I already have some basic knowledge of Maple so do have an idea of a code structure when you start with a question and get an answer
As you use it I do it also, but can e.g. add a debugging in the code to see where it goes wrong
 You also have your question solved manually without code first and then ask the ai to do it for you in Maple code now
You can use print and printf to get an overview of your code
You can also have existing code on the forum analyzed for how it works and learn from that
You can ask everything to the ai how you want it, but the ai can also lose track if the maple code is extensive and complicated, then step by step.

If you are more familiar with the ai, then at some point you know that a piece of code is going to lead to nothing because the AI can't figure it out
Ask for a different approach to the AI and do not ask to repeat with error corrections :-)

Possibly ( for sure: correction)  a good combination with Maple and AI , that you as a user know well the maple language

@Rouben Rostamian

Whether a plate can behave like a membrane strongly depends on the choice of material, thickness, and the forces it is subjected to. A thin, flexible plate made of materials such as rubber or plastic can indeed exhibit behavior similar to that of a membrane when under tension. However, for stiffer materials, such as metals, the bending stiffness is often dominant, meaning they generally cannot function as a membrane so easily.

If you take a steel plate or a plate what acts as a membrane it s not clear , so i decided to go for the more easy case

@Rouben Rostamian  , Thanks , for correcting this

"Maple's pdsolve,numeric is designed to solve PDEs in two independent variables.  So we are out of luck with solving for w(x,y,t)"

Indeed i remember it now again .itis only numeric solving  for x ,t

Note: i am using AI with Maple, but "Maple coding expert" chatgpt seems to be ou of the air  unfortunaly
I am forced to use the matehematica's  AI, and this give code for numerical solving pdes ..it is not clever enough for analyzing rmaple code as it seems :-)

@dharr  By the looks of it, the Sturm-Liouville theory does not work for nonlinear odes unfortunately I read.
It would be too good to be true that all odes types can be solved with it.
The theory does work for linear odes and some type of pde as it seems

Maybe in direktmath ; drag and drop
Also possible this functionality in Maple somewhere, but a very basic level ?

Download DirectMath

First 21 22 23 24 25 26 27 Last Page 23 of 73
