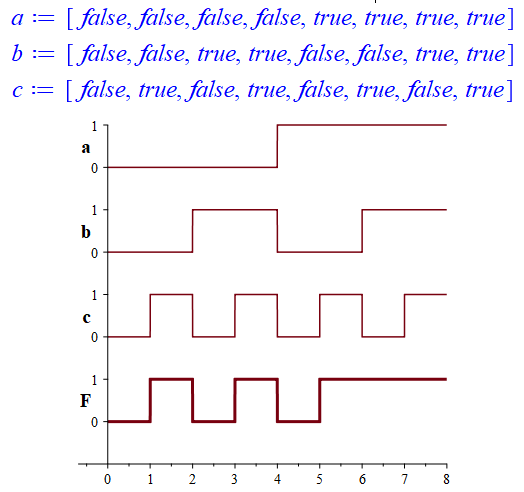

You do not need  Logic  package for this:

a:=[false$4,true$4];
b:=[false$2,true$2,false$2,true$2];
c:=[seq(op([false,true]),i=1..4)];
A:=plot(piecewise(seq(op([x>n-1 and x<n,`if`(a[n]=false,0+7,1+7)]), n=1..8), undefined), x=0..8):
B:=plot(piecewise(seq(op([x>n-1 and x<n,`if`(b[n]=false,0+5,1+5)]), n=1..8), undefined), x=0..8):
C:=plot(piecewise(seq(op([x>n-1 and x<n,`if`(c[n]=false,0+3,1+3)]), n=1..8), undefined), x=0..8):
F:=plot(piecewise(seq(op([x>n-1 and x<n,`if`((a[n] and b[n] or c[n])=false,0+1,1+1)]), n=1..8),undefined), x=0..8, thickness=3):
T:=plots:-textplot([[-0.5,1.5,"F"],[-0.5,3.5,"c"],[-0.5,5.5,"b"],[-0.5,7.5,"a"]], font=[times,bold,16]):
plots:-display(A,B,C,F,T, view=[-0.7..8,0..8], tickmarks=[default,[seq(op([k=0,k+1=1]), k=1..7,2)]], labels=[``,``], scaling=constrained);

This post  https://www.mapleprimes.com/posts/207840-Combinations-Of-Multiple-Animations  will be interesting for you.

It works in Maple 2015.2:

restart;
with(plots):

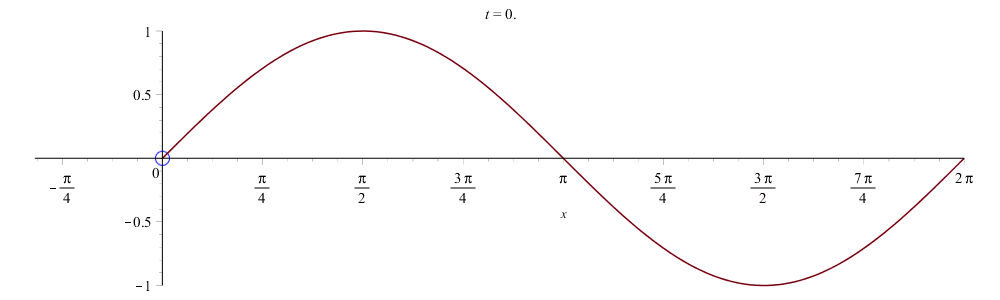

A:=animate(plot, [[cos(t), sin(t), t=0..a]], a = 0 .. 2*Pi,  frames = 50):
B:=animate(pointplot, [[t,sin(t)], color = blue, symbol = circle, symbolsize = 18], t = 0 .. 2*Pi, frames=50, background = plot(sin(x), x = 0 .. 2*Pi)):
display([A, B], scaling = constrained, size=[1000,300]);

Addition. For those who like more compact codes, this animation can be written in one line, calling only  animate  command from  plots  package:

restart;
plots:-animate(plot, [[[cos(t), sin(t), t=0..a],[[a,sin(a)]]],style=[line,point],color = [RGB(0.47,0.,0.055),blue],symbol = circle, symbolsize = 18], a = 0 .. 2*Pi,  frames = 50,background = plot(sin(x), x = 0 .. 2*Pi), scaling=constrained, size=[1000,300]);

The final result:

See corrected file for details

how_to_draw_the_dashline_part_new.mw

Use  solve  instead of  simplify :

solve(F*R=(1/2*M*R^2)*(a/R), F);

restart;
with(PDEtools):
umain := 1-exp(-y)+sum(A^i*u[i](y, z), i = 1 .. 5);
vmain := -1+sum(A^i*v[i](y, z), i = 1 .. 5);
wmain := sum(A^i*w[i](y, z), i = 1 .. 5);
pde[main] := diff(vmain, y)+diff(wmain, z);
pde[main[2]] := vmain*(diff(wmain, y))+wmain*(diff(wmain, z))-(diff(wmain, y$2));

sys[1] := [A^i*coeff(pde[main[2]], A) = 0, w[1](0, z) = sin(z), w[1](infinity, z) = 0];

for i from 2 to 5 do pde[i] := A^i*coeff(pde[main[2]], A^i) = 0; sys[i] := [pde[i], w[i](0, z) = 0, w[i](infinity, z) = 0] end do;

sol:=pdsolve(sys[1]);
w[1] := unapply(eval(w[1](y,z), sol), y,z);

# Examples of use
w[1](y, z);
w[1](1, 2);
plot3d(w[1], 0..1, 0..Pi);

Here is the solution with your data:

The code in 1d-math:

restart;
rho := phi->chi/(1-e*cos(2*phi)):
e := 0.29:
chi := 0.5:
L := phi->Int(sqrt(rho(t)^2+(diff(rho(t), t))^2), t = 0 .. phi):
plot(L(phi), phi = 0 .. 2*Pi);
evalf(L(4));
evalf(L(5));
phi = fsolve(L(phi) = 50);
plot(rho(phi), phi = 0 .. 2*Pi, coords = polar, scaling = constrained);


Download probléma_new.mw  # The code in 2d-math

Here are 2 more ways:

# It does not even need in  simplify  command
eq1:=exp(I*phi);
conjugate(eq1)*eq1 assuming real;

# evalc command works under the assumption that all parameters are real
eq1:=exp(I*phi);
simplify(evalc(conjugate(eq1)*eq1));


restart;
interface(rtablesize=100):
for k from 1 to 10 do
A[k]:=<k,k^2; 2*k,2*k^2>;
od:
LinearAlgebra:-DiagonalMatrix([seq(A[k], k=1..10)]);

Probably you made syntax errors in  Rpm(Rpp(Psi00)) . For example, instead  e^(I*phi)  should be exp(I*phi) . e  is just a symbol in Maple.

Try the code below. And from now on, send a code in text form (which can be easily copied and then pasted into the Maple worksheet), not as a picture.

restart;
exp(-I*phi)*(-I*(2*I*exp(I*phi)*sqrt(1/Pi)*exp(-r^2/2)-2*I*exp(I*phi)*sqrt(1/Pi)*r^2*exp(-r^2/2))+2*exp(I*phi)*sqrt(1/Pi)*r*exp(-r^2/2)/r/(2*I*exp(I*phi)*sqrt(1/Pi)*r*exp(-r^2/2)))-2*r^2*exp(-I*phi)*exp(I*phi)*sqrt(1/Pi)*exp(-r^2/2);

simplify(%);


To find the global extrema in said region do:

f:=cos(x*y)*(x^2+y^2)^0.5:
minimize(f, x=0..1, y=0..1, location);
maximize(f, x=0..1, y=0..1, location);
plot3d(f, x=0..1, y=0..1);  # Visualization


Trunc := proc (eq::{polynom, procedure}, odr::nonnegint := 2, v::list := [x, y, z])
local a, b, q;
description " Truncates an algebraic equation to required degree";
a := eq; b := v;
map(select, q->evalb(degree(q, b) <= odr), `if`((eval(a))::procedure, a(b[]), a))
end proc:

A:=sqrt((1-b/r)^(-1));
B:=expand(op(1,A));
sqrt(``(expand(numer(B)*(-1)/``(denom(B)*(-1)))));


It seems that the syntax of  dsolve  command simply does not provide a vector input form. But the problem is easily solved by reducing to the standard syntax.

Example:

X:=t-><x1(t),x2(t)>:
A:=t-><1,3; 2,5>:
X0:=<1,2>:
Sys:=map(p->convert(p,list)[], {diff(X(t),t)=~A(t).X(t), X(0)=~X0});
dsolve(Sys, {x1(t),x2(t)});


r:=rand(-1...1.):

Examples of use:
X:=seq(r(), i=1..10);
Y:=seq(r(), i=1..10);

Addition:

In old versions of Maple do:

r:=()->RandomTools:-Generate(float('range' = -1 .. 1., 'method' = 'uniform')):

limit((u^m-v^m)/(u-v), u=v);
simplify(%);

Conversion to sum is easy to make for a specific  m , for example:
expand(factor((u^10-v^10)/(u-v)));

Addition. 1. Conversion to one side (from sum to closed form):
restart;
sum(u^(m-1-i)*v^i, i = 0 .. m-1);
simplify(%, symbolic);

2. For reverse conversion, you can use a special procedure (see the code and examples below). The expression must be entered in the form similar to  (u^m-v^m)/(u-v) . u, v  and  m   can be both symbols and/or numbers (if m is number then should be  m>1). To avoid premature calculations (in the case of numbers), pay attention to their correct input (see examples).

restart;
SpecialConv:=expr->Sum(expand(op([1,1,1],expr))^(op([1,1,2],expr)-1-i)*expand(op([1,2,2,1],expr))^i, i=0..op([1,1,2],expr)-1):

Examples of use:
SpecialConv((a^n-b^n)/(a-b));
SpecialConv((5^n-2^n)/``(5-2));
SpecialConv((a^10-b^10)/(a-b));
value(%);
SpecialConv((``(5)^10-``(2)^10)/``(5-2));
SpecialConv((a^10-``(2)^10)/(a-2));

Edit.
