These are answers submitted by Kitonum

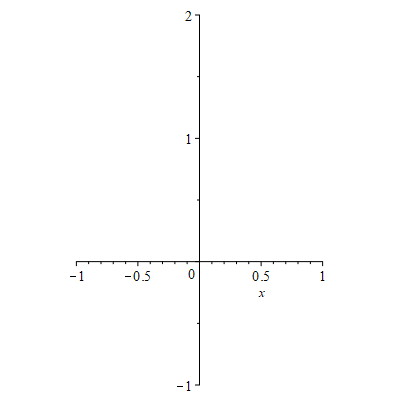

restart;
  rnge:=-1..1:
  fcns:=[[[0,0]]$5, x$10, [x,x^2]$10, [x,x^2,(1-x)]$10]:
  plots:-display( [ seq
                    ( plot
                      ( fcns[j], x=rnge),
                      j=1..35
                    )
                  ],
                  insequence=true, scaling=constrained
                );

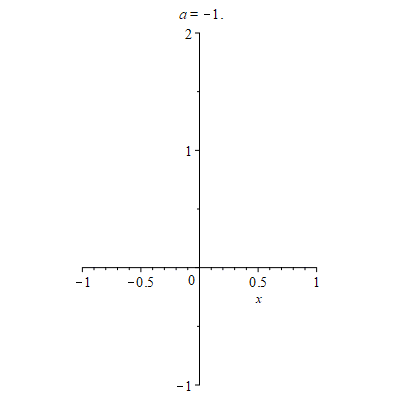

Here is a more complicated option:

restart;
with(plots):
A:=animate(plot, [x, x=-1..a, color=red, thickness=2], a=-1..1):
B:=animate(plot, [x^2, x=-1..a, thickness=2, color=green], a=-1..1):
C:=animate(plot, [1-x, x=-1..a, color=blue, thickness=2], a=-1..1):
display([A, display(op([1,-1,1],A),B), display(op([1,-1,1],A),op([1,-1,1],B),C)], insequence, scaling=constrained);



See this post   https://mapleprimes.com/posts/207840-Combinations-Of-Multiple-Animations

Edit.






NULL

restart

n := 4; C := [seq(cos(2*Pi*K*l/n), l = 0 .. n-1)]; S := [seq(sin(2*Pi*K*l/n), l = 0 .. n-1)]

[1, cos((1/2)*Pi*K), cos(Pi*K), cos((3/2)*Pi*K)]



[0, sin((1/2)*Pi*K), sin(Pi*K), sin((3/2)*Pi*K)]

(1)

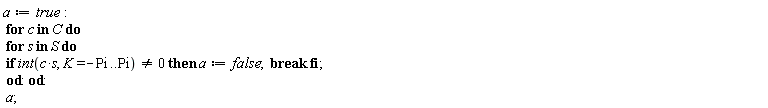

a := true; for c in C do for s in S do if int(c*s, K = -Pi .. Pi) <> 0 then a := false; break end if end do end do; a

true

(2)

NULL

NULL




Download orthogonal-new1.mw

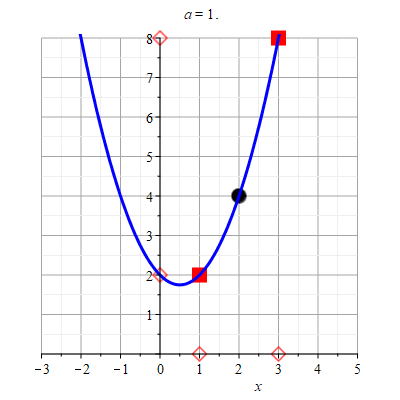

 I think the easiest way to create the same animation is the using a procedure that creates an one frame, and then using the plots:-animate command:

restart;

OneFrame:=proc(a)
local f, Point, Points1, Points2, Curve;
uses plots;
f:=x->x^2-x+2;
Point:=plot([[2,f(2)]],style=point, color=black, symbol=solidcircle, symbolsize=30);
Points1:=plot([[2-a,f(2-a)],[2+a,f(2+a)]], x=-3..5, style=point, color=red, symbol=solidbox, symbolsize=30);
Points2:=plot([[2-a,0],[2+a,0],[0,f(2-a)],[0,f(2+a)]], x=-3..5, style=point, color=red, symbol=diamond, symbolsize=30);
Curve:=plot(f, -3..5, 0..8, color=blue, thickness=3);
display(Point,Points1,Points2,Curve, gridlines, scaling=constrained);
end proc:

plots:-animate(OneFrame, [a], a=1..0.05);





This can be done in many ways. Here is a simple procedure with a for-loop that solves the problem:

P:=proc(A::Matrix, j::posint, a::numeric)
local i, m, n;
m,n:=upperbound(A);
for i from 1 to m do
if A[i,j]>a then return i fi;
od;
end proc:

Example:
A:=<1,2,1.1; 3,4,2.1; 5,6,3.1>;
P(A,3,2);

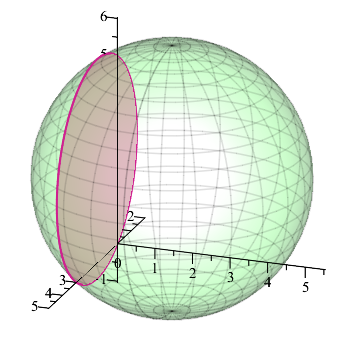

To draw this circle centered at point  H  and radius  R , you do not need to know any angles. Simply write the appropriate parametric equations and use  plot3d  command:

restart;
with(geom3d):
 a := 3:
 b := 4:
 h := 5:
 point(A, 0, 0, 0):
 point(B, a, 0, 0):
 point(C, a, b, 0):
 point(DD, 0, b, 0):
 point(S, 0, 0, h):
 sphere(s, [A, B, C, S], [x,y,z], 'centername' = m);
detail(s);
plane(p, [S, A, B], [x, y, z]);
n:=coordinates(projection(H, m, p));
R := distance(H, S);
S1:=plot3d(n+r*~([cos(t),0,sin(t)]), r=0..R, t=0..2*Pi, style=surface,  color=pink):
S2:=plots:-spacecurve(n+[R*cos(t),0,R*sin(t)], t=0..2*Pi, color="VioletRed", thickness=2):
S3:=plottools:-sphere([3/2, 2, 5/2], 5*sqrt(2)*(1/2), color="LightGreen", transparency=0.7):
plots:-display(S1,S2,S3, axes=normal, orientation=[20,70], lightmodel=light1);





T := (f,k) -> 1/k!*diff(f,[x$k]);


Examples of use:

T(sin(3*x), 5);
T(sin(3*x), k);

In my opinion, Maple simplifies the expression quite well. But what is your main goal? If you want a simple way to calculate this expression for specific parameters values  a, b, c, d  and a specific  n , then here is a simple procedure for this:

restart;
Sol:=proc(a,b,c,d,n0)
simplify(rsolve({f(n+1)-((a-1)*(b-1)+(c+d))*f(n)-c*d*f(n-1)=0, f(0)=a,f(1)=a*(b - 1)+c},f));
simplify(eval(%,n=n0));
end proc:


Examples of use:

Sol(2,1,4,3,100); ``;
seq(Sol(2,1,4,3,k), k=1..20); ``;
Sol(2,1,4,3,n);

f := x -> 3*x + 2:
g := D(f):
g(3);

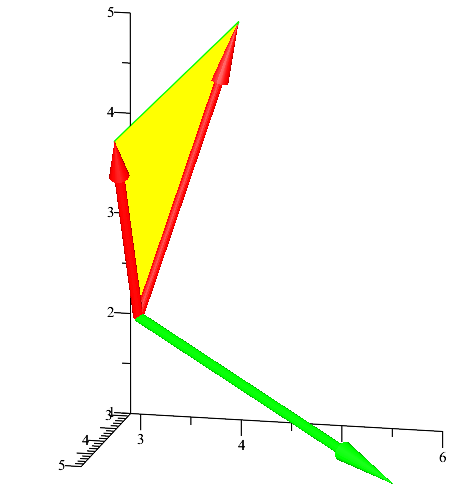

P:=proc(p,q,r)
local pq, pr, v, cv, T;
uses LinearAlgebra, plots, plottools;
pq:=arrow(p,q-p, width=0.1, color=red);
pr:=arrow(p,r-p, width=0.1, color=red);
v:=CrossProduct(convert(q-p,Vector),convert(r-p,Vector));
cv:=arrow(p,v, width=0.1, color=green);
T:=polygon([p,q,r], color=yellow);
display(pq,pr,cv,T, scaling=constrained, axes=normal, lightmodel=light1);
end proc:


Example of use:

P([3,3,2], [3,4,5], [4,3,4]);



If one solution is enough, then you can do so

restart;
FourSquares:=proc(n)
local a, b, c, d;
for a from 1 to floor(sqrt(n/4)) do
for b from a to floor(sqrt((n-a^2)/3)) do
for c from b to floor(sqrt((n-a^2-b^2)/2)) do
for d from c to floor(sqrt(n-a^2-b^2-c^2)) do
if n=a^2+b^2+c^2+d^2 then return [a,b,c,d] fi;
od: od: od: od:
end proc:


Example of use:

FourSquares(100000);

 [4, 8, 8, 316]

It is not recommended to use some variable and indexed variable with the same name in the same code. Therefore, I replaced, for example, t[n]  by  t||n  and so on. Some other corrections and additions were also made. The resulting approximate solution is quite accurate.

restart;
f:=t->y(t)-t^2+1;
eqn:=diff(y(t),t)=f(t):
ex:=dsolve({eqn,y(0)=0.5},y(t));
t||0:=0: w||0:=0.5: h:=0.2: ex||0:=0.5: e||0:=0:
Dy||0:=eval(f(t),[t=t||0,y(t)=w||0]);

for n from 1 to 10 do
t||n:=n*h; ex||n:=eval(rhs(ex),t=t||n);
w||n:=w||(n-1)+h*Dy||(n-1)+h^2/2!*(Dy||(n-1)-2*t||(n-1));
e||n:=abs(ex||n-w||n);
Dy||n:=eval(f(t),[t=t||n,y(t)=w||n]);
od:

printf(" i | t[i] |(Taylor)w[i] |(exact)y[i] |Error | \n ");
for i from 0 to 10 do
printf("%2.2f| %5.2f  | %5.6f| %5.6f  |  %5.6f | \n", i, t||i, w||i ,ex||i,e||i) ;
od;

A:=plot(rhs(ex), t=0..2, color=red):
B:=plot([seq([h*k,w||k], k=0..10)], style=point,color=blue):
plots:-display(A,B, legend=["Exact solution","Approximate solution"], view=0..6);

The final results as a table and a plot:



Unfortunately, it is not possible to obtain an explicit parameterization of the intersection curve, since finding x1,y1,z1 coordinates as functions of the parameter  theta  leads to the solution of an equation of a high degree. But we can get a numerical solution in the form of a procedure. This procedure  Curve  returns the coordinates of the point on the intersection curve for the specified values  theta, x, y, z :




restart;

R1 := 3: R2 := 1: DR := 4: g := R2 + DR:

f1 := h -> sqrt(R1^2 - h^2);
f2 := h -> sqrt(g^2 - h^2);
f3 := h -> (1 - h/g)*f1(h*R1/g) + h*f2(h)/g;
f4 := h -> sqrt(1/2*g - 1/2*h);
f5 := h -> (1 - h/g)*f3(h) + h*f4(h)/g;
gg := h -> piecewise(h < 0, f1(h), 0 <= h, f5(h)); # Radius depending on the z-position h
cir := (h, phi, R) -> <sin(phi)*R, cos(phi)*R, h>; # a circle at the hight h with radius R
#The plane is placed inside the drop.
n := (x, y, z) -> <x, y, z>/sqrt(x^2 + y^2 + z^2);

# the following lines show, how it looks like:
with(plots):
with(plottools):

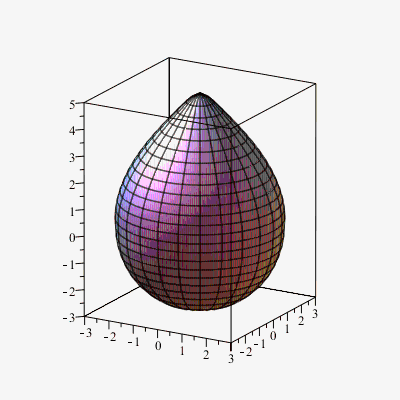

dro1 := plot3d(cir(h, phi, gg(h)), h = -R1 .. g, phi = 0 .. 2*Pi, scaling = constrained, orientation = [-60, 72, 0]);
plotDropWithPlane := (x, y, z) -> display(dro1, arrow(Vector([0, 0, 0]), 2*R1*n(x, y, z), 0.2, 0.4, 0.1, cylindrical_arrow, fringe = blue, color = "Green"), implicitplot3d(x*x1 + y*y1 + z*z1 = 0, x1 = -R1 .. R1, y1 = -R1 .. R1, z1 = -R1 .. g, color = blue));

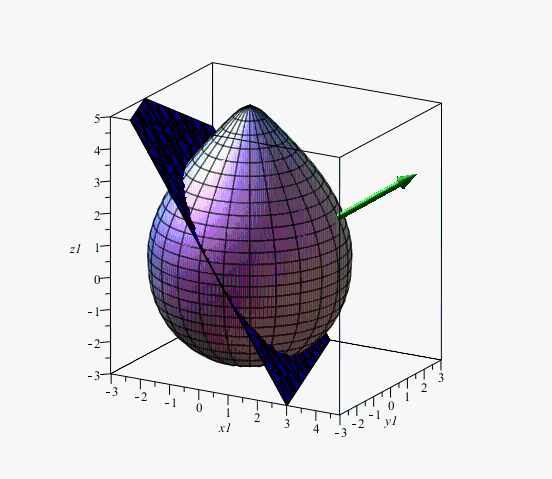

Plot1:=plotDropWithPlane(3, 1, 2);

f1 := proc (h) options operator, arrow; sqrt(R1^2-h^2) end proc



f2 := proc (h) options operator, arrow; sqrt(g^2-h^2) end proc



f3 := proc (h) options operator, arrow; (1-h/g)*f1(h*R1/g)+h*f2(h)/g end proc



f4 := proc (h) options operator, arrow; sqrt((1/2)*g-(1/2)*h) end proc



f5 := proc (h) options operator, arrow; (1-h/g)*f3(h)+h*f4(h)/g end proc



proc (h) options operator, arrow; piecewise(h < 0, f1(h), 0 <= h, f5(h)) end proc



proc (h, phi, R) options operator, arrow; `<,>`(sin(phi)*R, cos(phi)*R, h) end proc



proc (x, y, z) options operator, arrow; `<,>`(x, y, z)/sqrt(x^2+y^2+z^2) end proc





proc (x, y, z) options operator, arrow; plots:-display(dro1, plottools:-arrow(Vector([0, 0, 0]), 2*R1*n(x, y, z), .2, .4, .1, cylindrical_arrow, fringe = blue, color = "Green"), plots:-implicitplot3d(x*x1+y*y1+z*z1 = 0, x1 = -R1 .. R1, y1 = -R1 .. R1, z1 = -R1 .. g, color = blue)) end proc





gg1 := h -> f1(h): # for h<0
gg2 := h -> f5(h): # for h>=0

Curve:=proc(theta,x,y,z)
local hPlane, theta1, theta2, theta0, h0, Sol1, Sol2, R1, R2, h1, h2;
hPlane:=(x1,y1)->solve(x*x1 + y*y1 + z*z1, z1);
theta1,theta2:=sort([arctan(x,-y), arctan(-x,y)])[];
theta0:=(theta1+theta2)/2;
h0:=evalf(hPlane(cos(theta0),sin(theta0)));
Sol1:=fsolve({gg1(h)=R, x*R*cos(theta)+y*R*sin(theta)+z*h=0}, {R=0..5,h=-5..5});
Sol2:=fsolve({gg2(h)=R, x*R*cos(theta)+y*R*sin(theta)+z*h=0}, {R=0..5,h=-5..5});
R1:=eval(R,Sol1); R2:=eval(R,Sol2); h1:=eval(h,Sol1); h2:=eval(h,Sol2);
if h0<=0 then return
piecewise(theta>=theta1 and theta<=theta2,[R1*cos(theta),R1*sin(theta),h1], [R2*cos(theta),R2*sin(theta),h2]) else
piecewise(theta>=theta1 and theta<=theta2,[R2*cos(theta),R2*sin(theta),h2],[R1*cos(theta),R1*sin(theta),h1]) fi;
end proc:

# Example of calculating the coordinates of a point on this curve
evalf(Curve(Pi/3,3,1,2));

[.9683428665, 1.677219044, -2.291123822]

(1)

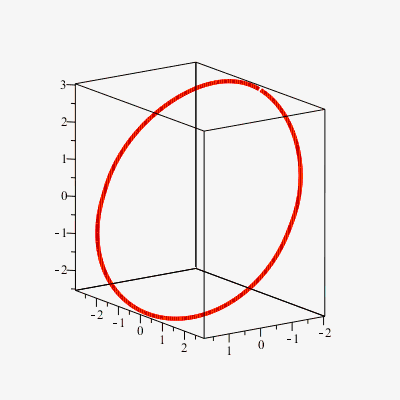

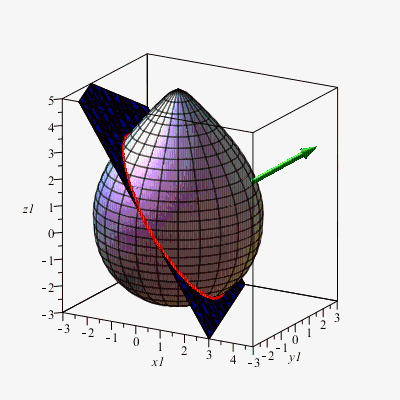

# The plotting of this curve
Plot2:=plots:-display(plottools:-curve([seq(Curve(t,3,1,2), t=-evalf(Pi)..evalf(Pi),0.05)]), color=red, thickness=4, scaling=constrained);



plots:-display(Plot1,Plot2);








Download Curve1.mw

Maple does not implement the solution of irrational inequalities with parameters. Here is a simpler example:

solve(sqrt(x-a)<x, x);

              Warning, solutions may have been lost

To calculate the values of derivatives of any order at a point, use  D  instead of  diff :

f:=x->x^2:
sum((D@@k)(f)(0), k=1..2);
