Advanced Search

MaplePrimes Questions

Peoblem with animation...

Asked by: JAMET 425
animation plotting geometry
November 23 2024
0  5

On considère un cercle fixe O et un point fixe A extérieur. Une sécante variable BC à ce cercle passe par un point fixe J.
Démontrer que le cercle ABC passe par un second point fixe P.
restart;
Proc := proc(m)
local xA, yA, xB, yB, xC, yC, xJ, yJ, tx, dr, Oo, c1, r, eqBJ, eq1, sol;
_EnvHorizontalName := 'x'; _EnvVerticalName := 'y';
xJ := 5; yJ := 1; geometry:-point(A, 2, 4); geometry:-point(J, xJ, yJ); geometry:-point(Oo, 0, 0);
r := 3; c1 := plottools[geometry:-circle]([0, 0], r, color = blue);
eqBJ := y = m*(x - xJ) + yJ; geometry:-line(BJ, eqBJ, [x, y]);
eq1 := x^2 + y^2 = r^2; sol := solve({eqBJ, eq1}, {x, y}, explicit);
xB := subs(sol[1], x); yB := subs(sol[1], y);
geometry:-point(B, xB, yB); xC := subs(sol[2], x); yC := subs(sol[2], y);
geometry:-point(C, xC, yC); geometry:-circle(c2, [A, B, C]); geometry:-line(AB, [A, B]); geometry:-line(AC, [A, C]);
eqBJ := y = m*(x - xJ) + yJ; geometry:-line(BJ, eqBJ, [x, y]);
eq1 := x^2 + y^2 = r^2; sol := solve({eqBJ, eq1}, {x, y},explicit);
xB := subs(sol[1], x); yB := subs(sol[1], y); geometry:-point(B, xB, yB);
xC := subs(sol[2], x); yC := subs(sol[2], y); geometry:-point(C, xC, yC);
geometry:-circle(c2, [A, B, C]); geometry:-line(AB, [A, B]); geometry:-line(AC, [A, C]);
tx := plots:-textplot([[geometry:-coordinates(A)[], "A"], [geometry:-coordinates(B)[], "B"], [geometry:-coordinates(C)[], "C"], [geometry:-coordinates(J)[], "J"]], font = [times, bold, 16], align = [above, right]);
dr := geometry:-draw([AB(color = black), c2(color = magenta), A(color = blue, symbol = solidcircle, symbolsize = 16),
B(color = red, symbol = solidcircle, symbolsize = 16), C(color = red, symbol = solidcircle, symbolsize = 16),
J(color = red, symbol = solidcircle, symbolsize = 16)]); plots:-display([dr, c1, tx], axes = normal, view = [-5 .. 6, -4 .. 6], scaling = constrained);
end proc;
plots:-animate(Proc, [m], m = -0.9 .. 0.2*Pi, frames = 50);
Error, (in plots/animate) two lists or Vectors of numerical values expected
NULL;
I am trying to find out point P; Thank you for your help.

Why does Maple put brackets around this integral...

Asked by: C_R 3412
integral typesetting brackets
November 22 2024
2  5

From time to time Maple output containts brackets that are nor needed. Example:

int(f(x),x=a..c)-int(f(x),x=a..b);
simplify(%) assuming c>b

Why is that? Is there a way not to have these brackets printed?

How to force Maple to use basic math results?...

Asked by: Harry Garst 269
linear-algebra abstract simplification
November 22 2024
1  4

Is there a way to force Maple to use basic linear algebra results?
Here is a result you can find in any linear algebra book (this one comes from Harville's Matrix Algebra From a Statistician's Perspective)
I'm using Maple to check my work and it would be helpful if some basic linear algebra results would be injected in Maple's algorithm.

>

kernelopts(version); interface(version)

`Maple 2024.2, X86 64 WINDOWS, Oct 29 2024, Build ID 1872373`



`Standard Worksheet Interface, Maple 2024.2, Windows 11, October 29 2024 Build ID 1872373`

 (1)
>

restart; with(LinearAlgebra)
>

alias(`⨂` = LinearAlgebra:-KroneckerProduct)

`⨂`

 (2)

>

for dim from 2 to 5 do A := Matrix(dim, dim, shape = symmetric, symbol = a); print(dim, Equal(1/`⨂`(A, A), `⨂`(1/A, 1/A)), simplify(1/`⨂`(A, A)-`⨂`(1/A, 1/A), symbolic)) end do; for dim from 2 to 5 do A := Matrix(dim, dim, shape = symmetric, symbol = a); print(dim, Equal(simplify(1/`⨂`(A, A)), simplify(`⨂`(1/A, 1/A))), simplify(1/`⨂`(A, A)-`⨂`(1/A, 1/A), symbolic)) end do

2, true, [`?`]



3, false, [`?`]



4, false, Matrix(16, 16, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (1, 6) = 0, (1, 7) = 0, (1, 8) = 0, (1, 9) = 0, (1, 10) = 0, (1, 11) = 0, (1, 12) = 0, (1, 13) = 0, (1, 14) = 0, (1, 15) = 0, (1, 16) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (2, 6) = 0, (2, 7) = 0, (2, 8) = 0, (2, 9) = 0, (2, 10) = 0, (2, 11) = 0, (2, 12) = 0, (2, 13) = 0, (2, 14) = 0, (2, 15) = 0, (2, 16) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (3, 6) = 0, (3, 7) = 0, (3, 8) = 0, (3, 9) = 0, (3, 10) = 0, (3, 11) = 0, (3, 12) = 0, (3, 13) = 0, (3, 14) = 0, (3, 15) = 0, (3, 16) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (4, 6) = 0, (4, 7) = 0, (4, 8) = 0, (4, 9) = 0, (4, 10) = 0, (4, 11) = 0, (4, 12) = 0, (4, 13) = 0, (4, 14) = 0, (4, 15) = 0, (4, 16) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0, (5, 6) = 0, (5, 7) = 0, (5, 8) = 0, (5, 9) = 0, (5, 10) = 0, (5, 11) = 0, (5, 12) = 0, (5, 13) = 0, (5, 14) = 0, (5, 15) = 0, (5, 16) = 0, (6, 1) = 0, (6, 2) = 0, (6, 3) = 0, (6, 4) = 0, (6, 5) = 0, (6, 6) = 0, (6, 7) = 0, (6, 8) = 0, (6, 9) = 0, (6, 10) = 0, (6, 11) = 0, (6, 12) = 0, (6, 13) = 0, (6, 14) = 0, (6, 15) = 0, (6, 16) = 0, (7, 1) = 0, (7, 2) = 0, (7, 3) = 0, (7, 4) = 0, (7, 5) = 0, (7, 6) = 0, (7, 7) = 0, (7, 8) = 0, (7, 9) = 0, (7, 10) = 0, (7, 11) = 0, (7, 12) = 0, (7, 13) = 0, (7, 14) = 0, (7, 15) = 0, (7, 16) = 0, (8, 1) = 0, (8, 2) = 0, (8, 3) = 0, (8, 4) = 0, (8, 5) = 0, (8, 6) = 0, (8, 7) = 0, (8, 8) = 0, (8, 9) = 0, (8, 10) = 0, (8, 11) = 0, (8, 12) = 0, (8, 13) = 0, (8, 14) = 0, (8, 15) = 0, (8, 16) = 0, (9, 1) = 0, (9, 2) = 0, (9, 3) = 0, (9, 4) = 0, (9, 5) = 0, (9, 6) = 0, (9, 7) = 0, (9, 8) = 0, (9, 9) = 0, (9, 10) = 0, (9, 11) = 0, (9, 12) = 0, (9, 13) = 0, (9, 14) = 0, (9, 15) = 0, (9, 16) = 0, (10, 1) = 0, (10, 2) = 0, (10, 3) = 0, (10, 4) = 0, (10, 5) = 0, (10, 6) = 0, (10, 7) = 0, (10, 8) = 0, (10, 9) = 0, (10, 10) = 0, (10, 11) = 0, (10, 12) = 0, (10, 13) = 0, (10, 14) = 0, (10, 15) = 0, (10, 16) = 0, (11, 1) = 0, (11, 2) = 0, (11, 3) = 0, (11, 4) = 0, (11, 5) = 0, (11, 6) = 0, (11, 7) = 0, (11, 8) = 0, (11, 9) = 0, (11, 10) = 0, (11, 11) = 0, (11, 12) = 0, (11, 13) = 0, (11, 14) = 0, (11, 15) = 0, (11, 16) = 0, (12, 1) = 0, (12, 2) = 0, (12, 3) = 0, (12, 4) = 0, (12, 5) = 0, (12, 6) = 0, (12, 7) = 0, (12, 8) = 0, (12, 9) = 0, (12, 10) = 0, (12, 11) = 0, (12, 12) = 0, (12, 13) = 0, (12, 14) = 0, (12, 15) = 0, (12, 16) = 0, (13, 1) = 0, (13, 2) = 0, (13, 3) = 0, (13, 4) = 0, (13, 5) = 0, (13, 6) = 0, (13, 7) = 0, (13, 8) = 0, (13, 9) = 0, (13, 10) = 0, (13, 11) = 0, (13, 12) = 0, (13, 13) = 0, (13, 14) = 0, (13, 15) = 0, (13, 16) = 0, (14, 1) = 0, (14, 2) = 0, (14, 3) = 0, (14, 4) = 0, (14, 5) = 0, (14, 6) = 0, (14, 7) = 0, (14, 8) = 0, (14, 9) = 0, (14, 10) = 0, (14, 11) = 0, (14, 12) = 0, (14, 13) = 0, (14, 14) = 0, (14, 15) = 0, (14, 16) = 0, (15, 1) = 0, (15, 2) = 0, (15, 3) = 0, (15, 4) = 0, (15, 5) = 0, (15, 6) = 0, (15, 7) = 0, (15, 8) = 0, (15, 9) = 0, (15, 10) = 0, (15, 11) = 0, (15, 12) = 0, (15, 13) = 0, (15, 14) = 0, (15, 15) = 0, (15, 16) = 0, (16, 1) = 0, (16, 2) = 0, (16, 3) = 0, (16, 4) = 0, (16, 5) = 0, (16, 6) = 0, (16, 7) = 0, (16, 8) = 0, (16, 9) = 0, (16, 10) = 0, (16, 11) = 0, (16, 12) = 0, (16, 13) = 0, (16, 14) = 0, (16, 15) = 0, (16, 16) = 0})



5, false, Matrix(25, 25, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (1, 6) = 0, (1, 7) = 0, (1, 8) = 0, (1, 9) = 0, (1, 10) = 0, (1, 11) = 0, (1, 12) = 0, (1, 13) = 0, (1, 14) = 0, (1, 15) = 0, (1, 16) = 0, (1, 17) = 0, (1, 18) = 0, (1, 19) = 0, (1, 20) = 0, (1, 21) = 0, (1, 22) = 0, (1, 23) = 0, (1, 24) = 0, (1, 25) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (2, 6) = 0, (2, 7) = 0, (2, 8) = 0, (2, 9) = 0, (2, 10) = 0, (2, 11) = 0, (2, 12) = 0, (2, 13) = 0, (2, 14) = 0, (2, 15) = 0, (2, 16) = 0, (2, 17) = 0, (2, 18) = 0, (2, 19) = 0, (2, 20) = 0, (2, 21) = 0, (2, 22) = 0, (2, 23) = 0, (2, 24) = 0, (2, 25) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (3, 6) = 0, (3, 7) = 0, (3, 8) = 0, (3, 9) = 0, (3, 10) = 0, (3, 11) = 0, (3, 12) = 0, (3, 13) = 0, (3, 14) = 0, (3, 15) = 0, (3, 16) = 0, (3, 17) = 0, (3, 18) = 0, (3, 19) = 0, (3, 20) = 0, (3, 21) = 0, (3, 22) = 0, (3, 23) = 0, (3, 24) = 0, (3, 25) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (4, 6) = 0, (4, 7) = 0, (4, 8) = 0, (4, 9) = 0, (4, 10) = 0, (4, 11) = 0, (4, 12) = 0, (4, 13) = 0, (4, 14) = 0, (4, 15) = 0, (4, 16) = 0, (4, 17) = 0, (4, 18) = 0, (4, 19) = 0, (4, 20) = 0, (4, 21) = 0, (4, 22) = 0, (4, 23) = 0, (4, 24) = 0, (4, 25) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0, (5, 6) = 0, (5, 7) = 0, (5, 8) = 0, (5, 9) = 0, (5, 10) = 0, (5, 11) = 0, (5, 12) = 0, (5, 13) = 0, (5, 14) = 0, (5, 15) = 0, (5, 16) = 0, (5, 17) = 0, (5, 18) = 0, (5, 19) = 0, (5, 20) = 0, (5, 21) = 0, (5, 22) = 0, (5, 23) = 0, (5, 24) = 0, (5, 25) = 0, (6, 1) = 0, (6, 2) = 0, (6, 3) = 0, (6, 4) = 0, (6, 5) = 0, (6, 6) = 0, (6, 7) = 0, (6, 8) = 0, (6, 9) = 0, (6, 10) = 0, (6, 11) = 0, (6, 12) = 0, (6, 13) = 0, (6, 14) = 0, (6, 15) = 0, (6, 16) = 0, (6, 17) = 0, (6, 18) = 0, (6, 19) = 0, (6, 20) = 0, (6, 21) = 0, (6, 22) = 0, (6, 23) = 0, (6, 24) = 0, (6, 25) = 0, (7, 1) = 0, (7, 2) = 0, (7, 3) = 0, (7, 4) = 0, (7, 5) = 0, (7, 6) = 0, (7, 7) = 0, (7, 8) = 0, (7, 9) = 0, (7, 10) = 0, (7, 11) = 0, (7, 12) = 0, (7, 13) = 0, (7, 14) = 0, (7, 15) = 0, (7, 16) = 0, (7, 17) = 0, (7, 18) = 0, (7, 19) = 0, (7, 20) = 0, (7, 21) = 0, (7, 22) = 0, (7, 23) = 0, (7, 24) = 0, (7, 25) = 0, (8, 1) = 0, (8, 2) = 0, (8, 3) = 0, (8, 4) = 0, (8, 5) = 0, (8, 6) = 0, (8, 7) = 0, (8, 8) = 0, (8, 9) = 0, (8, 10) = 0, (8, 11) = 0, (8, 12) = 0, (8, 13) = 0, (8, 14) = 0, (8, 15) = 0, (8, 16) = 0, (8, 17) = 0, (8, 18) = 0, (8, 19) = 0, (8, 20) = 0, (8, 21) = 0, (8, 22) = 0, (8, 23) = 0, (8, 24) = 0, (8, 25) = 0, (9, 1) = 0, (9, 2) = 0, (9, 3) = 0, (9, 4) = 0, (9, 5) = 0, (9, 6) = 0, (9, 7) = 0, (9, 8) = 0, (9, 9) = 0, (9, 10) = 0, (9, 11) = 0, (9, 12) = 0, (9, 13) = 0, (9, 14) = 0, (9, 15) = 0, (9, 16) = 0, (9, 17) = 0, (9, 18) = 0, (9, 19) = 0, (9, 20) = 0, (9, 21) = 0, (9, 22) = 0, (9, 23) = 0, (9, 24) = 0, (9, 25) = 0, (10, 1) = 0, (10, 2) = 0, (10, 3) = 0, (10, 4) = 0, (10, 5) = 0, (10, 6) = 0, (10, 7) = 0, (10, 8) = 0, (10, 9) = 0, (10, 10) = 0, (10, 11) = 0, (10, 12) = 0, (10, 13) = 0, (10, 14) = 0, (10, 15) = 0, (10, 16) = 0, (10, 17) = 0, (10, 18) = 0, (10, 19) = 0, (10, 20) = 0, (10, 21) = 0, (10, 22) = 0, (10, 23) = 0, (10, 24) = 0, (10, 25) = 0, (11, 1) = 0, (11, 2) = 0, (11, 3) = 0, (11, 4) = 0, (11, 5) = 0, (11, 6) = 0, (11, 7) = 0, (11, 8) = 0, (11, 9) = 0, (11, 10) = 0, (11, 11) = 0, (11, 12) = 0, (11, 13) = 0, (11, 14) = 0, (11, 15) = 0, (11, 16) = 0, (11, 17) = 0, (11, 18) = 0, (11, 19) = 0, (11, 20) = 0, (11, 21) = 0, (11, 22) = 0, (11, 23) = 0, (11, 24) = 0, (11, 25) = 0, (12, 1) = 0, (12, 2) = 0, (12, 3) = 0, (12, 4) = 0, (12, 5) = 0, (12, 6) = 0, (12, 7) = 0, (12, 8) = 0, (12, 9) = 0, (12, 10) = 0, (12, 11) = 0, (12, 12) = 0, (12, 13) = 0, (12, 14) = 0, (12, 15) = 0, (12, 16) = 0, (12, 17) = 0, (12, 18) = 0, (12, 19) = 0, (12, 20) = 0, (12, 21) = 0, (12, 22) = 0, (12, 23) = 0, (12, 24) = 0, (12, 25) = 0, (13, 1) = 0, (13, 2) = 0, (13, 3) = 0, (13, 4) = 0, (13, 5) = 0, (13, 6) = 0, (13, 7) = 0, (13, 8) = 0, (13, 9) = 0, (13, 10) = 0, (13, 11) = 0, (13, 12) = 0, (13, 13) = 0, (13, 14) = 0, (13, 15) = 0, (13, 16) = 0, (13, 17) = 0, (13, 18) = 0, (13, 19) = 0, (13, 20) = 0, (13, 21) = 0, (13, 22) = 0, (13, 23) = 0, (13, 24) = 0, (13, 25) = 0, (14, 1) = 0, (14, 2) = 0, (14, 3) = 0, (14, 4) = 0, (14, 5) = 0, (14, 6) = 0, (14, 7) = 0, (14, 8) = 0, (14, 9) = 0, (14, 10) = 0, (14, 11) = 0, (14, 12) = 0, (14, 13) = 0, (14, 14) = 0, (14, 15) = 0, (14, 16) = 0, (14, 17) = 0, (14, 18) = 0, (14, 19) = 0, (14, 20) = 0, (14, 21) = 0, (14, 22) = 0, (14, 23) = 0, (14, 24) = 0, (14, 25) = 0, (15, 1) = 0, (15, 2) = 0, (15, 3) = 0, (15, 4) = 0, (15, 5) = 0, (15, 6) = 0, (15, 7) = 0, (15, 8) = 0, (15, 9) = 0, (15, 10) = 0, (15, 11) = 0, (15, 12) = 0, (15, 13) = 0, (15, 14) = 0, (15, 15) = 0, (15, 16) = 0, (15, 17) = 0, (15, 18) = 0, (15, 19) = 0, (15, 20) = 0, (15, 21) = 0, (15, 22) = 0, (15, 23) = 0, (15, 24) = 0, (15, 25) = 0, (16, 1) = 0, (16, 2) = 0, (16, 3) = 0, (16, 4) = 0, (16, 5) = 0, (16, 6) = 0, (16, 7) = 0, (16, 8) = 0, (16, 9) = 0, (16, 10) = 0, (16, 11) = 0, (16, 12) = 0, (16, 13) = 0, (16, 14) = 0, (16, 15) = 0, (16, 16) = 0, (16, 17) = 0, (16, 18) = 0, (16, 19) = 0, (16, 20) = 0, (16, 21) = 0, (16, 22) = 0, (16, 23) = 0, (16, 24) = 0, (16, 25) = 0, (17, 1) = 0, (17, 2) = 0, (17, 3) = 0, (17, 4) = 0, (17, 5) = 0, (17, 6) = 0, (17, 7) = 0, (17, 8) = 0, (17, 9) = 0, (17, 10) = 0, (17, 11) = 0, (17, 12) = 0, (17, 13) = 0, (17, 14) = 0, (17, 15) = 0, (17, 16) = 0, (17, 17) = 0, (17, 18) = 0, (17, 19) = 0, (17, 20) = 0, (17, 21) = 0, (17, 22) = 0, (17, 23) = 0, (17, 24) = 0, (17, 25) = 0, (18, 1) = 0, (18, 2) = 0, (18, 3) = 0, (18, 4) = 0, (18, 5) = 0, (18, 6) = 0, (18, 7) = 0, (18, 8) = 0, (18, 9) = 0, (18, 10) = 0, (18, 11) = 0, (18, 12) = 0, (18, 13) = 0, (18, 14) = 0, (18, 15) = 0, (18, 16) = 0, (18, 17) = 0, (18, 18) = 0, (18, 19) = 0, (18, 20) = 0, (18, 21) = 0, (18, 22) = 0, (18, 23) = 0, (18, 24) = 0, (18, 25) = 0, (19, 1) = 0, (19, 2) = 0, (19, 3) = 0, (19, 4) = 0, (19, 5) = 0, (19, 6) = 0, (19, 7) = 0, (19, 8) = 0, (19, 9) = 0, (19, 10) = 0, (19, 11) = 0, (19, 12) = 0, (19, 13) = 0, (19, 14) = 0, (19, 15) = 0, (19, 16) = 0, (19, 17) = 0, (19, 18) = 0, (19, 19) = 0, (19, 20) = 0, (19, 21) = 0, (19, 22) = 0, (19, 23) = 0, (19, 24) = 0, (19, 25) = 0, (20, 1) = 0, (20, 2) = 0, (20, 3) = 0, (20, 4) = 0, (20, 5) = 0, (20, 6) = 0, (20, 7) = 0, (20, 8) = 0, (20, 9) = 0, (20, 10) = 0, (20, 11) = 0, (20, 12) = 0, (20, 13) = 0, (20, 14) = 0, (20, 15) = 0, (20, 16) = 0, (20, 17) = 0, (20, 18) = 0, (20, 19) = 0, (20, 20) = 0, (20, 21) = 0, (20, 22) = 0, (20, 23) = 0, (20, 24) = 0, (20, 25) = 0, (21, 1) = 0, (21, 2) = 0, (21, 3) = 0, (21, 4) = 0, (21, 5) = 0, (21, 6) = 0, (21, 7) = 0, (21, 8) = 0, (21, 9) = 0, (21, 10) = 0, (21, 11) = 0, (21, 12) = 0, (21, 13) = 0, (21, 14) = 0, (21, 15) = 0, (21, 16) = 0, (21, 17) = 0, (21, 18) = 0, (21, 19) = 0, (21, 20) = 0, (21, 21) = 0, (21, 22) = 0, (21, 23) = 0, (21, 24) = 0, (21, 25) = 0, (22, 1) = 0, (22, 2) = 0, (22, 3) = 0, (22, 4) = 0, (22, 5) = 0, (22, 6) = 0, (22, 7) = 0, (22, 8) = 0, (22, 9) = 0, (22, 10) = 0, (22, 11) = 0, (22, 12) = 0, (22, 13) = 0, (22, 14) = 0, (22, 15) = 0, (22, 16) = 0, (22, 17) = 0, (22, 18) = 0, (22, 19) = 0, (22, 20) = 0, (22, 21) = 0, (22, 22) = 0, (22, 23) = 0, (22, 24) = 0, (22, 25) = 0, (23, 1) = 0, (23, 2) = 0, (23, 3) = 0, (23, 4) = 0, (23, 5) = 0, (23, 6) = 0, (23, 7) = 0, (23, 8) = 0, (23, 9) = 0, (23, 10) = 0, (23, 11) = 0, (23, 12) = 0, (23, 13) = 0, (23, 14) = 0, (23, 15) = 0, (23, 16) = 0, (23, 17) = 0, (23, 18) = 0, (23, 19) = 0, (23, 20) = 0, (23, 21) = 0, (23, 22) = 0, (23, 23) = 0, (23, 24) = 0, (23, 25) = 0, (24, 1) = 0, (24, 2) = 0, (24, 3) = 0, (24, 4) = 0, (24, 5) = 0, (24, 6) = 0, (24, 7) = 0, (24, 8) = 0, (24, 9) = 0, (24, 10) = 0, (24, 11) = 0, (24, 12) = 0, (24, 13) = 0, (24, 14) = 0, (24, 15) = 0, (24, 16) = 0, (24, 17) = 0, (24, 18) = 0, (24, 19) = 0, (24, 20) = 0, (24, 21) = 0, (24, 22) = 0, (24, 23) = 0, (24, 24) = 0, (24, 25) = 0, (25, 1) = 0, (25, 2) = 0, (25, 3) = 0, (25, 4) = 0, (25, 5) = 0, (25, 6) = 0, (25, 7) = 0, (25, 8) = 0, (25, 9) = 0, (25, 10) = 0, (25, 11) = 0, (25, 12) = 0, (25, 13) = 0, (25, 14) = 0, (25, 15) = 0, (25, 16) = 0, (25, 17) = 0, (25, 18) = 0, (25, 19) = 0, (25, 20) = 0, (25, 21) = 0, (25, 22) = 0, (25, 23) = 0, (25, 24) = 0, (25, 25) = 0})



2, true, [`?`]



3, true, [`?`]



4, false, Matrix(16, 16, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (1, 6) = 0, (1, 7) = 0, (1, 8) = 0, (1, 9) = 0, (1, 10) = 0, (1, 11) = 0, (1, 12) = 0, (1, 13) = 0, (1, 14) = 0, (1, 15) = 0, (1, 16) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (2, 6) = 0, (2, 7) = 0, (2, 8) = 0, (2, 9) = 0, (2, 10) = 0, (2, 11) = 0, (2, 12) = 0, (2, 13) = 0, (2, 14) = 0, (2, 15) = 0, (2, 16) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (3, 6) = 0, (3, 7) = 0, (3, 8) = 0, (3, 9) = 0, (3, 10) = 0, (3, 11) = 0, (3, 12) = 0, (3, 13) = 0, (3, 14) = 0, (3, 15) = 0, (3, 16) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (4, 6) = 0, (4, 7) = 0, (4, 8) = 0, (4, 9) = 0, (4, 10) = 0, (4, 11) = 0, (4, 12) = 0, (4, 13) = 0, (4, 14) = 0, (4, 15) = 0, (4, 16) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0, (5, 6) = 0, (5, 7) = 0, (5, 8) = 0, (5, 9) = 0, (5, 10) = 0, (5, 11) = 0, (5, 12) = 0, (5, 13) = 0, (5, 14) = 0, (5, 15) = 0, (5, 16) = 0, (6, 1) = 0, (6, 2) = 0, (6, 3) = 0, (6, 4) = 0, (6, 5) = 0, (6, 6) = 0, (6, 7) = 0, (6, 8) = 0, (6, 9) = 0, (6, 10) = 0, (6, 11) = 0, (6, 12) = 0, (6, 13) = 0, (6, 14) = 0, (6, 15) = 0, (6, 16) = 0, (7, 1) = 0, (7, 2) = 0, (7, 3) = 0, (7, 4) = 0, (7, 5) = 0, (7, 6) = 0, (7, 7) = 0, (7, 8) = 0, (7, 9) = 0, (7, 10) = 0, (7, 11) = 0, (7, 12) = 0, (7, 13) = 0, (7, 14) = 0, (7, 15) = 0, (7, 16) = 0, (8, 1) = 0, (8, 2) = 0, (8, 3) = 0, (8, 4) = 0, (8, 5) = 0, (8, 6) = 0, (8, 7) = 0, (8, 8) = 0, (8, 9) = 0, (8, 10) = 0, (8, 11) = 0, (8, 12) = 0, (8, 13) = 0, (8, 14) = 0, (8, 15) = 0, (8, 16) = 0, (9, 1) = 0, (9, 2) = 0, (9, 3) = 0, (9, 4) = 0, (9, 5) = 0, (9, 6) = 0, (9, 7) = 0, (9, 8) = 0, (9, 9) = 0, (9, 10) = 0, (9, 11) = 0, (9, 12) = 0, (9, 13) = 0, (9, 14) = 0, (9, 15) = 0, (9, 16) = 0, (10, 1) = 0, (10, 2) = 0, (10, 3) = 0, (10, 4) = 0, (10, 5) = 0, (10, 6) = 0, (10, 7) = 0, (10, 8) = 0, (10, 9) = 0, (10, 10) = 0, (10, 11) = 0, (10, 12) = 0, (10, 13) = 0, (10, 14) = 0, (10, 15) = 0, (10, 16) = 0, (11, 1) = 0, (11, 2) = 0, (11, 3) = 0, (11, 4) = 0, (11, 5) = 0, (11, 6) = 0, (11, 7) = 0, (11, 8) = 0, (11, 9) = 0, (11, 10) = 0, (11, 11) = 0, (11, 12) = 0, (11, 13) = 0, (11, 14) = 0, (11, 15) = 0, (11, 16) = 0, (12, 1) = 0, (12, 2) = 0, (12, 3) = 0, (12, 4) = 0, (12, 5) = 0, (12, 6) = 0, (12, 7) = 0, (12, 8) = 0, (12, 9) = 0, (12, 10) = 0, (12, 11) = 0, (12, 12) = 0, (12, 13) = 0, (12, 14) = 0, (12, 15) = 0, (12, 16) = 0, (13, 1) = 0, (13, 2) = 0, (13, 3) = 0, (13, 4) = 0, (13, 5) = 0, (13, 6) = 0, (13, 7) = 0, (13, 8) = 0, (13, 9) = 0, (13, 10) = 0, (13, 11) = 0, (13, 12) = 0, (13, 13) = 0, (13, 14) = 0, (13, 15) = 0, (13, 16) = 0, (14, 1) = 0, (14, 2) = 0, (14, 3) = 0, (14, 4) = 0, (14, 5) = 0, (14, 6) = 0, (14, 7) = 0, (14, 8) = 0, (14, 9) = 0, (14, 10) = 0, (14, 11) = 0, (14, 12) = 0, (14, 13) = 0, (14, 14) = 0, (14, 15) = 0, (14, 16) = 0, (15, 1) = 0, (15, 2) = 0, (15, 3) = 0, (15, 4) = 0, (15, 5) = 0, (15, 6) = 0, (15, 7) = 0, (15, 8) = 0, (15, 9) = 0, (15, 10) = 0, (15, 11) = 0, (15, 12) = 0, (15, 13) = 0, (15, 14) = 0, (15, 15) = 0, (15, 16) = 0, (16, 1) = 0, (16, 2) = 0, (16, 3) = 0, (16, 4) = 0, (16, 5) = 0, (16, 6) = 0, (16, 7) = 0, (16, 8) = 0, (16, 9) = 0, (16, 10) = 0, (16, 11) = 0, (16, 12) = 0, (16, 13) = 0, (16, 14) = 0, (16, 15) = 0, (16, 16) = 0})



5, false, Matrix(25, 25, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (1, 6) = 0, (1, 7) = 0, (1, 8) = 0, (1, 9) = 0, (1, 10) = 0, (1, 11) = 0, (1, 12) = 0, (1, 13) = 0, (1, 14) = 0, (1, 15) = 0, (1, 16) = 0, (1, 17) = 0, (1, 18) = 0, (1, 19) = 0, (1, 20) = 0, (1, 21) = 0, (1, 22) = 0, (1, 23) = 0, (1, 24) = 0, (1, 25) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (2, 6) = 0, (2, 7) = 0, (2, 8) = 0, (2, 9) = 0, (2, 10) = 0, (2, 11) = 0, (2, 12) = 0, (2, 13) = 0, (2, 14) = 0, (2, 15) = 0, (2, 16) = 0, (2, 17) = 0, (2, 18) = 0, (2, 19) = 0, (2, 20) = 0, (2, 21) = 0, (2, 22) = 0, (2, 23) = 0, (2, 24) = 0, (2, 25) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (3, 6) = 0, (3, 7) = 0, (3, 8) = 0, (3, 9) = 0, (3, 10) = 0, (3, 11) = 0, (3, 12) = 0, (3, 13) = 0, (3, 14) = 0, (3, 15) = 0, (3, 16) = 0, (3, 17) = 0, (3, 18) = 0, (3, 19) = 0, (3, 20) = 0, (3, 21) = 0, (3, 22) = 0, (3, 23) = 0, (3, 24) = 0, (3, 25) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (4, 6) = 0, (4, 7) = 0, (4, 8) = 0, (4, 9) = 0, (4, 10) = 0, (4, 11) = 0, (4, 12) = 0, (4, 13) = 0, (4, 14) = 0, (4, 15) = 0, (4, 16) = 0, (4, 17) = 0, (4, 18) = 0, (4, 19) = 0, (4, 20) = 0, (4, 21) = 0, (4, 22) = 0, (4, 23) = 0, (4, 24) = 0, (4, 25) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0, (5, 6) = 0, (5, 7) = 0, (5, 8) = 0, (5, 9) = 0, (5, 10) = 0, (5, 11) = 0, (5, 12) = 0, (5, 13) = 0, (5, 14) = 0, (5, 15) = 0, (5, 16) = 0, (5, 17) = 0, (5, 18) = 0, (5, 19) = 0, (5, 20) = 0, (5, 21) = 0, (5, 22) = 0, (5, 23) = 0, (5, 24) = 0, (5, 25) = 0, (6, 1) = 0, (6, 2) = 0, (6, 3) = 0, (6, 4) = 0, (6, 5) = 0, (6, 6) = 0, (6, 7) = 0, (6, 8) = 0, (6, 9) = 0, (6, 10) = 0, (6, 11) = 0, (6, 12) = 0, (6, 13) = 0, (6, 14) = 0, (6, 15) = 0, (6, 16) = 0, (6, 17) = 0, (6, 18) = 0, (6, 19) = 0, (6, 20) = 0, (6, 21) = 0, (6, 22) = 0, (6, 23) = 0, (6, 24) = 0, (6, 25) = 0, (7, 1) = 0, (7, 2) = 0, (7, 3) = 0, (7, 4) = 0, (7, 5) = 0, (7, 6) = 0, (7, 7) = 0, (7, 8) = 0, (7, 9) = 0, (7, 10) = 0, (7, 11) = 0, (7, 12) = 0, (7, 13) = 0, (7, 14) = 0, (7, 15) = 0, (7, 16) = 0, (7, 17) = 0, (7, 18) = 0, (7, 19) = 0, (7, 20) = 0, (7, 21) = 0, (7, 22) = 0, (7, 23) = 0, (7, 24) = 0, (7, 25) = 0, (8, 1) = 0, (8, 2) = 0, (8, 3) = 0, (8, 4) = 0, (8, 5) = 0, (8, 6) = 0, (8, 7) = 0, (8, 8) = 0, (8, 9) = 0, (8, 10) = 0, (8, 11) = 0, (8, 12) = 0, (8, 13) = 0, (8, 14) = 0, (8, 15) = 0, (8, 16) = 0, (8, 17) = 0, (8, 18) = 0, (8, 19) = 0, (8, 20) = 0, (8, 21) = 0, (8, 22) = 0, (8, 23) = 0, (8, 24) = 0, (8, 25) = 0, (9, 1) = 0, (9, 2) = 0, (9, 3) = 0, (9, 4) = 0, (9, 5) = 0, (9, 6) = 0, (9, 7) = 0, (9, 8) = 0, (9, 9) = 0, (9, 10) = 0, (9, 11) = 0, (9, 12) = 0, (9, 13) = 0, (9, 14) = 0, (9, 15) = 0, (9, 16) = 0, (9, 17) = 0, (9, 18) = 0, (9, 19) = 0, (9, 20) = 0, (9, 21) = 0, (9, 22) = 0, (9, 23) = 0, (9, 24) = 0, (9, 25) = 0, (10, 1) = 0, (10, 2) = 0, (10, 3) = 0, (10, 4) = 0, (10, 5) = 0, (10, 6) = 0, (10, 7) = 0, (10, 8) = 0, (10, 9) = 0, (10, 10) = 0, (10, 11) = 0, (10, 12) = 0, (10, 13) = 0, (10, 14) = 0, (10, 15) = 0, (10, 16) = 0, (10, 17) = 0, (10, 18) = 0, (10, 19) = 0, (10, 20) = 0, (10, 21) = 0, (10, 22) = 0, (10, 23) = 0, (10, 24) = 0, (10, 25) = 0, (11, 1) = 0, (11, 2) = 0, (11, 3) = 0, (11, 4) = 0, (11, 5) = 0, (11, 6) = 0, (11, 7) = 0, (11, 8) = 0, (11, 9) = 0, (11, 10) = 0, (11, 11) = 0, (11, 12) = 0, (11, 13) = 0, (11, 14) = 0, (11, 15) = 0, (11, 16) = 0, (11, 17) = 0, (11, 18) = 0, (11, 19) = 0, (11, 20) = 0, (11, 21) = 0, (11, 22) = 0, (11, 23) = 0, (11, 24) = 0, (11, 25) = 0, (12, 1) = 0, (12, 2) = 0, (12, 3) = 0, (12, 4) = 0, (12, 5) = 0, (12, 6) = 0, (12, 7) = 0, (12, 8) = 0, (12, 9) = 0, (12, 10) = 0, (12, 11) = 0, (12, 12) = 0, (12, 13) = 0, (12, 14) = 0, (12, 15) = 0, (12, 16) = 0, (12, 17) = 0, (12, 18) = 0, (12, 19) = 0, (12, 20) = 0, (12, 21) = 0, (12, 22) = 0, (12, 23) = 0, (12, 24) = 0, (12, 25) = 0, (13, 1) = 0, (13, 2) = 0, (13, 3) = 0, (13, 4) = 0, (13, 5) = 0, (13, 6) = 0, (13, 7) = 0, (13, 8) = 0, (13, 9) = 0, (13, 10) = 0, (13, 11) = 0, (13, 12) = 0, (13, 13) = 0, (13, 14) = 0, (13, 15) = 0, (13, 16) = 0, (13, 17) = 0, (13, 18) = 0, (13, 19) = 0, (13, 20) = 0, (13, 21) = 0, (13, 22) = 0, (13, 23) = 0, (13, 24) = 0, (13, 25) = 0, (14, 1) = 0, (14, 2) = 0, (14, 3) = 0, (14, 4) = 0, (14, 5) = 0, (14, 6) = 0, (14, 7) = 0, (14, 8) = 0, (14, 9) = 0, (14, 10) = 0, (14, 11) = 0, (14, 12) = 0, (14, 13) = 0, (14, 14) = 0, (14, 15) = 0, (14, 16) = 0, (14, 17) = 0, (14, 18) = 0, (14, 19) = 0, (14, 20) = 0, (14, 21) = 0, (14, 22) = 0, (14, 23) = 0, (14, 24) = 0, (14, 25) = 0, (15, 1) = 0, (15, 2) = 0, (15, 3) = 0, (15, 4) = 0, (15, 5) = 0, (15, 6) = 0, (15, 7) = 0, (15, 8) = 0, (15, 9) = 0, (15, 10) = 0, (15, 11) = 0, (15, 12) = 0, (15, 13) = 0, (15, 14) = 0, (15, 15) = 0, (15, 16) = 0, (15, 17) = 0, (15, 18) = 0, (15, 19) = 0, (15, 20) = 0, (15, 21) = 0, (15, 22) = 0, (15, 23) = 0, (15, 24) = 0, (15, 25) = 0, (16, 1) = 0, (16, 2) = 0, (16, 3) = 0, (16, 4) = 0, (16, 5) = 0, (16, 6) = 0, (16, 7) = 0, (16, 8) = 0, (16, 9) = 0, (16, 10) = 0, (16, 11) = 0, (16, 12) = 0, (16, 13) = 0, (16, 14) = 0, (16, 15) = 0, (16, 16) = 0, (16, 17) = 0, (16, 18) = 0, (16, 19) = 0, (16, 20) = 0, (16, 21) = 0, (16, 22) = 0, (16, 23) = 0, (16, 24) = 0, (16, 25) = 0, (17, 1) = 0, (17, 2) = 0, (17, 3) = 0, (17, 4) = 0, (17, 5) = 0, (17, 6) = 0, (17, 7) = 0, (17, 8) = 0, (17, 9) = 0, (17, 10) = 0, (17, 11) = 0, (17, 12) = 0, (17, 13) = 0, (17, 14) = 0, (17, 15) = 0, (17, 16) = 0, (17, 17) = 0, (17, 18) = 0, (17, 19) = 0, (17, 20) = 0, (17, 21) = 0, (17, 22) = 0, (17, 23) = 0, (17, 24) = 0, (17, 25) = 0, (18, 1) = 0, (18, 2) = 0, (18, 3) = 0, (18, 4) = 0, (18, 5) = 0, (18, 6) = 0, (18, 7) = 0, (18, 8) = 0, (18, 9) = 0, (18, 10) = 0, (18, 11) = 0, (18, 12) = 0, (18, 13) = 0, (18, 14) = 0, (18, 15) = 0, (18, 16) = 0, (18, 17) = 0, (18, 18) = 0, (18, 19) = 0, (18, 20) = 0, (18, 21) = 0, (18, 22) = 0, (18, 23) = 0, (18, 24) = 0, (18, 25) = 0, (19, 1) = 0, (19, 2) = 0, (19, 3) = 0, (19, 4) = 0, (19, 5) = 0, (19, 6) = 0, (19, 7) = 0, (19, 8) = 0, (19, 9) = 0, (19, 10) = 0, (19, 11) = 0, (19, 12) = 0, (19, 13) = 0, (19, 14) = 0, (19, 15) = 0, (19, 16) = 0, (19, 17) = 0, (19, 18) = 0, (19, 19) = 0, (19, 20) = 0, (19, 21) = 0, (19, 22) = 0, (19, 23) = 0, (19, 24) = 0, (19, 25) = 0, (20, 1) = 0, (20, 2) = 0, (20, 3) = 0, (20, 4) = 0, (20, 5) = 0, (20, 6) = 0, (20, 7) = 0, (20, 8) = 0, (20, 9) = 0, (20, 10) = 0, (20, 11) = 0, (20, 12) = 0, (20, 13) = 0, (20, 14) = 0, (20, 15) = 0, (20, 16) = 0, (20, 17) = 0, (20, 18) = 0, (20, 19) = 0, (20, 20) = 0, (20, 21) = 0, (20, 22) = 0, (20, 23) = 0, (20, 24) = 0, (20, 25) = 0, (21, 1) = 0, (21, 2) = 0, (21, 3) = 0, (21, 4) = 0, (21, 5) = 0, (21, 6) = 0, (21, 7) = 0, (21, 8) = 0, (21, 9) = 0, (21, 10) = 0, (21, 11) = 0, (21, 12) = 0, (21, 13) = 0, (21, 14) = 0, (21, 15) = 0, (21, 16) = 0, (21, 17) = 0, (21, 18) = 0, (21, 19) = 0, (21, 20) = 0, (21, 21) = 0, (21, 22) = 0, (21, 23) = 0, (21, 24) = 0, (21, 25) = 0, (22, 1) = 0, (22, 2) = 0, (22, 3) = 0, (22, 4) = 0, (22, 5) = 0, (22, 6) = 0, (22, 7) = 0, (22, 8) = 0, (22, 9) = 0, (22, 10) = 0, (22, 11) = 0, (22, 12) = 0, (22, 13) = 0, (22, 14) = 0, (22, 15) = 0, (22, 16) = 0, (22, 17) = 0, (22, 18) = 0, (22, 19) = 0, (22, 20) = 0, (22, 21) = 0, (22, 22) = 0, (22, 23) = 0, (22, 24) = 0, (22, 25) = 0, (23, 1) = 0, (23, 2) = 0, (23, 3) = 0, (23, 4) = 0, (23, 5) = 0, (23, 6) = 0, (23, 7) = 0, (23, 8) = 0, (23, 9) = 0, (23, 10) = 0, (23, 11) = 0, (23, 12) = 0, (23, 13) = 0, (23, 14) = 0, (23, 15) = 0, (23, 16) = 0, (23, 17) = 0, (23, 18) = 0, (23, 19) = 0, (23, 20) = 0, (23, 21) = 0, (23, 22) = 0, (23, 23) = 0, (23, 24) = 0, (23, 25) = 0, (24, 1) = 0, (24, 2) = 0, (24, 3) = 0, (24, 4) = 0, (24, 5) = 0, (24, 6) = 0, (24, 7) = 0, (24, 8) = 0, (24, 9) = 0, (24, 10) = 0, (24, 11) = 0, (24, 12) = 0, (24, 13) = 0, (24, 14) = 0, (24, 15) = 0, (24, 16) = 0, (24, 17) = 0, (24, 18) = 0, (24, 19) = 0, (24, 20) = 0, (24, 21) = 0, (24, 22) = 0, (24, 23) = 0, (24, 24) = 0, (24, 25) = 0, (25, 1) = 0, (25, 2) = 0, (25, 3) = 0, (25, 4) = 0, (25, 5) = 0, (25, 6) = 0, (25, 7) = 0, (25, 8) = 0, (25, 9) = 0, (25, 10) = 0, (25, 11) = 0, (25, 12) = 0, (25, 13) = 0, (25, 14) = 0, (25, 15) = 0, (25, 16) = 0, (25, 17) = 0, (25, 18) = 0, (25, 19) = 0, (25, 20) = 0, (25, 21) = 0, (25, 22) = 0, (25, 23) = 0, (25, 24) = 0, (25, 25) = 0})

 (3)

Download Using_basic_linear_algebra.mw

How to write text and data in a file on the hard ...

Asked by: fnavarro 45
text filetools fprintf
November 22 2024
0  5

Hello! I need to write some text (a string) and some data in a file on the hard drive. Something like

"Hello, it is me"

3.1415

These two things written in two different consecutives lines in a file called /home/PNL/test_file.txt

I have tried WriteString, WriteFile but I failed miserably. Thank you very much!

Specifying number of digits in CrossProduct output...

Asked by: PsiSquared 45
November 22 2024
1  2

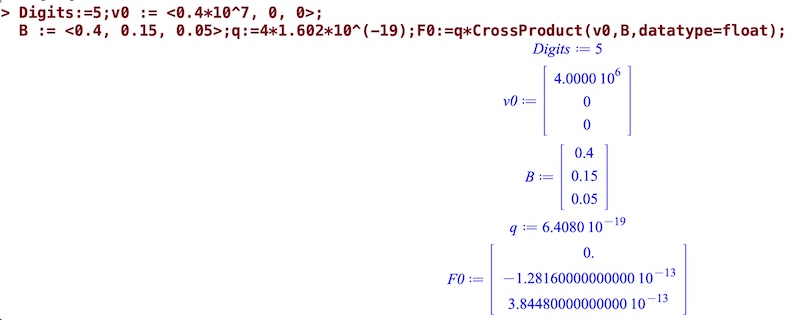

How to specify the number of digits shown in the output of CrossProduct?  I've tried specifying the number of digits with Digits:=5: but CrossProduct seems to ignore that. I thought maybe setting the CrossProduct datatype to float might help, but it didn't.

What do I need to do?

A command to make a list of all variables on which...

Asked by: lemelinm 1535
assumptions name
November 21 2024
2  10

I don't know if this is a false memory, but I think that I saw once a command in Maple that make a list of all the assumptions that have been done i the output space. A command that could be named "ListAssumption()" and you would get that list. In fact, I was wondering if this list could be shown in the palettes "Variables." There could be, below the variables, another table with the first row the name of the letter that you made an assume on, and the second row (the value) would show the assumption.  Like this maybe:

Just to get an idea.  Do you think it would be a great idea?

How can I find the StandardRepresentation of a sub...

Asked by: Maryry 15
liealgebra differentialgeometry lie-algebra
November 21 2024
1  0

Hello Everyone,

I am wondring if I can  find the StandardRepresentation of a subalgebra of simple Lie algebra?

For example I have this code:

with(DifferentialGeometry);
with(LieAlgebras);
with(Library);
with(LinearAlgebra);

G := SimpleLieAlgebraData("sl(6)", sl6);
DGsetup(G);
StandardRepresentation(sl6);
M3 := MinimalSubalgebra([e30, e35, e20]);
B3 := LieAlgebraData(M3, p62);
Query("Jacobi");
DGsetup(B3);
StandardRepresentation(p62);
Error, (in DifferentialGeometry:-LieAlgebras:-StandardRepresentation) expected a Lie algebra constructed by the procedure SimpleLieAlgebraData


For the first StandardRepresentation(sl6); it works becouse of the definition. Now what I want the same idea for the subalgebra. How can I do that?



why is latex of Laplace is empty?...

Asked by: nm 11353
laplace-transform latex
November 21 2024
1  3

Any idea why Maple returns empty string when asked for the latex of the Laplace of x(t)?  Am I doing anything wrong here? I do not see it

>

interface(version);

`Standard Worksheet Interface, Maple 2024.2, Windows 10, October 29 2024 Build ID 1872373`

>

Physics:-Version();

`The "Physics Updates" version in the MapleCloud is 1828 and is the same as the version installed in this computer, created 2024, November 18, 7:25 hours Pacific Time.`

>

libname;

"C:\Users\Owner\maple\toolbox\2024\Physics Updates\lib", "C:\Program Files\Maple 2024\lib"

>

restart;
>

e:=inttrans:-laplace(x(t),t,s)

laplace(x(t), t, s)

>

latex(e,'output'='string')

""





Download latex_of_laplace_nov_21_2024.mw

I was expecting something like this using another software

Did Maple always behave this way for Laplace? I do not have earlier version now to check.  Any workaround?

Error, (in PDEtools:-Solve) found functions with s...

Asked by: nm 11353
solve pdetools laplace
November 21 2024
1  1

Is this a known error when using PDEtools:-Solve? I get no error using solve on same input, so thought to ask, just in case it should not happen.

For now, I will change my code to use solve for this.

I am basically solving two equations in Laplace domain for Y1(s) and Y2(s). But since there are initial conditions x(0) and y(0) in the equations, and Laplace has L(x(t),t,s)  then PDEtools:-Solve is not happy, as it sees x(t) and x(0) in same input.

But solve has no problem with this. Who is correct? solve or Solve?

>

interface(version);

`Standard Worksheet Interface, Maple 2024.2, Windows 10, October 29 2024 Build ID 1872373`

>

Physics:-Version();

`The "Physics Updates" version in the MapleCloud is 1828 and is the same as the version installed in this computer, created 2024, November 18, 7:25 hours Pacific Time.`

>

libname;

"C:\Users\Owner\maple\toolbox\2024\Physics Updates\lib", "C:\Program Files\Maple 2024\lib"

>

restart;
>

sys:=[s*laplace(x(t),t,s)-x(0) = -3*laplace(x(t),t,s)+4*laplace(y(t),t,s)+1/(s^2+1), s*laplace(y(t),t,s)-y(0) = -2*laplace(x(t),t,s)+3*laplace(y(t),t,s)+1/s^2];
Ys:=[laplace(x(t),t,s), laplace(y(t),t,s)];

[s*laplace(x(t), t, s)-x(0) = -3*laplace(x(t), t, s)+4*laplace(y(t), t, s)+1/(s^2+1), s*laplace(y(t), t, s)-y(0) = -2*laplace(x(t), t, s)+3*laplace(y(t), t, s)+1/s^2]

[laplace(x(t), t, s), laplace(y(t), t, s)]

>

solve(sys,Ys);

[[laplace(x(t), t, s) = (x(0)*s^5+4*y(0)*s^4-3*x(0)*s^4+x(0)*s^3+4*y(0)*s^2-3*x(0)*s^2+s^3+s^2+4)/((s^4-1)*s^2), laplace(y(t), t, s) = (y(0)*s^5+3*y(0)*s^4-2*x(0)*s^4+y(0)*s^3+3*y(0)*s^2-2*x(0)*s^2+s^3+s^2+s+3)/((s^4-1)*s^2)]]

>

PDEtools:-Solve(sys,Ys)

Error, (in PDEtools:-Solve) found functions with same name but depending on different arguments in the given DE system: x(0), x(t). Specification of the dependent variables is required





Download differenece_between_solve_and_Solve_nov_20_2024.mw

How does Maple distinguish between roots of an irr...

Asked by: Mitchell_H 15
November 21 2024
2  4

I have an irreducible polynomial f (over the rationals) with degree n. When I ask for the roots (using solve(f=0)), Maple outputs a sequence of roots, and somehow distinguishes between them. How does it do this? I had assumed that, when working with a RootOf, Maple would just figure out it was supposed to work in Q[x]/< f >, the quotient of the polynomials with rational coefficients by the principle ideal generated by f. In this field, it doesn't matter which of the n roots of f is represented by x + < f >, since all the roots satisfy the same algebraic relations (from this field).

Given this, I'm really interested to know how Maple can somehow distinguish between the roots, enough to be able to use them to recover distinct solutions to a polynomial system (by substituting in the different roots of f). Does it somehow "choose" an embedding of Q[x]/< f > into the complex numbers?

Thanks in advance!

Screen display on Maple 2020 vs Maple 2024...

Asked by: Jean-Marc Roy 20
November 20 2024
1  1

Any reason why the display of a fairly large plot in Maple 2024 (only show a print screen here)


be worst then the display of the same plot in Maple 2020

In 2024, it seams to be rasterized, while in 2020 it is still in vector form. Also the plot does not resize as well in 2024 compare to 2020. Any hint would help!

Maybe large plot are displayed in raster image, there is probably a setting somewhere in the documentation. When I export both are in vector format...

Thanks!

Experimental format for projective vectors...

Asked by: Ronan 1341
procedure vector type
November 20 2024
1  8

I am experimenting using the this format of  Vector( [Vector] ) to make projective vectors a different data type to Vectors. I don't want to use 1 x 3 or 3 x 1 matrices. The format holds some promise.
I would like to be able to copy the Maple format of Vector or Vector[column]    and Vector[row] for my varaition.

ProjVectoC and ProjVectorR    so ProjVector or ProjVector[column]   and ProjVector[row]
A secondary question  is on type checking (see previous question How to setup special type check in a procedure? - MaplePrimes  ). Would it be possible to have the type check return ProjVector[column] or ProjVector[row]?
The attached worksheet contains a procedure for factor reducing the vectors to to a minimal format of <x,y,z>. Also   Cross product and Dot product procedures to suit.

I am open to any efficiency improvements.

>

restart
>

interface(rtablesize=50)

[10, 10]

 (1)
>

with(LinearAlgebra):
>



>

FactReduce:=overload([
     proc(v::{list,Vector})
          option overload;
          description " removes linear factor from",
                      " a list, vector, matrix or expression";
          uses LinearAlgebra;
          local i, num,tgdc,dnm, V1;
          num:=`ifelse`(type(v,Vector),numelems(v),nops(v));
          dnm:=frontend(lcm, [seq(denom(v[i]),i=1..num)]);
          V1:=radnormal(v*~dnm);
          tgdc:=V1[1];

          for i from 2 to num do
               tgdc:=frontend(gcd, [tgdc, V1[i]]);
          end do;

          return  simplify(V1/~tgdc);
     end proc,

     proc(M::{Matrix})
          option overload;
          uses LinearAlgebra;
          local i, num,r,c, tgdc,dnm, V1, Ml;
          r,c:=Dimension(M);
          num:=r*c;
          V1:=convert(M,list);
          dnm:=frontend(lcm, [seq(denom(V1[i]),i=1..num)]);
          Ml:=radnormal(dnm*~M);
          V1:=convert(Ml,list);#print((dnm,V1));
          tgdc:=V1[1];#print("xx")

          for i from 2 to num do
               tgdc:=frontend(gcd, [tgdc, V1[i]])
          end do;

          return  simplify(Ml/~tgdc);
     end proc,

     proc(l::{`+`,`*`,`=`, `symbol`,procedure},  {vars::list:=[:-x,:-y]})
          option overload;
          uses LinearAlgebra;
          local i, num,f1,f1a,lv,lr, tgdc,dnm, V1,Vs;
          f1 := `if`(l::procedure, l(vars[]), l);
               f1a:=`if`(f1::`=`,lhs(f1)-rhs(f1),f1)  ; # Remequal(f1);
          lr:=primpart(f1a,vars);
          return lr
end proc

]):
>

ProjVectorC := proc(a, b, c)
local cfs, vectr;
description " A Projective Column (Line) Vector in Reduced format";
cfs := FactReduce([a, b, c]);
vectr := <[<cfs>]>;
end proc:
>



>

ProjVectorR := proc(a, b, c)
local cfs, vectr;
description " A Projective Row (Point) Vector";
cfs := sign(c)*FactReduce([a, b, c]);
vectr := <[<cfs>^%T]>^%T;
end proc:
>



>

`&otimes;` := proc(A, B)
local cp;
description "Cross Product of Projective Vectors in Reduced format";
cp :=sign(c)* FactReduce(LinearAlgebra:-`&x`(A[1], B[1]))^%T;
cp := ifelse(cp[3] <> 0, <[sign(cp[3]) *~ cp]>, cp); #makes sure format is [x,y,z] and not [x,y-z]
end proc:
>



>

`&odot;` := proc(A, B)
description "Dot Product of Projective Vectors";
(A[1]) . (B[1]);
end proc:
>



V := ProjVectorR(2, 4, -6); W := ProjVectorR(11, 7, 5); S := ProjVectorC(6, -18, 24)

Vector[column](%id = 36893490982610361748)

 (2)

whattype(V); `~`[whattype](V)

Vector[row](%id = 36893490982610825812)

 (3)

whattype(S); `~`[whattype](S)

Vector[column](%id = 36893490982626471436)

 (4)

`~`[whattype](V[1])

Vector[row](%id = 36893490982558545668)

 (5)
>

V[1] . V[1]

14

 (6)
>

`&odot;`(V, V)

14

 (7)
>

R := `&otimes;`(W, V)

Vector[column](%id = 36893490982630825980)

 (8)
>

R := `&otimes;`(V, W)

Vector[column](%id = 36893490982630903548)

 (9)

whattype(R)

Vector[column]

 (10)

`~`[whattype](R)

Vector[column](%id = 36893490982598861396)

 (11)

`~`[whattype](R[1])

Vector[column](%id = 36893490982598866092)

 (12)
>

`&otimes;`(R, S)

Vector[column](%id = 36893490982624872076)

 (13)
>

`&odot;`(R, S)

-85

 (14)
>

`&odot;`(W, R)

0

 (15)
>

`&odot;`(R, `<,>`([`<,>`(x, y, 1)]))

15-31*x+38*y

 (16)




Download 2024-11-21_Q_Projective_Vector_Format.mw

Summing a list vs. a vector...

Asked by: Scot Gould 1039
sum vector
November 19 2024
2  5

The following is not a profound problem, and there is an obvious solution,

but it came up, and I would like to learn more about it.



Even though I recommend the add procedure when summing up individual entities,

my students keep showing me how smart the sum procedure is. Which makes

our worksheets more readable and reproducible for Maple users who are less frequent.



For example:



>

restart; Xlist := [1, 2, 3]; N := numelems(Xlist)

3

Using palette icon:

>

sum(Xlist[n], n = 1 .. N)

6

Cool!  Which means

>

sum(Xlist[n], n = 1 .. N)

6

But if we use the same palette icon for a vector

>

Xvector := convert(Xlist, Vector); sum(Xvector[n], n = 1 .. N)

Error, bad index into Vector

Because I believe this fails

>

sum(Xvector[n], n = 1 .. N)

Error, bad index into Vector



Would someone please teach me how I can see why the sum of a list

works, but does the sum of a vector fail?

Download MaplePrimes_sum_list_vector.mw

A way to visualise and working with vectors that ...

Asked by: lemelinm 1535
2dmath vector arrow
November 19 2024
2  8

On the website "Learning Physics using Maple" of professor Gould, in the example "Vectors: Calculation & Visualization". If you click on the PDF file under that title, you see an example of vectors in 2d.

But when you look at the solution, you see him use the vector v with an arrow to create a fucntional depending of two variables. Since he doesn't load any package, I cannot reproduce this notation to work. I am talking about this:

Is there a trick that I am not aware of in Maple?  The only way I know to have the arrow is to load the Physics package and the Vector package. And then you use the notation r_ to show r with an arrow.

I asked the question in the YouTube channel but did not receive any answer.  Too bad.

Thank you in advance for any help on that matter.

How to take this elliptic integral...

Asked by: EugeneKalentev 85
integration elliptic
November 19 2024
0  9

Hello everyone.
Please tell me how to take this integral.

int(1/((a^2 + x)^(3/2)*x), x = 0 .. infinity)

Assuming that a is greater than zero and real. Thanks in advance

First 52 53 54 55 56 57 58 Last Page 54 of 2425
