It's not always easy or practical, but I usually try and avoid implicitplot3d since it has several drawbacks:

1) The surface looks very rough unless a very large number of points is used, and even then it still looks rougher than a usual plot3d surface.
2) With a large number of points manual rotation of the plot is highly problematic in the Standard GUI. Attempting a manual rotation usually means I'm going to have to wait for the GUI to pause for a minute or so.
3) With a large number of points I often have to wait a few minutes if I right-click on the plot, and sometimes the context-menu doesn't appear at all (so I can't export to .png using the GUI's drivers).
4) The plot structure doesn't actually contain data that delineates the surface, and so it is of little or no use in terms of exporting the plot data for use by a 3rd party application.

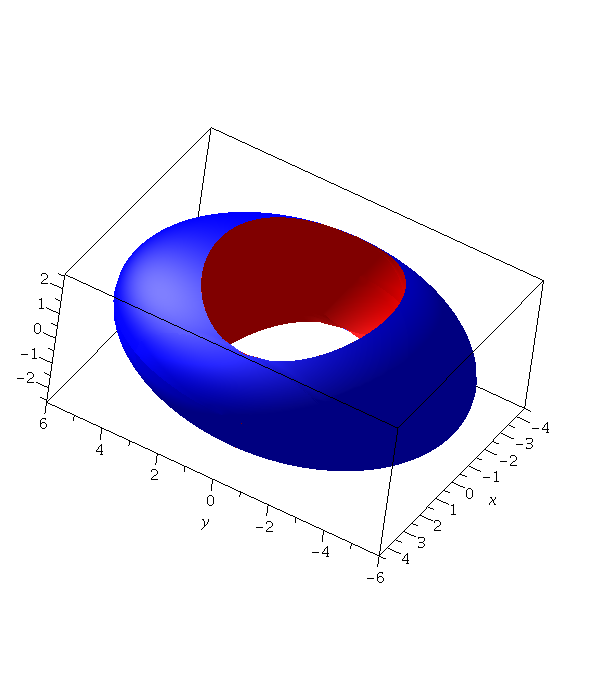

The following produces Pgrid as two conjoined surfaces produced by plot3d. It behaves reasonably for me under manual rotation and (discounting the seam at z=0) is reasonably smooth.


Download impl3d_m.mw

The results embedded by DocumentTools:-Tabulate will always appear separately from any regular output (including that produced by print), if executed within the same Document Block (paragraph) or Execution Group. All the regular output will always appear together. It cannot be done exactly like you are asking, with regular output split to be partly before and partly after the tabulation.

This is because an Execution Group has just one Output area, and just one embedded Task area, and they are separate.

You might consider a different approach. Could you make those `continue` text pieces be part of the tabulation? Or are you relying on the output appearing piece by piece over time, as more intermediate results get computed?

Side note: It is wrong to have those calls to with inside the procedure body. It won't work reliably as you'd expect. If you want it inside the procedure body then either use the long name like DocumentTools:-Tabulate or change the with calls to an appropriates uses call.

The subexpression in red, containing diff(f(eta),eta,eta,eta), appears more than once in your full expression (although in one other instance it is part of a product).  I'm guessing that you want to isolate that subexpression completely, to the LHS of an equation.

If instead you only want to isolate for the single instance (in red) of that third derivative then please clarify. In that case it's a minor adjustment to define temp:=isolate(expr,S) instead.

You haven't mentioned what criteria you have for simplification of the RHS of such an equation. Do you want the numerator of the RHS to be collected according to the remaining derivatives, or just to be "small"?

Here are some ideas. I haven't tried to utilize any assumptions (eg. to combine radicals, if it might help) because you've given us no such information.

Download something.mw

restart;

kernelopts(version);

     Maple 2017.2, X86 64 LINUX, Jul 19 2017, Build ID 1247392

eq:=-44.51913564*sinh(sqrt(x))*x^5*sin(sqrt(x))*cos(0.6232678986e-1*x)
+5.872275982*x^(11/2)*cosh(sqrt(x))*sin(sqrt(x))*cos(0.6232678986e-1*x)
+5.872295982*x^(11/2)*sinh(sqrt(x))*cos(sqrt(x))*cos(0.6232678986e-1*x)
-0.1e-5*x^6*sinh(sqrt(x))*sin(sqrt(x))*cos(0.6232678986e-1*x)
+11465.08352*x^6*cosh(sqrt(x))*cos(sqrt(x))*cos(0.6232678986e-1*x)
-0.10000e-4*x^(11/2)*sin(sqrt(x))*cos(sqrt(x))*cos(0.6232678986e-1*x)
+.1246535797*cosh(sqrt(x))*x^4*cos(sqrt(x))*cos(0.6232678986e-1*x)
+158.9969129*x^(9/2)*sinh(sqrt(x))*cos(sqrt(x))*cos(0.6232678986e-1*x)
-94.84329962*cosh(sqrt(x))*x^5*cos(sqrt(x))*sin(0.6232678986e-1*x)
-0.2e-2*x^7*sinh(sqrt(x))*sin(sqrt(x))*sin(0.6232678986e-1*x)
+0.4000e-2*x^(13/2)*cosh(sqrt(x))*sin(0.6232678986e-1*x)*sinh(sqrt(x))
+0.10000e-4*x^(11/2)*cosh(sqrt(x))*sinh(sqrt(x))*cos(0.6232678986e-1*x)
-158.9969129*cosh(sqrt(x))*x^(9/2)*sin(sqrt(x))*cos(0.6232678986e-1*x)
+38209.64552*sinh(sqrt(x))*x^6*sin(sqrt(x))*sin(0.6232678986e-1*x)
-3761.932636*x^(13/2)*cosh(sqrt(x))*sin(sqrt(x))*sin(0.6232678986e-1*x)
-3761.924636*x^(13/2)*sinh(sqrt(x))*cos(sqrt(x))*sin(0.6232678986e-1*x)
-0.4000e-2*x^(13/2)*sin(sqrt(x))*cos(sqrt(x))*sin(0.6232678986e-1*x)
-2.*10^(-7)*x^(13/2)*cosh(sqrt(x))*sin(sqrt(x))*cos(0.6232678986e-1*x)
-11465.08352*x^6*cos(0.6232678986e-1*x)+.1246535797*x^4*cos(0.6232678986e-1*x)
-94.84329962*x^5*sin(0.6232678986e-1*x)+0.1e-5*x^6*cosh(sqrt(x))^2*cos(0.6232678986e-1*x)
-0.1e-5*x^6*cos(sqrt(x))^2*cos(0.6232678986e-1*x)+0.3e-5*cosh(sqrt(x))^2*x^6*sin(0.6232678986e-1*x)
-0.2e-2*x^7*cos(sqrt(x))^2*sin(0.6232678986e-1*x)+0.2e-2*x^7*cosh(sqrt(x))^2*sin(0.6232678986e-1*x)
+2.*10^(-7)*x^(13/2)*sinh(sqrt(x))*cosh(sqrt(x))*cos(0.6232678986e-1*x)
+2.*10^(-7)*x^(13/2)*cos(sqrt(x))*sin(sqrt(x))*cos(0.6232678986e-1*x)
-2.*10^(-7)*x^(13/2)*sinh(sqrt(x))*cos(sqrt(x))*cos(0.6232678986e-1*x)
+1.159305284*10^5*cosh(sqrt(x))*x^(11/2)*sin(sqrt(x))*sin(0.6232678986e-1*x)
-1.159305284*10^5*x^(11/2)*sinh(sqrt(x))*cos(sqrt(x))*sin(0.6232678986e-1*x)
-8.359616334*10^6*x^7*cosh(sqrt(x))*cos(sqrt(x))*sin(0.6232678986e-1*x)
+8.359616334*10^6*x^7*sin(0.6232678986e-1*x) = 0:

#plot(lhs(eq),x=0..0.2,-1e-7..1e-7);

Digits:=10:
rt[1]:=0.0:
for i from 1 to 5 do
  rt[i+1]:=RootFinding:-NextZero(unapply(lhs(eq),x), rt[i]);
end do:
convert(rt,list);

     [0., 0.04191897329, 0.1445773188, 22.37101613, 50.40561001, 61.67210358]

Digits:=10:
op(sort(simplify({RootFinding:-Analytic(eq,x=0-0.1*I..100+0.1*I)},zero)));

     0., 0.04191897312, 0.1445773137, 22.37101614, 50.40561000, 61.67210360

Digits:=20:
op(sort(simplify({RootFinding:-Analytic(eq,x=0-0.1*I..100+0.1*I)},zero)));

     0., 0.041918973291358269200, 0.14457731887993756592,
     22.371016133870070862, 50.405610019621053775, 61.672103588567668205

posroots.mw

You could use the explicit location of the .mpl file in the script file, eg,

/Library/Frameworks/Maple.framework/Versions/2017/bin/maple /Users/myname/Desktop/maple_test/test.mpl > output.txt

Note that output.txt may still appear in the directory from which you call test.command , but that may be what you want.

Select the whole visible inlined Input/Output with the mouse cursor. Then from the main menubar choose Edit->Document Blocks->Toggle Input/Output Display.

That lets you switch between showing just the Input or the Output, for the selected inlined item. So you can switch back to the Input display, for further editing.

You may have to still delete the extra `=` sign between the inlined Input and Output.

There's probably something easier.

As you say, N and the numbers R[p], for p=1..N will be supplied.

restart;

N:=7;

for p from 1 to N do
  R[p]:=rand(2..4)();
end do;
                             N := 7
                           R[1] := 2
                           R[2] := 4
                           R[3] := 4
                           R[4] := 3
                           R[5] := 2
                           R[6] := 3
                           R[7] := 3

i:='i': j:='j':
S:=op(eval(subs(_seq=seq,[foldl(_seq,F(seq('i'[j],j=1..N)),seq(i[p]=1..R[p],p=1..N))]))):

nops({S}) = mul(R[p],p=1..N);
                           1728 = 1728

I doubt any of these would work in Maple 8 or earlier.  But I might be remembering wrongly.

Download typ.mw

I expect that you could do it using textplot and the SYMBOL font, on a 2D plot, though.

This is interpolating in just one direction. You could change the method from cubic to linear, if you want. Let me know if this isn't adequate.

plots:-surfdata(M,view=[default,0.45..0.6,1520..1600],orientation=[30,60,0]);
plots:-surfdata(final,view=[default,0.45..0.6,1520..1600],orientation=[30,60,0]);

interp_ex.mw

I had this problem ( error message about GL3bc -> GL4bc mapping) with Maple 2017.3 on a Linux Ubuntu 17.10 machine with an Nvidia video card.

I believe that indicated an OpenGL problem (in my case used by Maple 2017's Java GUI).

It was fixed by switching from the default X.org video drivers to the Nvidia proprietary driver.

Use the global name :-param , with uneval quotes, in the call to foo2.

foo1 := proc( {param:={}}, $)
  foo2(':-param'=param):
end proc:

foo2 := proc( {param:={}}, $)
end proc:

foo1('param'=1);

It turns out that this works, in at least Maple 2017.2 and Maple 2018.0,

solve({exp(2*sin(t))-1=0, 0 <= t,t <= 16}, real, AllSolutions, Explicit);

         {t = 0}, {t = Pi}, {t = 2 Pi}, {t = 3 Pi}, {t = 4 Pi}, {t = 5 Pi}

AFAIK the real option is currently documented only as part of the ?solve,parametric functionality, which is for polynomial equations. So it's unclear why that extra option makes a difference for this example. There is murkiness in how solve is dealing with this extra option.

Here's one way:

Student:-Calculus1:-Roots(exp(2*sin(t))-1=0, t=0..16);

          [0, Pi, 2 Pi, 3 Pi, 4 Pi, 5 Pi]

Try closing the right-side context-panel.

You could look at some rough procedures I wrote for this kind of thing in this old posting. Those simply insert a translation of the subregion, though, and the inlined magnification window doesn't get its own axes and tickmarks.

If you really want axes and tickmarks in the magnified portion then you could try building it with an image (or an exported and reimported subplot).  See this old posting for some rough code I wrote for that. Another variant for that kind of thing is here. Newer versions of Maple allow for directly placing an image (or a subimage) on the background of a plot, and the answers in those two old postings could likely be revamped and done more cleanly now (and without any recourse to densityplot, say). Perhaps I can find time to modernize it.
