I need to find the intersection of 3 planes.

I managed to get the intersection using LinearSolve but I keep getting an error when I try to plot out the planes using plot3d. What can I change in the commands for it to work?


Download problem.mw

Here's how to break Maple's 'D' function:

~$ cmaple mapleBug.mpl
    |\^/|     Maple 2018 (X86 64 WINDOWS)
._|\|   |/|_. Copyright (c) Maplesoft, a division of Waterloo Maple Inc. 2018
 \  MAPLE  /  All rights reserved. Maple is a trademark of
 <____ ____>  Waterloo Maple Inc.
      |       Type ? for help.
> D[1]((x, y) ->x^2-y^2);
                                 (x, y) -> 2 x

> D[2]((x, y) ->x^2-y^2);
                                 (x, y) -> -2 y

> with(VectorCalculus):
> assume(x, 'real');
> assume(y, 'real');
> D[1]((x, y) ->x^2-y^2);
                                  (x, y) -> 0

> D[2]((x, y) ->x^2-y^2);
                                  (x, y) -> 0

> quit
memory used=2.4MB, alloc=8.3MB, time=0.06

~$

What if a person needs to have these lines:

> with(VectorCalculus):
> assume(x, 'real');
> assume(y, 'real');

and then he wants to take partial derivatives? Not possible? Once you load VectorCalculus and declare x and y real, Maple stops doing partial derivatives? Why.

Sorry,

I have been away from Maple for a year.
Then, when I used op command, I am puzzed to notice the results were different from those I know.

>op((x+5)^2*(x+y));
      _EXPSEQ((x+5)^2, x+y)

Result I know is

        (x+5)^2, x+y

Has a modifire such as _EXPSEQ   automatically come to be attatched?
Or, can I have maple express it  in the form I know:  (x+5)^2, x+y?

Thank you in advance.

taro

Given the following functions and respective intervals graph them and determine all values of c in the interval (a,b) such that

f'(c) =f(b)-f(a)/b-a (apply the Mean Value Theorem)

 Question 1: f(x)=x^3-2*x      [0,2]

 Question 2 : g(x)= cuberoot(x-3)^2     [-3,4]

Please HELP!!!

how I can write a program code for newmark method.

in this method time has 3 order derivation

 We know the following facts:

The SequenceGraph command returns a graph with the specified degree sequence given as input, if such a graph exists. It raises an exception otherwise.
 But  If I  want to get more graphs  that satisfy this condition of degree sequence ? (If graphs are not many ,I want get all graphs better)
what should I do.?

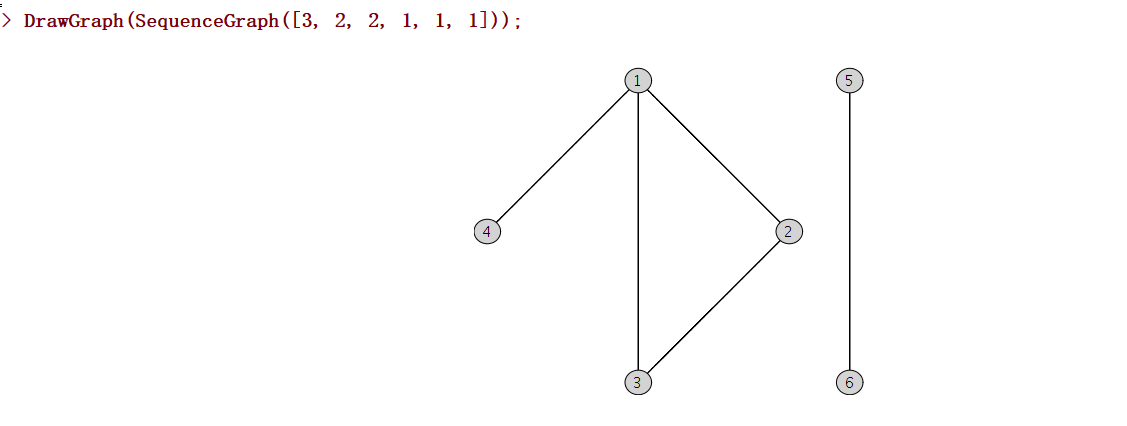

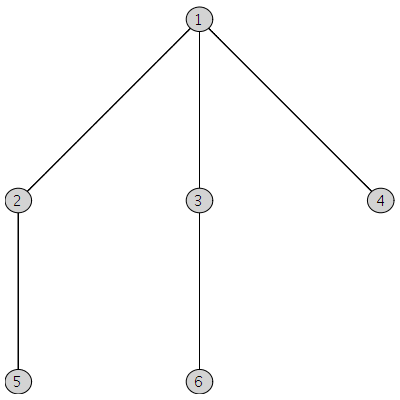

For example: DrawGraph(SequenceGraph([3, 2, 2, 1, 1, 1]));  It returns the first graph below, but it is obvious that the second graph also fits the condition.

squenceGraph.mw

Hello Dear,

I have the following equation

 This equation is satisfied if the coefficients are zero.

So I need an order in Maple to write that

Good morning everyone,

I have a problem, when I try to evaluate the definite integral below, Maple can not provide a result. What can I do so that the Maple can calculate this integral?

This is the Maple code with the result:

Download integral.mw

Thank you !

Hello,

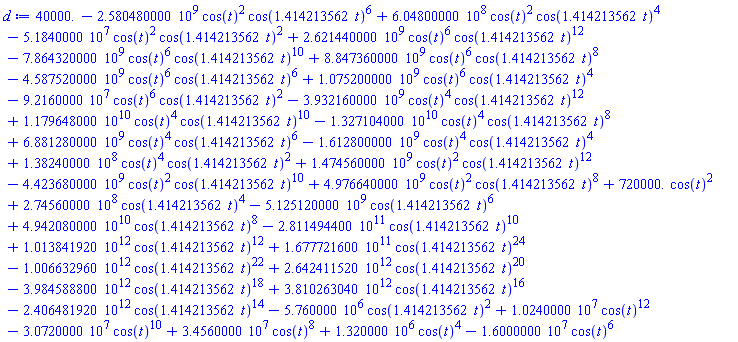

What is the minimum period of the following equation.

Download period

  I want list all  diameter-2  Nonisomorphismgraphs  of order n . I use the following code, but its running speed  is slow with  order of graph gradually increasing . (for example,n=10)
 Are there other ways to Improve it?
restart:
with(GraphTheory):
Graphs_data:=[NonIsomorphicGraphs(4,restrictto =[connected], output = graphs, outputform =graph)]:
Diameter_select:=select[flatten](t->Diameter(t)=2,Graphs_data):
DrawGraph(Diameter_select,size=[50,50]);
  By the way,  Why doesn't size=[50,50] work ?

  Hello:
    As a first step to my question, let  G be  a graph and  I'd like to know  whether it contains a C₄ (cycle of 4) as its subgraph.
     For example: .   It contains C₄. So  program may be return true.
    I'm most concerned about the following thing ( it is important problem for me, since in graph theory, we usually consider some class graphs contain no sepecific graph ) :
   1 Further , I want to  get all connected graphs of order less than 6  which  contains no C₄ .
   2 More generally, I want  to konw  a graph  whether contains some graph as its subgraph.For example : does it contain K4CompleteGraph(4) ，K32  CompleteGraph(3, 2)  and so on ?
    I read the  function subgaph.  But  It didn't solve my problem. Many thanks for your help or advise.
   # I  just know there is a function  IsTriangleFree which test if graph is triangle-free ( graph comtains no C₃)  in Maple 2019. I think my question and how to program may be  meaningful.

Hi,

Versions concerned:  [ Maple 2015 ... Maple 2018 ]

I use DocumentTools:-Tabulate to display a matrix of numbers while coloring them according to some condition.
(line DocumentTools:-Tabulate(M, color=((M,i,j)->`if`(M[i,j]>3,....) below ... please note the output is not loaded for some unknown reason).
The fact is that the matrix appears with black characters meaning 'color' doesn't work.

In a second attempt I convert matrix M into a matrix of strings and use now
DocumentTools:-Tabulate(S, color=((S,i,j)->`if`(parse(S[i,j])>3,...)
I get now the desired result with some blue and red numbers.

So converting to strings could be a workaround.
But think to matrices where elements would be algebraic expressions, for instance
M := Matrix(2, 2, (i,j)->exp(x^i)+cos(x*j))
and that we use the coloring scheme is color=((M,i,j)->`if`(i+j>3, "Red", "Blue")
Converting M to a string matrix will display the element [2, 2] in red and the others in blue, but what you get then is a no longer a 2D pretty output but, literally, things like exp(x^2)+cos(x*2)

The "convert to string" workaround is thus far from perfect.
Is the fact that 'color' only acts on strings a "normal and known" behaviour?
Is it possible to change the color of the font for non "string type matrices" ?


Download Tabulate_Color.mw

Dear friends~

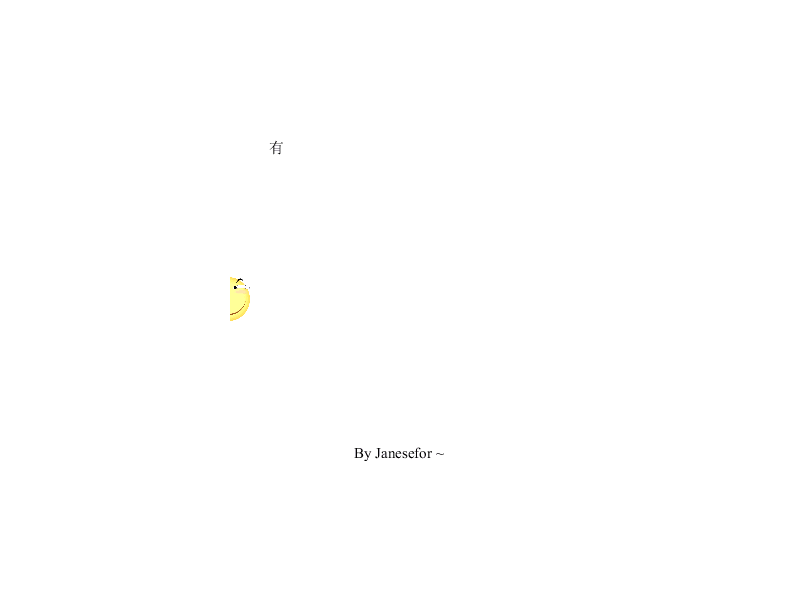

Recently I wanted to create some funny gif with Maple based on other interesting pictures but I met some problems:(1)I read many commands in ImageTools but few can aid me.(2)If I use “plot(,background=file_address)”,then the whole background will be filled with pictures but I just want it to be a part of my gif.I finally noticed that “plot3d(,image=file_address)”can realize my idea to some extents if I adjust orientation’s value  suitably.

However,I still think my operations can be improved(for example,my code consumes a fair amount of  memory) and there maybe one better approach to be good too. Hence I upload my code and sincerely look forward your suggestions and help~

#Janesefor do it in 2019/4/15 13:20 with Maple2018~
with(plots):
# smile.jpg's address
image_file:="C:/Users/ysl-pc/Desktop/":
str:="有","朋","自","远","方","来","不","亦","乐","乎","?":
location_func,dy,dz:=3*sin(2*3.14/10*y),.75,.75:

display(seq(display(textplot3d([0,1,4.5,cat(str[1..ha])],align='right'),textplot3d([0,3.5,-4.5,"By Janesefor ~"],align='right'),plot3d([0,s,t],subs(y=ha-1,[s=y-dy..y+dy,t=location_func-dz..location_func+dz])[],image=cat(image_file,"smile.jpg"),axes=none,scaling=constrained,orientation=[180,90,-180],view=[default,0..10,-5..5],glossiness=0,lightmodel=light4)),ha=[`$`(1..nops([str]))]),insequence=true);
Export(cat(image_file,"smile.gif"),%)

smile.mw

Dear Support

I am attempting to model quantum dynamics, and have defined a coupled set of nonlinear PDEs I would like to solve for coupled solutions u(x,y,t) and v(x,y,t) using MAPLE 18.

I attach an image of part of the worksheet the pair of PDEs...The initial conditions u(x,y,0), v(x,y,0) are a pair of respectively positive and negative 2D gaussians on the x,y, domain.

Before I go any further, please would you check that MAPLE 18 is in principle capable of finding solutions u(x,y,t), v(x,y,t) solutions, and let me know whether it is worth pursuing the solution?  I have had a look at the MAPLE documentation, but am not sure whether MAPLE can solve this system.

As a warm-up, I successfully solved a 1-D system u(x,t), v(x,t) using pdsolve[numeric], but I am not clear whether MAPLE 18 can solve for u(x,y,t), v(x,y,t) either numerically or analytically on the [x,y,t] domain.

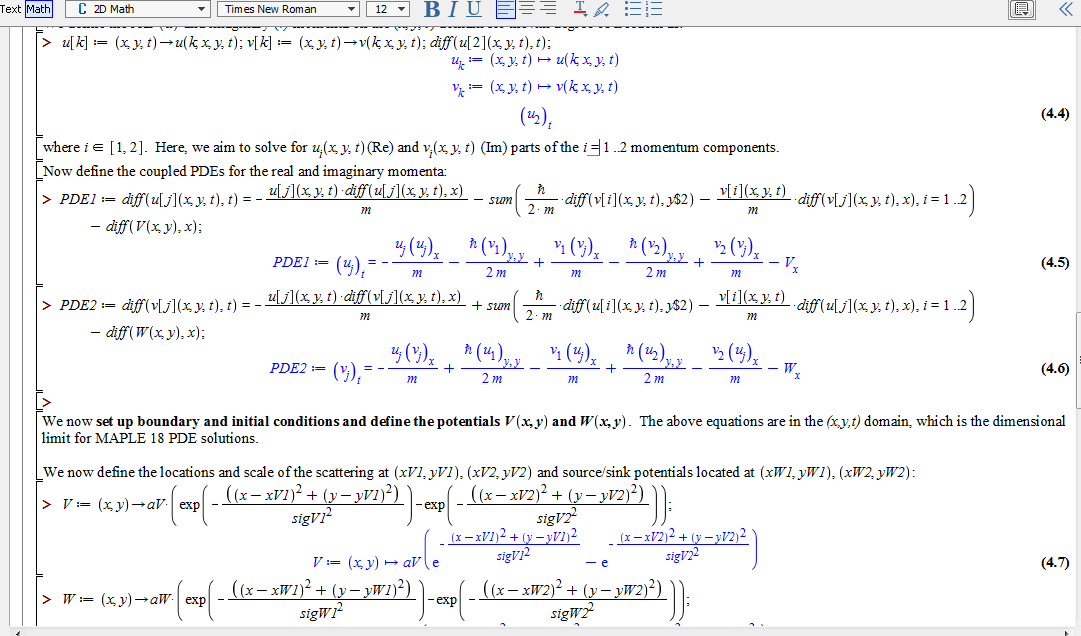

I hope you can provide help/guidance. An image the equations in MAPLE is displayed here...

Melvin Brown

UK

I can  this equation.

CV.mw


Download CV.mw
