Dear Community,

I run a MapleSim model from Maple. The simulation runs fine giving me the correct graphical plots, but I wonder how could I obtain also the numerical values of the probes vs. time? Sorry I could not figure it out. A matrix format would be perfect: 1st column time, the other columns probe 1 .. n values vs. time. (Files attached)

Tx for the kind help in advance,

best regards

Andras

RunMapleSim.mw , RCNetwork.msim

Dear Community,

I have set up a simple 2D RC network with 1 lookup table current source, and a few probes. The model runs fine. Now I wanted to run it from Maple, and followed carefully a MapleSim tutorial which exlained how to establish the link between Maple and MapleSim. I added a worksheet called RCNetworkMaple.mw and run the A := MapleSim:-LinkModel(): command. Then I wanted to run the simulation with the A := Simulate() ; command, but nothing happened, Maple returned A := Simulate(). What did I wrong? In the tutorial it runs perfectly. (Files attached.)

Tx for the kind help in advance,

best regards

Andras

RCNetwork.msim  RC_Rate_Schedule.xlsx

Hi,

I have to build a simple model in MapleSim that allows to simulate a mass that goes down along an inclined plane with a certain friction.

Is there a component that simulates the inclined plane? I tried to use a prismatic joint but it has some predifined translational directions so I can't impose the movement along the plane.

Hello,

I use MapleSim to model the dynamics of motorcycles.
I have been at MapleSim2018 for a few months and I have a problem of simplifying the equations generated by MapleSim from my model.
In MapleSim2018, he tells me:

Processing Equations...
SelectCompiler: Check for installed compiler successful
Simplifying system with 8919 equations
DSN/ix1lite: Warning, equation size increased past 100000 while performing equation simplification. Model will be simulated in partially unsimplified form
Simplification removed 8428 equations. Remaining equations: 491
Generating simulation code

the same model (exactly the same) in MapleSim2016, he tells me :

Processing Equations...
Simplifying system with 8942 equations
Simplification removed 8494 equations. Remaining equations: 448
Generating simulation code

When I generate code from two versions of Maple (2016 and 2018) and compile it into an executable, the MapleSim 2018 executable runs 20% slower than the MapleSim 2016 version of the executable (the results and the behavior of both models are equivalent)

It is very strange that a new version of MapleSim generates a slower code than the old version. it may be due to the limitation of DSN / ix1lite in MapleSim2018 ... while MapleSim2016 does not have this limitation (with more equations to simplify!).

I need help, if it is possible to activate the complete simplification in DSN / ix1lite?

it is a big problem for me, the use of MapleSim2018 is not possible because of that. My model does not pass in real time.

thanks.

ABB_IRB_120_Model_IK_OK_6_RealParamsLinearization.msim

I did the model of the ABB IRB 120 in MapleSim, but I would like to lock several links but I do not know how to do it.

Also I need the differential equations of the robot, which must be six differential equations but in MapleSim equation extraction page there are lots of equations.

Please can you help me ?

HW5DC.msim

HW5HYD.msim

HW5Pneu.msim

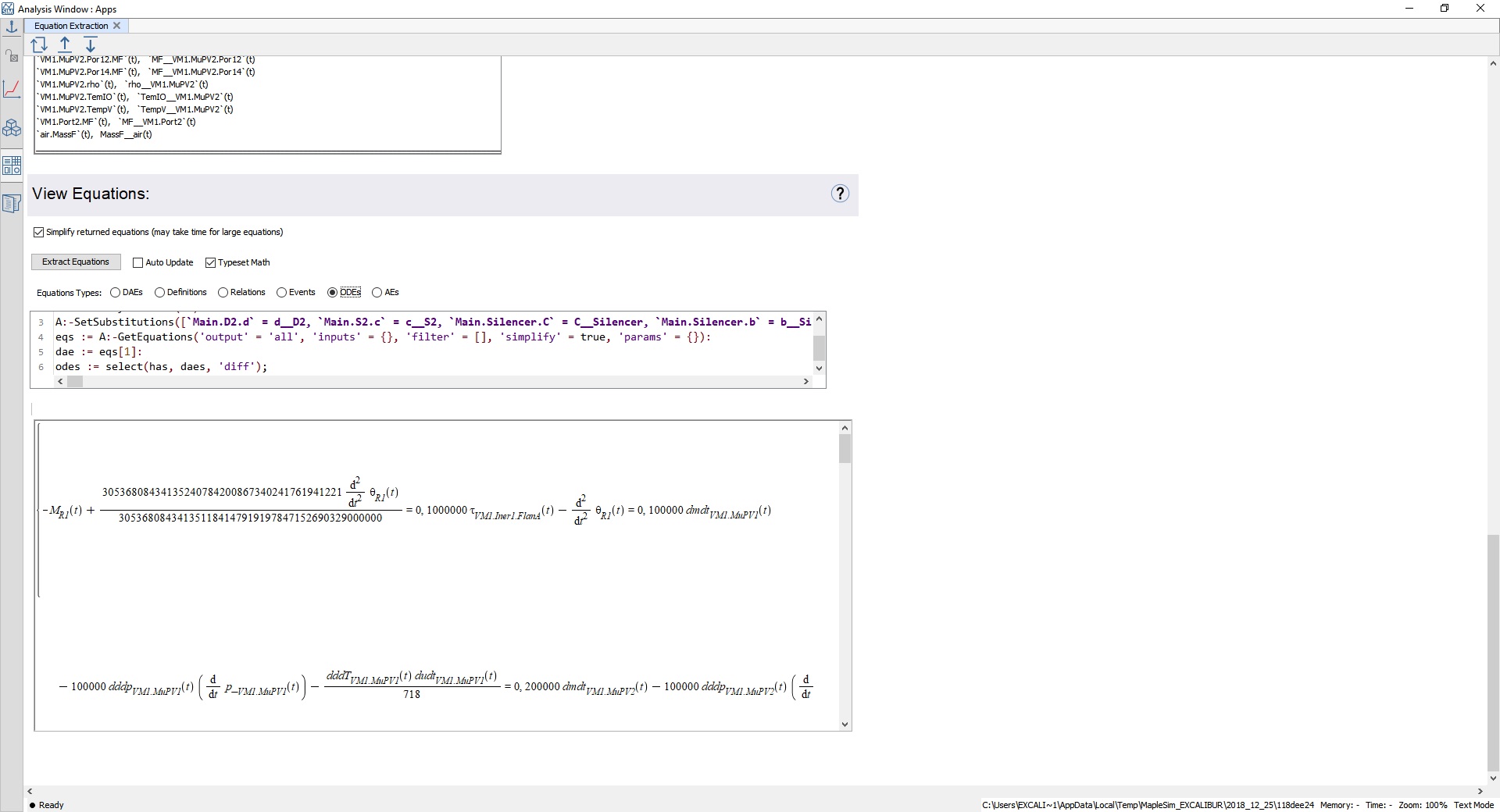

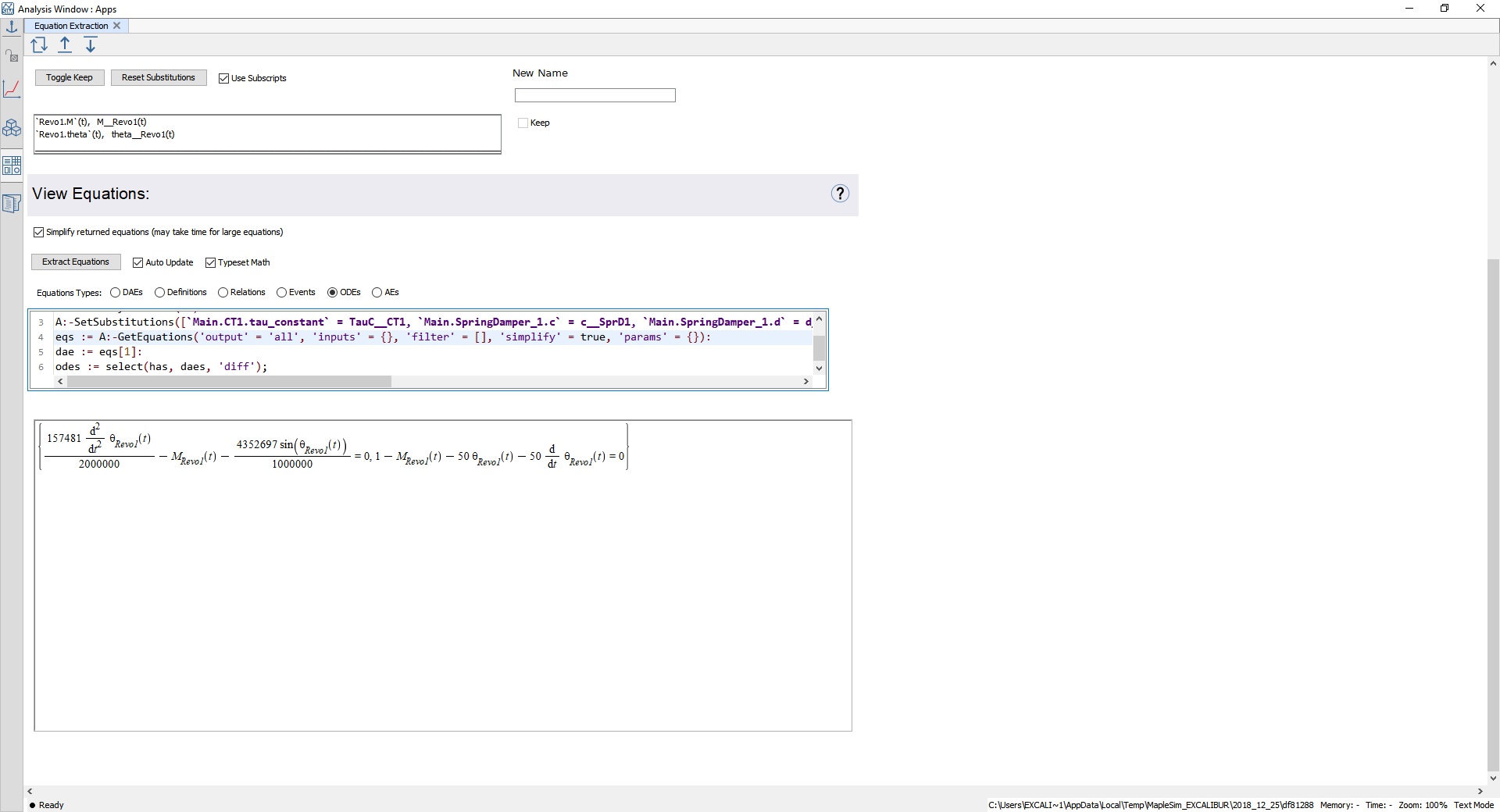

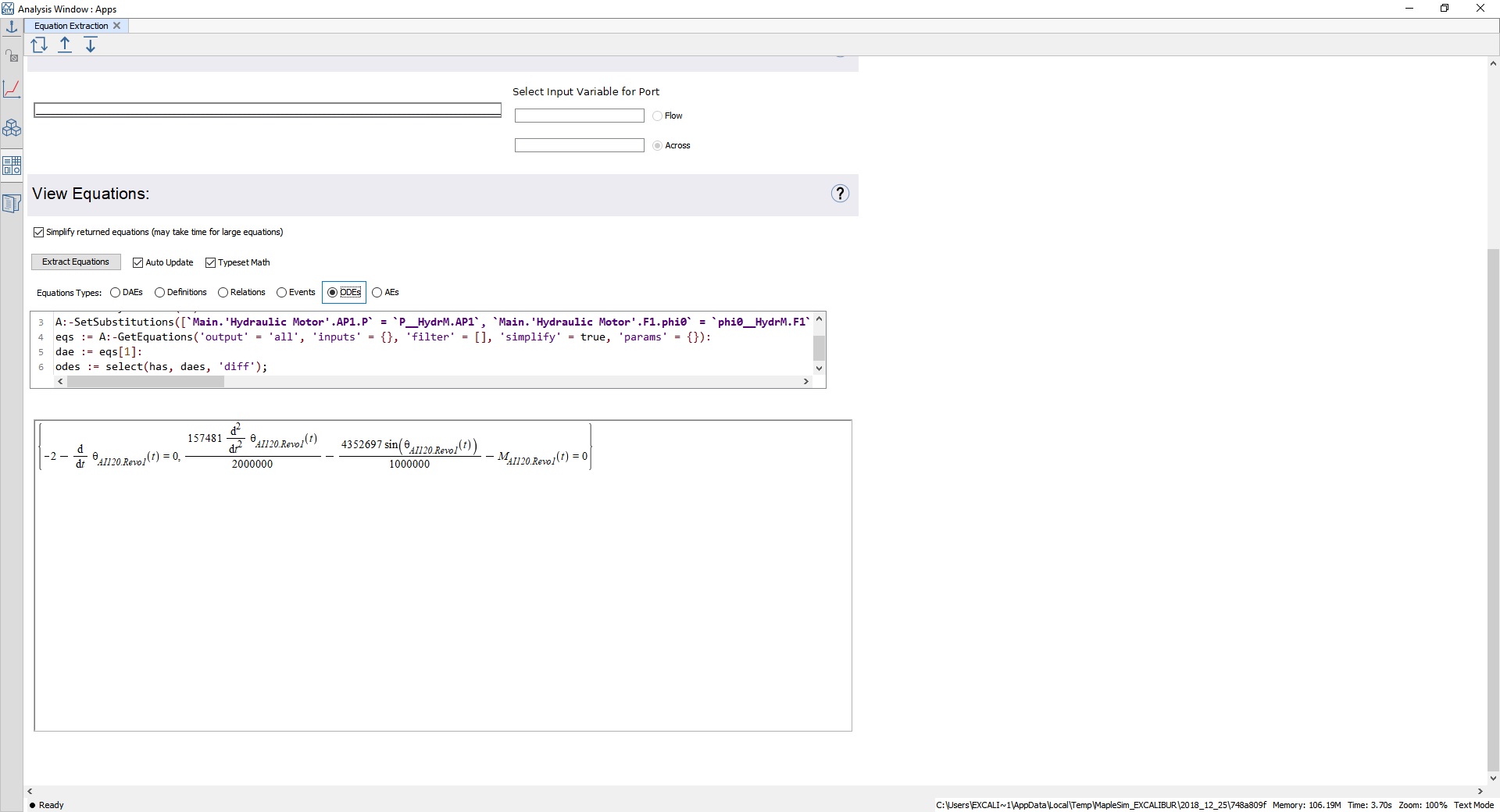

I am trying to (again) extract the equations of the systems which have been done by me, but the equation extraction gave me wrong results.

For example;

The DC motor and the inverted pendulum equation must be 3. (third) order and only a differential equation.

The pneumatic motor and the inverted pendulum must be a differential equation (any order).

Also the hydraulic motor and the inverted pendulum must be a differential equation (any order).

I tried to use "isolate" command but it did not work for me in this case. How can I get the differential equations of the systems ?

I have added the MapleSim simulations and the differential equations that I had.

Please help me for this problem chain.

Error when running 'm_model.m' to generate simulink function block when using 'Group all parameters into nested structure'. No errors when using 'Do not group parameters'.

Error using m_fullSwing (line 125)
Invalid setting in 'MapleSim_fullSwing/MapleSim_fullSwing/MapleSimParameters' for parameter 'Value'.
Caused by:
    Error using m_fullSwing (line 125)
    Expression '[Param.Address.ArmPlane, Param.Address.ClubRelHand,  ... ]' for
    parameter 'Value' in 'MapleSim_fullSwing/MapleSim_fullSwing/MapleSimParameters' cannot be evaluated.
        Error using m_fullSwing (line 125)
        Error: Invalid expression. When calling a function or indexing a variable, use parentheses. Otherwise, check for
        mismatched delimiters.


HW4.msim

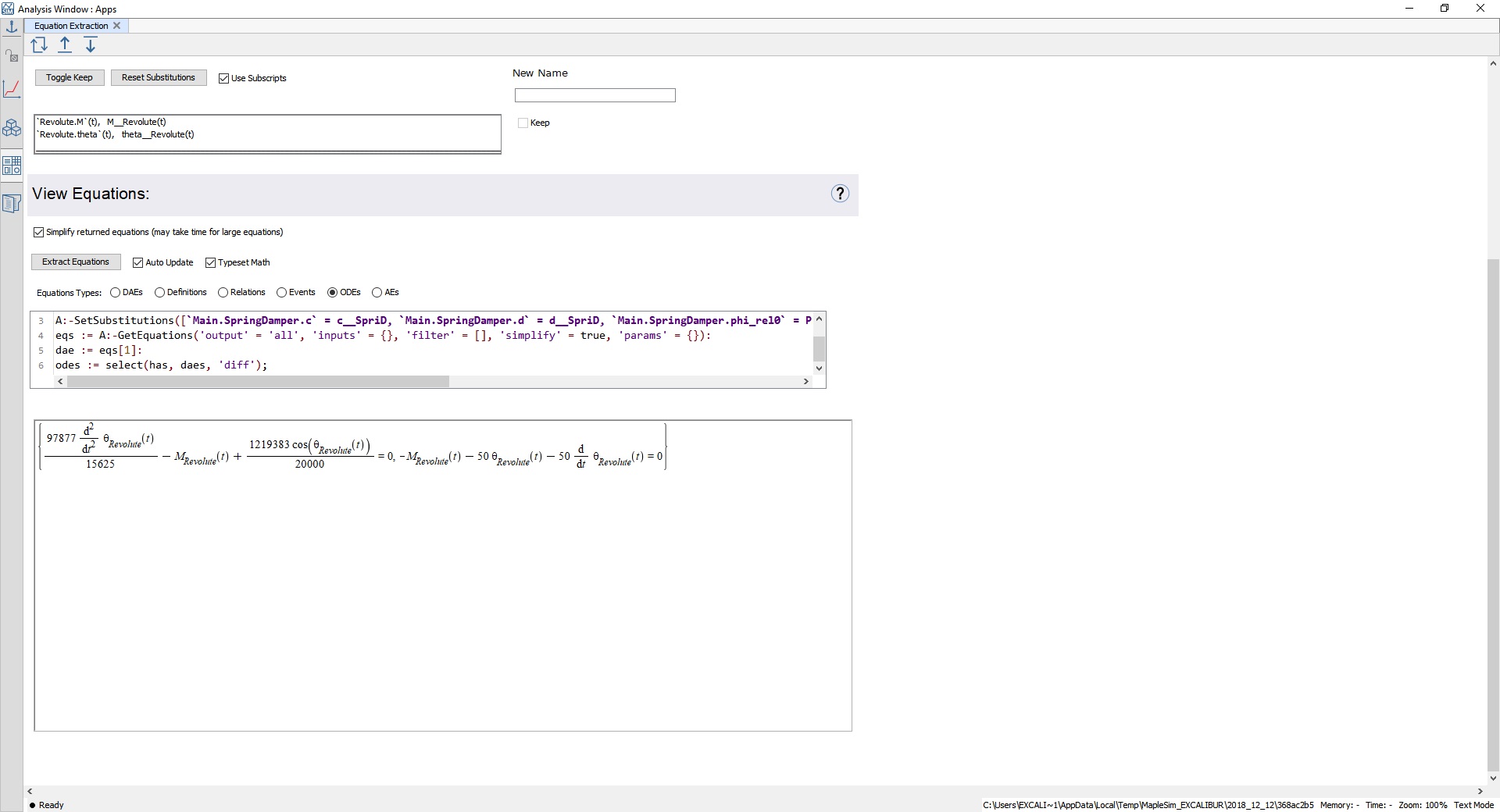

I did the base part of a robot in the MapleSim. I am trying to get the differential equation of the system, but the MapleSim gave me 2 different differential equations. When I use these differential equations, I could not reach to my goal. I think I need only one differential equation whose degree must be 2. The system works well, but the problem is a differential equation of the system. How can I get the correct differential equation? And also, why are there 2 different equations? Which one represents what? Thanks for answering.
