@Algorithmus Could you upload a worksheet instead of a screen shot?

@erik10 wrote:

I get an error message.

There is an extra right parenthesis ")" in the line beginning anyZero:=.

Also I am unsure if I should use global variables?

It is generally considered a bad programming style, but it is not necessarily an error.

After execution of the procedure, I want two large Vectors 'probVector' and 'lambdaVector' to be available outside this procedure. Maybe I should initially call the procedure with those two large vectors with zeroes?

That's what I would do. But there's no need to initialize them with zeroes. Just declare the number of entries.

And then forget about the global variable?

Ah, the real problem is counter. Unlike the Vectors, counter does need to be initialized to zero. It is tricky to make it a local variable or parameter. I recommend that you keep it global for now, unless you can follow what I did with it in the module. (I called it Index instead of counter.)

Another thing: I am using Vectors here, but could also use lists maybe? What is the most efficient?

They must be Vectors since you are assigning to indexed entries. If there is some good reason to use lists after the procedure has ended (there often is), the Vectors can be easily converted to lists.

I would be very delighted if you would please tell me the minor changes which will make my own code work.

The `if`(anyZero, ... should be `if`(anyZero=0, ....

Maple has a predefined name undefined (lowercase u). You might as well use that instead of some arbitrary value.

You should not pass counter in the recursive call.

You have declared a variable hj where I think that you meant to declare j, and it should be integer.

@erik10 wrote:

I get an error message.

There is an extra right parenthesis ")" in the line beginning anyZero:=.

Also I am unsure if I should use global variables?

It is generally considered a bad programming style, but it is not necessarily an error.

After execution of the procedure, I want two large Vectors 'probVector' and 'lambdaVector' to be available outside this procedure. Maybe I should initially call the procedure with those two large vectors with zeroes?

That's what I would do. But there's no need to initialize them with zeroes. Just declare the number of entries.

And then forget about the global variable?

Ah, the real problem is counter. Unlike the Vectors, counter does need to be initialized to zero. It is tricky to make it a local variable or parameter. I recommend that you keep it global for now, unless you can follow what I did with it in the module. (I called it Index instead of counter.)

Another thing: I am using Vectors here, but could also use lists maybe? What is the most efficient?

They must be Vectors since you are assigning to indexed entries. If there is some good reason to use lists after the procedure has ended (there often is), the Vectors can be easily converted to lists.

I would be very delighted if you would please tell me the minor changes which will make my own code work.

The `if`(anyZero, ... should be `if`(anyZero=0, ....

Maple has a predefined name undefined (lowercase u). You might as well use that instead of some arbitrary value.

You should not pass counter in the recursive call.

You have declared a variable hj where I think that you meant to declare j, and it should be integer.

Using evalf is risky: If the precision is not sufficiently high, you may get a wrong result---not just the absence of a result. Whereas is will add digits of precision sufficient to determine the inequality with certainty. For example:

Digits:= 3:
if Pi < 22/7 then Yes else No fi;
Error, cannot determine if this expression is true or false: Pi < 22/7

if is(Pi < 22/7) then Yes else No fi;
                              Yes
evalf(Pi), evalf(22/7);
                           3.14, 3.14
if evalf(Pi) < evalf(22/7) then Yes else No fi;
                               No

While this example may seem contrived, it is very common in numerical programming for an inequality to be decided by the last digit of precision.

Using evalf is risky: If the precision is not sufficiently high, you may get a wrong result---not just the absence of a result. Whereas is will add digits of precision sufficient to determine the inequality with certainty. For example:

Digits:= 3:
if Pi < 22/7 then Yes else No fi;
Error, cannot determine if this expression is true or false: Pi < 22/7

if is(Pi < 22/7) then Yes else No fi;
                              Yes
evalf(Pi), evalf(22/7);
                           3.14, 3.14
if evalf(Pi) < evalf(22/7) then Yes else No fi;
                               No

While this example may seem contrived, it is very common in numerical programming for an inequality to be decided by the last digit of precision.

My first answer did not address the issue of coloring the edges. That is a little bit more complicated. Here are the faces and edges together.

restart:
rand256:= rand(0..255):
RandColor:= ()-> COLOR(RGB, evalf(['rand256'()/256 $ 3])[]):
C:= plottools:-cuboid([0$3], [1$3], color= ['RandColor'() $ 6]):
faceplot:= plots:-display(C, transparency= 0.01, style= patchnogrid, glossiness= 1):

Do some combinatorics to generate the edges. First generate the vertices.
V:= ['('([i,j,k] $ i= 0..1)' $ j= 0..1)' $ k= 0..1];
    [[0, 0, 0], [1, 0, 0], [0, 1, 0], [1, 1, 0], [0, 0, 1],  [1, 0, 1], [0, 1, 1], [1, 1, 1]]

Now the edges: From all pairs of points, select those unit distance apart.
E:= select(e-> LinearAlgebra:-Norm(< `-`(e[]) >, 2) = 1, combinat:-choose(V,2));
     [[[0, 0, 0], [0, 0, 1]], [[0, 0, 0], [0, 1, 0]],  [[0, 0, 0], [1, 0, 0]], [[0, 0, 1], [0, 1, 1]],
     [[0, 0, 1], [1, 0, 1]], [[0, 1, 0], [0, 1, 1]],  [[0, 1, 0], [1, 1, 0]], [[0, 1, 1], [1, 1, 1]],
     [[1, 0, 0], [1, 0, 1]], [[1, 0, 0], [1, 1, 0]],  [[1, 0, 1], [1, 1, 1]], [[1, 1, 0], [1, 1, 1]]]

edgeplot:= plots:-display(
     [seq](plottools:-line(e[], color= RandColor()), e in E),
     thickness= 5, transparency= 0.45, glossiness= 0
):
plots:-display([edgeplot, faceplot], lightmodel= light4, axes= none);

My first answer did not address the issue of coloring the edges. That is a little bit more complicated. Here are the faces and edges together.

restart:
rand256:= rand(0..255):
RandColor:= ()-> COLOR(RGB, evalf(['rand256'()/256 $ 3])[]):
C:= plottools:-cuboid([0$3], [1$3], color= ['RandColor'() $ 6]):
faceplot:= plots:-display(C, transparency= 0.01, style= patchnogrid, glossiness= 1):

Do some combinatorics to generate the edges. First generate the vertices.
V:= ['('([i,j,k] $ i= 0..1)' $ j= 0..1)' $ k= 0..1];
    [[0, 0, 0], [1, 0, 0], [0, 1, 0], [1, 1, 0], [0, 0, 1],  [1, 0, 1], [0, 1, 1], [1, 1, 1]]

Now the edges: From all pairs of points, select those unit distance apart.
E:= select(e-> LinearAlgebra:-Norm(< `-`(e[]) >, 2) = 1, combinat:-choose(V,2));
     [[[0, 0, 0], [0, 0, 1]], [[0, 0, 0], [0, 1, 0]],  [[0, 0, 0], [1, 0, 0]], [[0, 0, 1], [0, 1, 1]],
     [[0, 0, 1], [1, 0, 1]], [[0, 1, 0], [0, 1, 1]],  [[0, 1, 0], [1, 1, 0]], [[0, 1, 1], [1, 1, 1]],
     [[1, 0, 0], [1, 0, 1]], [[1, 0, 0], [1, 1, 0]],  [[1, 0, 1], [1, 1, 1]], [[1, 1, 0], [1, 1, 1]]]

edgeplot:= plots:-display(
     [seq](plottools:-line(e[], color= RandColor()), e in E),
     thickness= 5, transparency= 0.45, glossiness= 0
):
plots:-display([edgeplot, faceplot], lightmodel= light4, axes= none);

@somayeh You're welcome. Let me know if you are having any trouble using my answer.

@somayeh You're welcome. Let me know if you are having any trouble using my answer.

Yes, I should have added that my identity held for positive a and b.

Is there some reference where one can find all codes of the form `&...;`? Is this part of some system of codes that is more universal than Maple?

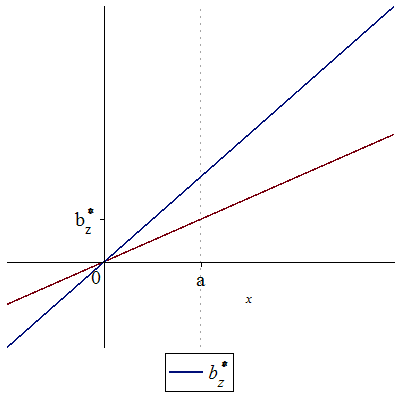

The following works in 1D Input, typed just as is, no mouse work required (the way I like it):

plot(
     [x, 2*x], x= -1..3,
     axis[1]= [gridlines= [[1], linestyle= dot]],
     tickmarks= [[1=a, 0= "0"], [1=b[z]^`&lowast;`, 0=0]],
     legend= ["", b[z]^`&lowast;`],
     axesfont= [TIMES,ROMAN,16],
     legendstyle= [font= [TIMES,ROMAN,16]]
);

The difference is that b_z becomes b[z].

Is there some reference where one can find all codes of the form `&...;`? Is this part of some system of codes that is more universal than Maple?

The following works in 1D Input, typed just as is, no mouse work required (the way I like it):

plot(
     [x, 2*x], x= -1..3,
     axis[1]= [gridlines= [[1], linestyle= dot]],
     tickmarks= [[1=a, 0= "0"], [1=b[z]^`&lowast;`, 0=0]],
     legend= ["", b[z]^`&lowast;`],
     axesfont= [TIMES,ROMAN,16],
     legendstyle= [font= [TIMES,ROMAN,16]]
);

The difference is that b_z becomes b[z].

Complex arithmetic allows for this transformation:

ln(a) - ln(b) = ln(a/b) = ln(-a/-b) = ln(-a) - ln(-b)

Now consider your eq16:

Arranging the ln terms on the left side and the non-ln terms on the right and factoring out hmax, we get on the left side

hmax*(ln(-hmax) - ln(h - hmax))

Applying what I said in the first sentence, this is equivalent to

hmax*(ln(hmax) - ln(hmax - h)),

where now all the arguments of ln are positive.

This is reminiscent of ?evalr and shake----range arithmetic.

A problem still arises if you want a local unevaluated name gamma. There is nothing that I can do to prevent evalf(gamma) from returning a number. Even `evalf/gamma`:= NULL doesn't seem to help.
