I wanted to use MAPLE to preform symbolic quantum computations. The role
of quantum operators and their tensor product is very important in simplying
the understating of such new calculus at least for the beginners. For instance,
(using "o" for the tensor product and "." for the scalar product, H being the Hadamard
operator on a qubit, I the identity operator, and CNOT the 2 qubit controled not
operator)
1) generating the Bells states |Bxy> two stages of operators are needed
     (CNOT) .  (H o  I)  . |x> o |y>

2) performing quantum teleportation of |psi>
     (H o I o I) . (CNOT o I ) . |psi>o |B00>
    followed by a measurements on the first two qubits for driving the application of
    quantum gates to the third qubit.

All these tensor products of operators can be easily written in MAPLE.

Here is a first version of the ExpandQop procedure that will be usefull the purpose of
expanding correctly the tensor product of two quantum operator expressed in Dirac notation.

I hope this is usefull.

LL



######################################################################
# Author: Louis Lamarche                                             #
#         Institute of Research of Hydro-Quebec (IREQ)               #
#         Science des données et haute performance                   #
#         2018/02/20                                                 #
#                                                                    #
#         Function name: ExpandQop (x)                               #
#               Purpose: Compute the tensor product of two quantum   #
#                        operators in Dirac notations                #
#              Argument: x - a simple quantum operator               #
#   Future improvements: Manage all +, -, *, /, ^, mod  operations   #
#                        in the argument                             #
#               Version: 1.0                                         #
######################################################################
restart;

with(Physics):
interface(imaginaryunit=i):
Setup(mathematicalnotation=true);

[mathematicalnotation = true]

(1)

Setup(quantumoperators={A,B,C,Cn});
Setup(noncommutativeprefix={a,b});

[quantumoperators = {A, B, C, Cn}]



[noncommutativeprefix = {a, b}]

(2)

ExpandQop:=proc(x)
    local ret,j,lkb,cbk,rkb,no;
    ret:=1; lkb:=0; cbk:=0; rkb:=0; no:=nops(x);
    if (no > 3 ) then
        for j from 1 to no do
            if (j>1) then
                 if(lkb=0) then
                     if( type(op(j-1,x),Ket) and
                         type(op(j,x),Bra) ) then lkb:=j-1; fi;
                 else
                     if( type(op(j-1,x),Ket) and
                         type(op(j,x),Bra) ) then rkb:=j;   fi;
                 fi;
                 if( type(op(j-1,x),Bra) and type(op(j,x),Ket) )
                                             then cbk:=j;   fi;
            fi;
        end do;
        if ( (lkb < cbk) and (cbk<rkb) ) then
            for j from 1     to lkb   do ret := ret*op(j,x); end do;
            for j from cbk   to no    do ret := ret*op(j,x); end do;
            for j from lkb+1 to cbk-1 do ret := ret*op(j,x); end do;
        else
            ret:=x;
        fi;
    else
        ret:=x;
    fi;
    return ret;
end proc:

# Let A be an operator in a first Hilbert space of dimension n
#  using the associated orthonormal ket and bra vectors
#
#
kets1:=Ket(a1)*Ket(a2)*Ket(a3)*Ket(a4)*Ket(a5):
A:=kets1*Dagger(kets1);


# Let B be an operator in a second Hilbert (Ketspace of dimension m
#  using the associated orthonormal ket and bra vectors
#
#
kets2:=Ket(b1)*Ket(b2)*Ket(b3):
B:=kets2*Dagger(kets2);

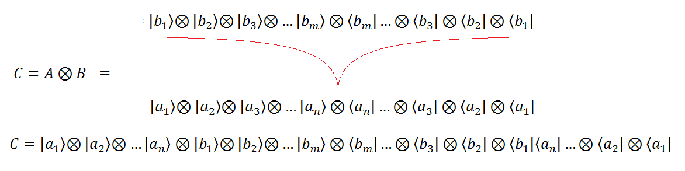

# The tensor product of the two operators acts on a n+m third
# Hilbert space   unsing the appropriately ordered ket
# and bra  vectors of the two preceding spaces. The rule for
# building this operator in Dirac notation is as follows,
#
#


print("Maple do not compute the tensor product of operators,");
print("C=A*B gives:");
C:=A*B;

print("ExpandQop(C) gives the expected result:");
Cn:=ExpandQop(C);

Physics:-`*`(Physics:-Ket(a1), Physics:-Ket(a2), Physics:-Ket(a3), Physics:-Ket(a4), Physics:-Ket(a5), Physics:-Bra(a5), Physics:-Bra(a4), Physics:-Bra(a3), Physics:-Bra(a2), Physics:-Bra(a1))



Physics:-`*`(Physics:-Ket(b1), Physics:-Ket(b2), Physics:-Ket(b3), Physics:-Bra(b3), Physics:-Bra(b2), Physics:-Bra(b1))



"Maple do not compute the tensor product of operators,"



"C=A*B gives:"



Physics:-`*`(Physics:-Ket(a1), Physics:-Ket(a2), Physics:-Ket(a3), Physics:-Ket(a4), Physics:-Ket(a5), Physics:-Bra(a5), Physics:-Bra(a4), Physics:-Bra(a3), Physics:-Bra(a2), Physics:-Bra(a1), Physics:-Ket(b1), Physics:-Ket(b2), Physics:-Ket(b3), Physics:-Bra(b3), Physics:-Bra(b2), Physics:-Bra(b1))



"ExpandQop(C) gives the expected result:"



Physics:-`*`(Physics:-Ket(a1), Physics:-Ket(a2), Physics:-Ket(a3), Physics:-Ket(a4), Physics:-Ket(a5), Physics:-Ket(b1), Physics:-Ket(b2), Physics:-Ket(b3), Physics:-Bra(b3), Physics:-Bra(b2), Physics:-Bra(b1), Physics:-Bra(a5), Physics:-Bra(a4), Physics:-Bra(a3), Physics:-Bra(a2), Physics:-Bra(a1))

(3)

kets3:=kets1*kets2;
bras3:=Dagger(kets3);
print("Matrix element computed with C appears curious");
'bras3.C. kets3'="...";
bras3.C.kets3;
print("Matrix element computed with Cn as expected");
'bras3.Cn.kets3'=bras3.Cn.kets3;

Physics:-`*`(Physics:-Ket(a1), Physics:-Ket(a2), Physics:-Ket(a3), Physics:-Ket(a4), Physics:-Ket(a5), Physics:-Ket(b1), Physics:-Ket(b2), Physics:-Ket(b3))



Physics:-`*`(Physics:-Bra(b3), Physics:-Bra(b2), Physics:-Bra(b1), Physics:-Bra(a5), Physics:-Bra(a4), Physics:-Bra(a3), Physics:-Bra(a2), Physics:-Bra(a1))



"Matrix element computed with C"



Physics:-`.`(bras3, C, kets3) = "..."



Physics:-Bracket(Physics:-Bra(b1), Physics:-Ket(a1))*Physics:-Bracket(Physics:-Bra(b2), Physics:-Ket(a2))*Physics:-Bracket(Physics:-Bra(b3), Physics:-Ket(a3))*Physics:-Bracket(Physics:-Bra(a1), Physics:-Ket(b1))*Physics:-Bracket(Physics:-Bra(a2), Physics:-Ket(b2))*Physics:-Bracket(Physics:-Bra(a3), Physics:-Ket(b3))*Physics:-Bracket(Physics:-Bra(a4), Physics:-Ket(a4))^2*Physics:-Bracket(Physics:-Bra(a5), Physics:-Ket(a5))^2*Physics:-Bracket(Physics:-Bra(a1), Physics:-Ket(a1))*Physics:-Bracket(Physics:-Bra(a2), Physics:-Ket(a2))*Physics:-Bracket(Physics:-Bra(a3), Physics:-Ket(a3))*Physics:-Bracket(Physics:-Bra(b1), Physics:-Ket(b1))*Physics:-Bracket(Physics:-Bra(b2), Physics:-Ket(b2))*Physics:-Bracket(Physics:-Bra(b3), Physics:-Ket(b3))



"Matrix element computed with Cn as expected"



Physics:-`.`(bras3, Cn, kets3) = Physics:-Bracket(Physics:-Bra(a1), Physics:-Ket(a1))^2*Physics:-Bracket(Physics:-Bra(a2), Physics:-Ket(a2))^2*Physics:-Bracket(Physics:-Bra(a3), Physics:-Ket(a3))^2*Physics:-Bracket(Physics:-Bra(a4), Physics:-Ket(a4))^2*Physics:-Bracket(Physics:-Bra(a5), Physics:-Ket(a5))^2*Physics:-Bracket(Physics:-Bra(b1), Physics:-Ket(b1))^2*Physics:-Bracket(Physics:-Bra(b2), Physics:-Ket(b2))^2*Physics:-Bracket(Physics:-Bra(b3), Physics:-Ket(b3))^2

(4)






Download ExpandQop.mw
