These are replies submitted by acer

@rlopez The simplify command attains the desired result directly in my Maple 2019.{0,1,2},  and Maple 2020.1, without the assumption that rho__m is real.

@Kitonum The expand command does it directly in Maple 2018.2 (and also in Maple 2020.1, as I showed in my Answer).

The evalc command assumes the unknown rho__m is real, but that is not a necessary condition.

@9009134 You could do it by writing your definition for it here, in words.

You need to tell us what you want.

@9009134 You've already identifed why the L31+L32+L33 for the new equation are not equal to its LHS. The difference consists of the mixed terms.

In order to "extract" them you should first specify a unique manner in which they may be grouped.

@Zeineb In your old Maple 12, does this run?

restart:
t0:=0; x0:=<1,2>;
f:= (t, v) -> <t*v[1], v[2]> ;
x[0]:= t -> x0;
for n to 5 do
x[n] := unapply( x0 + map(int, f(tau, x[n-1](tau)), tau=t0..t),  t);
print(x[n]= x[n](t));
od:

@ceight1 Where did you get the function (x,y)->y and exp(x) from, in your attempt? How do you think that those relate to this example's differential equation? [Perhaps your instructor or your textbook used a previous example like that. But this example's differential equation involves a different right-hand side formula. It is not the differential equation y'(x)=y(x) here.]



Slope Fields



restart

ode := diff(y(x), x) = -2*x*y(x)+1

diff(y(x), x) = -2*x*y(x)+1

ic := y(0) = 0

y(0) = 0

exactsol := dsolve({ic, ode})

y(x) = (1/2)*exp(-x^2)*Pi^(1/2)*erfi(x)

exactsolfunc := unapply(rhs(exactsol), x)

proc (x) options operator, arrow; (1/2)*exp(-x^2)*Pi^(1/2)*erfi(x) end proc

NULL

Euler's Method





f := proc (x, y) options operator, arrow; -2*x*y+1 end proc

proc (x, y) options operator, arrow; -2*y*x+1 end proc

x[0] := 0; y[0] := 0; h := .1

.1

for n to 101 do x[n] := n*h; y[n] := y[n-1]+h*f(x[n-1], y[n-1]) end do

data1 := [seq([x[n], y[n]], n = 0 .. 101)]NULLNULL

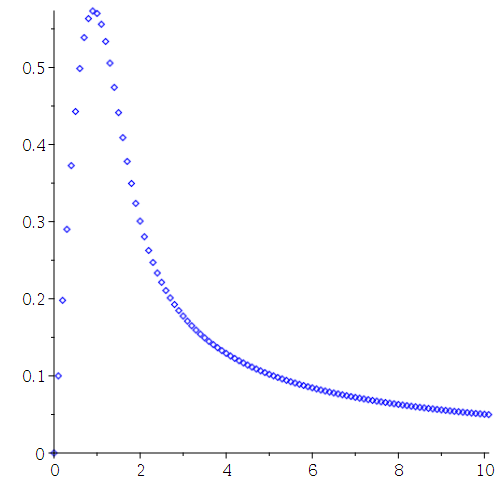

t1 := plot(data1, style = point, color = blue)

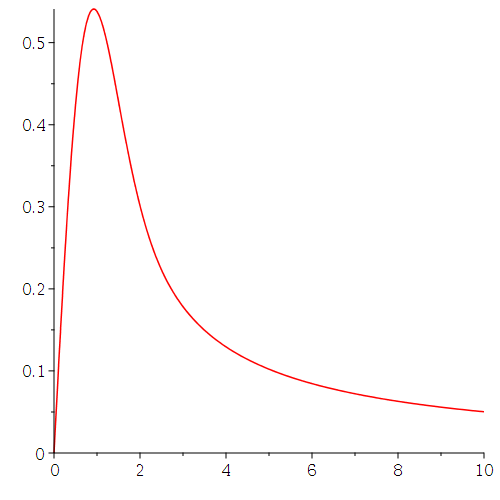

t2 := plot(exactsolfunc, 0 .. 10, color = red)

h := 0.5e-1

0.5e-1

for n to 201 do x[n] := n*h; y[n] := y[n-1]+h*f(x[n-1], y[n-1]) end do
NULL``



data2 := [seq([x[n], y[n]], n = 0 .. 201)]

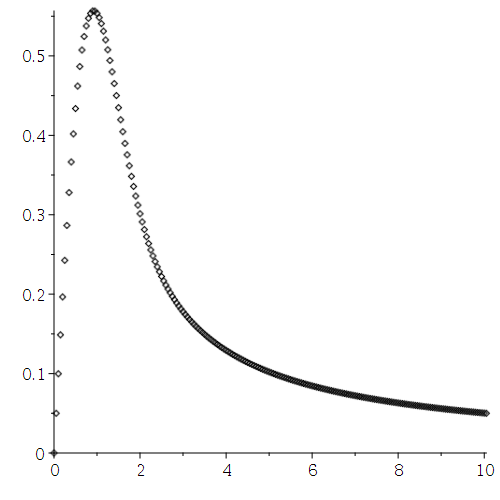

t3 := plot(data2, style = point, color = black)

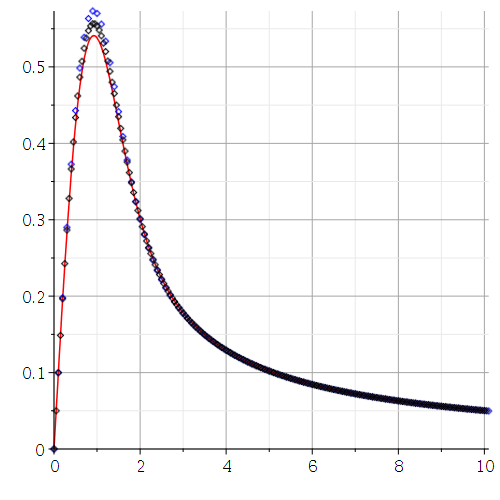

plots[display]({t1, t2, t3}, gridlines)

NULL

NULL

NULL

Download HELP_CODE_ac.mw

Don't post this same problem more than once.

If you have followup queries of details for the example (in addition to the syntax issue with writing x*y(x) as xy) then put them in a Comment/Reply here.

Here's that other way (substitution into a template procedure, and nicer error message).

restart;

# assign some values to the global names,
# in order to catch mistakes in the namespace
# use if things break.
(m,n,x) := -17,-33,t;

-17, -33, t

functionB:=proc(k::nonnegint,M::nonnegint,
                epsilon::realcons, gamma::realcons)
    local K,h,m,n,x;
    if not is(epsilon>-1)<>false then
      error "expecting parameter epsilon>-1, but received %1",epsilon;
    end if;
    if not is(gamma>-1)<>false then
      error "expecting parameter epsilon>-1, but received %1",epsilon;
    end if;
    K:=2^(k-1):
    h:=simplify(2^(epsilon+gamma+1)*GAMMA(epsilon+m+1)
                *GAMMA(gamma+m+1)/((2*m+1+epsilon+gamma)
                                   *m!*GAMMA(epsilon+gamma+1)))
         assuming n::nonnegint, n<=K, m::nonnegint, m<=M-1;
    subs(subs([n=':-n',m=':-m',x=':-x'],
               __dummy=piecewise((n-1)/K <= x and x <= n/K,
                                 'simplify'(2^(k/2)*h
                                            *JacobiP(m,epsilon,gamma,2^(k)*x-2*n+1)),
                                 0)),
         __Kdummy=K, __Mdummy=M,
         eval(proc(n::nonnegint,m::nonnegint,x)
           if n>__Kdummy then error
             "expecting first parameter n to be less than or equal to %1, but received %2",
             __Kdummy,n;
           end if;
           if m>__Mdummy-1 then error
             "expecting second parameter m to be less than or equal to %1, but received %2",
             __Mdummy-1,m;
           end if;
           __dummy;
         end proc)),
    unapply((1-x)^(epsilon)*(1+x)^gamma, [x]);
end proc:

(psi,w):=functionB(3,4,1,2);
psi(1,1,x);

Typesetting:-mrow(Typesetting:-mi("&psi;", italic = "false", mathvariant = "normal"), Typesetting:-mo("&comma;", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mi("w", italic = "true", mathvariant = "italic"), Typesetting:-mo("&Assign;", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2777778em", rspace = "0.2777778em"), Typesetting:-mrow(Typesetting:-mo("proc", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mi("n", italic = "true", mathvariant = "italic"), Typesetting:-mo("::", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mi("nonnegint", italic = "true", mathvariant = "italic")), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mrow(Typesetting:-mi("m", italic = "true", mathvariant = "italic"), Typesetting:-mo("::", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mi("nonnegint", italic = "true", mathvariant = "italic")), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mi("x", italic = "true", mathvariant = "italic")), mathvariant = "normal"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "firstprocnewline"), Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mo("if", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "auto"), Typesetting:-mrow(Typesetting:-mn("4", mathvariant = "normal"), Typesetting:-mo("<", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2777778em", rspace = "0.2777778em"), Typesetting:-mi("n", italic = "true", mathvariant = "italic")), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "auto"), Typesetting:-mo("then", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "increaseindentnewline"), Typesetting:-mrow(Typesetting:-mo("error", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "auto"), Typesetting:-mrow(Typesetting:-ms("expecting first parameter n to be less than or equal to %1, but received %2"), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mn("4", mathvariant = "normal"), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mi("n", italic = "true", mathvariant = "italic"))), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "decreaseindentnewline")), Typesetting:-mo("end if", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em")), Typesetting:-mo(";", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.2777778em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "firstprocnewline")), Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mo("if", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "auto"), Typesetting:-mrow(Typesetting:-mn("3", mathvariant = "normal"), Typesetting:-mo("<", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2777778em", rspace = "0.2777778em"), Typesetting:-mi("m", italic = "true", mathvariant = "italic")), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "auto"), Typesetting:-mo("then", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "increaseindentnewline"), Typesetting:-mrow(Typesetting:-mo("error", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "auto"), Typesetting:-mrow(Typesetting:-ms("expecting second parameter m to be less than or equal to %1, but received %2"), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mn("3", mathvariant = "normal"), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mi("m", italic = "true", mathvariant = "italic"))), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "decreaseindentnewline")), Typesetting:-mo("end if", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em")), Typesetting:-mo(";", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.2777778em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "firstprocnewline")), Typesetting:-mrow(Typesetting:-mi("piecewise", italic = "true", mathvariant = "italic"), Typesetting:-mo("&ApplyFunction;", family = "Courier", size = "10", bold = "false", italic = "false", underline = "false", subscript = "false", superscript = "false", foreground = "[0,0,0]", background = "[255,255,255]", opaque = "false", executable = "false", readonly = "false", composed = "false", converted = "false", imselected = "false", placeholder = "false", `selection-placeholder` = "false", mathvariant = "normal", fence = "unset", separator = "unset", stretchy = "unset", symmetric = "unset", largeop = "unset", movablelimits = "unset", accent = "unset", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mn("1", mathvariant = "normal"), Typesetting:-mo("/", mathvariant = "normal", fence = "false", separator = "false", stretchy = "true", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mn("4", mathvariant = "normal")), Typesetting:-mo("*", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mrow(Typesetting:-mi("n", italic = "true", mathvariant = "italic"))), Typesetting:-mo(" − ", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mrow(Typesetting:-mn("1", mathvariant = "normal"), Typesetting:-mo("/", mathvariant = "normal", fence = "false", separator = "false", stretchy = "true", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mn("4", mathvariant = "normal"))), Typesetting:-mo("<=", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2777778em", rspace = "0.2777778em"), Typesetting:-mi("x", italic = "true", mathvariant = "italic")), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "auto"), Typesetting:-mo("and", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "auto"), Typesetting:-mrow(Typesetting:-mi("x", italic = "true", mathvariant = "italic"), Typesetting:-mo("<=", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2777778em", rspace = "0.2777778em"), Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mn("1", mathvariant = "normal"), Typesetting:-mo("/", mathvariant = "normal", fence = "false", separator = "false", stretchy = "true", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mn("4", mathvariant = "normal")), Typesetting:-mo("*", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mrow(Typesetting:-mi("n", italic = "true", mathvariant = "italic"))))), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mrow(Typesetting:-mi("simplify", italic = "true", mathvariant = "italic"), Typesetting:-mo("&ApplyFunction;", family = "Courier", size = "10", bold = "false", italic = "false", underline = "false", subscript = "false", superscript = "false", foreground = "[0,0,0]", background = "[255,255,255]", opaque = "false", executable = "false", readonly = "false", composed = "false", converted = "false", imselected = "false", placeholder = "false", `selection-placeholder` = "false", mathvariant = "normal", fence = "unset", separator = "unset", stretchy = "unset", symmetric = "unset", largeop = "unset", movablelimits = "unset", accent = "unset", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mn("8", mathvariant = "normal"), Typesetting:-mo("/", mathvariant = "normal", fence = "false", separator = "false", stretchy = "true", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mn("3", mathvariant = "normal")), Typesetting:-mo("*", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mn("2", mathvariant = "normal"), Typesetting:-mo("^", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1111111em", rspace = "0.1111111em"), Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mn("1", mathvariant = "normal"), Typesetting:-mo("/", mathvariant = "normal", fence = "false", separator = "false", stretchy = "true", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mn("2", mathvariant = "normal")), mathvariant = "normal")), Typesetting:-mo("*", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mi("m", italic = "true", mathvariant = "italic"), Typesetting:-mo("+", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2222222em", rspace = "0.2222222em"), Typesetting:-mn("1", mathvariant = "normal")), mathvariant = "normal"), Typesetting:-mo("*", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mrow(Typesetting:-mi("Γ", italic = "false", mathvariant = "normal"), Typesetting:-mo("&ApplyFunction;", family = "Courier", size = "10", bold = "false", italic = "false", underline = "false", subscript = "false", superscript = "false", foreground = "[0,0,0]", background = "[255,255,255]", opaque = "false", executable = "false", readonly = "false", composed = "false", converted = "false", imselected = "false", placeholder = "false", `selection-placeholder` = "false", mathvariant = "normal", fence = "unset", separator = "unset", stretchy = "unset", symmetric = "unset", largeop = "unset", movablelimits = "unset", accent = "unset", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mi("m", italic = "true", mathvariant = "italic"), Typesetting:-mo("+", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2222222em", rspace = "0.2222222em"), Typesetting:-mn("2", mathvariant = "normal"))), mathvariant = "normal")), Typesetting:-mo("*", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mrow(Typesetting:-mi("JacobiP", italic = "false", mathvariant = "normal"), Typesetting:-mo("&ApplyFunction;", family = "Courier", size = "10", bold = "false", italic = "false", underline = "false", subscript = "false", superscript = "false", foreground = "[0,0,0]", background = "[255,255,255]", opaque = "false", executable = "false", readonly = "false", composed = "false", converted = "false", imselected = "false", placeholder = "false", `selection-placeholder` = "false", mathvariant = "normal", fence = "unset", separator = "unset", stretchy = "unset", symmetric = "unset", largeop = "unset", movablelimits = "unset", accent = "unset", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mi("m", italic = "true", mathvariant = "italic"), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mn("1", mathvariant = "normal"), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mn("2", mathvariant = "normal"), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mn("8", mathvariant = "normal"), Typesetting:-mo("*", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mi("x", italic = "true", mathvariant = "italic")), Typesetting:-mo(" − ", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-mrow(Typesetting:-mn("2", mathvariant = "normal"), Typesetting:-mo("*", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.1666667em", rspace = "0.1666667em"), Typesetting:-mi("n", italic = "true", mathvariant = "italic")), Typesetting:-mo("+", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2222222em", rspace = "0.2222222em"), Typesetting:-mn("1", mathvariant = "normal"))), mathvariant = "normal"))))), mathvariant = "normal")), Typesetting:-mo(",", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mn("0", mathvariant = "normal")), mathvariant = "normal"))), Typesetting:-mspace(height = "0.0ex", width = "0.5em", depth = "0.0ex", linebreak = "decreaseindentnewline"), Typesetting:-mo("end proc", bold = "true", mathvariant = "bold", fontweight = "bold", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em")), Typesetting:-mo("&comma;", mathvariant = "normal", fence = "false", separator = "true", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.3333333em"), Typesetting:-mrow(Typesetting:-mi("x", italic = "true", mathvariant = "italic"), Typesetting:-mo("&map;", mathvariant = "normal", fence = "false", separator = "false", stretchy = "true", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2777778em", rspace = "0.2777778em"), Typesetting:-mrow(Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mn("1", mathvariant = "normal"), Typesetting:-mo("&minus;", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2222222em", rspace = "0.2222222em"), Typesetting:-mi("x", italic = "true", mathvariant = "italic")), mathvariant = "normal"), Typesetting:-mo("&InvisibleTimes;", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.0em", rspace = "0.0em"), Typesetting:-msup(Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mi("x", italic = "true", mathvariant = "italic"), Typesetting:-mo("&plus;", mathvariant = "normal", fence = "false", separator = "false", stretchy = "false", symmetric = "false", largeop = "false", movablelimits = "false", accent = "false", lspace = "0.2222222em", rspace = "0.2222222em"), Typesetting:-mn("1", mathvariant = "normal")), mathvariant = "normal"), Typesetting:-mn("2", mathvariant = "normal"), superscriptshift = "0"))))

piecewise(0 <= t and t <= 1/4, (32/3)*2^(1/2)*(-3+20*t), 0)

local Psi:=x->Array([seq(seq(psi(i,j,x),j=0..4-1),i=1..2^(2-1))] )^+:
Psi(4/10);
w(x);
psi(-1,0,x);
psi(5,0,x);
psi(0,4,x);

Vector(8, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = (8/3)*sqrt(2), (6) = 0, (7) = -(1008/25)*sqrt(2), (8) = -(8192/125)*sqrt(2)})

(1-t)*(t+1)^2

Error, invalid input: psi expects its 1st argument, n, to be of type nonnegint, but received -1

Error, (in psi) expecting first parameter n to be less than or equal to 4, but received 5

Error, (in psi) expecting second parameter m to be less than or equal to 3, but received 4

functionB(-3,4,1,2);

Error, invalid input: functionB expects its 1st argument, k, to be of type nonnegint, but received -3

functionB(3,4,1,Q);

Error, invalid input: functionB expects its 4th argument, gamma, to be of type realcons, but received Q

functionB(3,4,1,-2);

Error, (in functionB) expecting parameter epsilon>-1, but received 1

(psi,w) := functionB(1,4,0,0);
psi(0,0,0);
psi(-1,0,1);

proc (n::nonnegint, m::nonnegint, x) if 1 < n then error "expecting first parameter n to be less than or equal to %1, but received %2", 1, n end if; if 3 < m then error "expecting second parameter m to be less than or equal to %1, but received %2", 3, m end if; piecewise(n-1 <= x and x <= n, simplify(2*2^(1/2)*GAMMA(m+1)*JacobiP(m, 0, 0, 2*x-2*n+1)/(2*m+1)), 0) end proc, proc (x) options operator, arrow; 1 end proc

2*2^(1/2)

Error, invalid input: psi expects its 1st argument, n, to be of type nonnegint, but received -1



Download functionB_rev2.mw

@Maple_lover1 The interesting bit is making the first generated procedure (the first result from calling functionB) issue nice error messages if subsequently called with either n greater than the precomputed K or m greater than M-1.

I see two ways to accomplish that. The first (which I've done below) is have the n and m parameters be specified using the satisfies parameter-processing modifier. This is easier to code, although as you may see when there is a violation the error message is slightly awkward.

Another way (which I have not done here) is to substitute the piecewise into a template procedure that is coded to emit a more graceful error message. The piecewise itself can contain the protected global name equivalents for n,m,x after another substitution.

restart;

functionB:=proc(k::nonnegint,M::nonnegint,
                epsilon::realcons, gamma::realcons)
    local K,h,n,m,x,dummy;
    if not is(epsilon>-1)<>false then
      error "expecting parameter epsilon>-1, but received %1",epsilon;
    end if;
    if not is(gamma>-1)<>false then
      error "expecting parameter epsilon>-1, but received %1",epsilon;
    end if;
    K:=2^(k-1):
    h:=simplify(2^(epsilon+gamma+1)*GAMMA(epsilon+m+1)
                *GAMMA(gamma+m+1)/((2*m+1+epsilon+gamma)
                                   *m!*GAMMA(epsilon+gamma+1)))
         assuming n::nonnegint, n<=K, m::nonnegint, m<=M-1;
    unapply(piecewise((n-1)/K <= x and x <= n/K,
                      'simplify'(2^(k/2)*h
                                 *JacobiP(m,epsilon,gamma,2^(k)*x-2*n+1)),
                      0),
         [n::And(nonnegint,satisfies(subs(dummy=K,u->u<=dummy))),
          m::And(nonnegint,satisfies(subs(dummy=M-1,u->u<=dummy))),x]),
    unapply((1-x)^(epsilon)*(1+x)^gamma, [x]);
end proc:

(psi,w):=functionB(3,4,1,2);
local Psi:=x->Array([seq(seq(psi(i,j,x),j=0..4-1),i=1..2^(2-1))] )^+:
Psi(4/10);
w(x);
psi(-1,0,x);
psi(5,0,x);
psi(0,4,x);

psi, w := proc (n::(`and`('nonnegint', satisfies(proc (u) options operator, arrow; u <= 4 end proc))), m::(`and`('nonnegint', satisfies(proc (u) options operator, arrow; u <= 3 end proc))), x) options operator, arrow; piecewise((1/4)*n-1/4 <= x and x <= (1/4)*n, simplify((8/3)*sqrt(2)*(m+1)*GAMMA(2+m)*JacobiP(m, 1, 2, 8*x-2*n+1)), 0) end proc, proc (x) options operator, arrow; (1-x)*(x+1)^2 end proc

Vector[column](%id = 18446884443842064502)

(1-x)*(x+1)^2

Error, invalid input: psi expects its 1st argument, n, to be of type And(nonnegint, satisfies(proc (u) options operator, arrow; u <= 4 end proc)), but received -1

Error, invalid input: psi expects its 1st argument, n, to be of type And(nonnegint, satisfies(proc (u) options operator, arrow; u <= 4 end proc)), but received 5

Error, invalid input: psi expects its 2nd argument, m, to be of type And(nonnegint, satisfies(proc (u) options operator, arrow; u <= 3 end proc)), but received 4

functionB(-3,4,1,2);

Error, invalid input: functionB expects its 1st argument, k, to be of type nonnegint, but received -3

functionB(3,4,1,Q);

Error, invalid input: functionB expects its 4th argument, gamma, to be of type realcons, but received Q

functionB(3,4,1,-2);

Error, (in functionB) expecting parameter epsilon>-1, but received 1

(psi,w) := functionB(1,4,0,0);
psi(0,0,0);
psi(-1,0,1);

psi, w := proc (n::(`and`('nonnegint', satisfies(proc (u) options operator, arrow; u <= 1 end proc))), m::(`and`('nonnegint', satisfies(proc (u) options operator, arrow; u <= 3 end proc))), x) options operator, arrow; piecewise(n-1 <= x and x <= n, simplify(2*sqrt(2)*GAMMA(m+1)*JacobiP(m, 0, 0, 2*x-2*n+1)/(2*m+1)), 0) end proc, proc (x) options operator, arrow; 1 end proc

2*2^(1/2)

Error, invalid input: psi expects its 1st argument, n, to be of type And(nonnegint, satisfies(proc (u) options operator, arrow; u <= 1 end proc)), but received -1



Download functionB_rev1.mw

By the way, how do you expect functionB to be used by someone? If it is to be invoked many times on-the-fly in the same session with (occasionally, or often) the exact same arguments then it might benefit performancewise to give option remember to functionB. (Ie, memoization)

@Maple_lover1 The reworking of the mechanisms to allow the old table=based orthopoly package to be used more like a module-based package is somewhat goofy. But then, so are table-based packages themseleves.

You could experiment with it done as follows:

FunctionC:=proc(k,M) local K,n,m,x;
uses O=orthopoly:
    K:=2^(k-1);

    unapply(piecewise((n-1)/K <= x and x <= n/K,
            2^((k+1)/2)/sqrt(Pi)*O['':-H''](m,2^(k)*x-2*n+1), 0),
            [n,m,x])
  end proc:

Have a look at the output from a call like, say, FunctionC(3) and test it. (You may wish to stress-test against possibilities of the variable name H being previously assigned.) I don't much care for the procedure generated by the call orthopoly:-H(m,...) where m is an unassigned name.

There's no real difference between between w:=(x)->1; and w:=x->1; except for source tidiness and legibility.

I prefer to pass the independent variable names into unapply in a list, for clarity and legibility. I don't care for passing them as an unadorned sequence -- partially because unapply can also take some other option(s). If one's code has so many unapply calls that garbage collection of the extra list is even noticeable -- or if that list of variables is huge -- then there are surely far more other serious programming difficulties to handle.

@jrive I had replaced the link in the Reply/Comment above (to the worksheet with its name ending in "3").

@jrive I added some variants. With the radicals "frozen" they become temporary names, thus allowing algsubs or simplify-with-side-relations to operate.

@jrive Here are a few ways to get that, using algsubs with the radicals frozen.

The first way uses frontend, and the second uses freeze/thaw. The second of those can also utilize simplify-with-side-relations rather than algsubs.

new_filter_solution_ac3.mw

@love-algebra Do you think that an explicit, exact, closed form solution exists, in the general case that a root other than t=0 exists?

How about a "black box" procedure that can take numeric values for parameters and return a numeric value for `t` (if such then exists...)?

What were you planning on doing with an explicit, exact symbolic answer?

@Carl Love I have edited the Answer and changed it from
  `%.`(A,b)
to
  A %. b
which is nicer, thanks.

(The precedence doesn't affect this example -- as it is -- even in Maple 2017.2.)
