## Solution of the boundary value problem f...

Maple

Example of Duffing equation with boundary conditions.
y'' + 0.2y' + y^3 - 0.3cos(s) = 0;
y(0) = y (2Pi);
y'(0) = y'(2Pi);
For convenience, we replace the original equation with a system of two first order equations:
--------------------------------------------------------------------------
x1'(t) = 2*Pi*x2(t);
x2'(t) = - 0.4*Pi*x2(t) - 2*Pi*x1(t)^3 +0.6*Pi*cos(2*Pi*t);
x1(0) = x1(1);
x2(0) = x2(1);
--------------------------------------------------------------------------
I have long wanted to apply an optimization package to solve a boundary value problem for ODE. The decision helped procedure for solving ODE, written by forum member vv.
It seems to me that two solutions have been found and that the solutions are weakly sensitive to the initial approximations. These are two closed trajectories. For example, these are points that belong to these solutions:
(0.5966963,  1.0482816) , ( - 0.3132584, 0.0664941).
I am wondering: are the solutions right, and how justified is the use of optimization methods for such tasks?
At the end of the program, the solution is checked on the original Duffing equation using standard Maple functions.   Duffing_equation_BC.mw

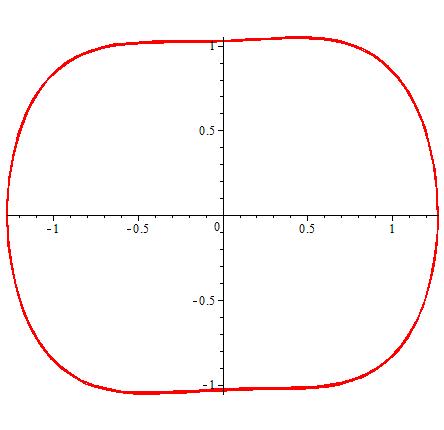

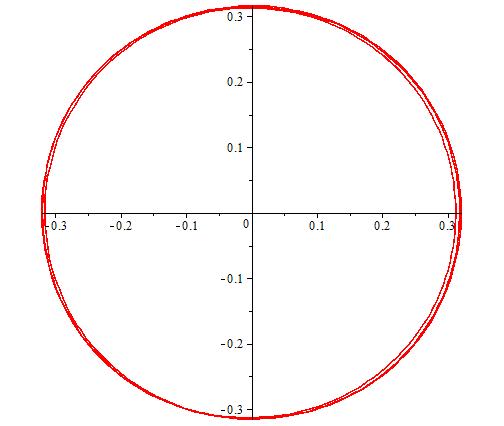

(In the figures, the trajectory bypass occurs three times.)

## To paint a triangle on a sphere...

Maple 15

My profile picture was formerly animation and looked like this:

It would be interesting to paint a triangle on a sphere. How can I do that?

## Mathematica vs Maple...

Maple

Inspired by the theme
http://www.mapleprimes.com/questions/219995-Finding-A-Convinient-Parametrization-Of-Surfaces
Examples in the Mathematica did Alexander Bannikov.
It is equidistant radius 0.1 to the surface

(x1 ^ 2 + x2 ^ 2-0.4) ^ 2 + (x3 + sin (x1 * x2 + x3)) ^ 4-0.1 = 0;

and an example of parameterization the same surface

https://vk.com/doc7819263_439432143?hash=36cf31d52c97e2e373&dl=7e4fa17a771dffb331

As I have understood from the words of Alexander Bannikov, parameterization was performed using the functions: RegionFunction, ContourPlot3D, ClippingPlanes.

It turns out that Maple functions inferior?

## ODE boundary value problem ...

It is known that ODE boundary value problem is similar to the problem of solving systems of nonlinear equations. Equations are the boundary conditions, and the variables are the values of the initial data.
For example:

y '' = f (x, y, y '), 0 <= x <= 1,

y (0) = Y0, y (1) = Y1;

Where y (1) = Y1 is the equation, and Z0 is variable, (y '(0) = Z0).

solve () and fsolve () are not directly suitable for such tasks. Directly should work the package of optimization in relation to a system of nonlinear equations. (Perhaps it has already been implemented in Maple.)
Personally, I am very small and unprofessional know Maple and cannot do it. Maybe there is someone who would be interested, and it will try to implement this approach to solving ODE boundary value problems?

## RootFinding[Isolate] vs solve...

Maple

For solving polynomial systems I used RootFinding[Isolate]. But after discussing the question http://www.mapleprimes.com/questions/211774-Roots-Of--Expz--1
I decided to compare Isolate and evalf(solve ([...], [...])). It seemed to me that solve some convenient. The only if in the equation there are integers as a real, they should be recorded with a decimal point. (For real solutions of this procedure should be used with (RealDomain).)  Examples:

SOLVE_ISOLATE.mw

I wonder why then the need Root Finding [Isolate]?
