You appear to be missing the multiplication sign between y(x) and (20-y(x)).

Are you looking for something remotely like this (not making any attempt at the Order question)?

des := diff(y(x), x) = (1/80)*(y(x))*(20-y(x)):
ics := y(0) = 1:
soln := dsolve({des, ics}, {y(x)}, series);
approx := eval(y(x), convert(soln,polynom));
exact := eval(y(x), dsolve({des, ics}, {y(x)}));
plot( [approx, exact], x=0..20, color=[red,blue], linestyle=[1,2] );

acer

Why do you think that the two forms that you first show are equal?

restart:

eq:=c=a+b*exp(-k):

s1 := solve( eq, k );

                                      /  a - c\
                             s1 := -ln|- -----|
                                      \    b  /

s2 := ln( b/(c-a) );

                                      /  b   \
                              s2 := ln|------|
                                      \-a + c/

eval( [s1, s2], [ a=c+1, b=1 ] );

                                [-I Pi, I Pi]

Your guess about the ordering of terms in a sum being according to lexicographic order is also not right, I believe. It's true that the behavior changed a few years ago for sets, but not for sums and products. I believe that it is still ordering by address, for which there is some evidence. Ie,

restart:
ln( b/(c-a) );
                                    /  b  \
                                  ln|-----|
                                    \c - a/

restart:
-a+c:
ln( b/(c-a) );
                                   /  b   \
                                 ln|------|
                                   \-a + c/

I believe that you can also force re-ordering of terms internal to the sum -- even in the same session -- through some creative use of the `sort` command.

acer

@Kitonum

restart:

H:=`%+`($1..20):

InertForm:-Display(H=InertForm:-Value(H));

@Aakanksha Ensure that you are trying it with single left-quotes, as,

convert(%,`+`);

and not with single right-quotes, as,

convert(%,'+');

As you have written it, what you're seeing it a consequence of premature evaluation. sum is receiving identically 0 as its first argument, not 0^m.

Now, '0^m' becomes zero as a result of automatic simplification. So delaying evaluation with quotes won't help.

But the prefix operator does allow the delay quotes. Eg,

sum( '`^`'(0,m), m=0..3 );
                               1

Here is something that looks a bit more like a bug, IMO,

sum( '`^`'(0,m), m=0..infinity );
                               0

acer

You might try Robert Israel's factrix command.  See this earlier post. Or do you have the goal of wanting something that also figures out the common factor for you?

acer

There is also Prof. Mike Monagan's recent item on the Application Center (and which was also linked from the last issue of the Maple Reporter).

acer

Your command worked fine for me in 18.02,

kernelopts(version);
   Maple 18.02, X86 64 WINDOWS, Oct 20 2014, Build ID 991181

acer

Try `mul` rather than `product`.

acer

The improvement in rendering of 2-D plots deserves a screenshot comparison.

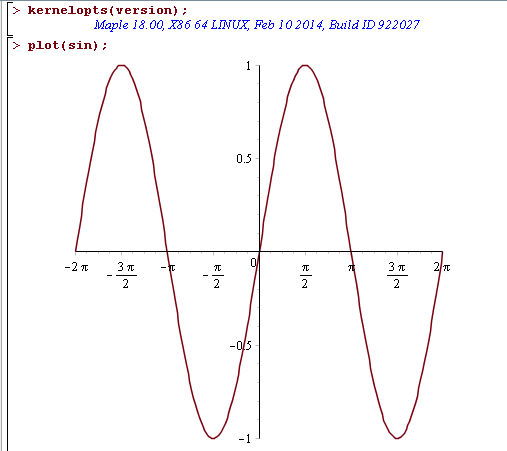

Here is Maple 18.00 (which also looks similar in previous versions).

Notice how the curve seems to be comprised of a collection of roughly joined segments. This was not really fixable by increasing numpoints (with or without adaptive plotting). The data is adequate to get a smooth .eps export; it's just the rendering in the GUI which is at issue.

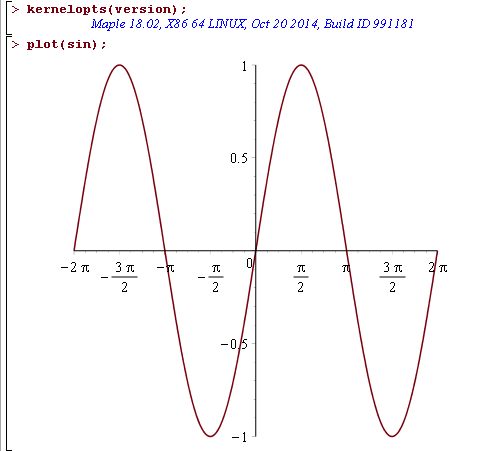

And here it is in 18.02.

@nm The usual thing would be to utilize something like libpng.

I see such a dll in the gstreamer folder in the bin.X86_64_WINDOWS folder of my Maple 18 (but not so with Linux 64bit).

It would be nice if this could be used by ImageTools:-Read.

[edit] This is indeed an oft requested feature. It may be of interest that DocumentTools:-SetProperty could apply a PNG image to a LabelComponent as far back as Maple 11.

@Carl Love The following are both results as "false", in Maple 18.01 (with no updated Physics add-on/patch).

restart:
with(Physics):
Physics:-Setup(mathematicalnotation = true):
Physics:-Setup(anticommutativeprefix = psi):
ap1 := Physics:-Creation(psi, 1, notation = explicit):
am1 := Physics:-Annihilation(psi, 1, notation = explicit):
ap2 := Physics:-Creation(psi, 2, notation = explicit):
am2 := Physics:-Annihilation(psi, 2, notation = explicit):
z1 := ap1 . am1 . ap2:

type(z1, specfunc(anything, `.`));
                             false

type(z1, ('`.`')(anything, anything));
                             false

kernelopts(version);
   Maple 18.01, X86 64 WINDOWS, Mar 28 2014, Build ID 935137

But in Maple 17.02 those results were both "true". Now, those both use `.` and not :-`.` so it seems that loading the Physics package has rebound `.`. I don't know what that package's author intends. In Maple 17.02 z1 comes out as a function call of Physics:-`.`, while in stock Maple 18.01 it comes out as a function call of Physics:-`*`.

I suggest that you use Embedded Components instead of Maplets , if you can, because amongst other things,

- It is much easier to code and learn.

- The resulting worksheet can run in the free MaplePlayer.

- The resulting worksheet can run inside Maple TA (and even be made "gradeable".

- The resulting worksheet can run under MapleNet (and, I am guessing) perhaps even in a browser, pluginless).

Now, you could set it up all by hand, the code behind some collection of Embedded Components.

Or you might be able to just write a procedure that accepts all the aspects/answers/choices as arguments and then draws its inferences and then draws/prints the Graph. And call the Explore command on a function call to that procedure.

ps. the parse command turns "12" into the integer 12, in Maple.

acer

Since your `err` is a procedure rather than an expression, should not that instead be called like,

GlobalSolve(err, 0 .. 1, 1 .. 20, 150 .. 250, 0 .. 1, 100 .. 15000, 0 .. .5, 0 .. 1, .5 .. 2, 1 .. 5);

Before you can get to that, you may have to deal with the case that the local `st1` inside `err` might not evaluate at certain values of t, for some parameter choices. Eg,

sol(parameters=[0.5, 10.0, 175.0, 175.0, 0.5, 200.0, 0.25, 0.5, 1.0, 2.5]):

sol(0.3);
  [t(0.3) = 0.3, y1(t)(0.3) = 0.210884321724614, y2(t)(0.3) = 0.,

    y3(t)(0.3) = 0.154662986526318, y4(t)(0.3) = 0.0455187827608038,

    y5(t)(0.3) = 0.0204226050767382, y6(t)(0.3) = 216.084667209242]

sol(0.6);
Error, (in unknown) cannot evaluate the solution further right of .41822011, probably a singularity

What do you want the objective procedure `err` to do, in such cases? Return infinity or a very large value? Do you know any tighter parameter ranges that allow you to push t up to 3600?

acer

@Sujaan Kunalan In your original post you had an equation with -2x_3, which would make the [1,3] entry of the Matrix as being -2. How come you are now using it as -1 instead?
